MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Tschudin
  • Model:

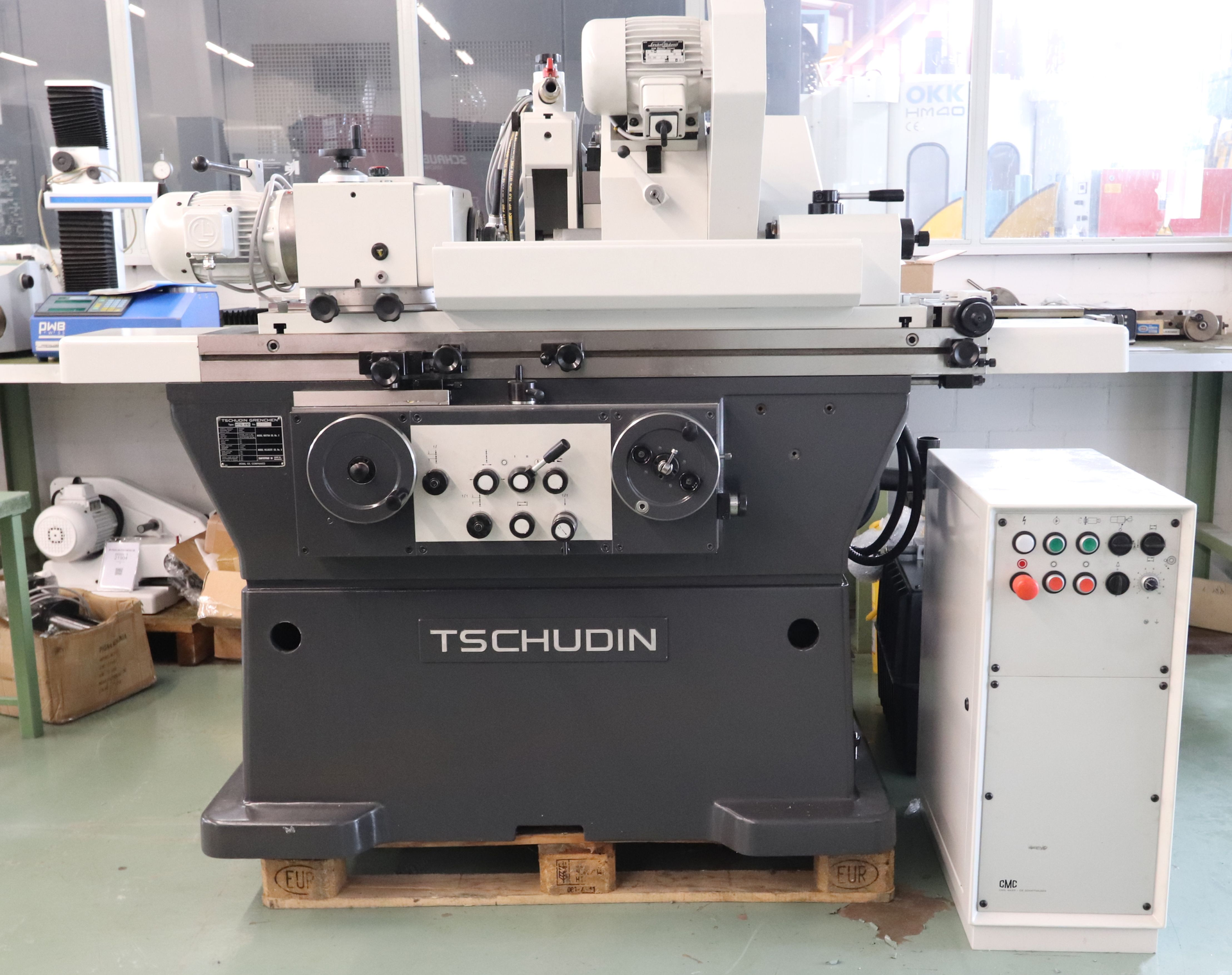

  • 021450 - TSCHUDIN HTG 410
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 100 mm.
Distance between centres: 400 mm.
Diameter: 350 mm.
Width: 1200 mm.
Bore: 127 mm.
number (steps): 3.
from: 65 t/min.
up to: 5 m/min.
rotatable: 360 °.
Spindle hole: 23 mm.
Spindle taper: 4 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: 9 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 2.5 CV.
Workhead spindle motor: 0.5 CV.
Total power required: 4 CV.
Machine's weight about: 2100 kg.
Length: 1600 mm.
Height: 1550 mm.
Spindle speeds: 23000 t/min.
