REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:

Model:

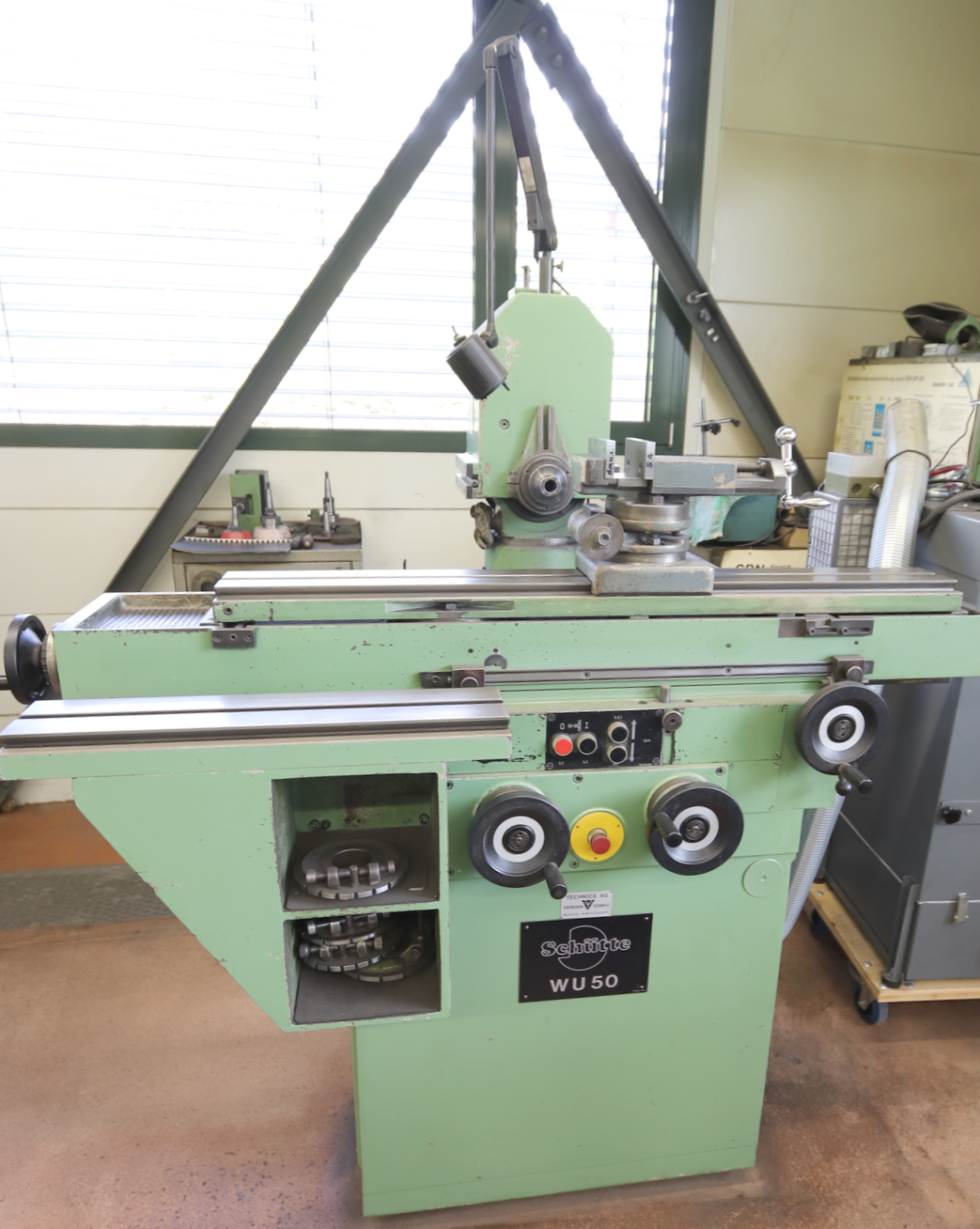

021449 - SCHÜTTE WU 50

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 115 mm.
Distance between centres: 720 mm.
Max. grinding diameter: 260 mm.
min.: 70 mm.
max: 370 mm.
Longitudinal way of table: 520 mm.
Transversal way of the table: 270 mm.
Vertical adjustment of grinding head: 300 mm.
Table swivels: 360 °.
horizontal: 360 °.
number (steps): 4.
from: 1100 t/min.
up to: 6000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 1.6 CV.
Machine's weight about: 840 kg.
Length: 1800 mm.
Width: 1400 mm.
Height: 1700 mm.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY
