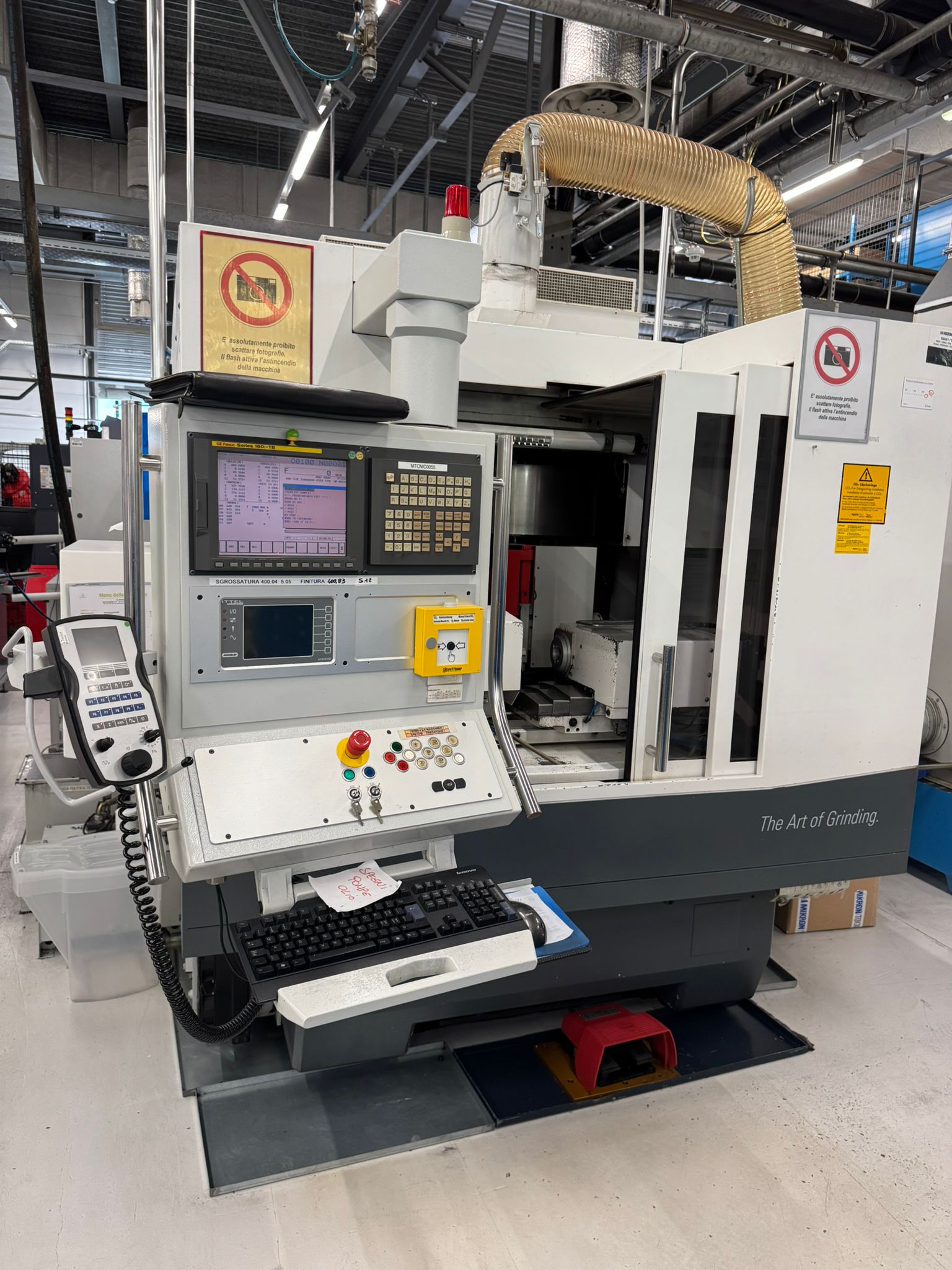

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:
  • 023190 - STUDER S 32 cnc
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 200 mm.
Weight: 50 kg.
Diameter: 400 mm.
Width: 3550 mm.
Bore: 127 mm.
B axis resolution max.: 1 °.
B axis swivelling range: -15 / 150 °.
Peripheral speed: 140 m/s.
Max. travel: 300 mm.
Resolution: 0.0001 mm.
Feed speed up: mm/min.
Feed range: 0.001 - 15000 mm/min.
Swivelling range: 0 - 30 °.
Taper in tailstock:: 4 CM.
Spindle stroke: 90 mm.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 6500 kg.
Length: 4’150 mm.
Height: 2100 mm.

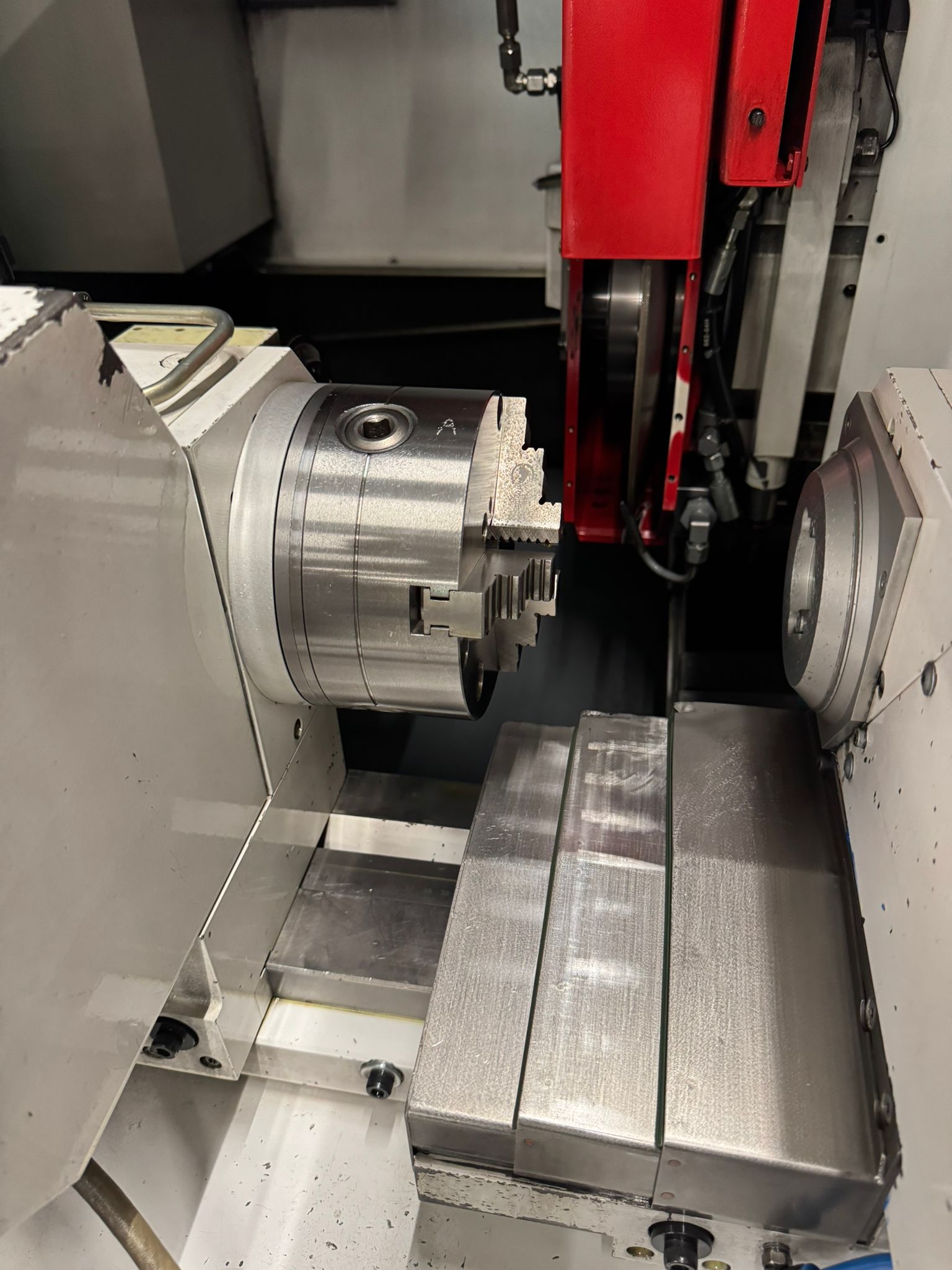

3-jaw chuck diameter: 160 mm.
