MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

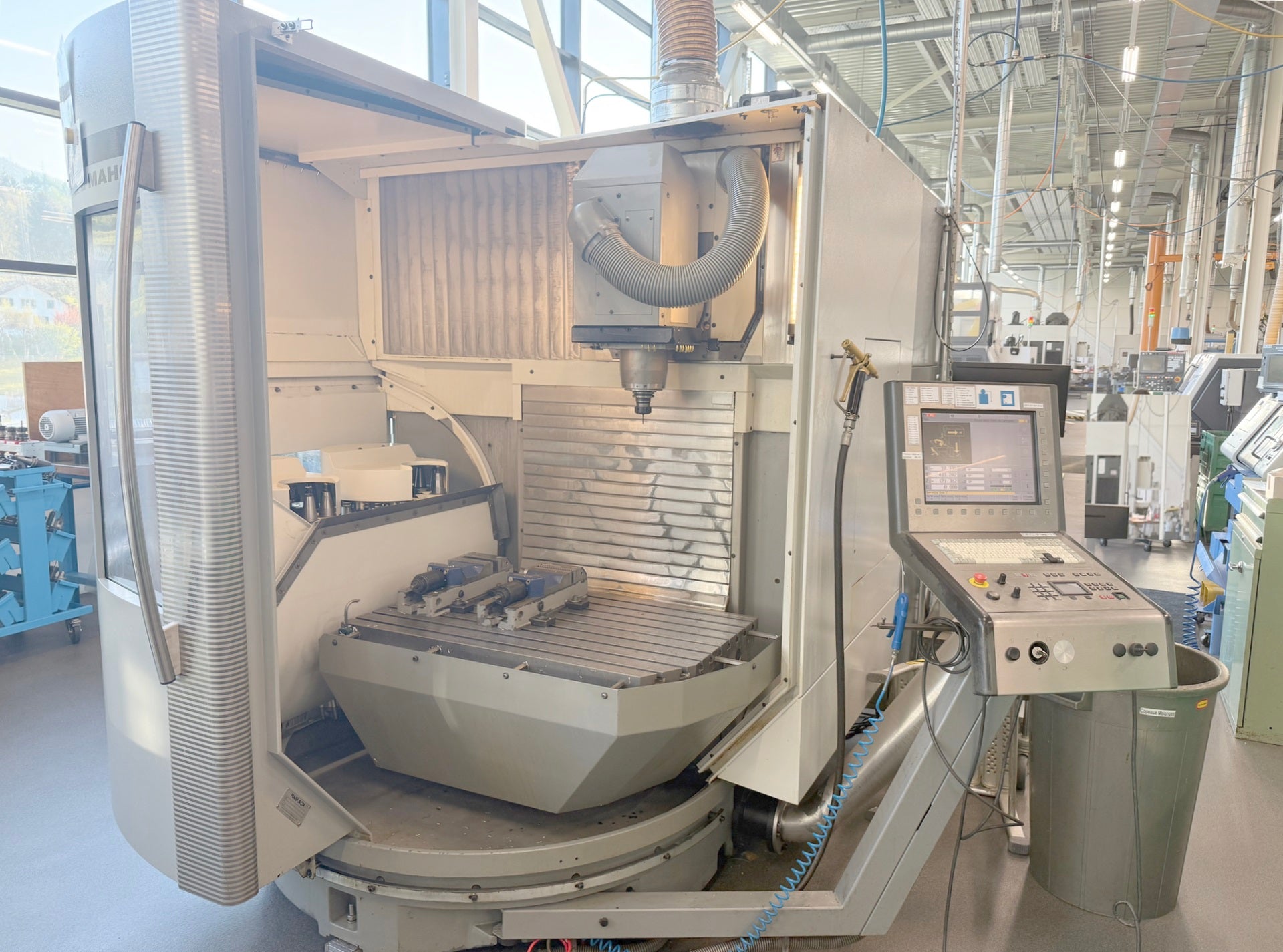

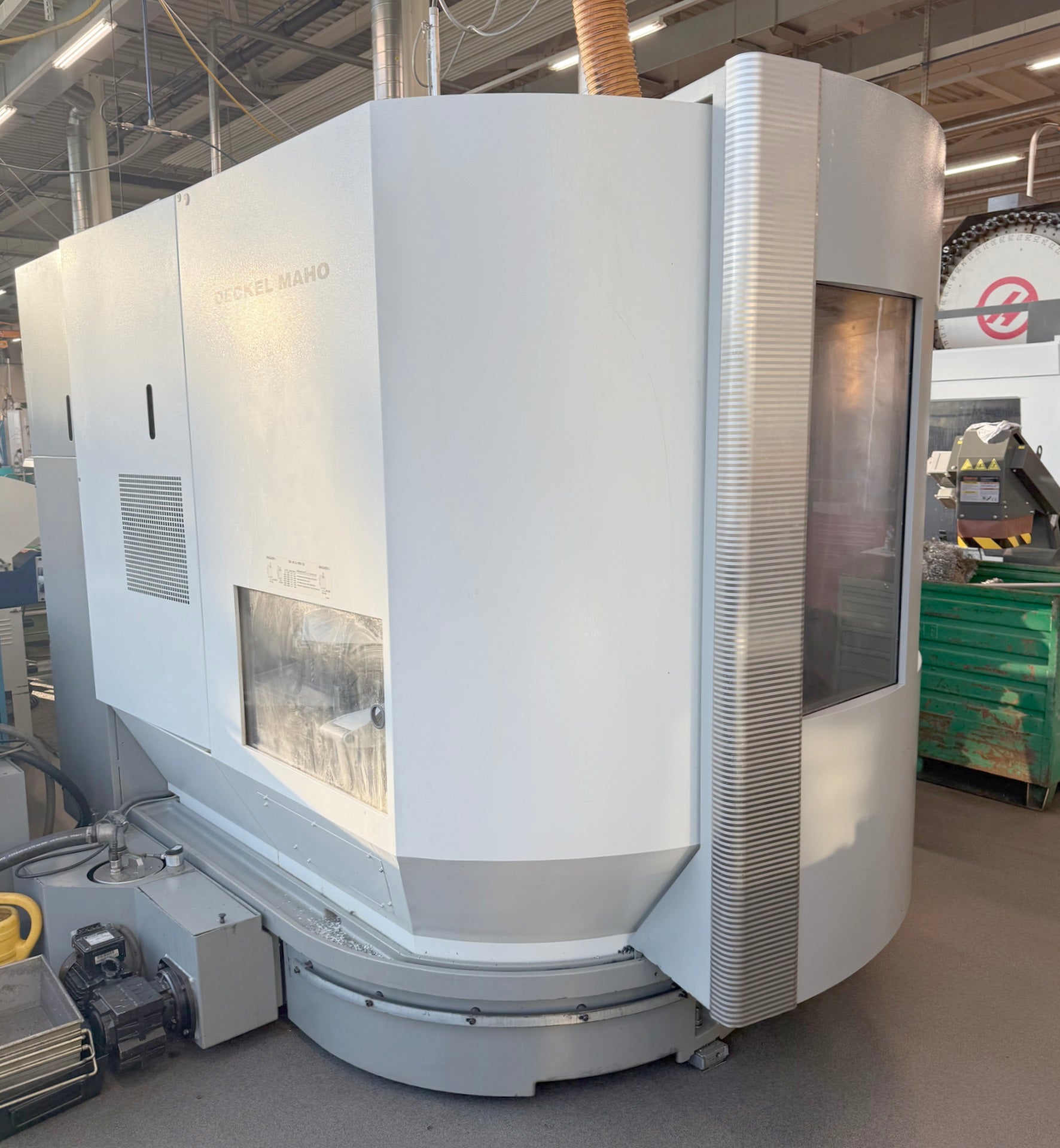

  • 023175 - DMG DMU 60 T
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

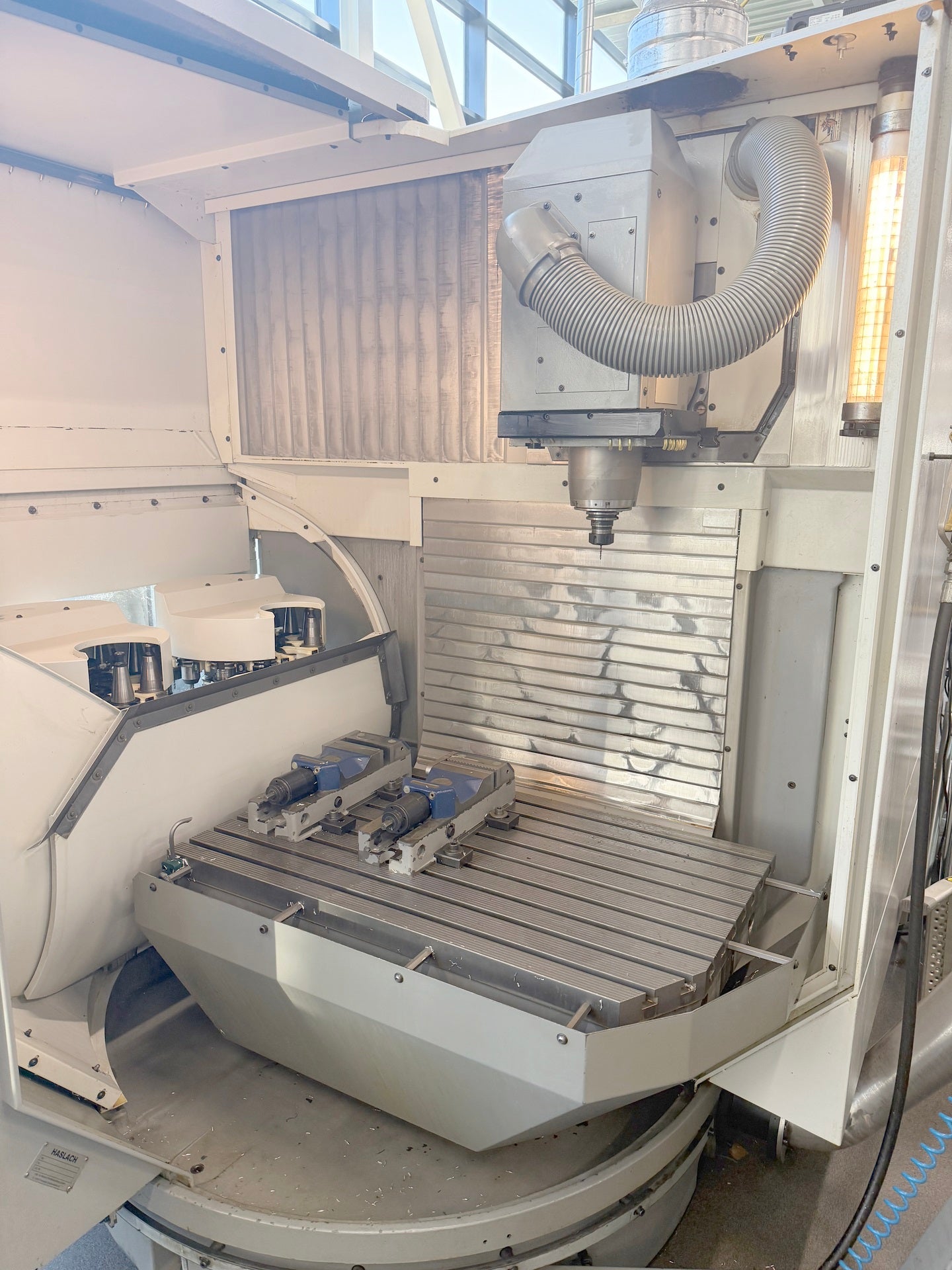

Table length: 1000 mm.
Table width: 600 mm.
Number of T-channels: 9.
Distance of the T-slots: 63 mm.
T-channel width: 14H7 mm.
Table load max.: 350 kg.
Longitudinal travel (X-axis): 630 mm.
Transversal travel (y-axis): 560 mm.
Vertical travel (z axis): 560 mm.

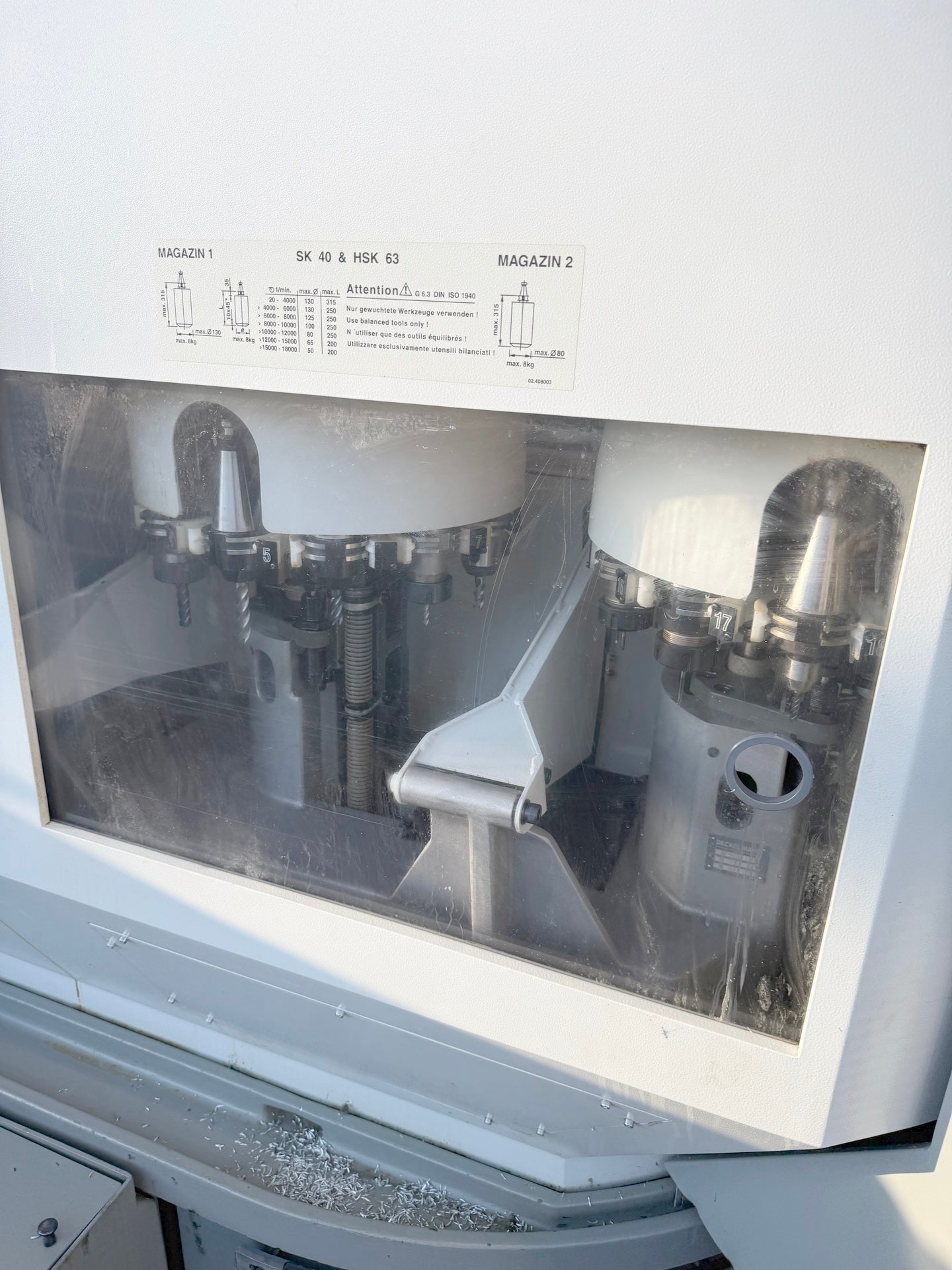

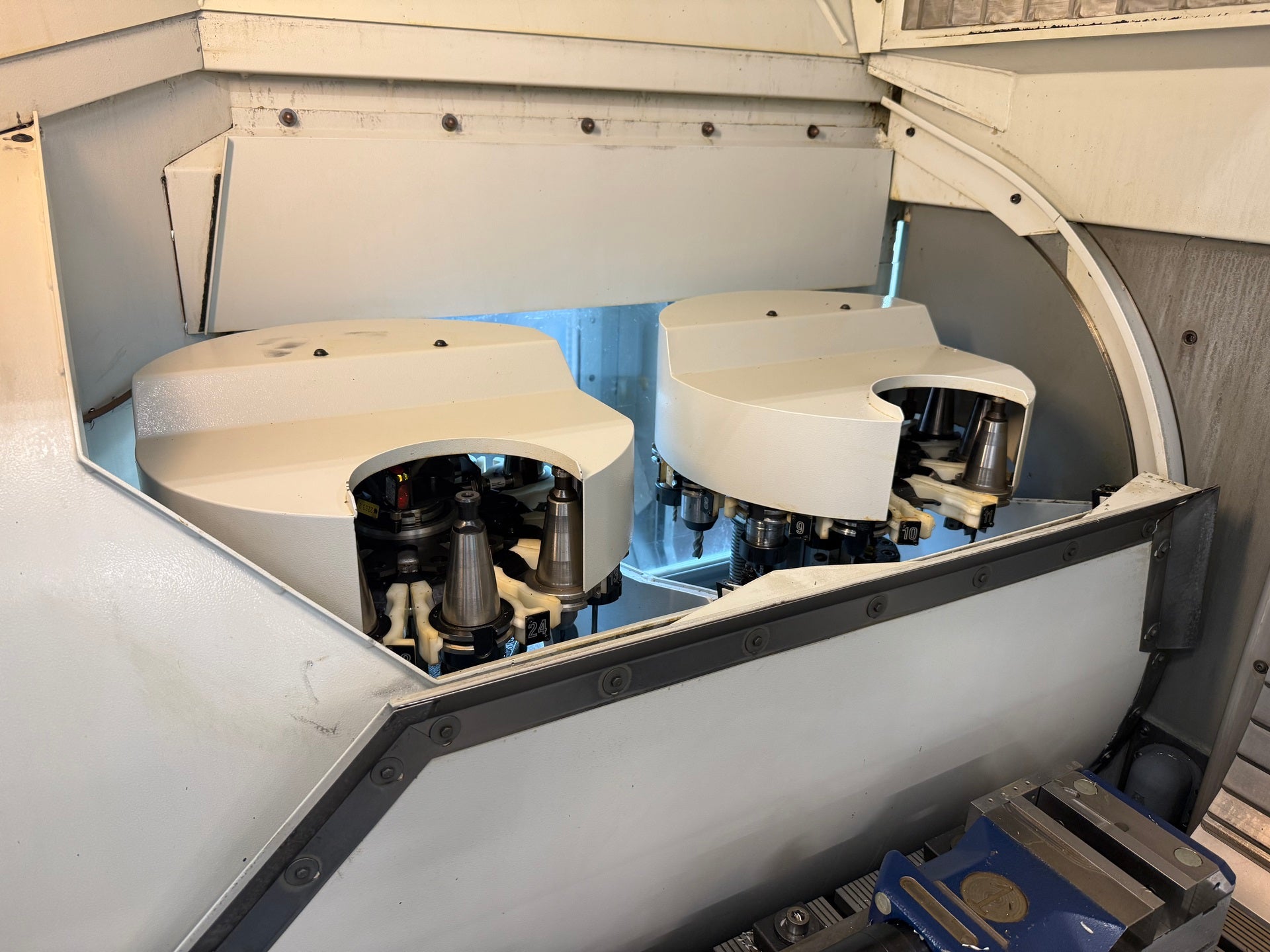

Number of tools: 20.
Tool diameter: 80 mm.
Diameter with free adjacent pockets: 130 mm.
Tool lenght: 315 mm.
Max. tool-weight: 8 kg.
Spindle nose SK: 40 DIN 69871.
from: 20 t/min.
up to: 12000 t/min.
Feed range: 20 - 10000 mm/min.
Rapid traverse: long.: 26 m/min.
Rapid traverse: transversal: 26 m/min.
Rapid traverse: vertical: 20 m/min.
Vertical quill travel: 90 mm.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 7.5 kW.
Machine's weight about: 6500 kg.
Length: 2880 mm.
Width: 2135 mm.
Height: 2827 mm.
