MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Ultra
  • Model:

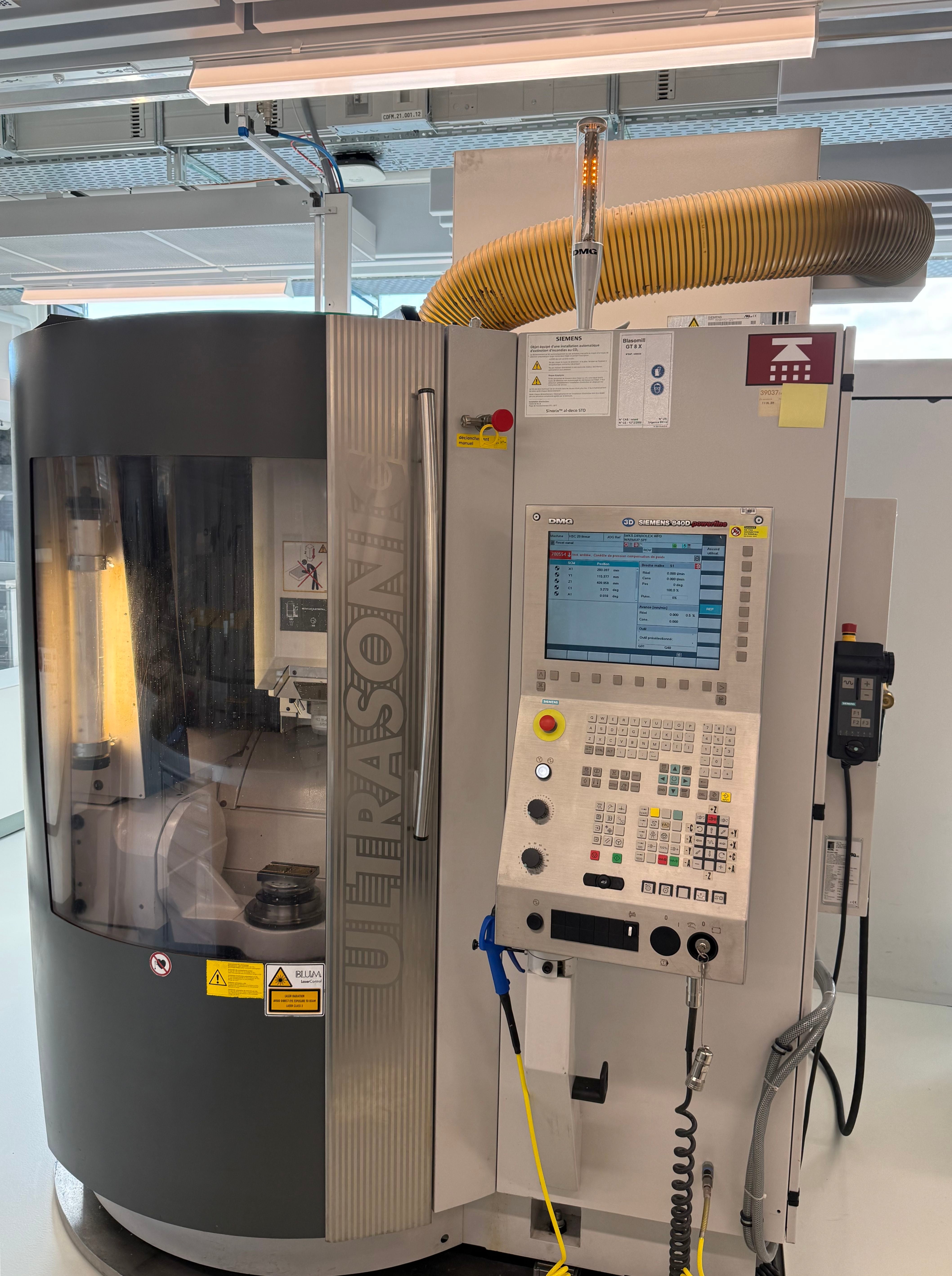

  • 023155 - DMG ULTRASONIC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.

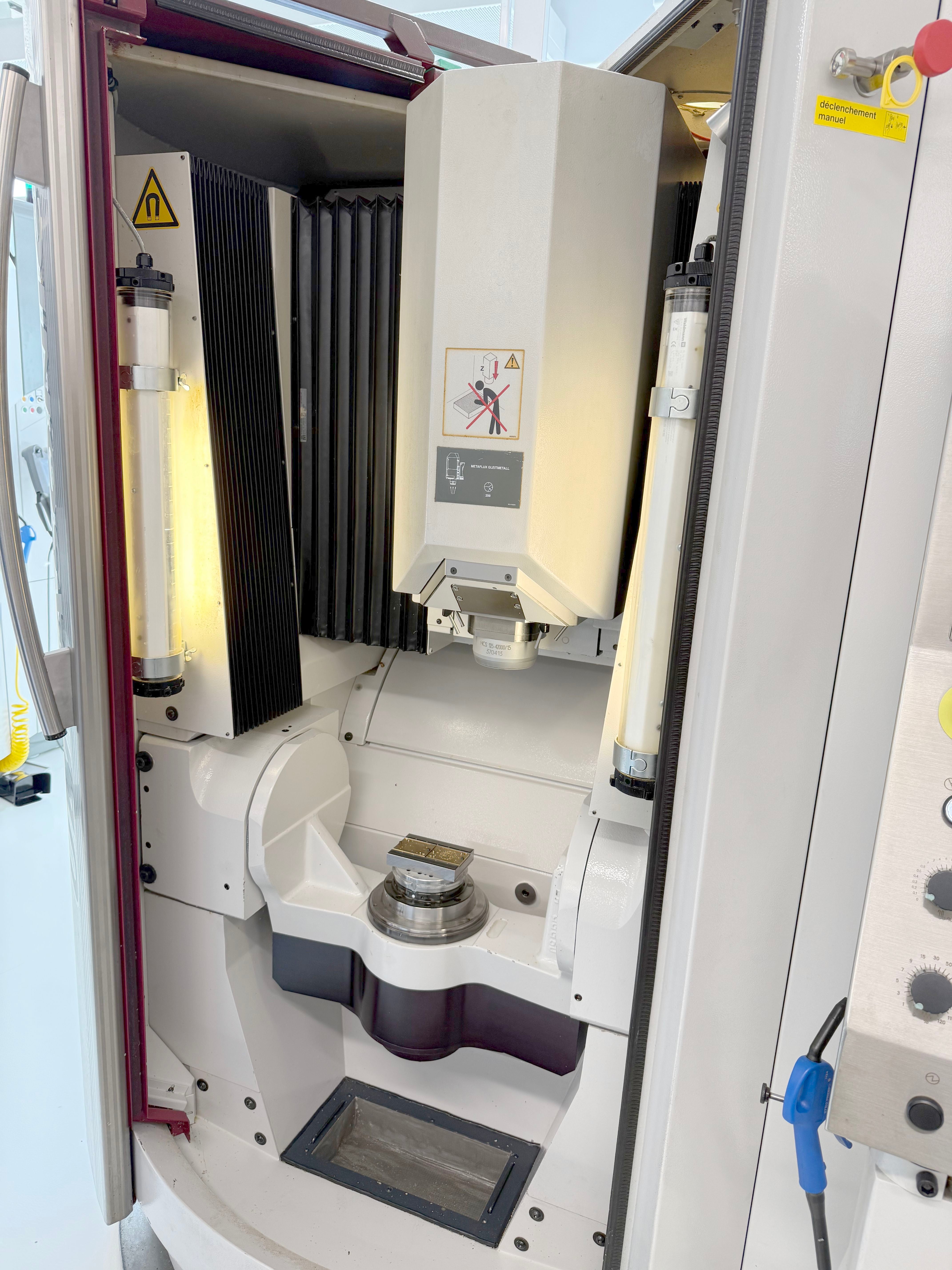

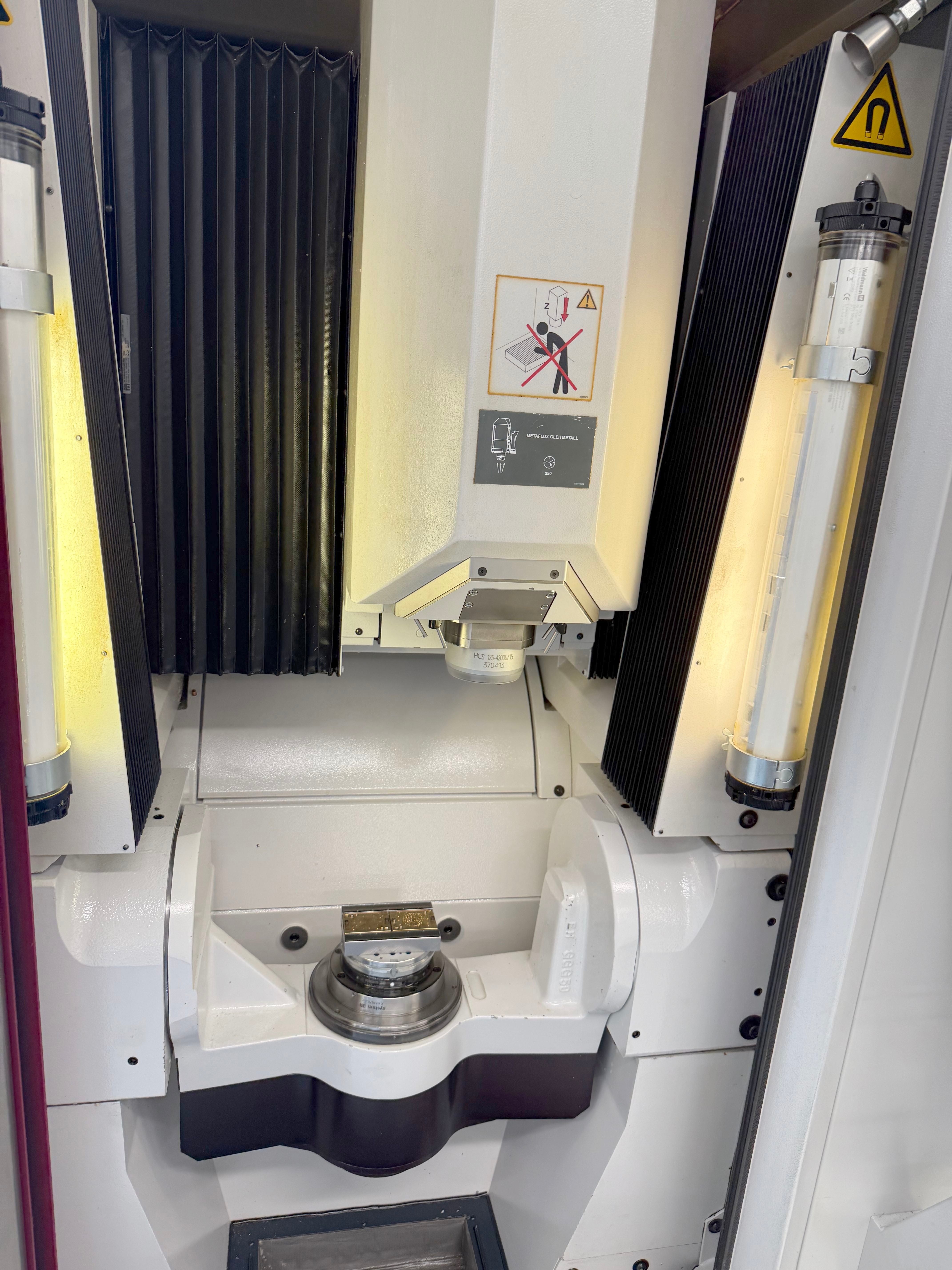

Circulary table diameter: 190 mm.
Table load max.: 10 kg.
Longitudinal travel (X-axis): 120 mm.
Transversal travel (y-axis): 120 mm.
Vertical travel (z axis): 200 mm.
Swivel angle (a-axis): -10 / +120 °.
C axis: 360 °.
Table speed: 150 t/min.
Tool magazine number of tool places: 60.
Tool diameter max.: 30 mm.
Tool lenght: 130 mm.
Average chip-to-chip time: 15 s.
Spindle nose: HSK: 32.
from: 0 t/min.
up to: 40000 t/min.
Feed range: 10000 mm/min.
Rapid traverse:: 10 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 25 kW.
Machine's weight about: 1800 kg.
Length: 2400 mm.
Width: 1600 mm.
Height: 1900 mm.
Zero-point clamping system: EROWA.

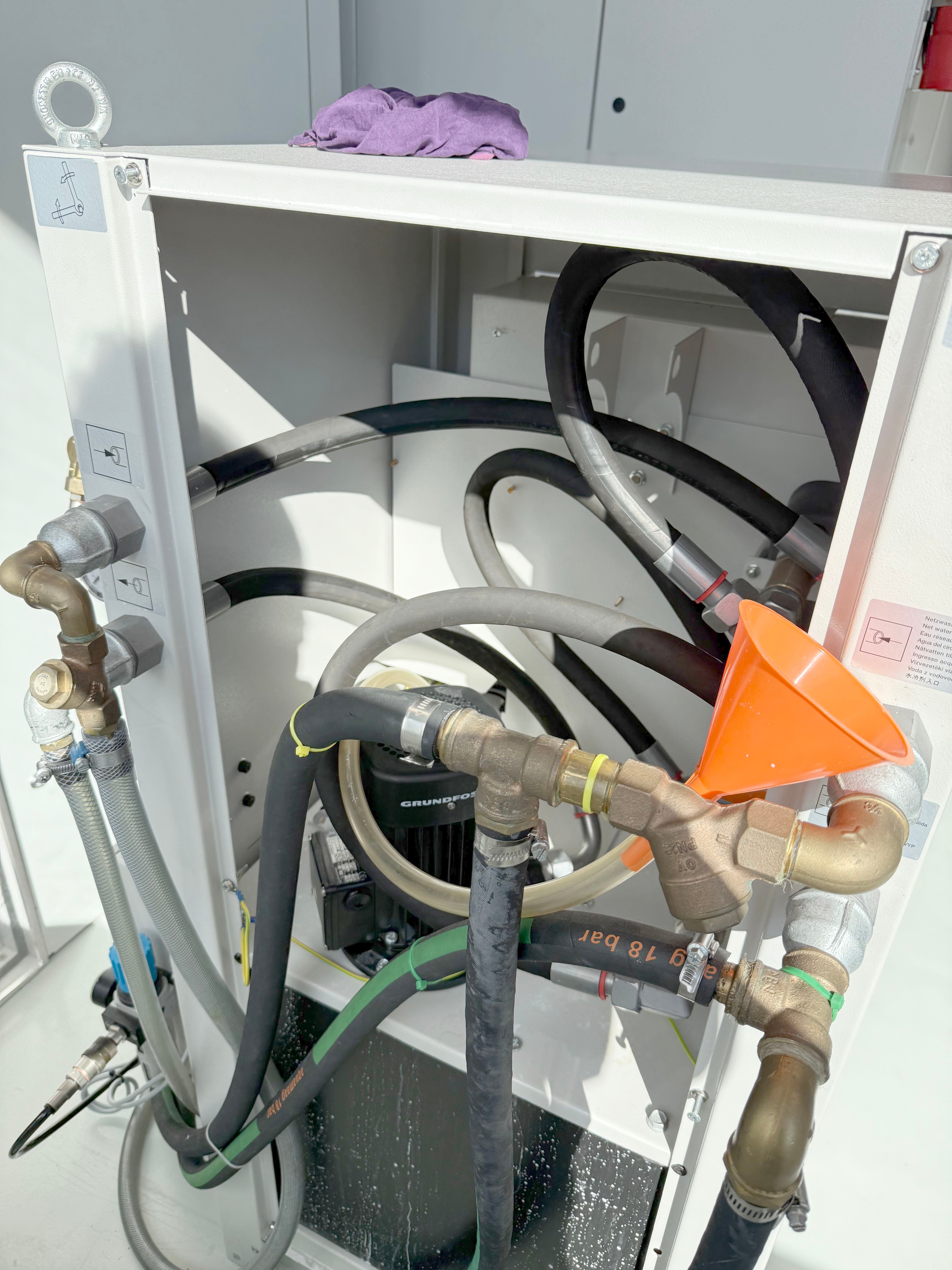

Coolant through spindle (cts): 40 bar.
Type: PH2/120.
Laser tool measurement: BLUM.
