MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • INDEX
  • Model:
  • 023112 - INDEX G 420
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

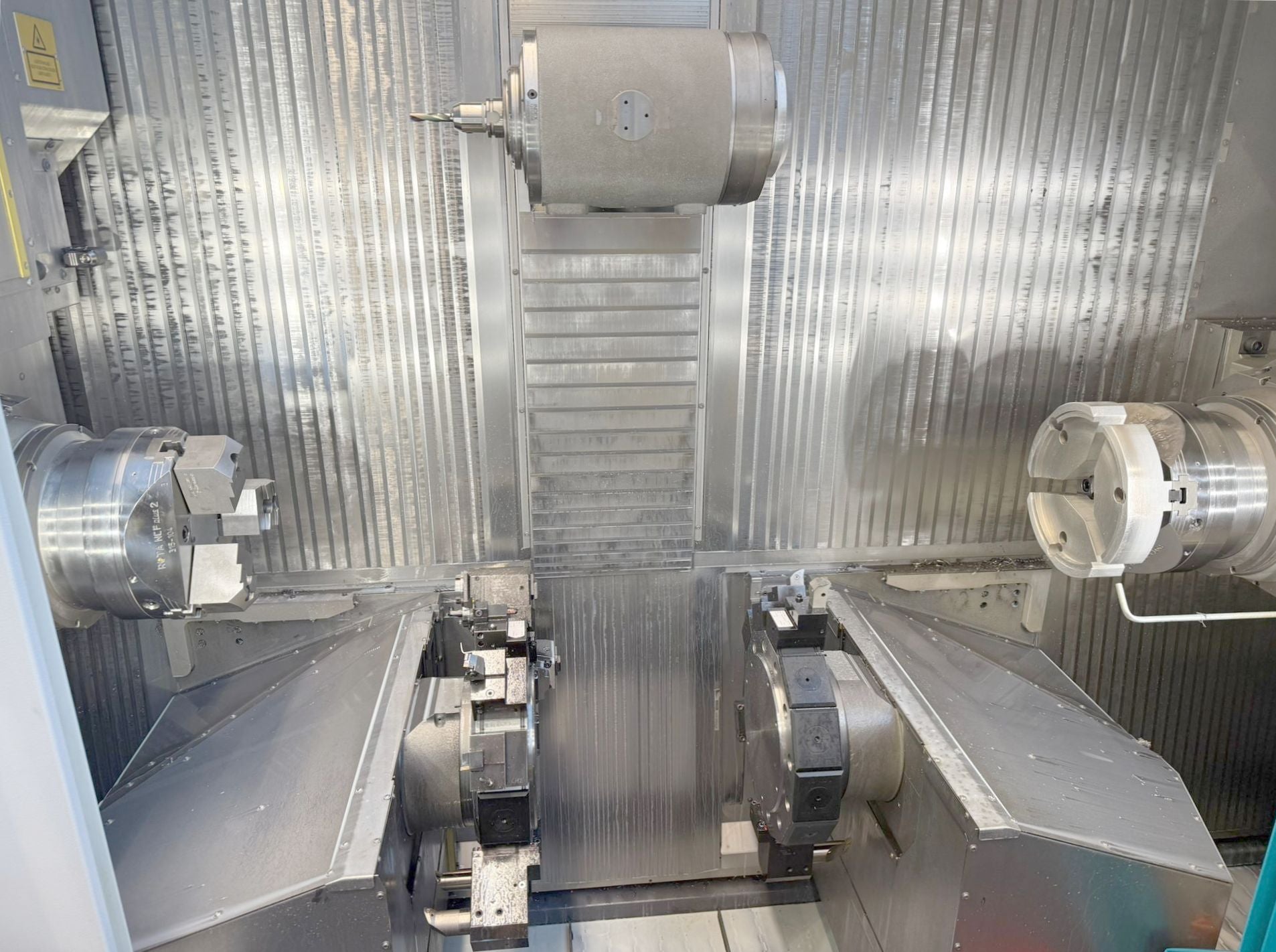

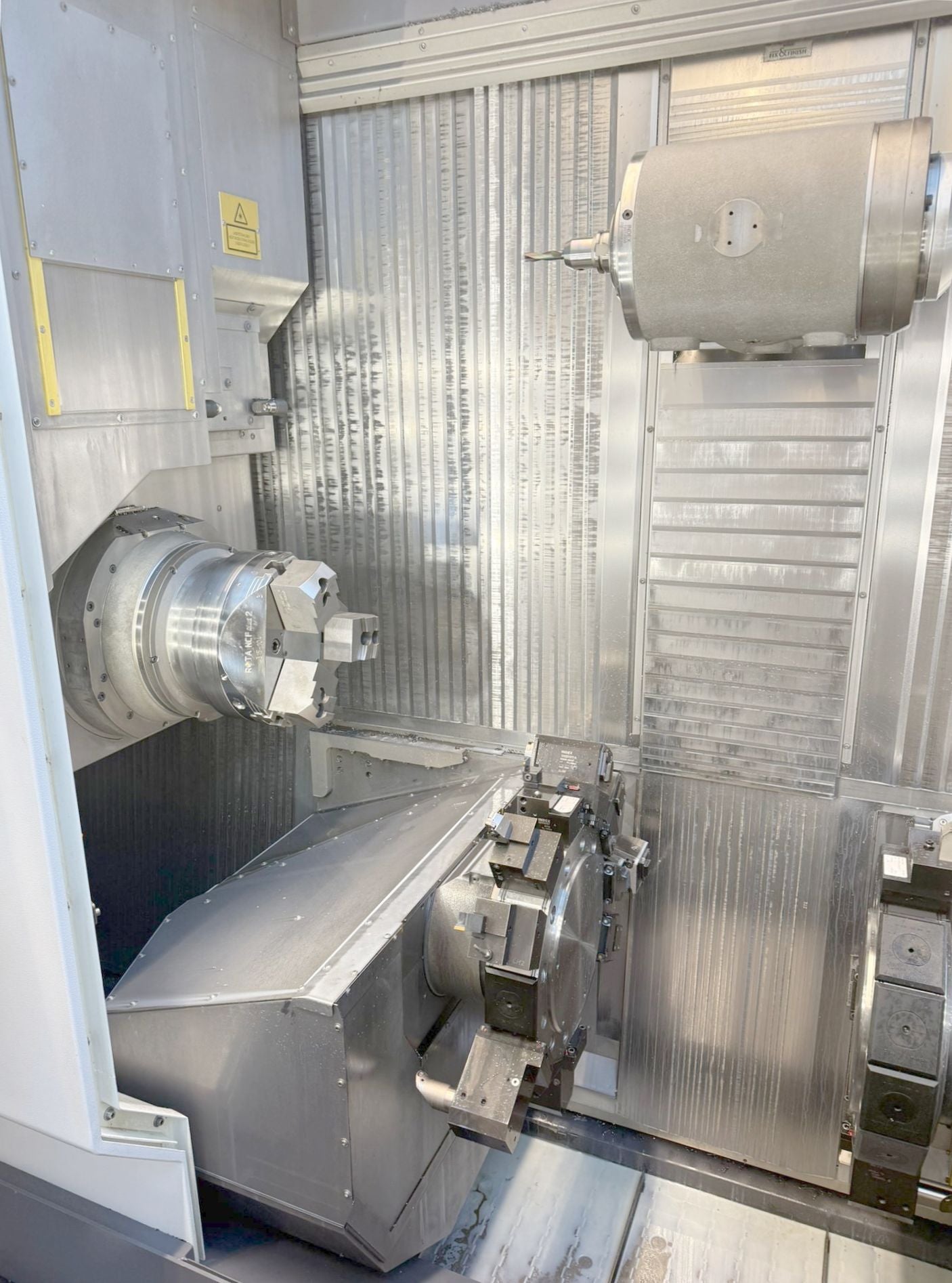

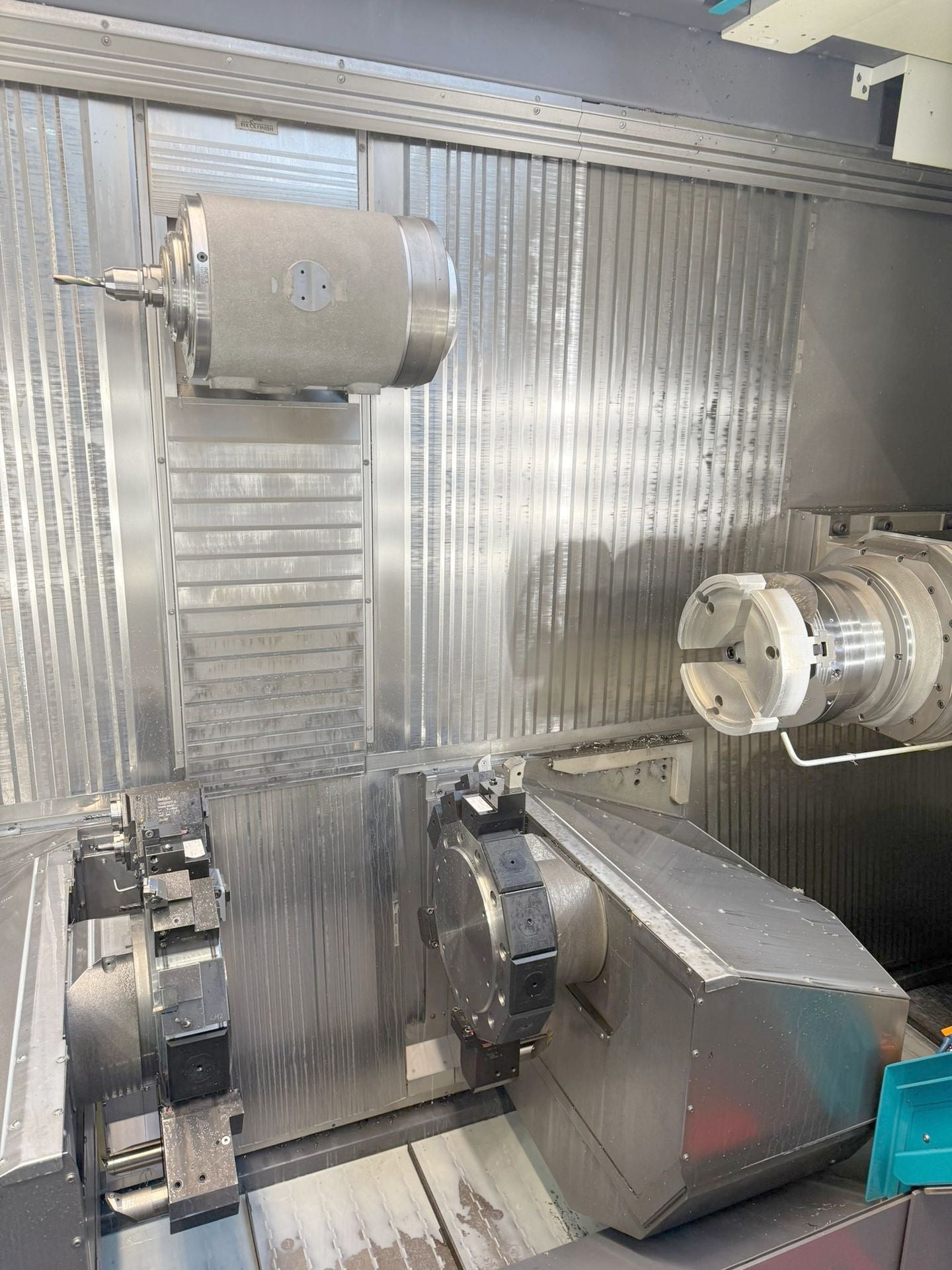

Number of turning spindles: 2.
Number of milling heads: 1.
Number of revolvers: 2.
Number of positions turret 1: 12.
Number of positions turret 2: 12.
Spindle speeds: 5400 t/min.
Spindle nose: HSK-A: 63.

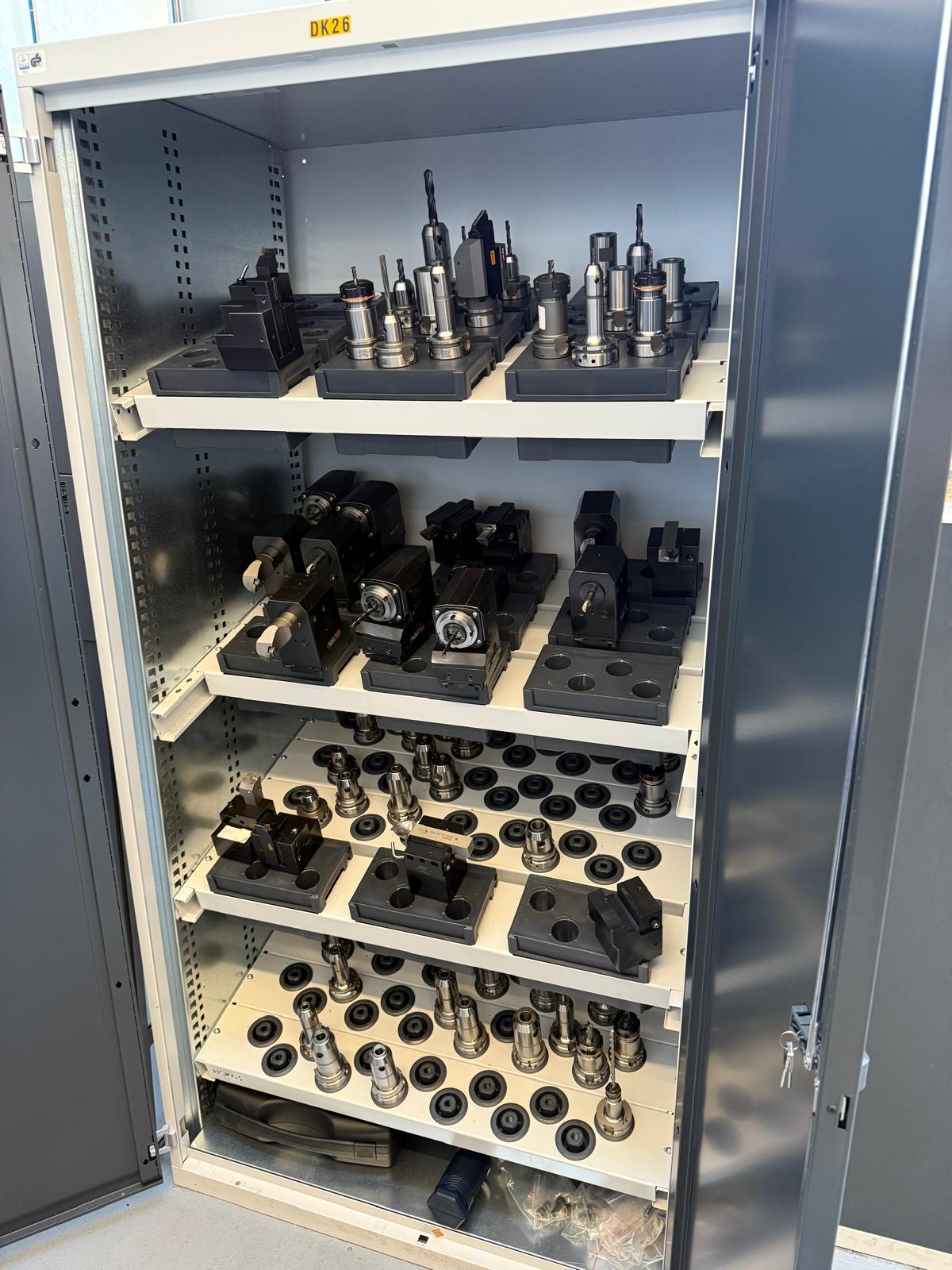

Tool changer: (number of tools): 115.
from: 0 t/min.
up to: 4000 t/min.
Spindle power: 34 kW.
Torque max.: 811 Nm.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 23000 kg.
Length: 5060 mm.
Width: 3’025 mm.
Height: 3165 mm.

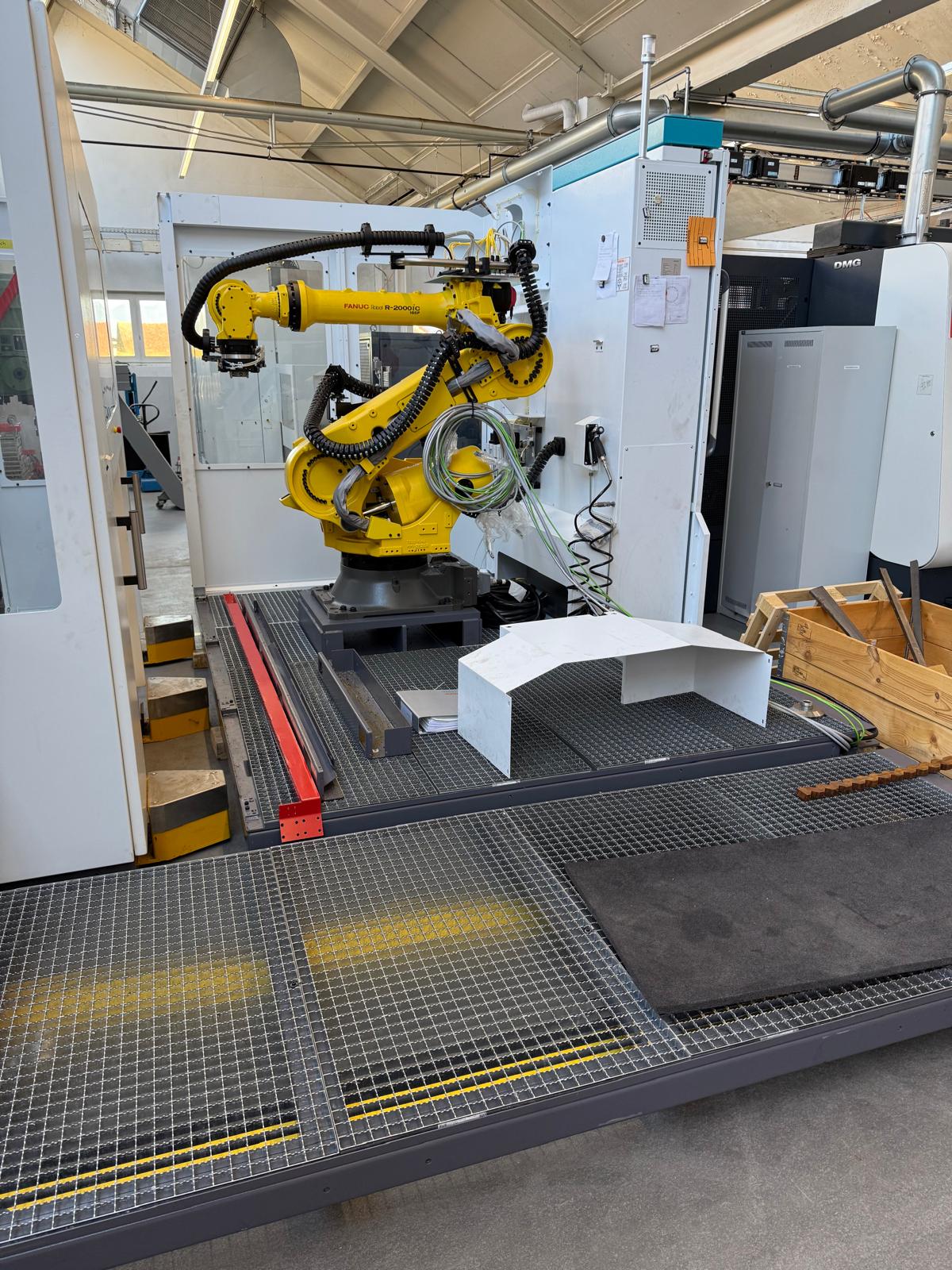

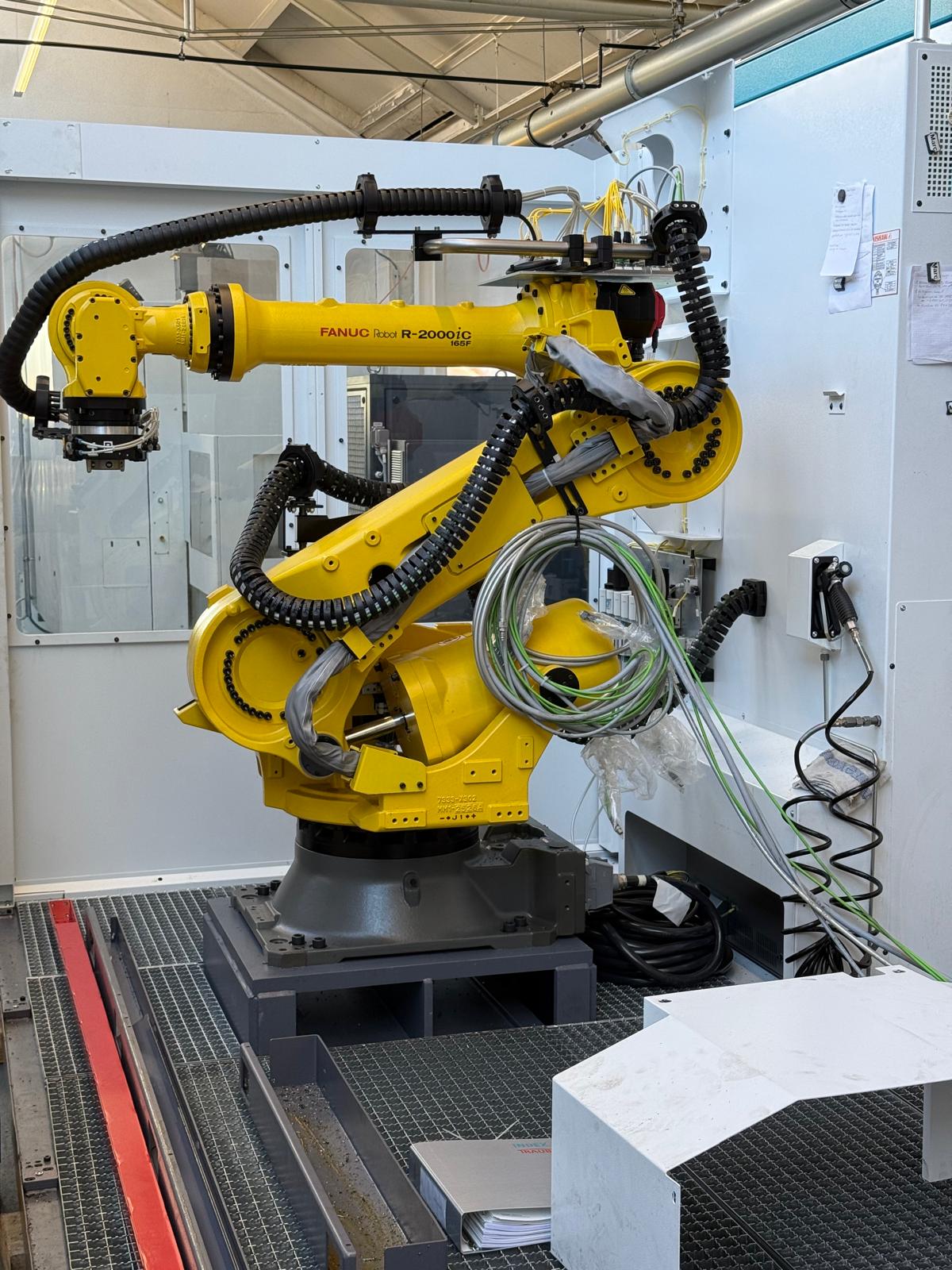

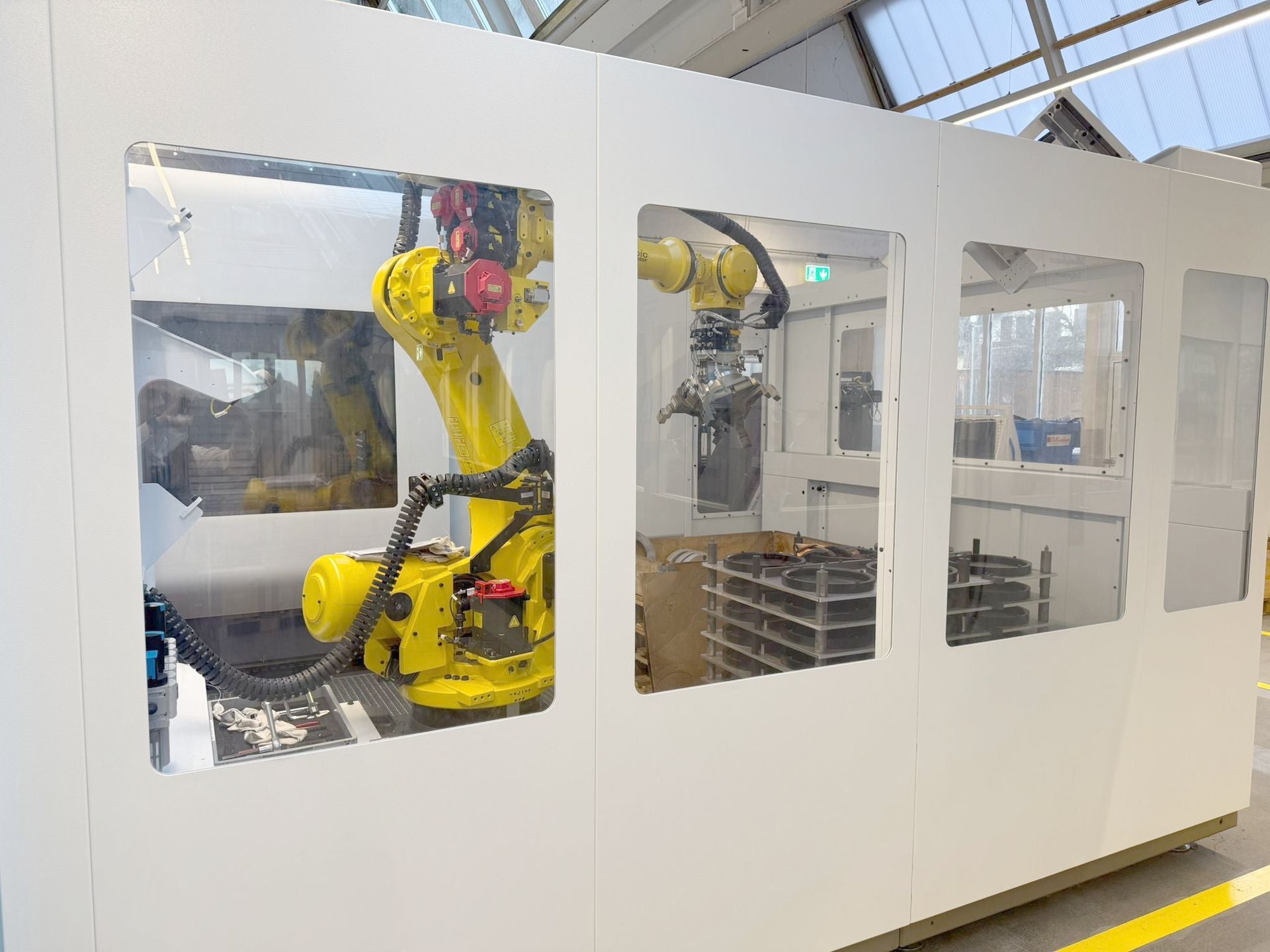

Loading roboter: FANUC.
