MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

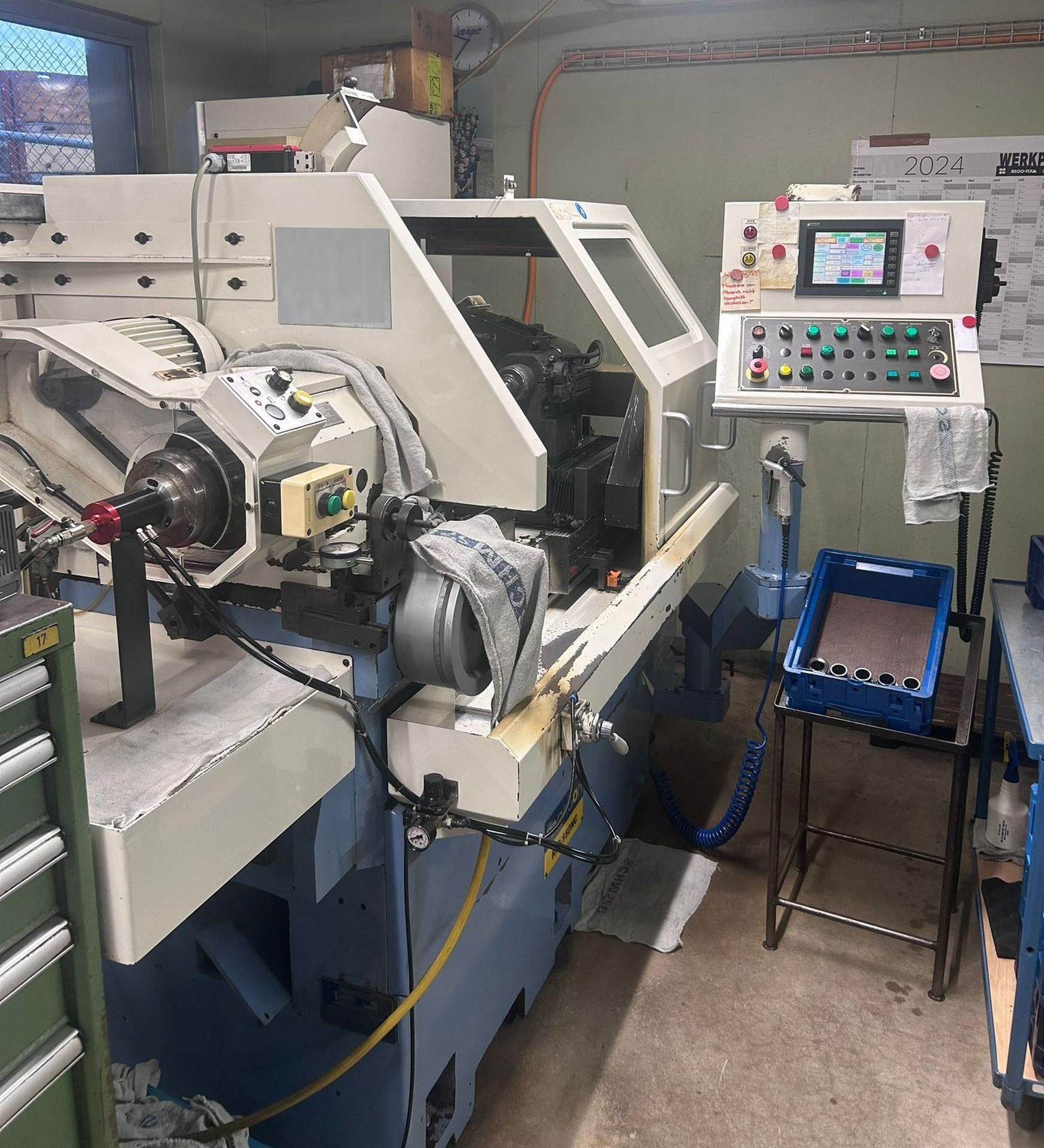

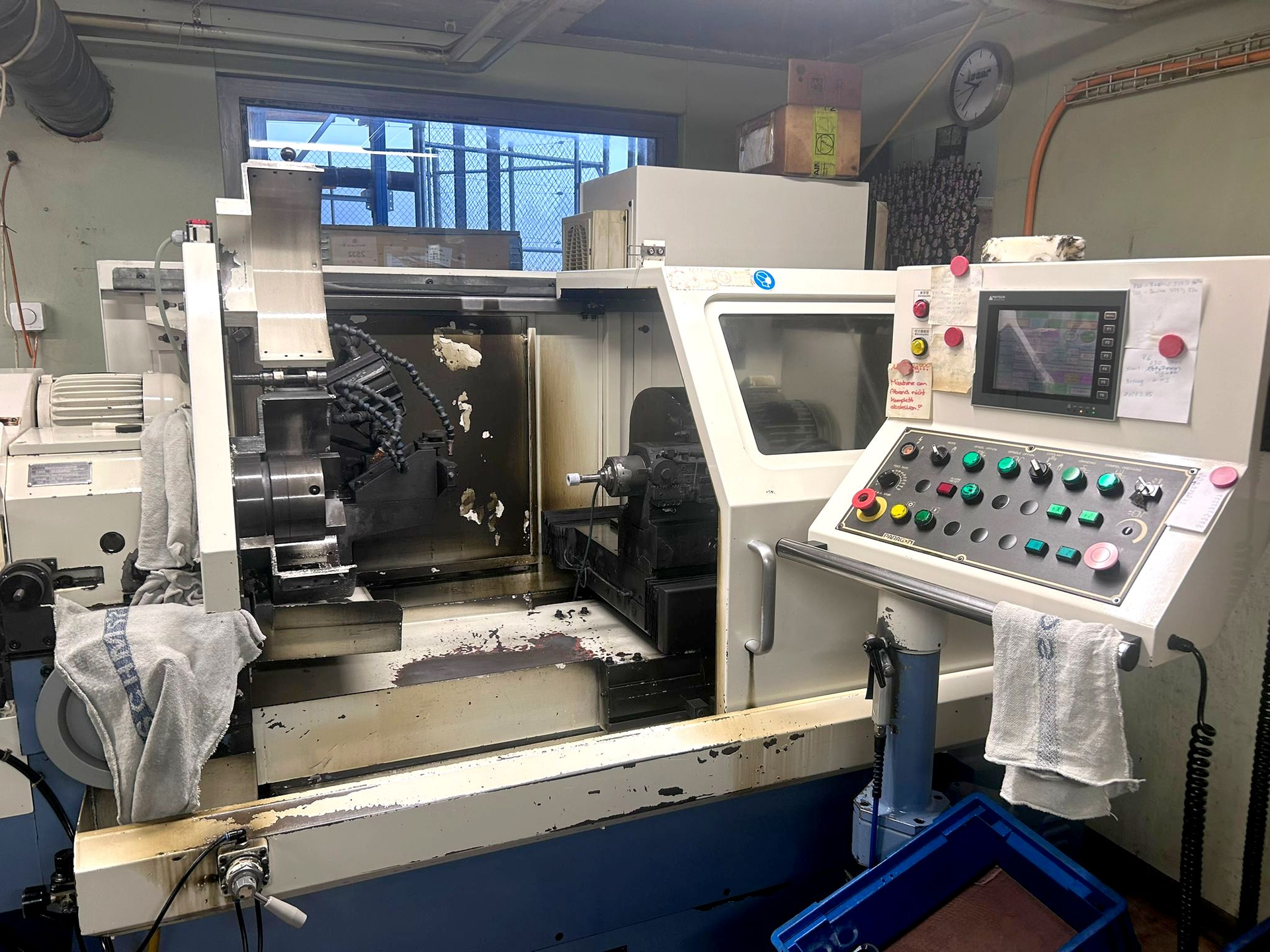

  • 022717 - PARAGON RIG-150NC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Min. grinding diameter: 6 mm.
Max. grinding diameter: 150 mm.
Max. grinding depth: 150 mm.
Above the workpiece table: 520 mm.
Longitudinal travel (Z-axis): 540 mm.
Rapid traverse Z: 9 m/min.
rotatable: +13 / -5 °.
from: t/min.
up to: 800 t/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 1.5 kW.
Workpiece spindle motor: 1 kW.
Machine's weight about: 2400 kg.
Length: 2807 mm.
Width: 1440 mm.
Height: 1920 mm.

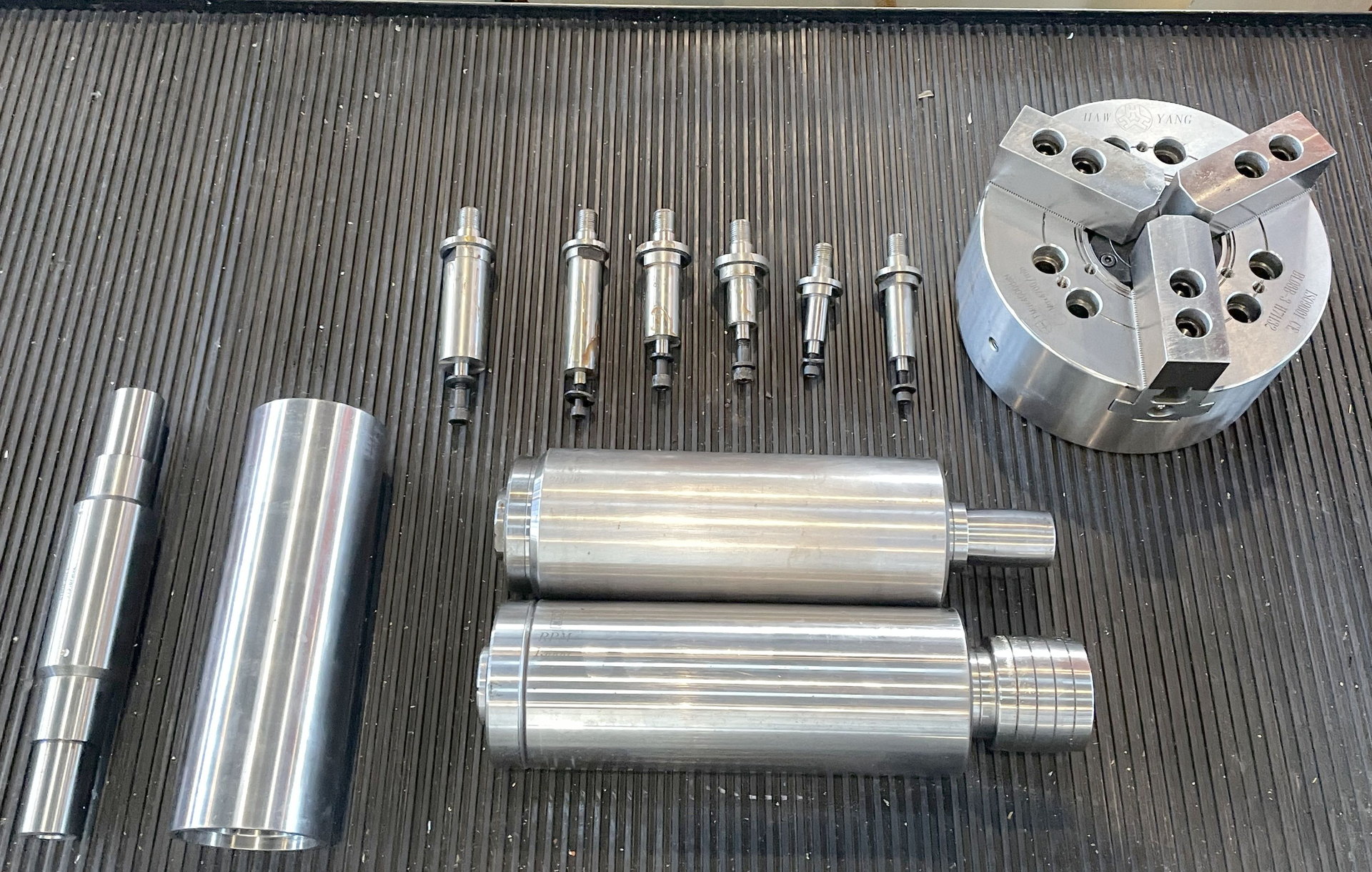

3-jaw chuck diameter: 200 mm.
numbers: 3.
max. speed: 15000 t/min.
