MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

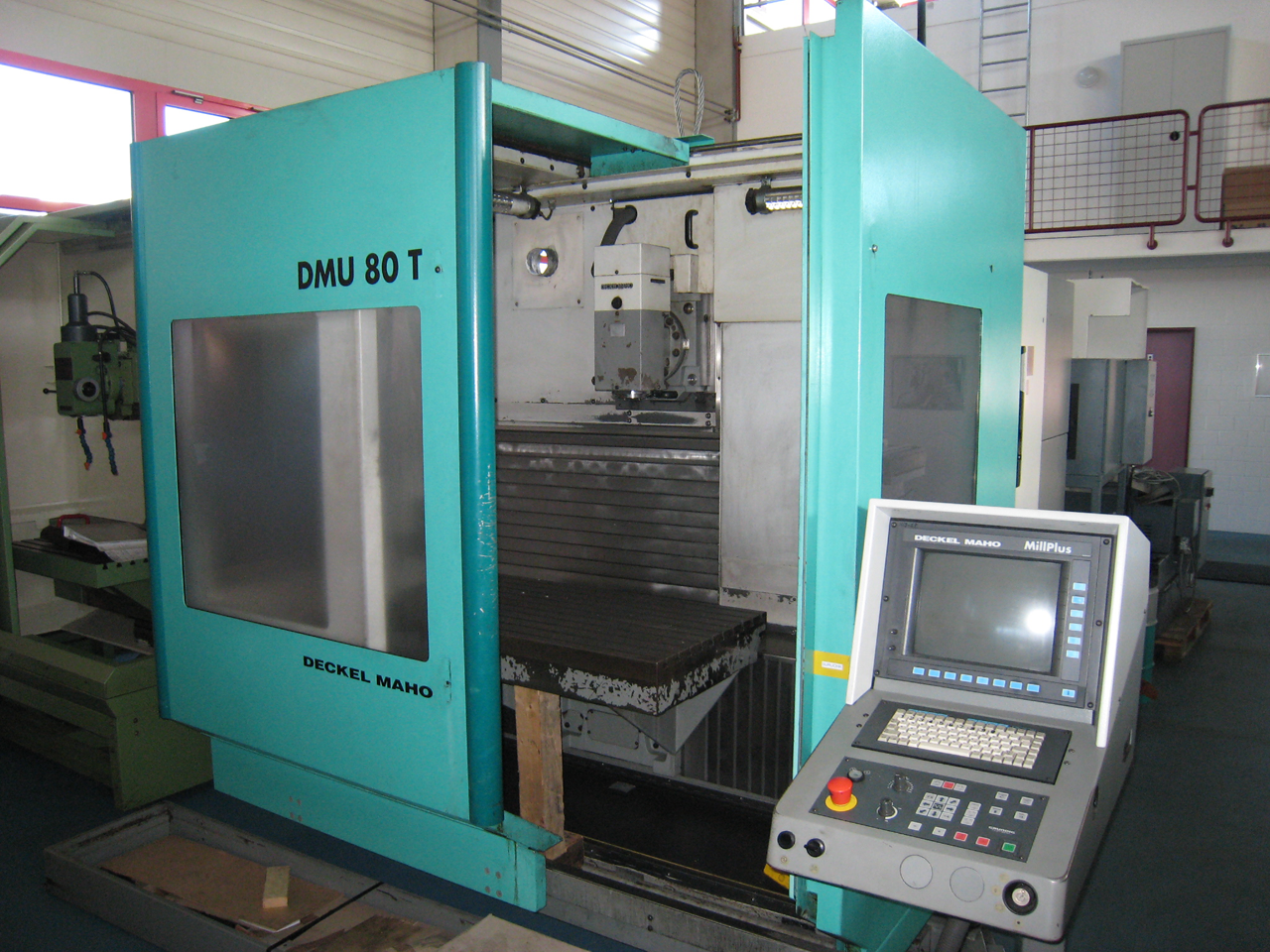

  • 013146 - DMG DMU 80 T
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

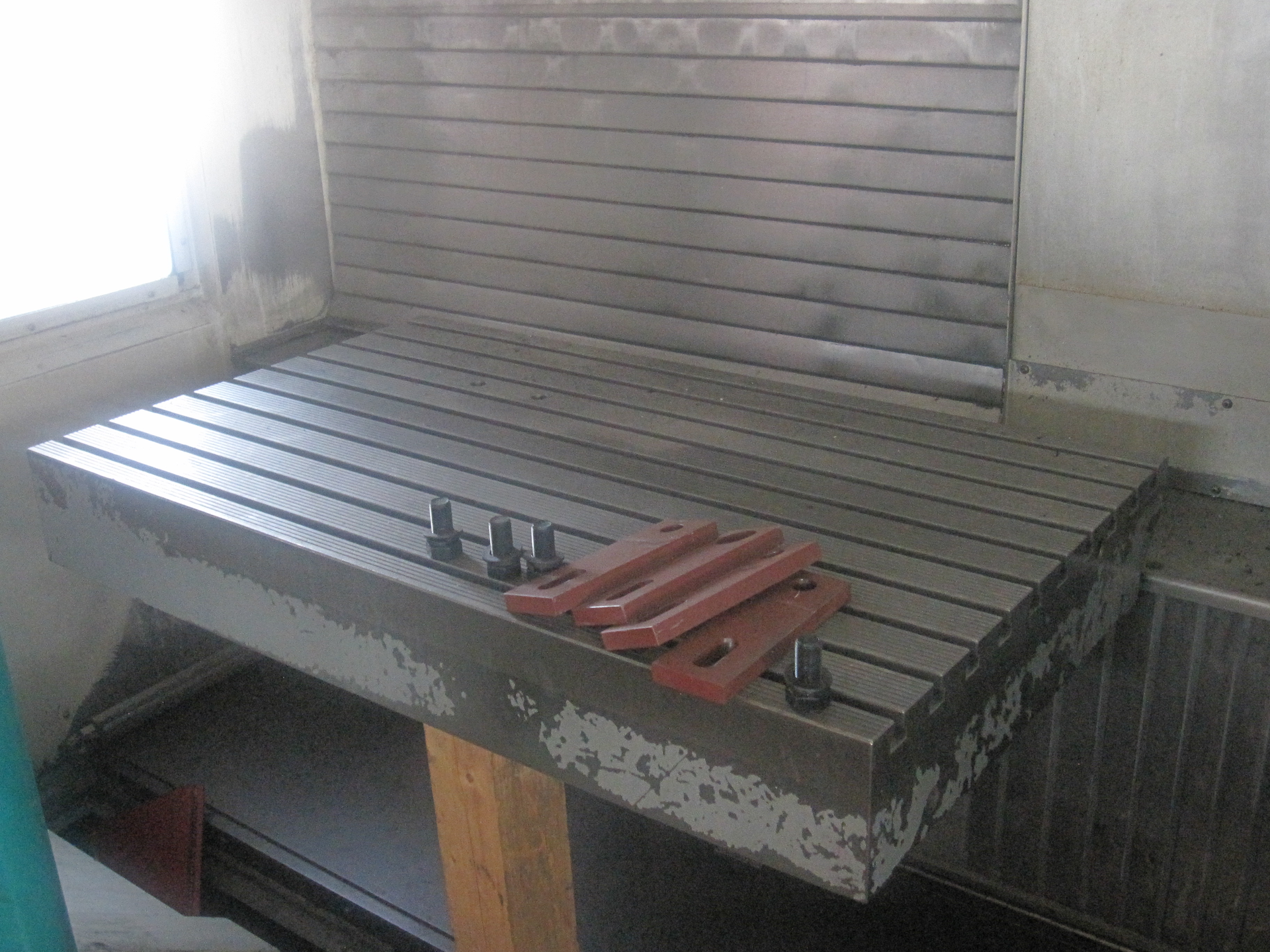

Table length: 1100 mm.
Table width: 650 mm.
Longitudinal travel (X-axis): 800 mm.
Transversal travel (y-axis): 650 mm.
Vertical travel (z axis): 550 mm.

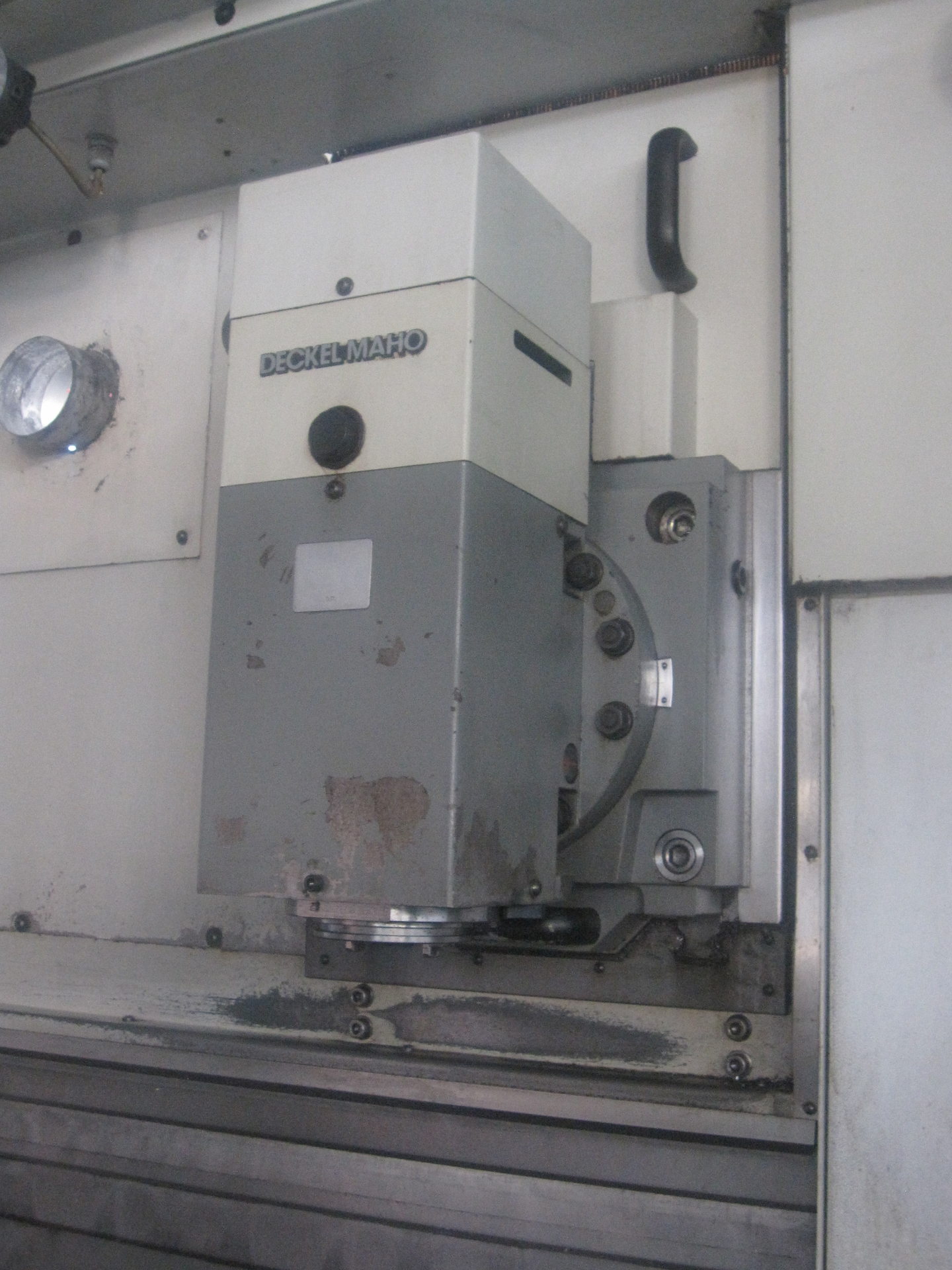

Milling head divisions (B): 90 °.

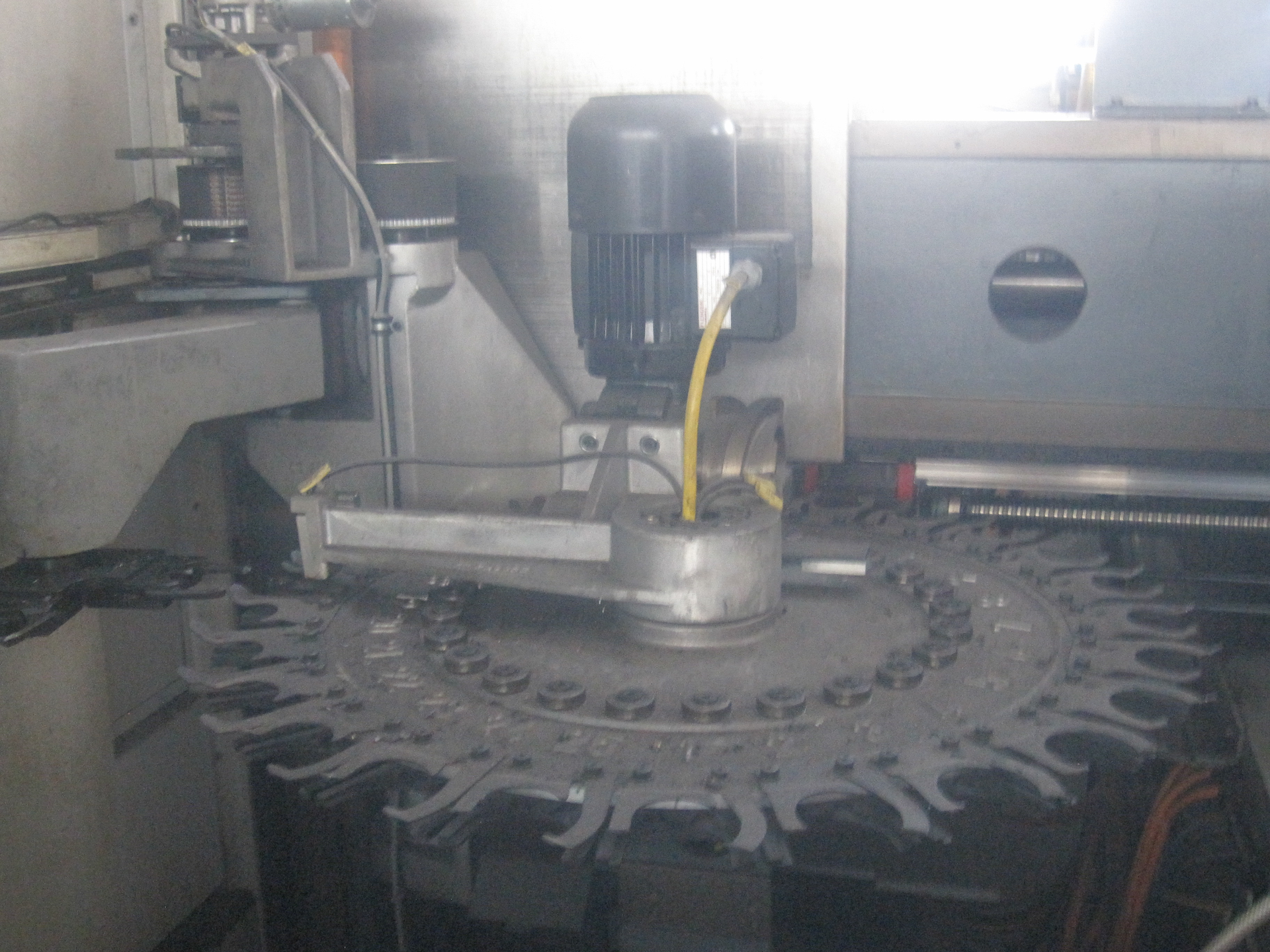

Number of tools: 25.
Tool diameter: 80 mm.
Diameter with free adjacent pockets: 160 mm.
Tool lenght: 315 mm.
Spindle nose: ISO: 40.
up to: 6300 t/min.
Feed range: 1-15000 mm/min.
Rapid traverse:: 15 m/min.
Spindle motor: 16.2 kW.
Total power required: 29 kW.
Machine's weight about: 5500 kg.
Length: 3100 mm.
Width: 2300 mm.
Height: 2500 mm.
