MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

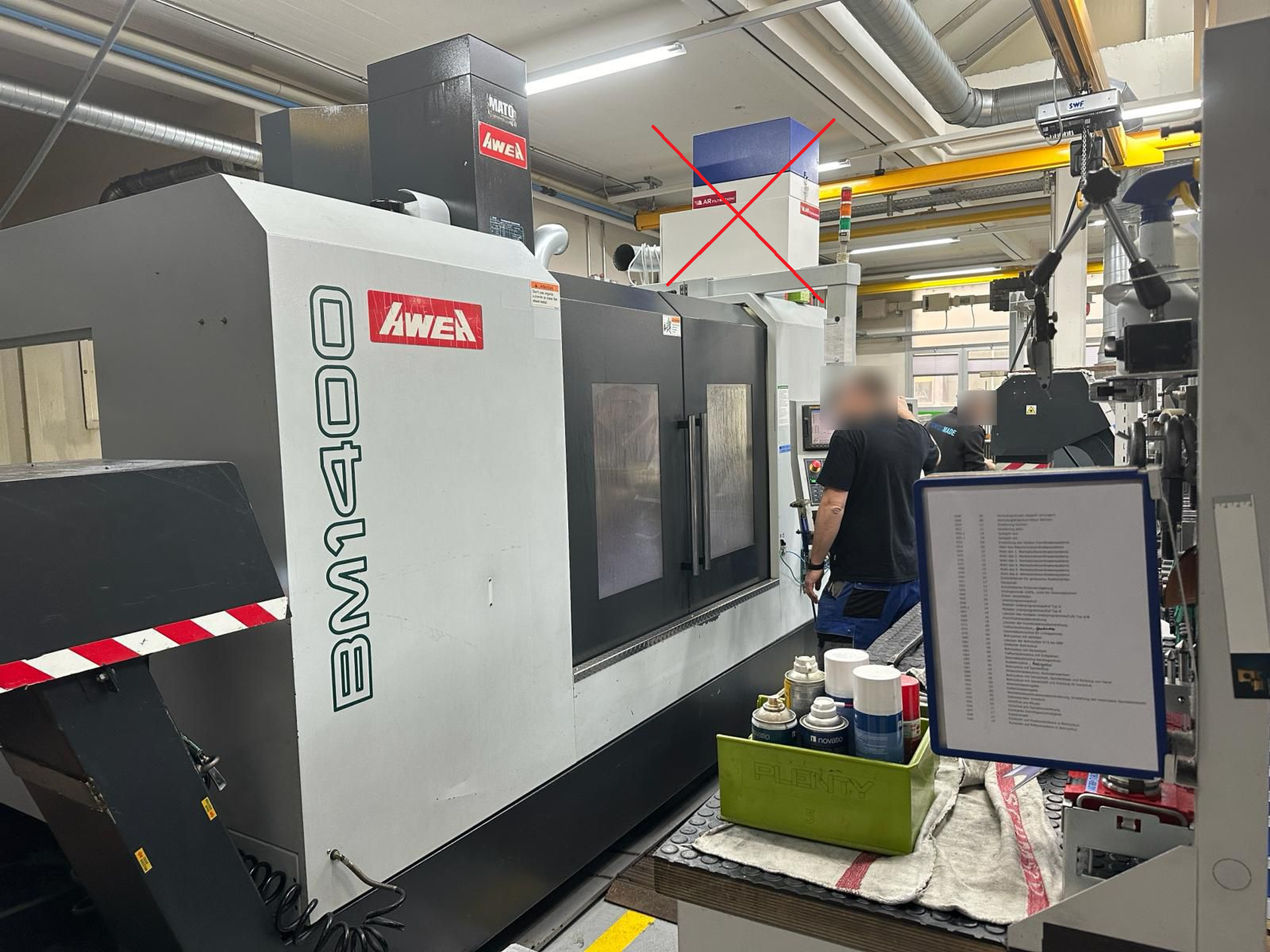

  • 022743 - AWEA BM-1400
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

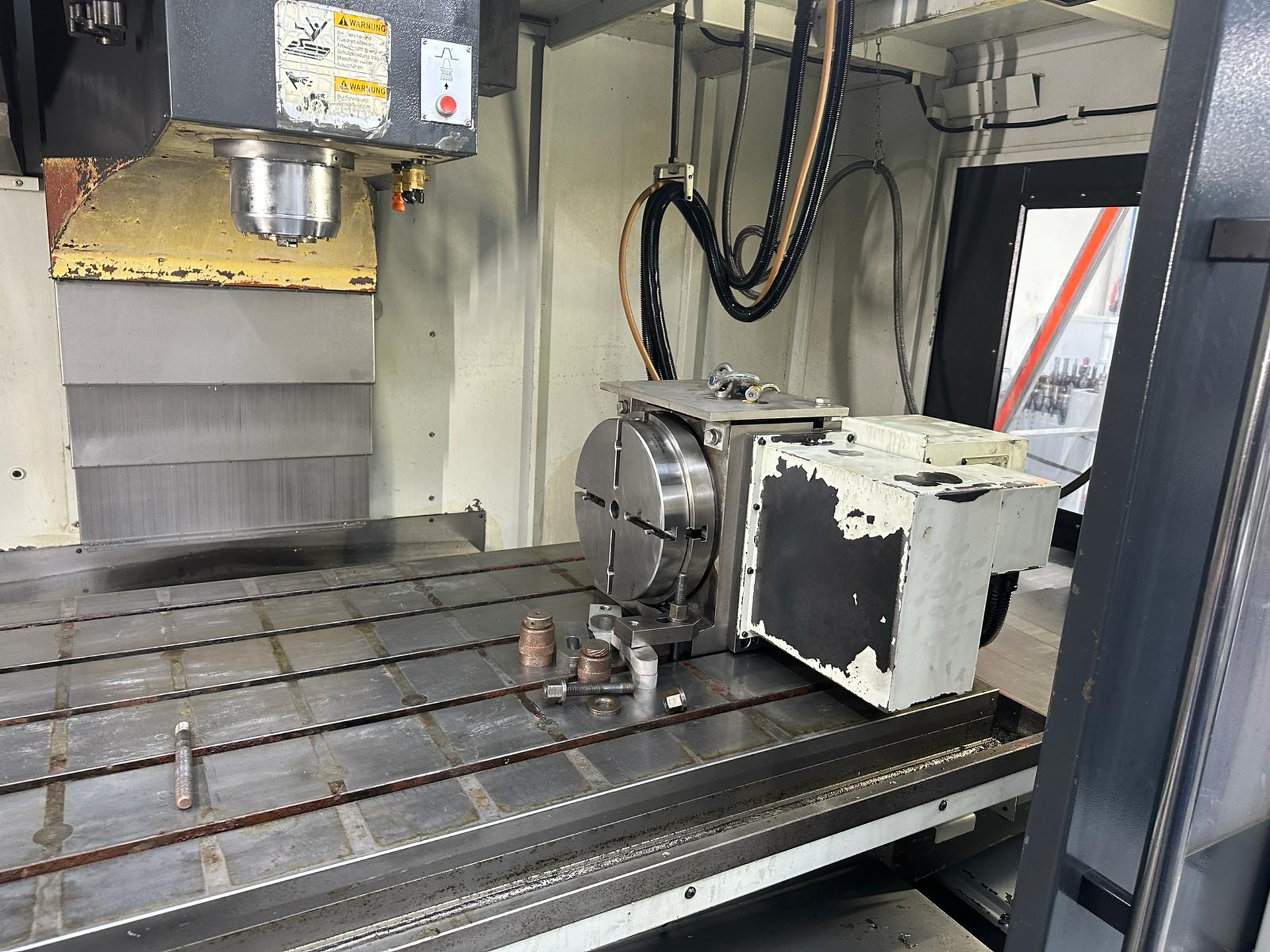

Number of axis total: 4.
Table length: 1500 mm.
Table width: 800 mm.
Longitudinal travel (X-axis): 1400 mm.
Transversal travel (y-axis): 800 mm.
Vertical travel (z axis): 700 mm.

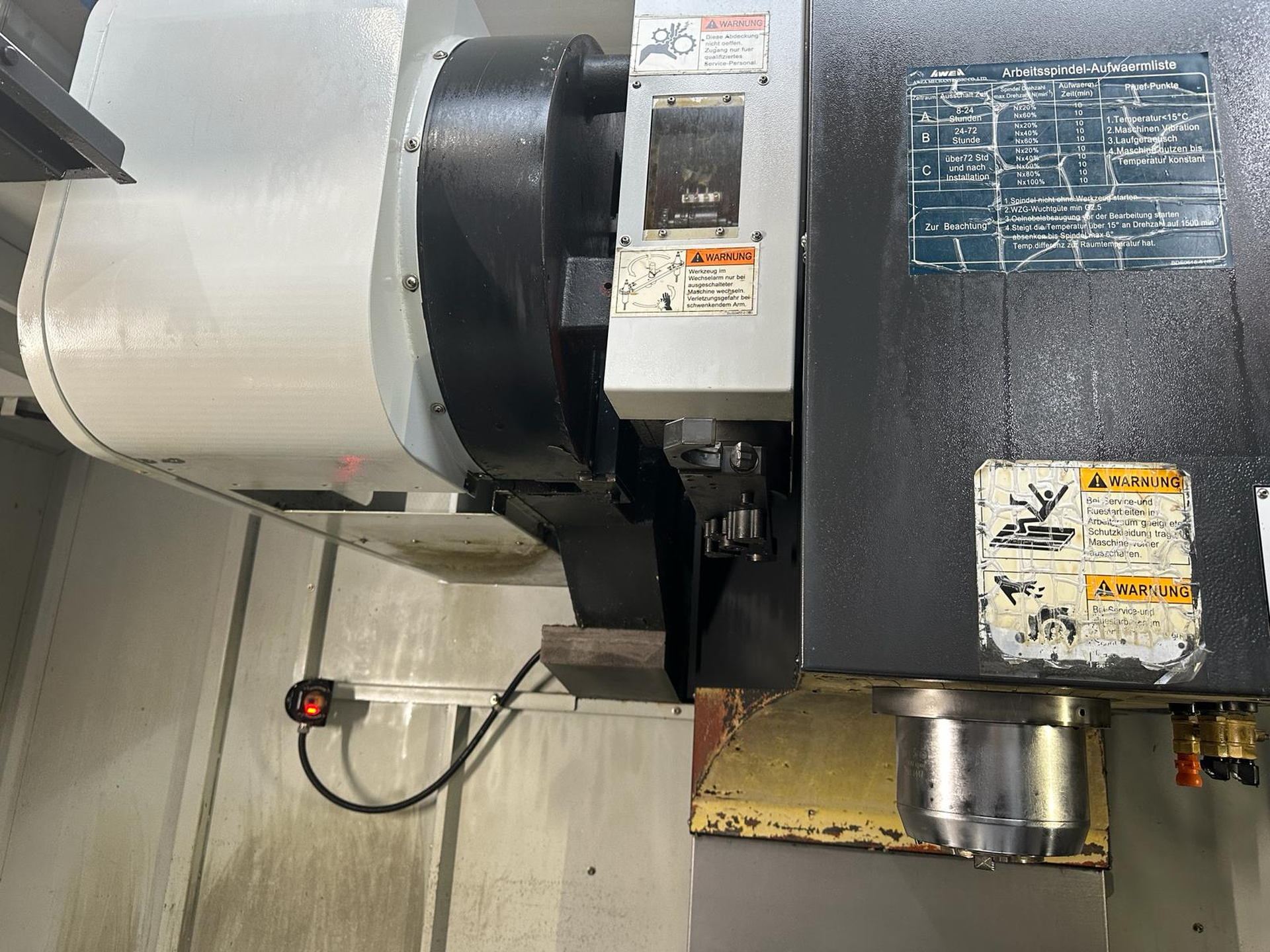

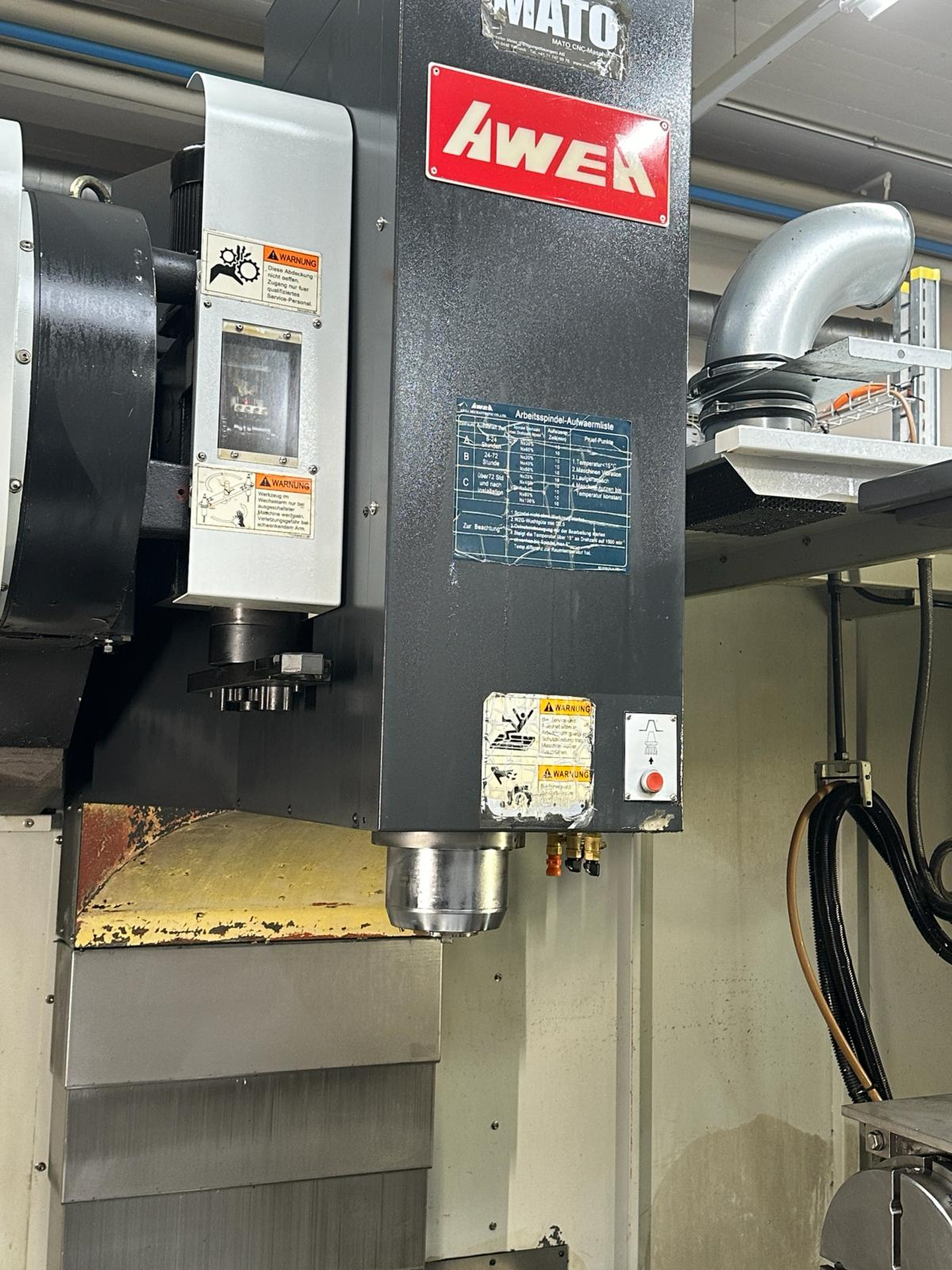

Spindle nose: ISO: 40.
from: 0 t/min.
up to: 12000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 40 kVA.
Machine's weight about: 12000 kg.
Length: 4800 mm.
Width: 2850 mm.
Height: 3100 mm.

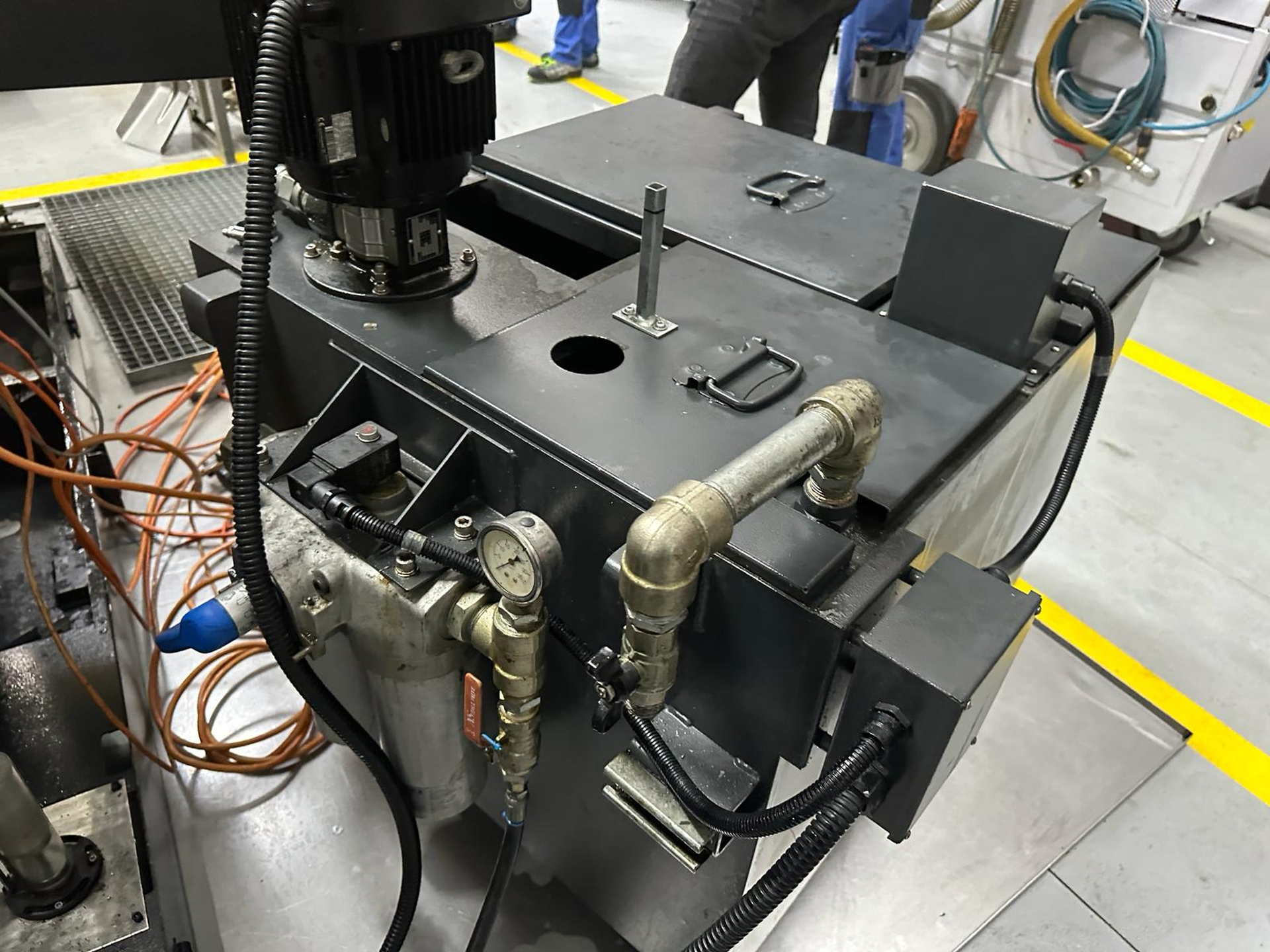

High pression colant device: 40 bar.
