MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • EWAG
  • Model:

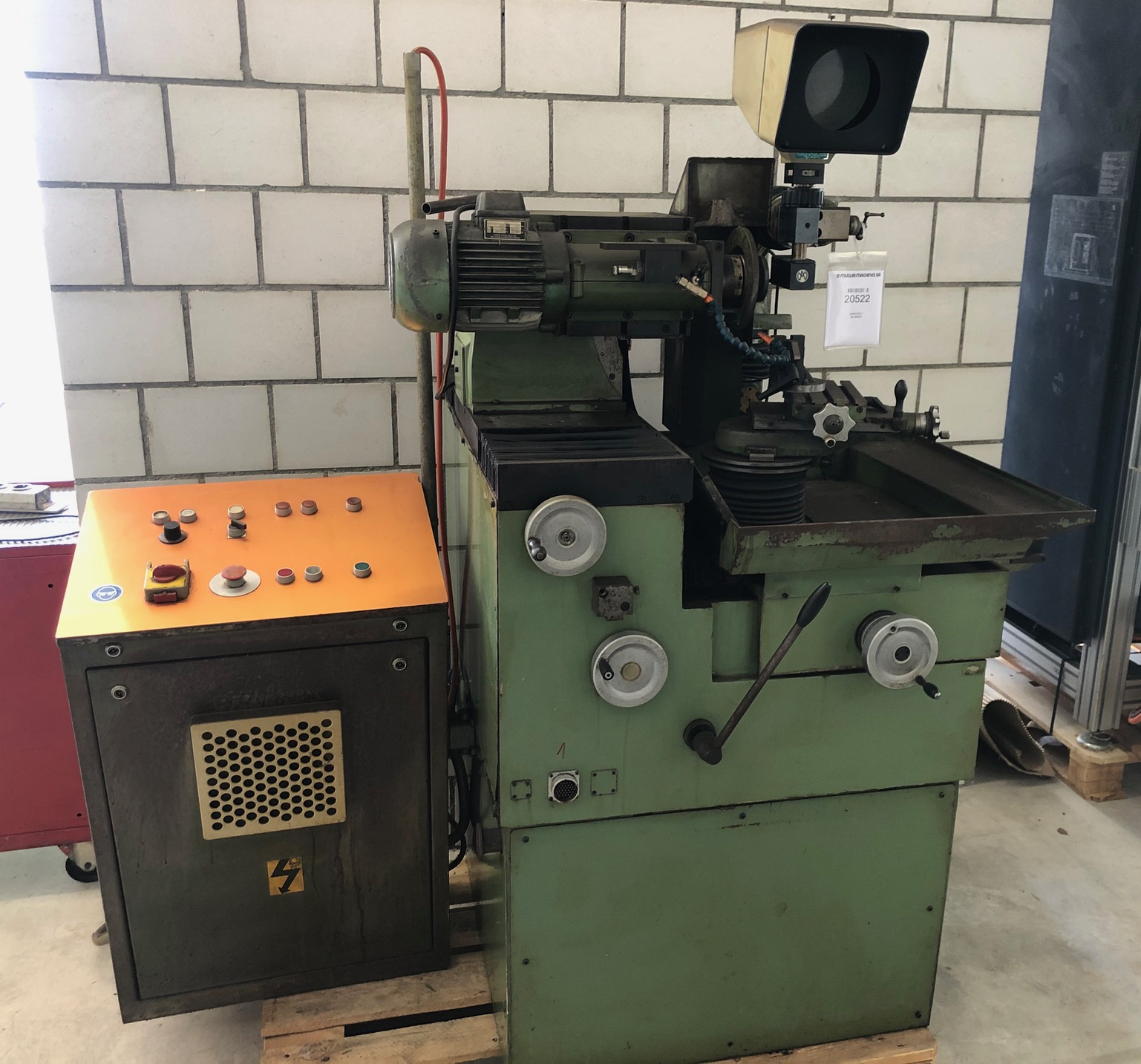

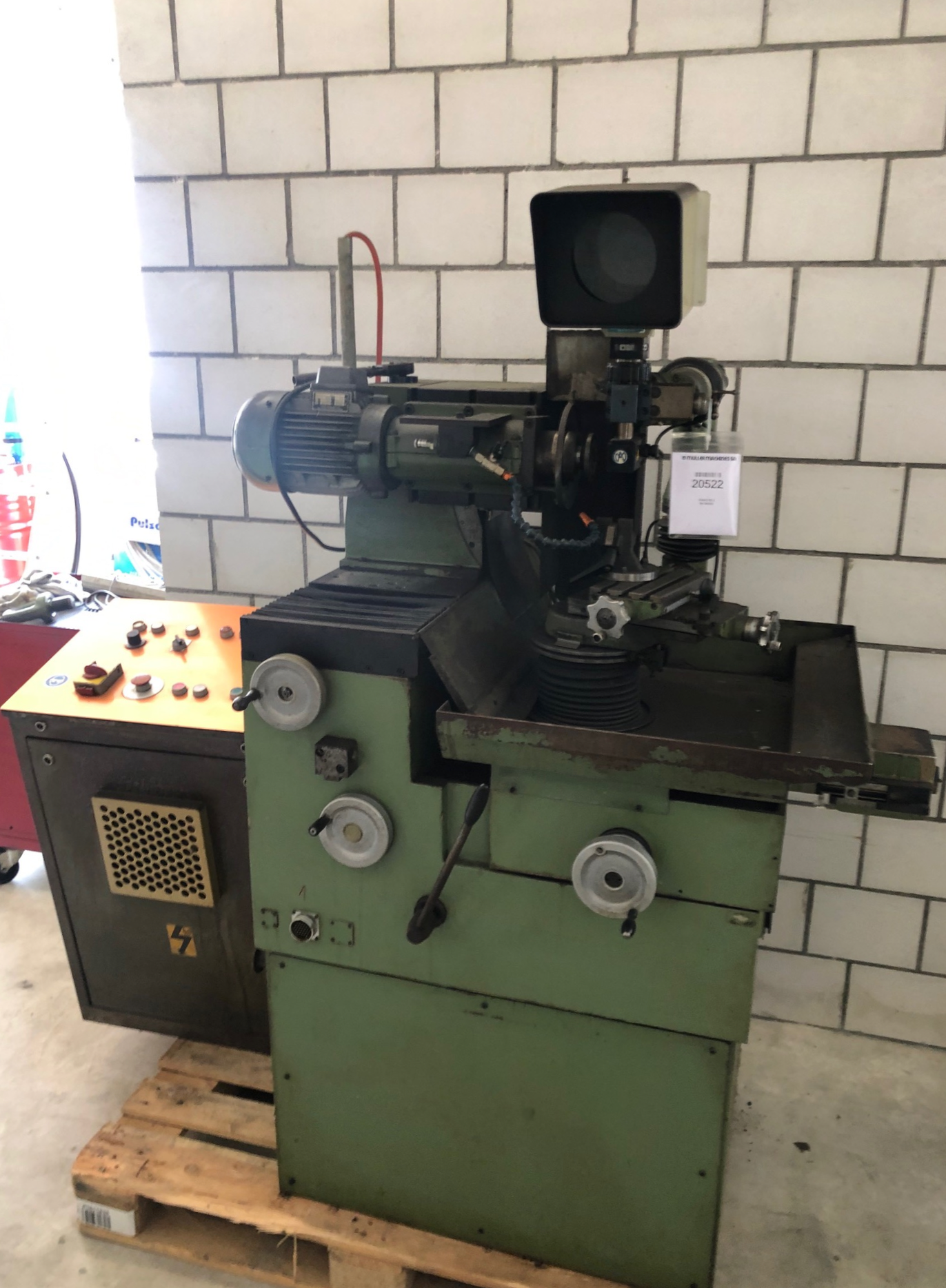

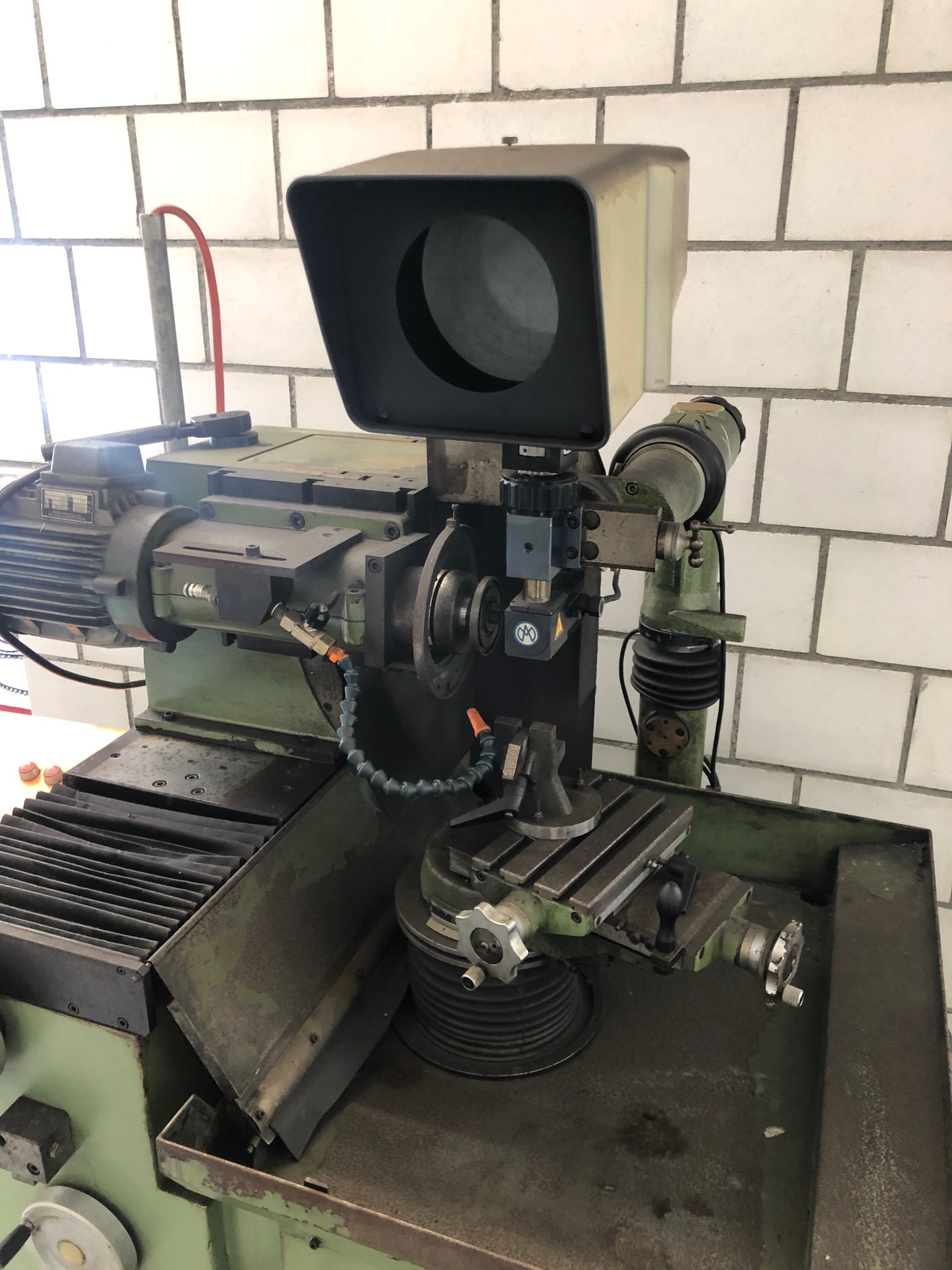

  • 020522 - EWAG RS 3
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 200 mm.
Table width: 120 mm.
Grinding-wheel diameter: 75 - 150 mm.
Height adjustment (Y-axis): 150 mm.
Spindle inclination (A-axis): -15 - 25 °.
Hublage adjustment (X-axis): 90 mm.
number (steps): 4.
from: 1000 t/min.
up to: 4500 t/min.
Radius adjustment (Z-axis): 80 mm.
Adjustment accuracy of the Z axis: mm.
Courses support: 120 mm.
Max. Swivel angle (B-axis): 355 °.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 1 CV.
Machine's weight about: 800 kg.
Length: 1180 mm.
Width: 1080 mm.
Height: 1520 mm.
