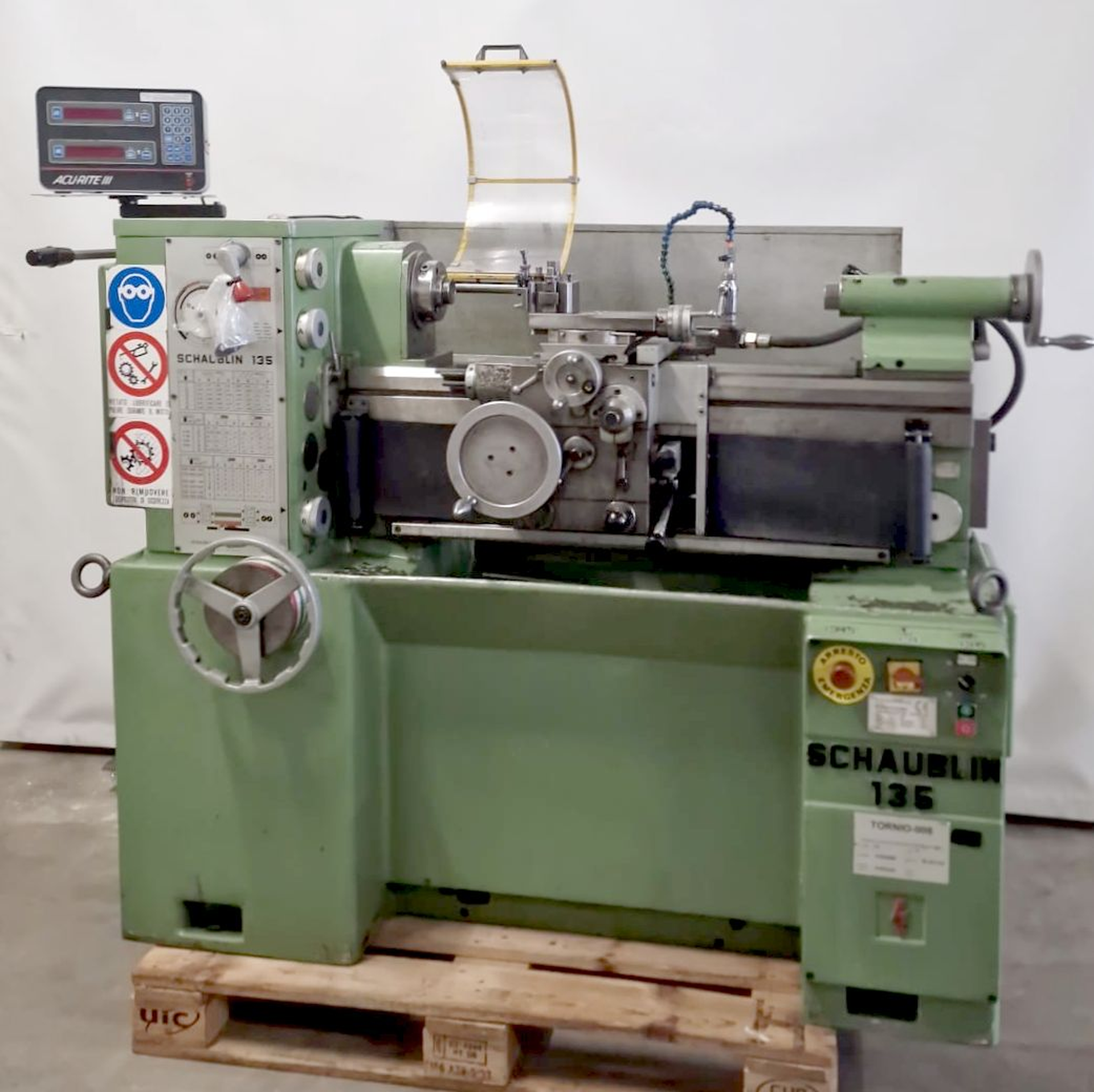

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 022595 - SCHAUBLIN 135
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 135 mm.
Distance between centres: 630 mm.
Swing over cross-slide: 150 mm.
Swing over bed: 315 mm.
Spindle hole: 40 mm.

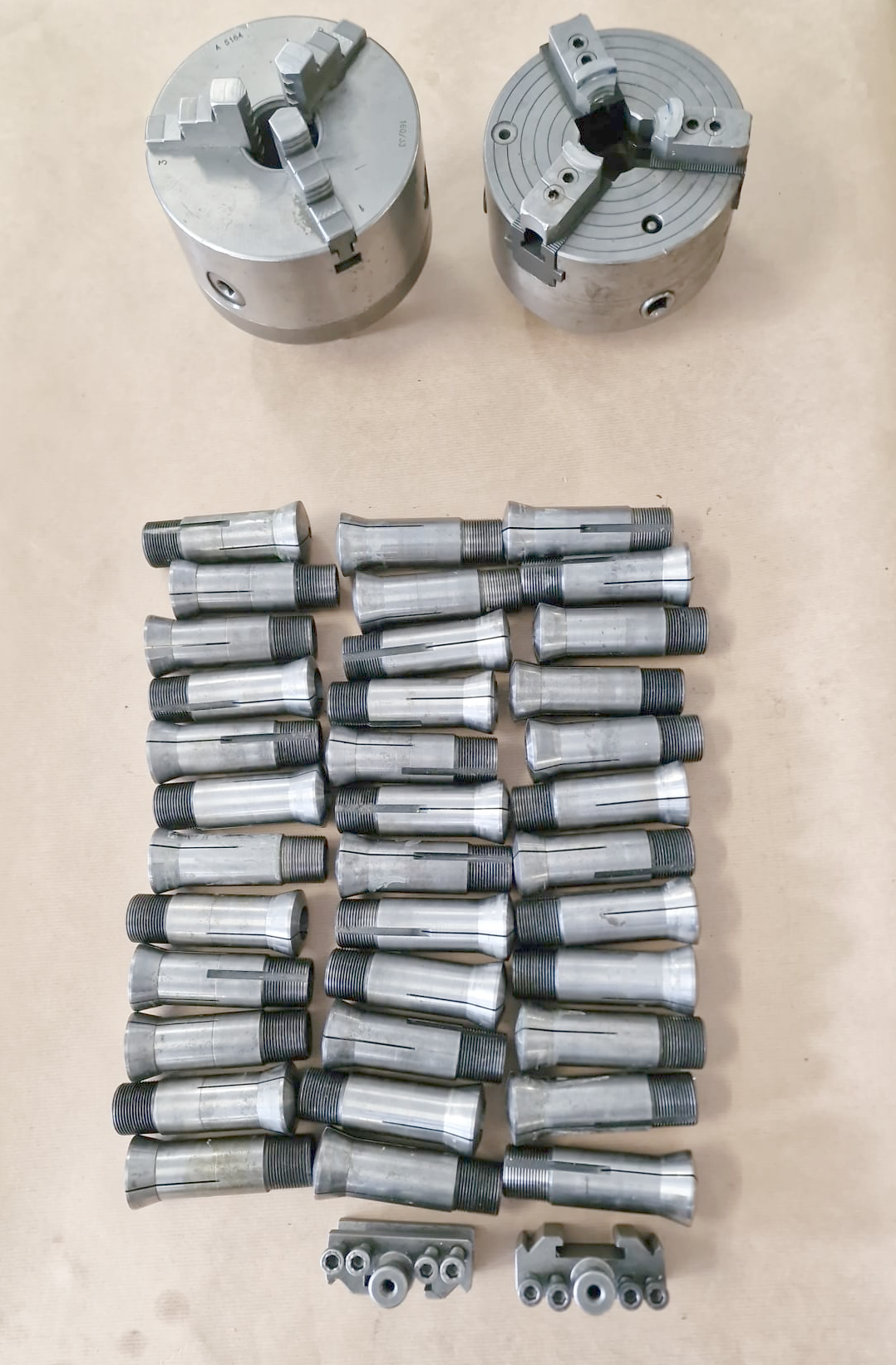

Spindel nose for collets: B32.
from: 0.015 mm/t.
up to: mm/t.
Taper in tailstock:: 3 CM.
number (steps): 24.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 4.00 CV.
Total power required: 6 CV.
Machine's weight about: 1400 kg.
Length: 1700 mm.
Width: 850 mm.
Height: 1280 mm.

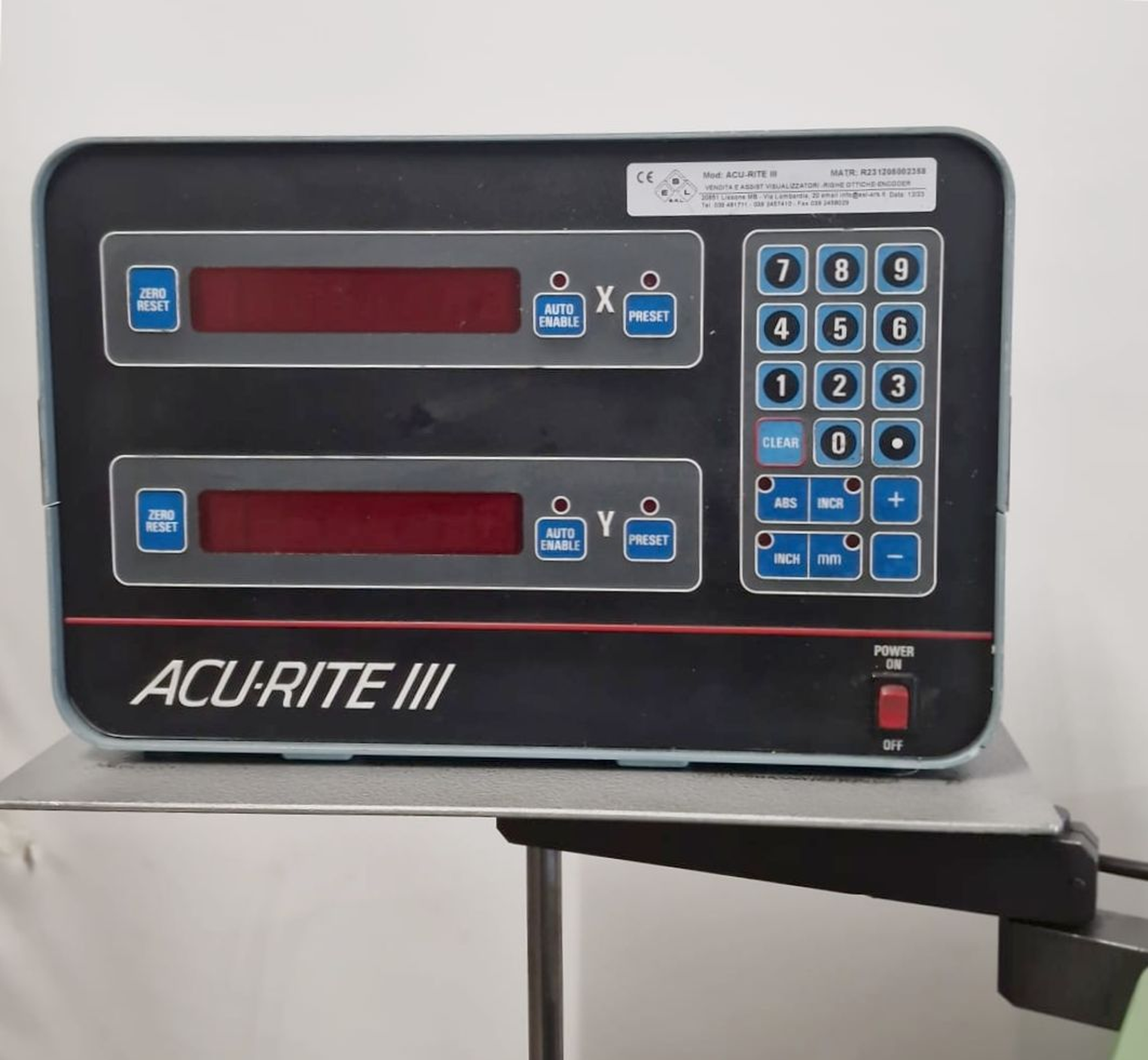

Digital readout number of axis:: 2.

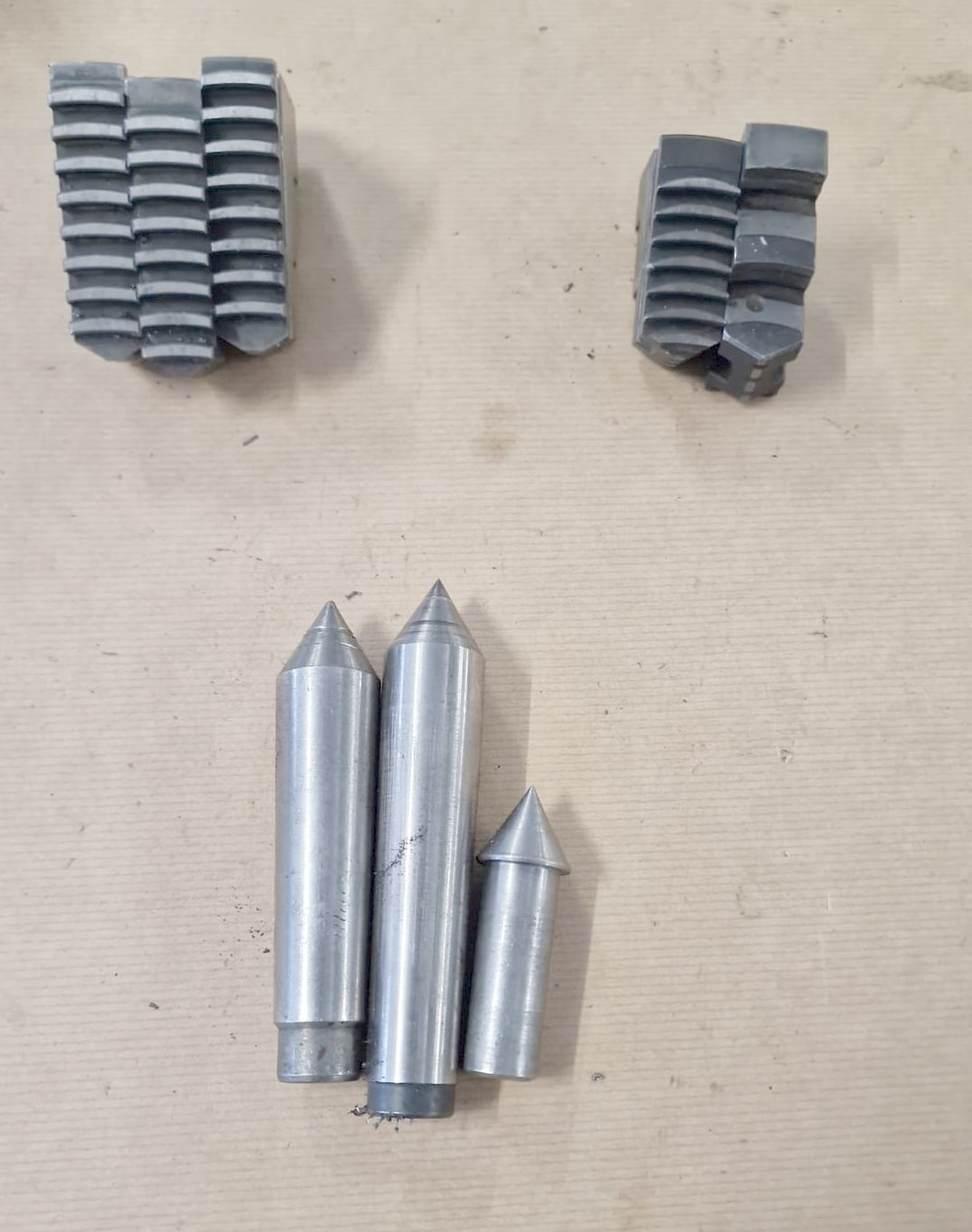

3-jaw chuck diameter: 160 mm.
