MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hauser
  • Model:

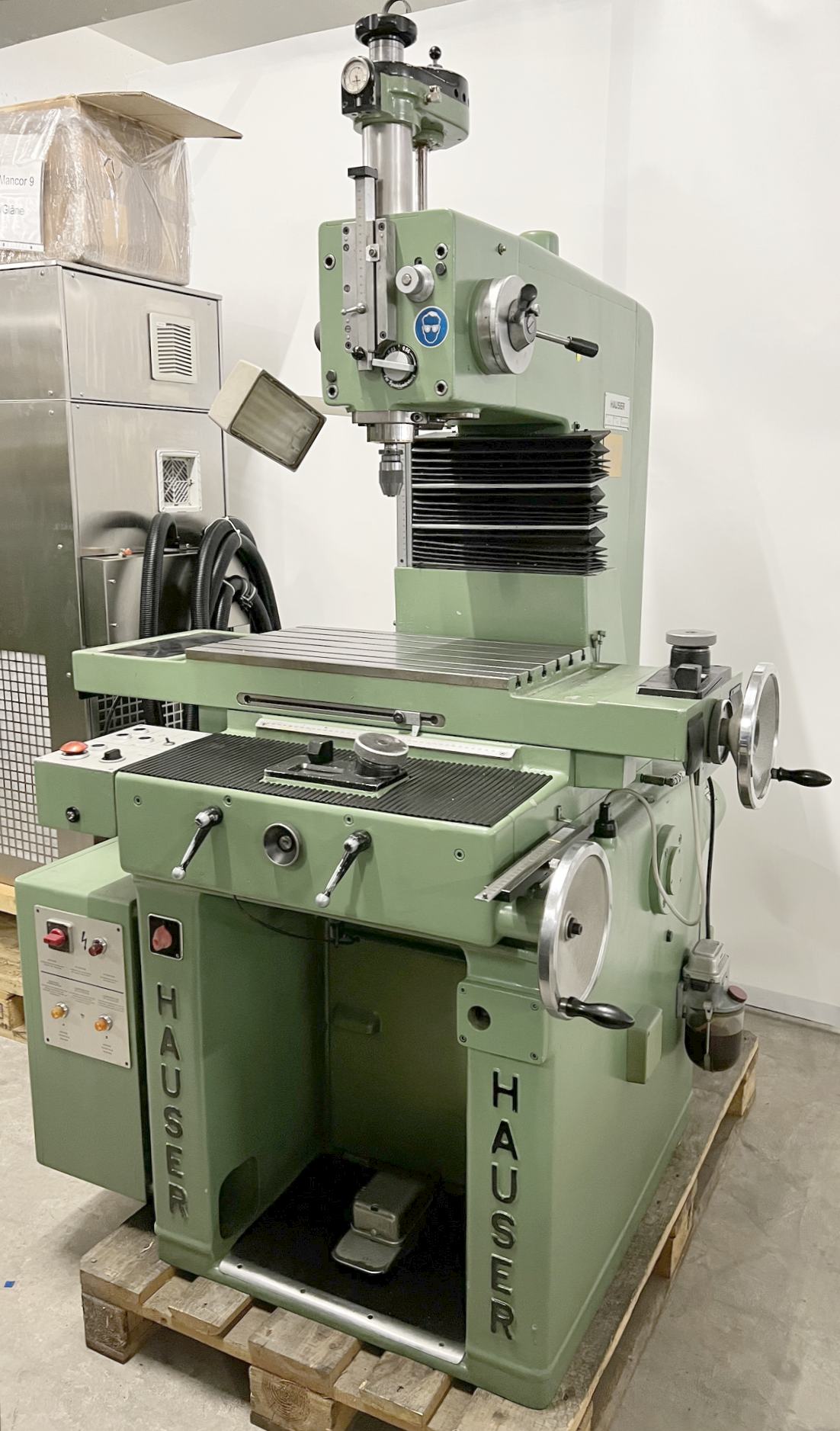

  • 021942 - HAUSER 3 BA
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

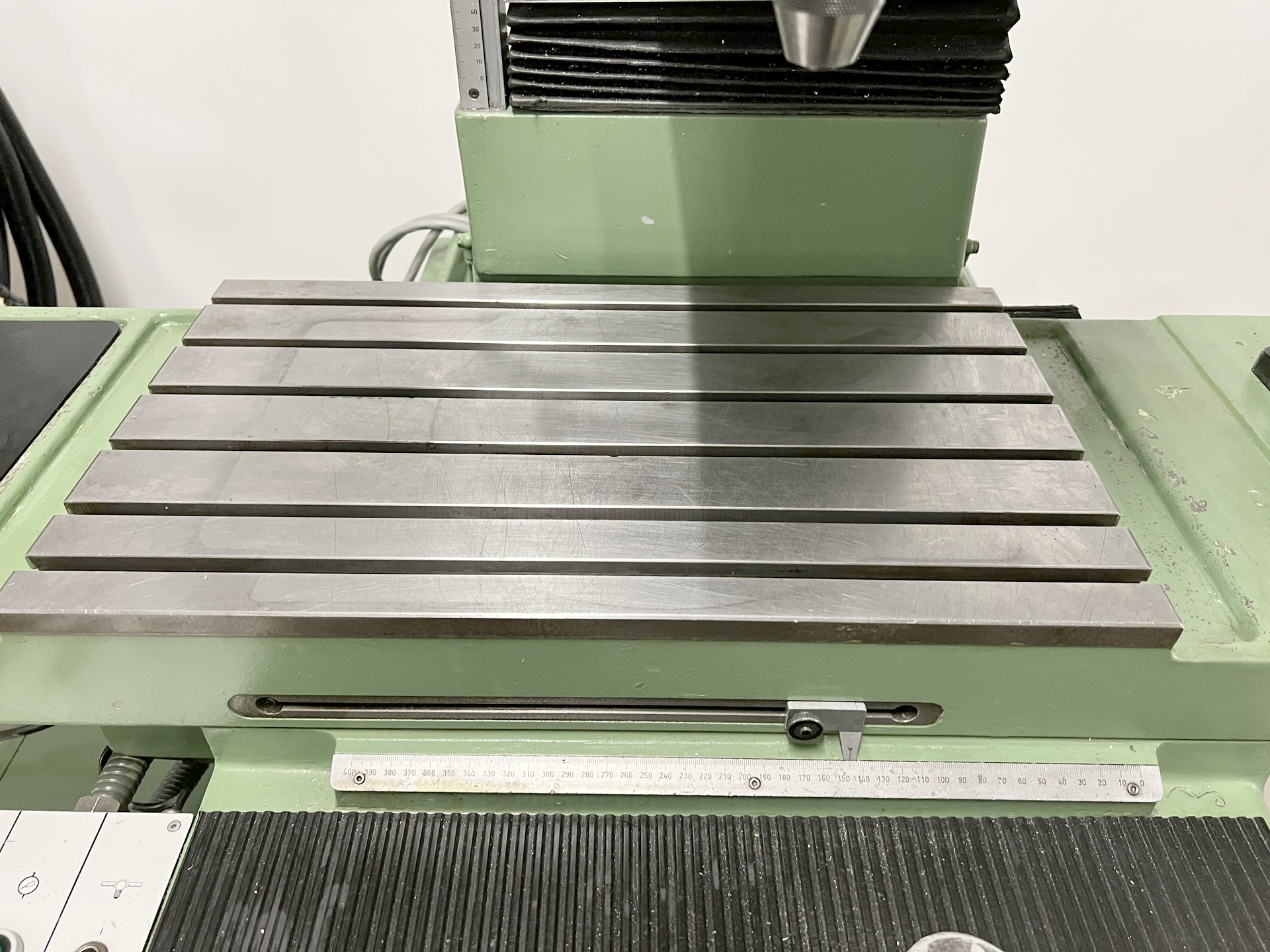

Table length: 550 mm.
Table width: 320 mm.
Number of T-channels: 6.
T-channel width: 10 mm.
Distance of the T-slots: 40 mm.
Table load max.: 400 kg.
Longitudinal travel (X-axis): 400 mm.
Transversal travel (y-axis): 250 mm.
Vertical travel (z axis): 400 mm.
Drill capacity in steel: 20 mm.
Taper in spindle: MT: 2.

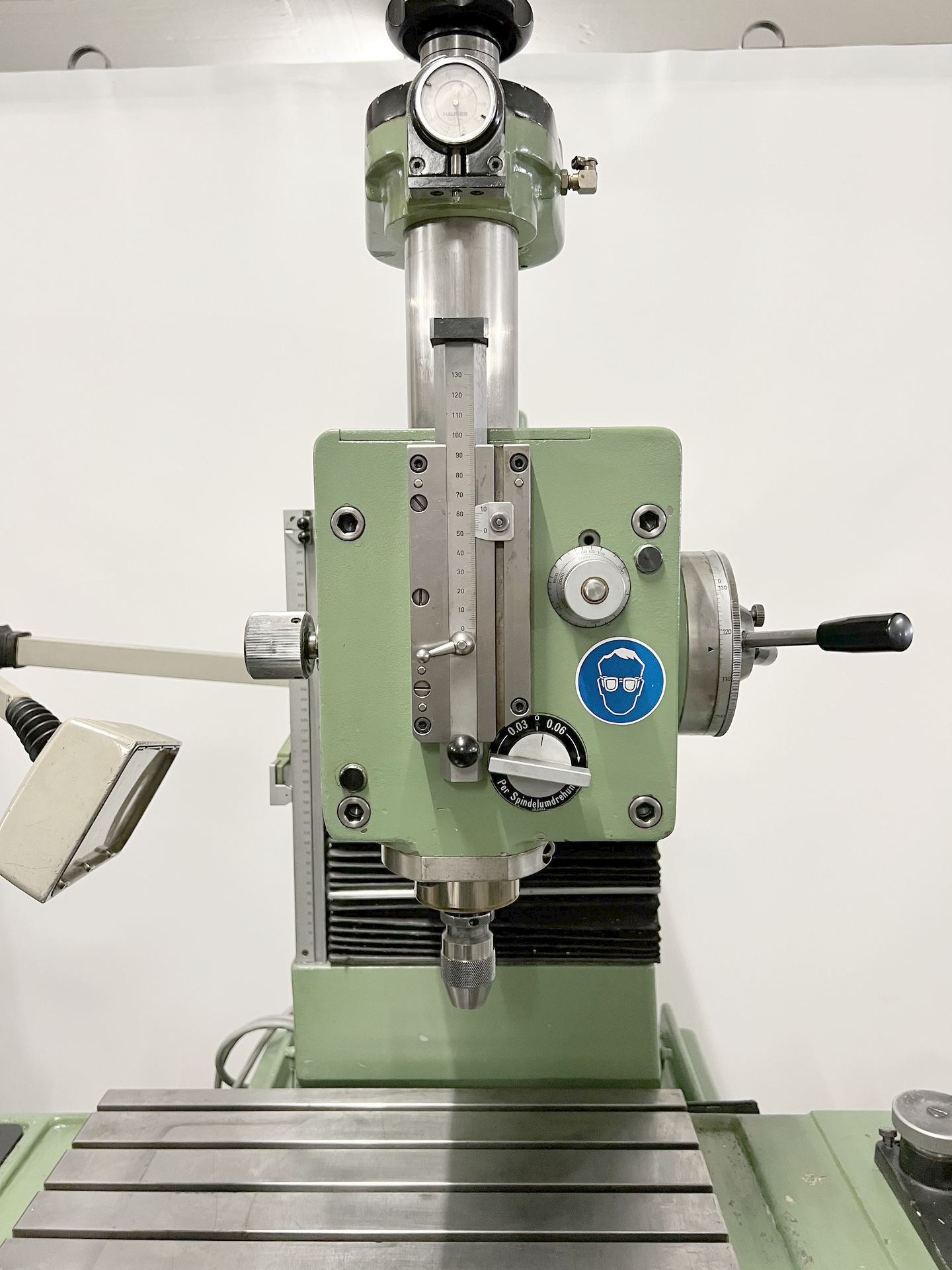

Stroke of drilling spindle (Z-axis): 130 mm.
Bore diameter max.: 75 mm.
Distance table to spindle: 590 mm.
from: mm/t.
up to: mm/t.
number (steps): 2.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1 CV.
Machine's weight about: 1100 kg.
Length: 1200 mm.
Width: 1150 mm.
Height: 1750 mm.

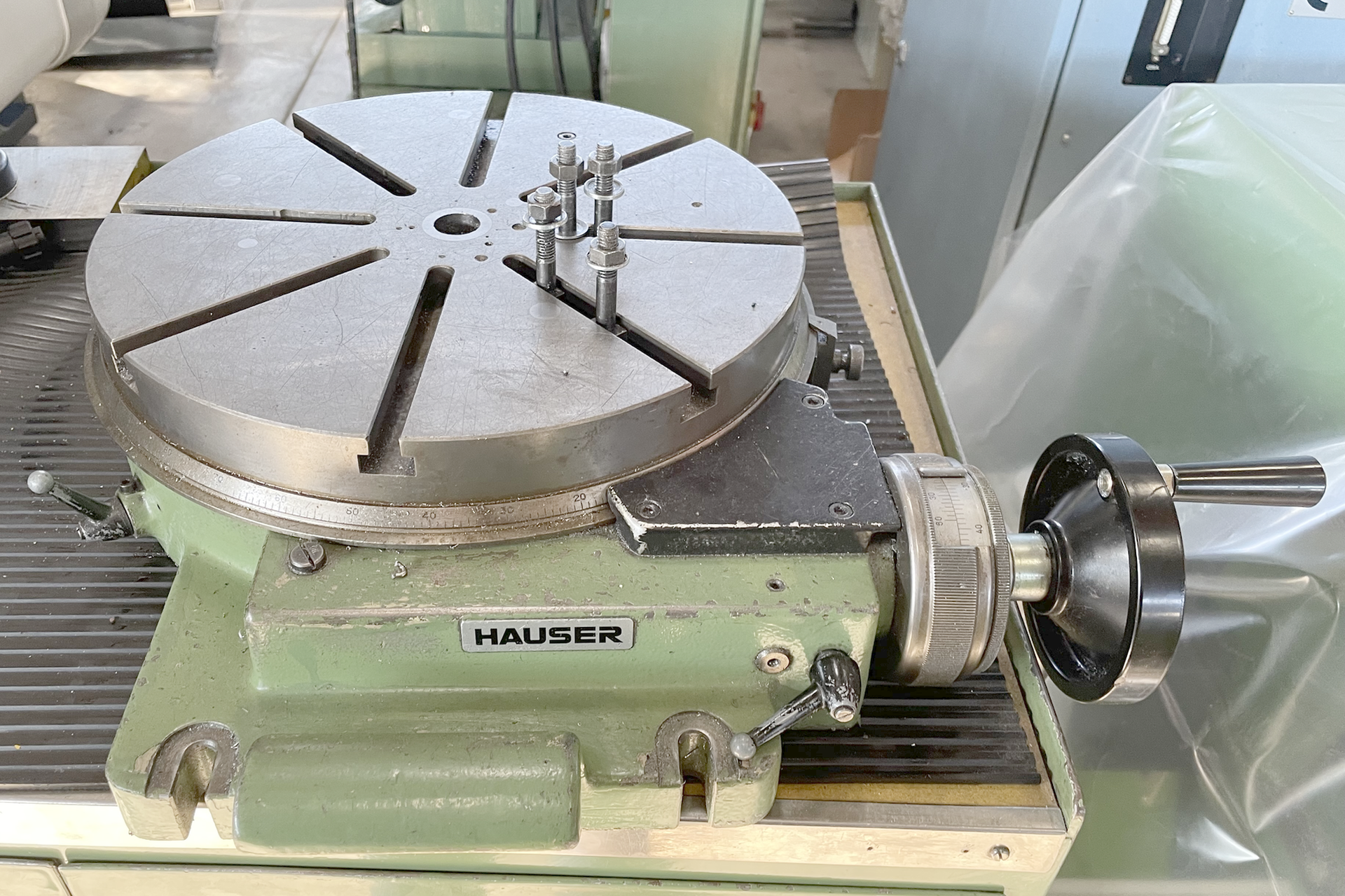

Rotary table diameter: 300 mm.

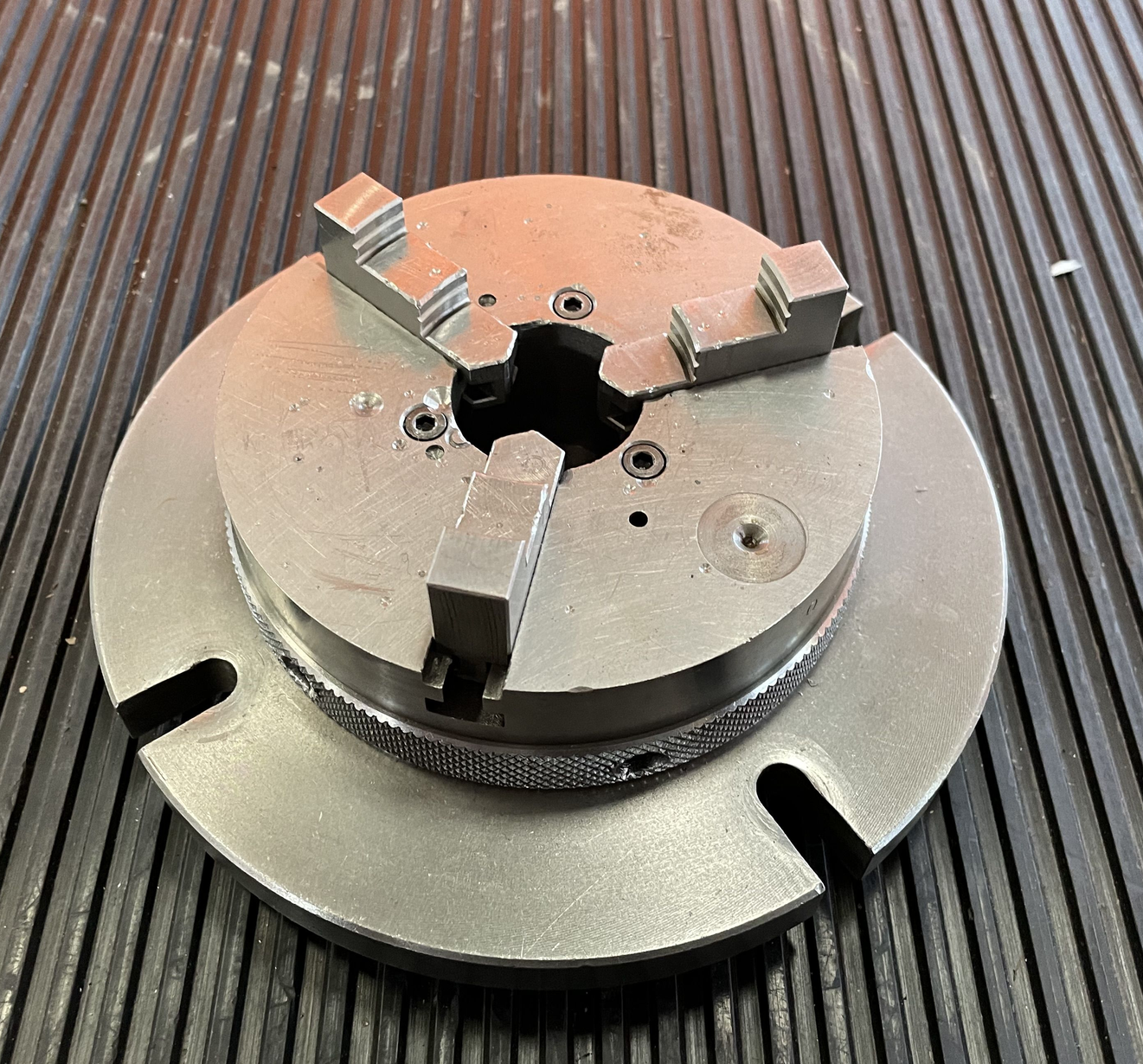

3-jaw chuck diameter: mm.
