MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • HUAWIN
  • Model:

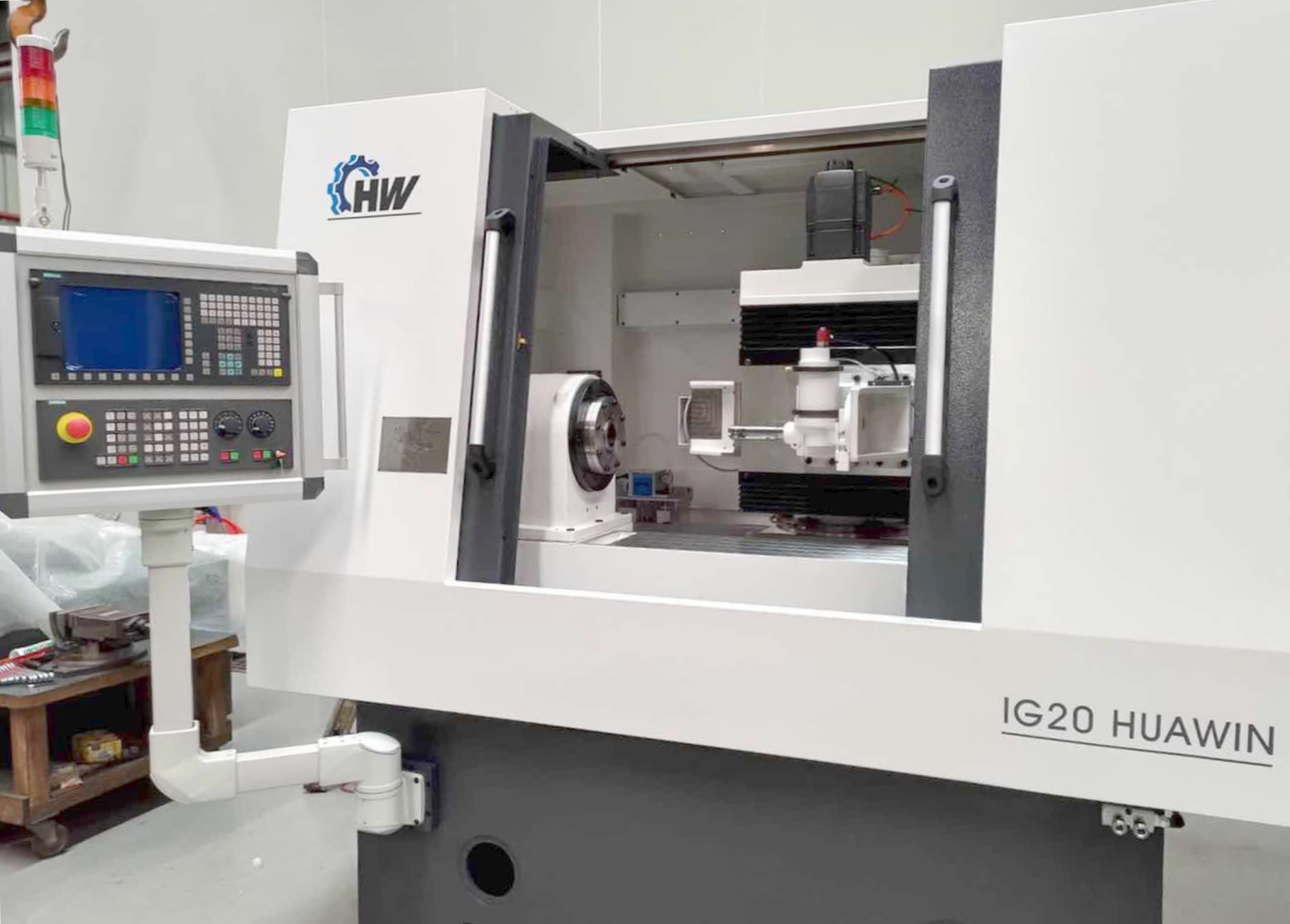

  • 021184 - HUAWIN IG 20
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Swing diameter: 200 mm.
min. spline inside diameter: 20 mm.
max. spline inside diameter: 45 mm.
min. spline bottom diameter: 25 mm.
max. spline bottom diameter: 55 mm.
Spline width min.: 5 mm.
Spline width max.: 15 mm.
Min. broaching length: 100 mm.
Number of spline: 1 - 10.
X axis: 150 mm.
Y axis: 100 mm.
Z axis: 600 mm.
Spindle motor: kW.
max. speed: 16500 t/min.
Air connect: 5 bar.
Total power required: 20 kVA.
Machine's weight about: 4500 kg.
Length: 2250 mm.
Width: 1700 mm.
Height: 2200 mm.
