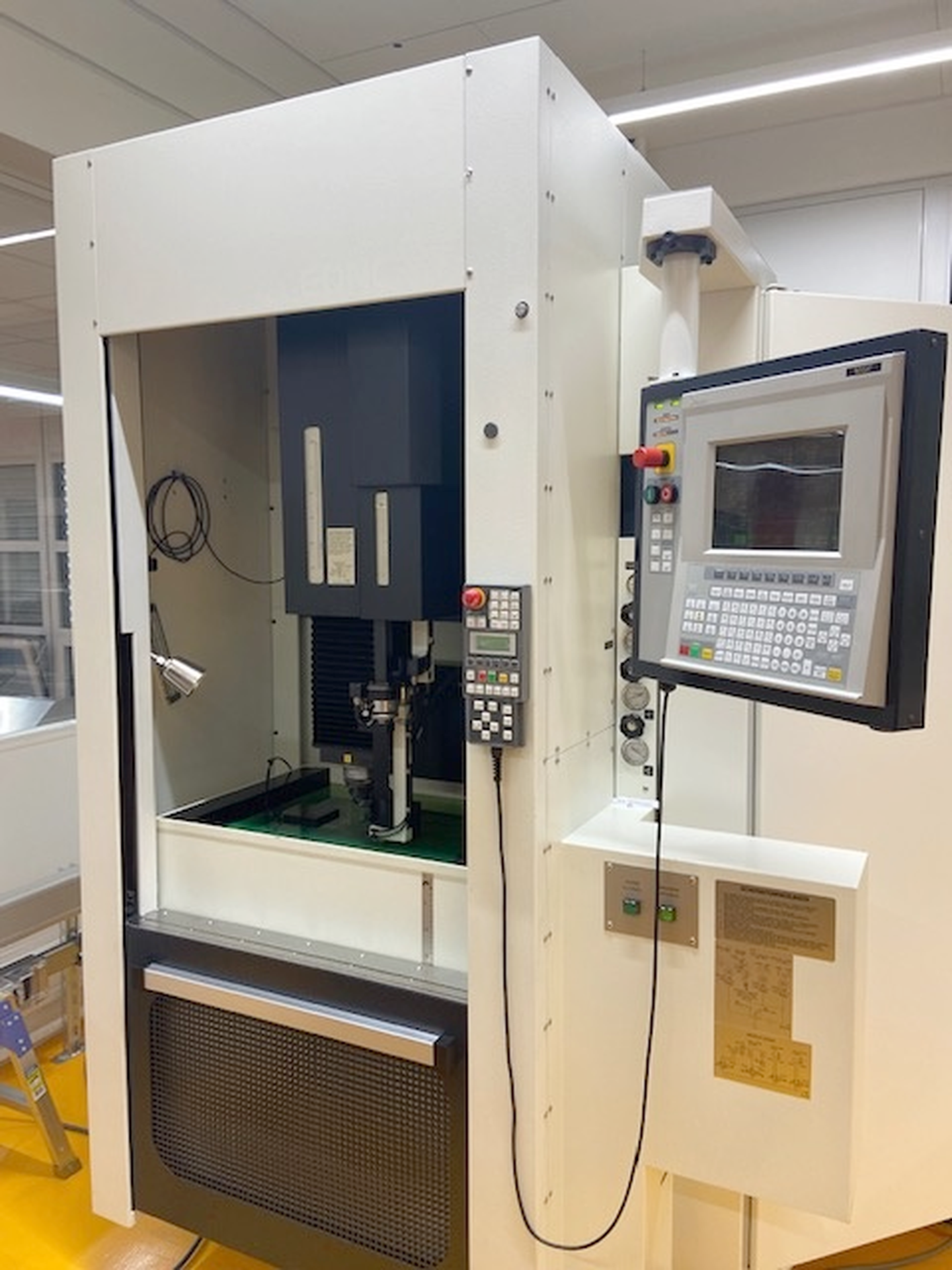

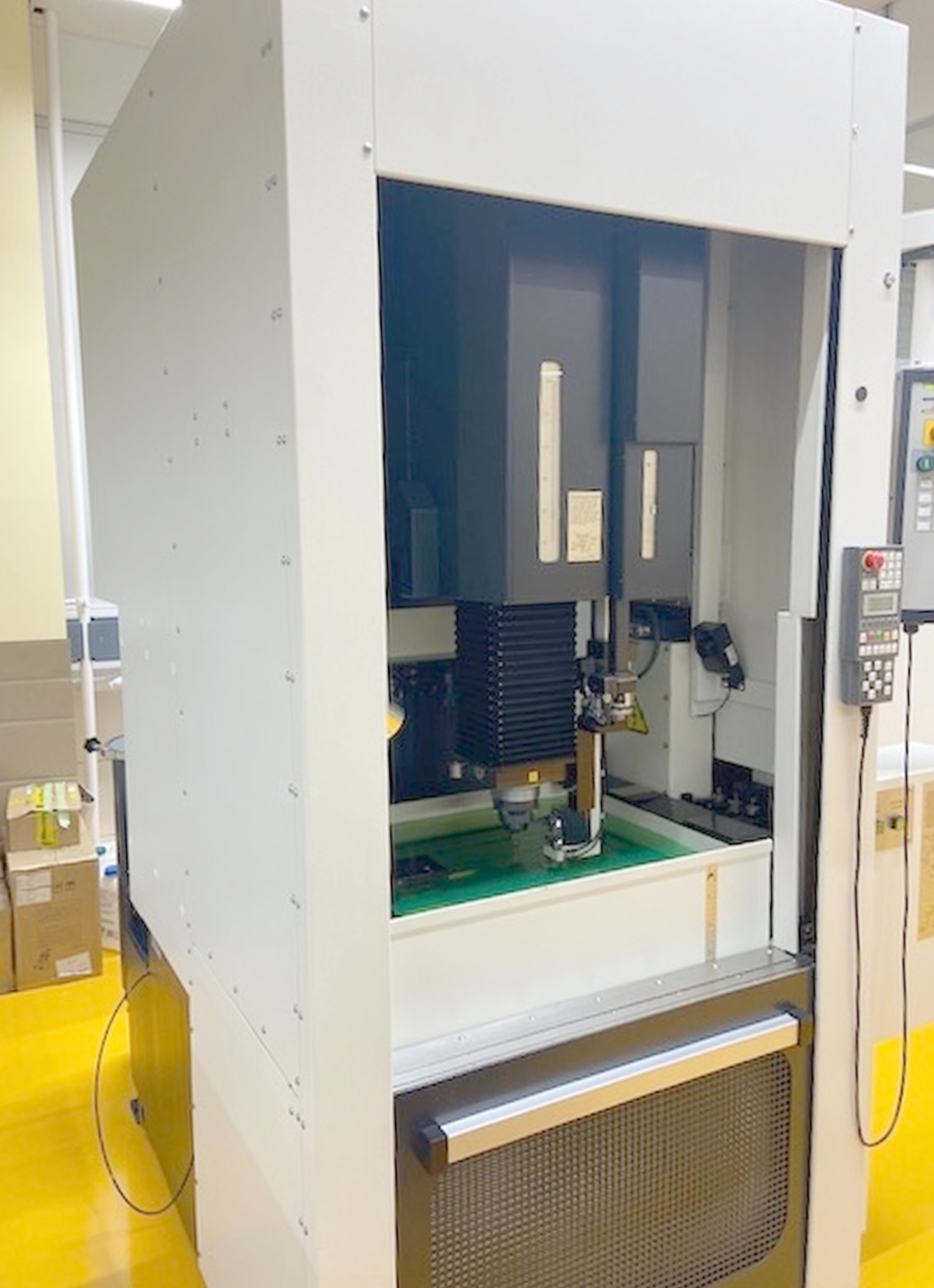

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Makino
  • Model:
  • 022179 - MAKINO EDNC 30F
  • Condition:
  • 1
  • YOM:
  • NA

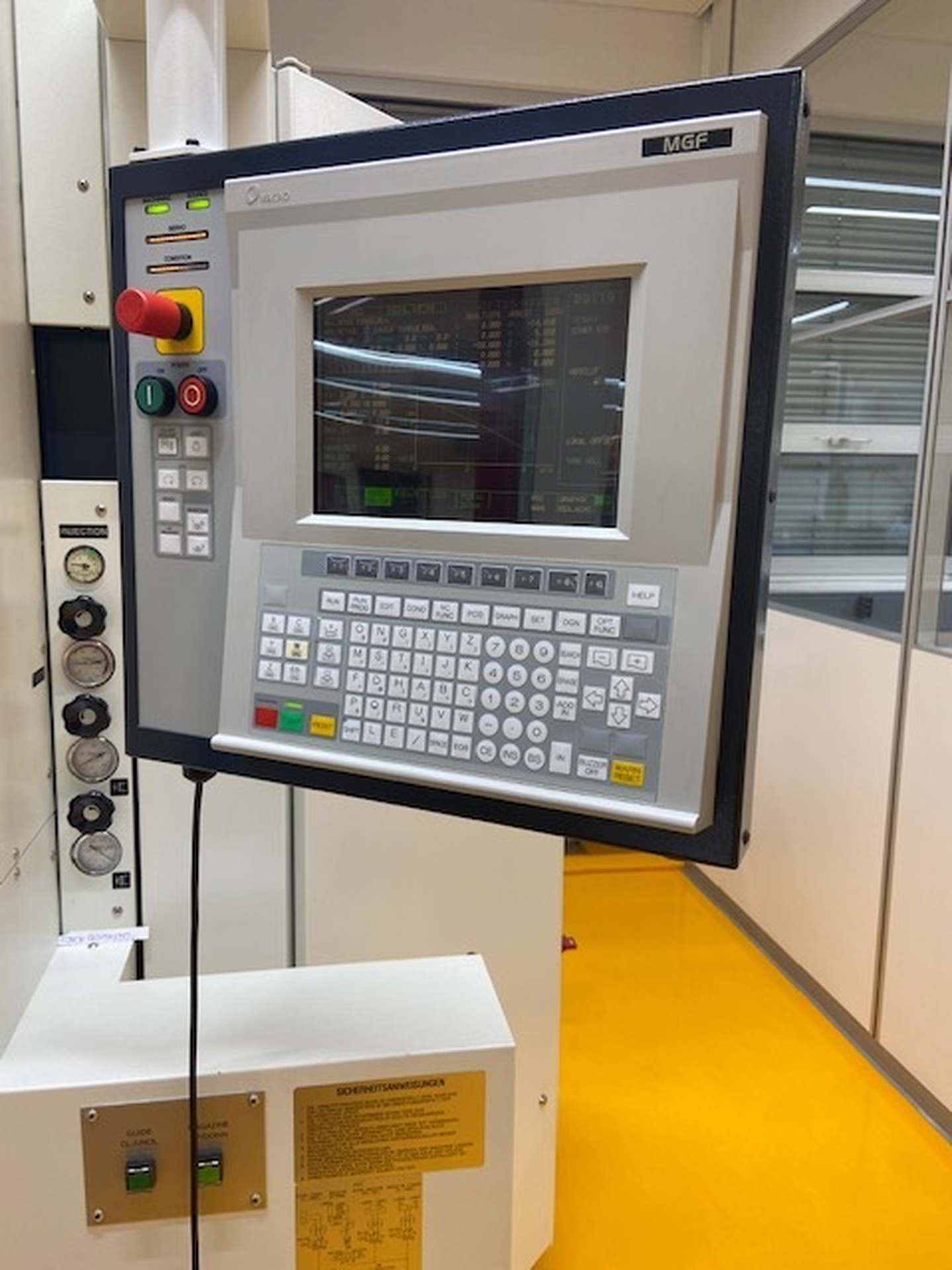

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 500 mm.
Table width: 350 mm.
Number of spline: 4.
T-channel width: 10 mm.
Distance of the T-slots: 80 mm.
Table load max.: 500 kg.
Longitudinal traverse (X-axis): 300 mm.
Cross traverse (Y-axis): 250 mm.
Height adjustment (Z-axis): 250 mm.
max. electrode weight: 50 kg.
Contents: 60 l.
Length: 2800 mm.
Width: 2200 mm.
depth: 300 mm.
Rapid traverse:: 20 m/min.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 4100 kg.
Height: 2300 mm.
C axis: °.
