MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:

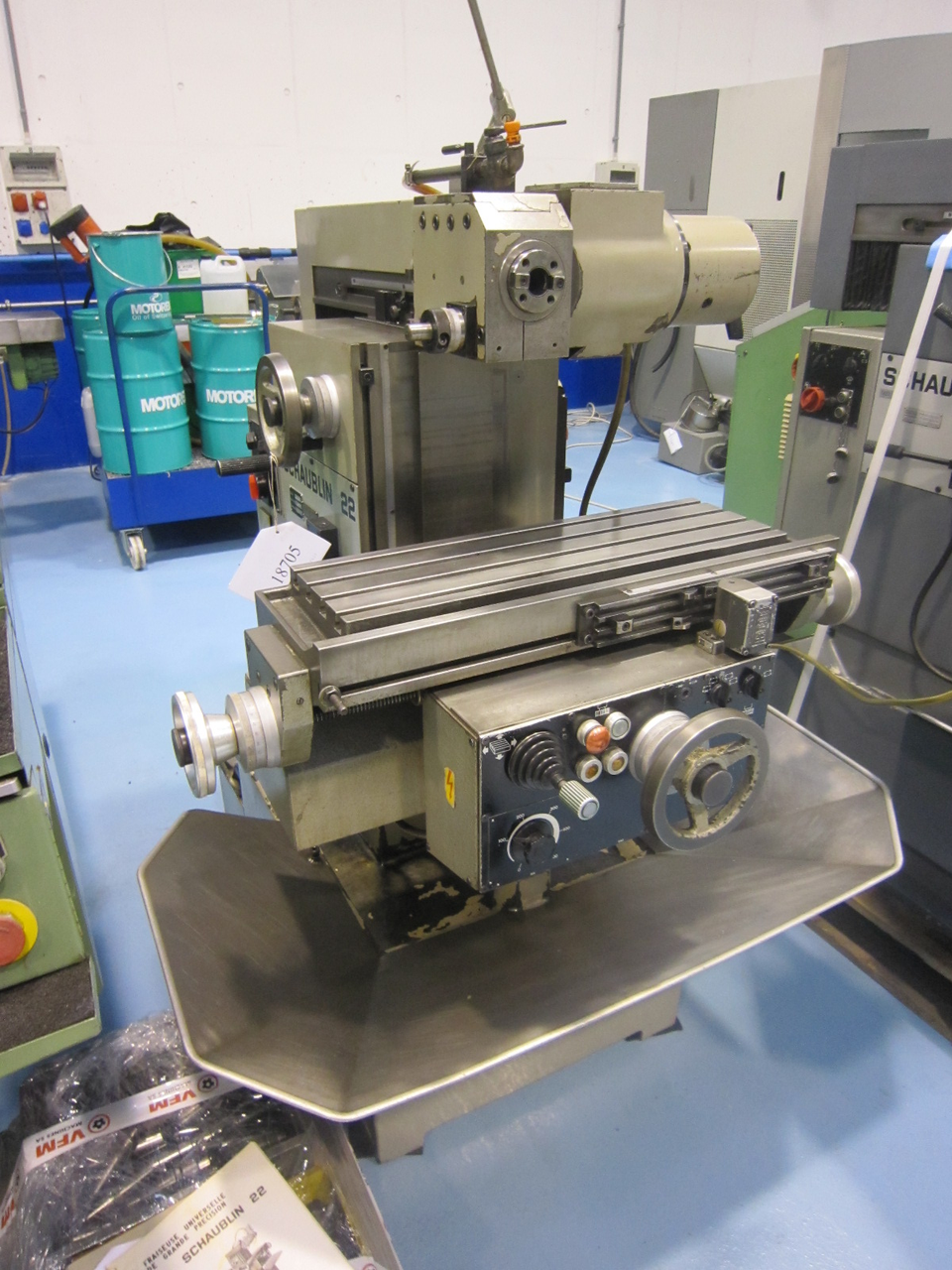

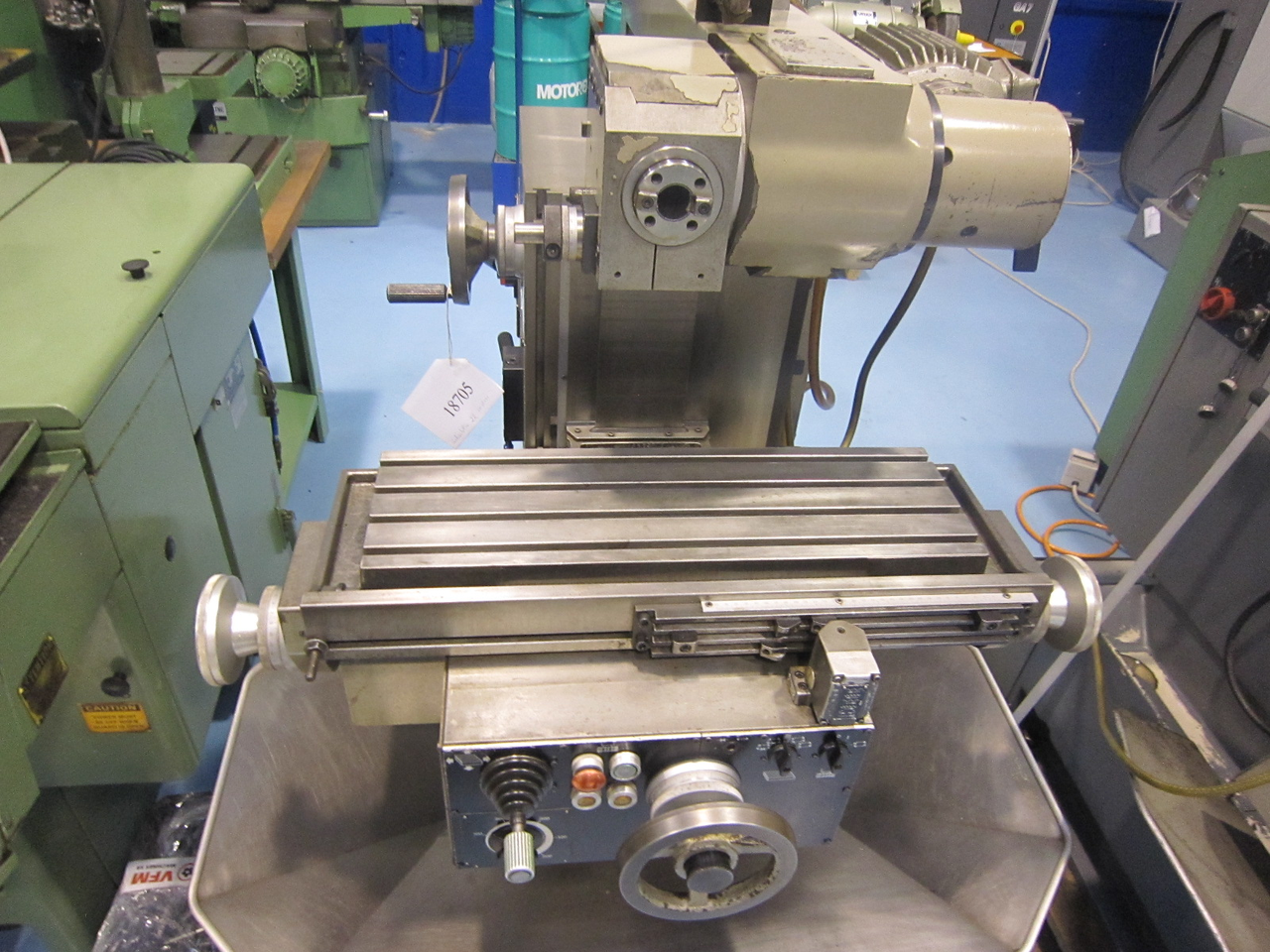

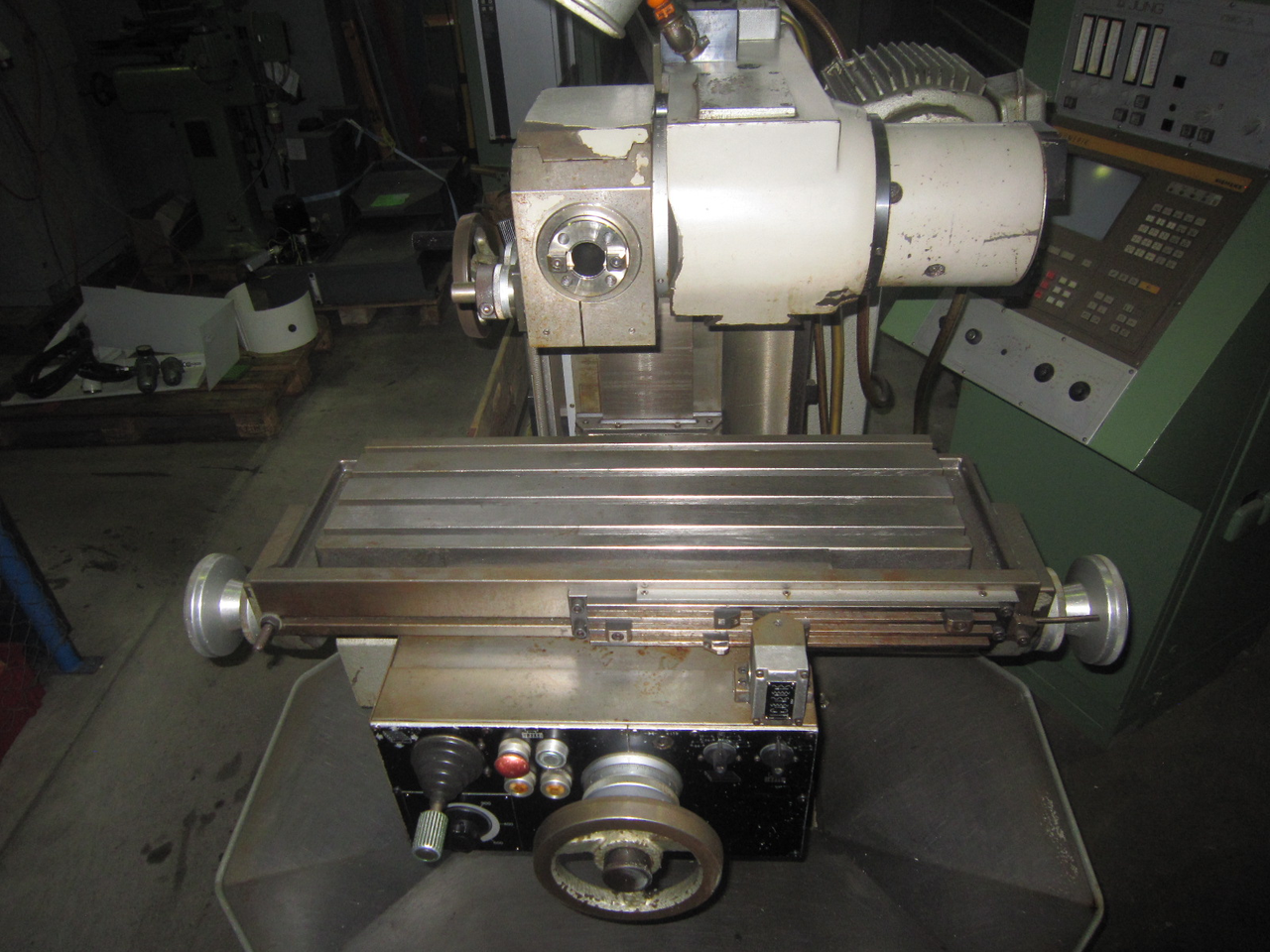

  • 018705 - SCHAUBLIN 22
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 650 mm.
Table width: 250 mm.
Longitudinal travel (X-axis): 330 mm.
Transversal travel (y axis): 400 mm.
Vertical travel (z axis): 475 mm.
number (steps): 12.
from: 63 t/min.
up to: 200 mm/min.
Taper in spindle: 30 ISO.
longitudinal from: 4 mm/min.
vertical from: 2 mm/min.
Vertical quill travel: 60 mm.
longitudinal: 2.5 m/min.
vertical: 1.0 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 2.2 CV.
Machine's weight about: 950 kg.
Length: 1600 mm.
Width: 1100 mm.
Height: 1650 mm.
