MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • HASEGAWA
  • Model:

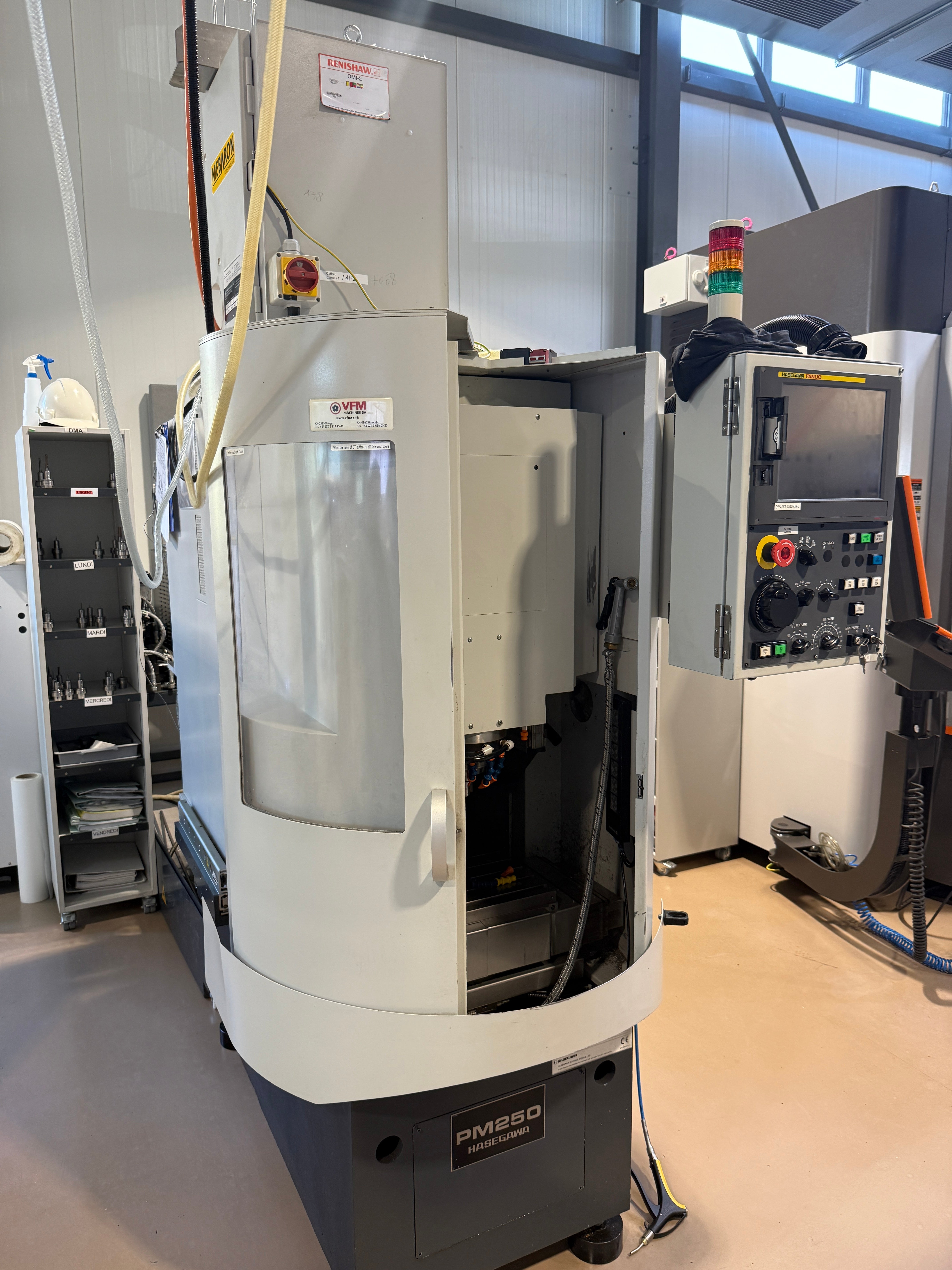

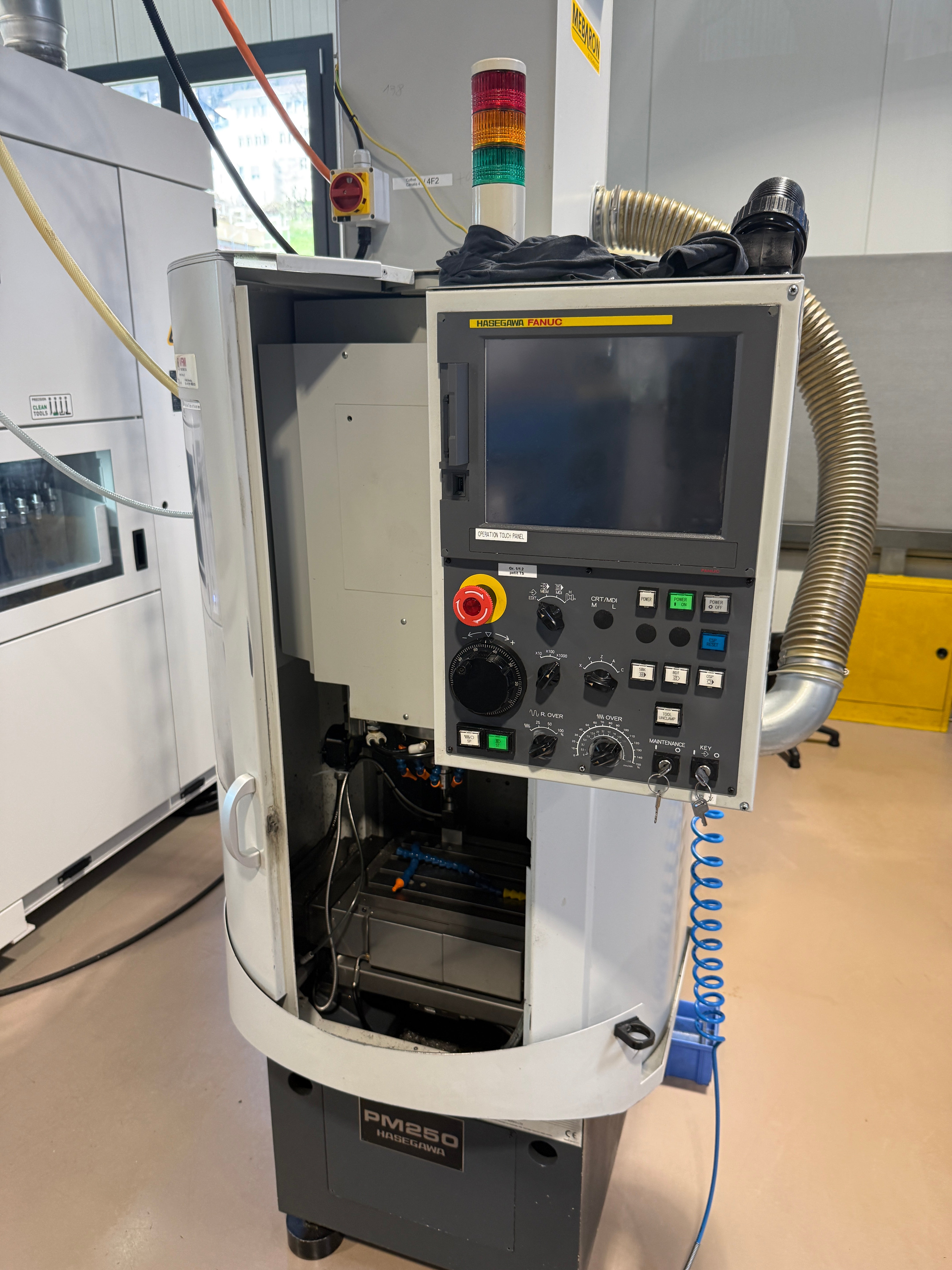

  • 023163 - HASEGAWA PM 250
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

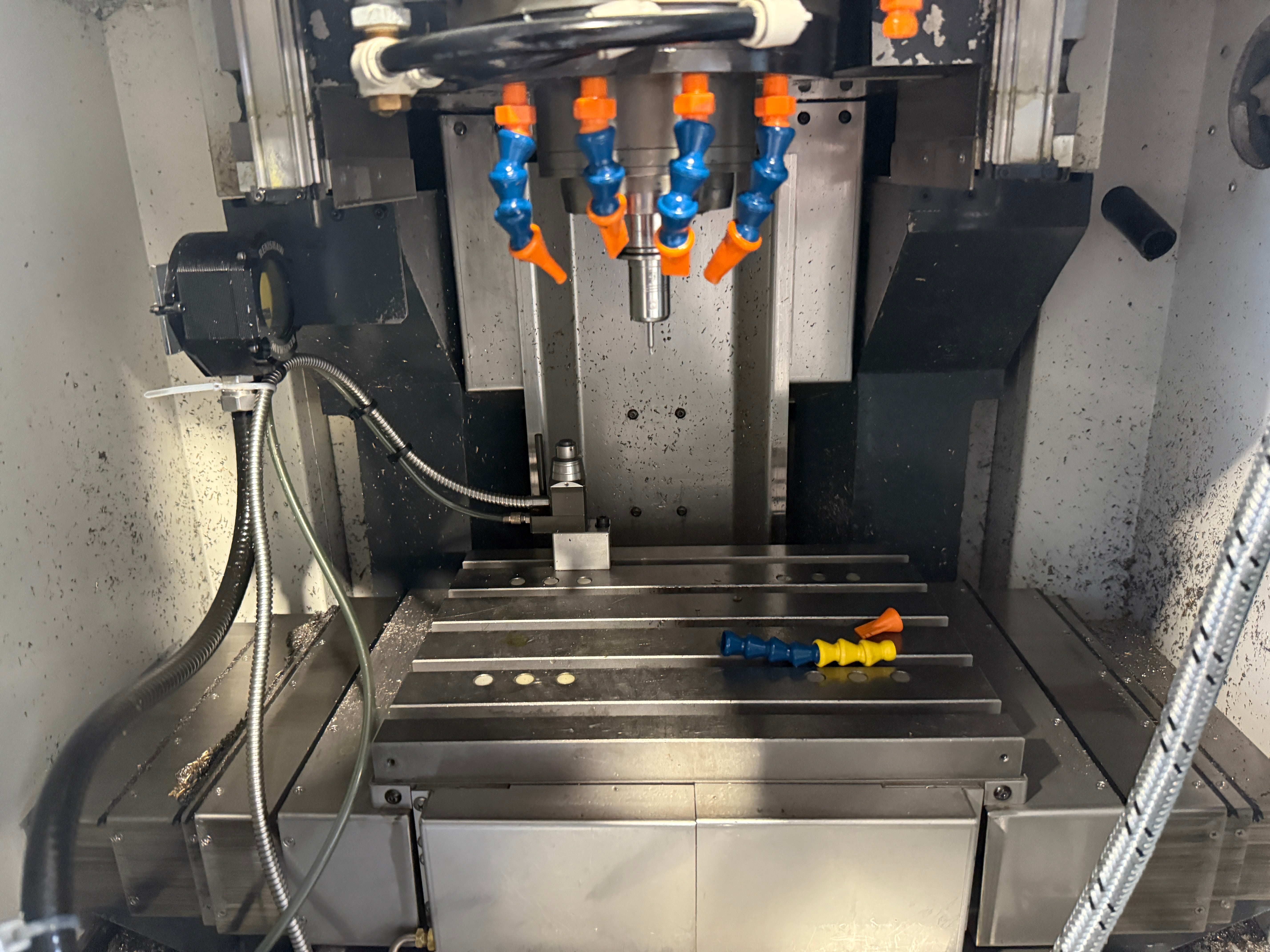

Table length: 300 mm.
Table width: 260 mm.
Longitudinal travel (X-axis): 100 mm.
Transversal travel (y axis): 225 mm.
Vertical travel (z axis): 200 mm.
Table load max.: 80 kg.
spindle to table: 140 ~ 340 mm.
vertical from: 100 t/min.
up to: 30000 t/min.
Rapid traverse:: 30 m/min.
Voltage 50 Hz 3x: 400 Volt.
Milling spindle motor: 3.0 / 4.5 kW.
Total power required: 12 kVA.
Machine's weight about: 2000 kg.
Length: 1750 mm.
Width: 600 mm.
Height: 1800 mm.

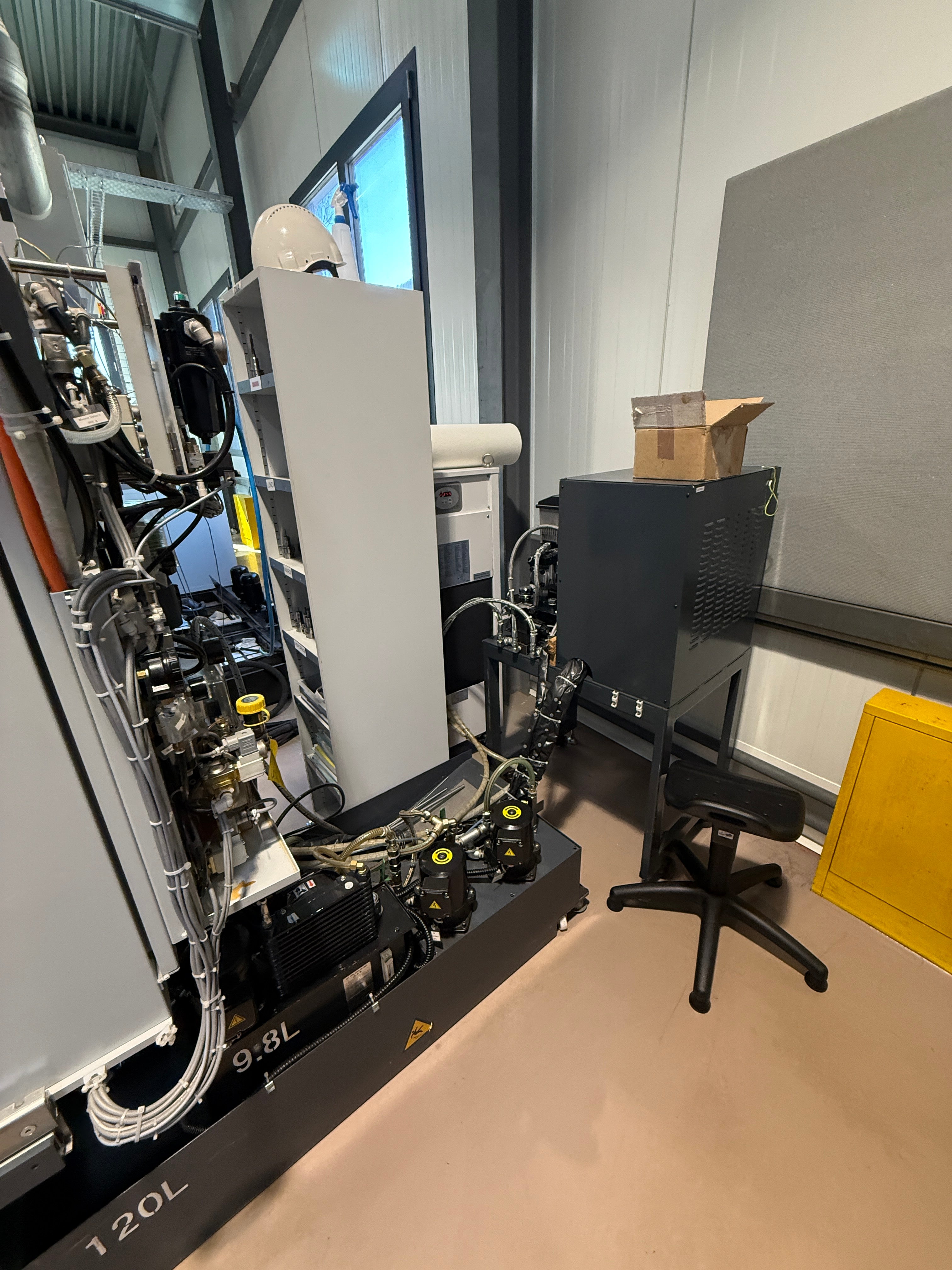

Coolant system: 120 ltr.
