MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
SCHAUBLIN

Model:

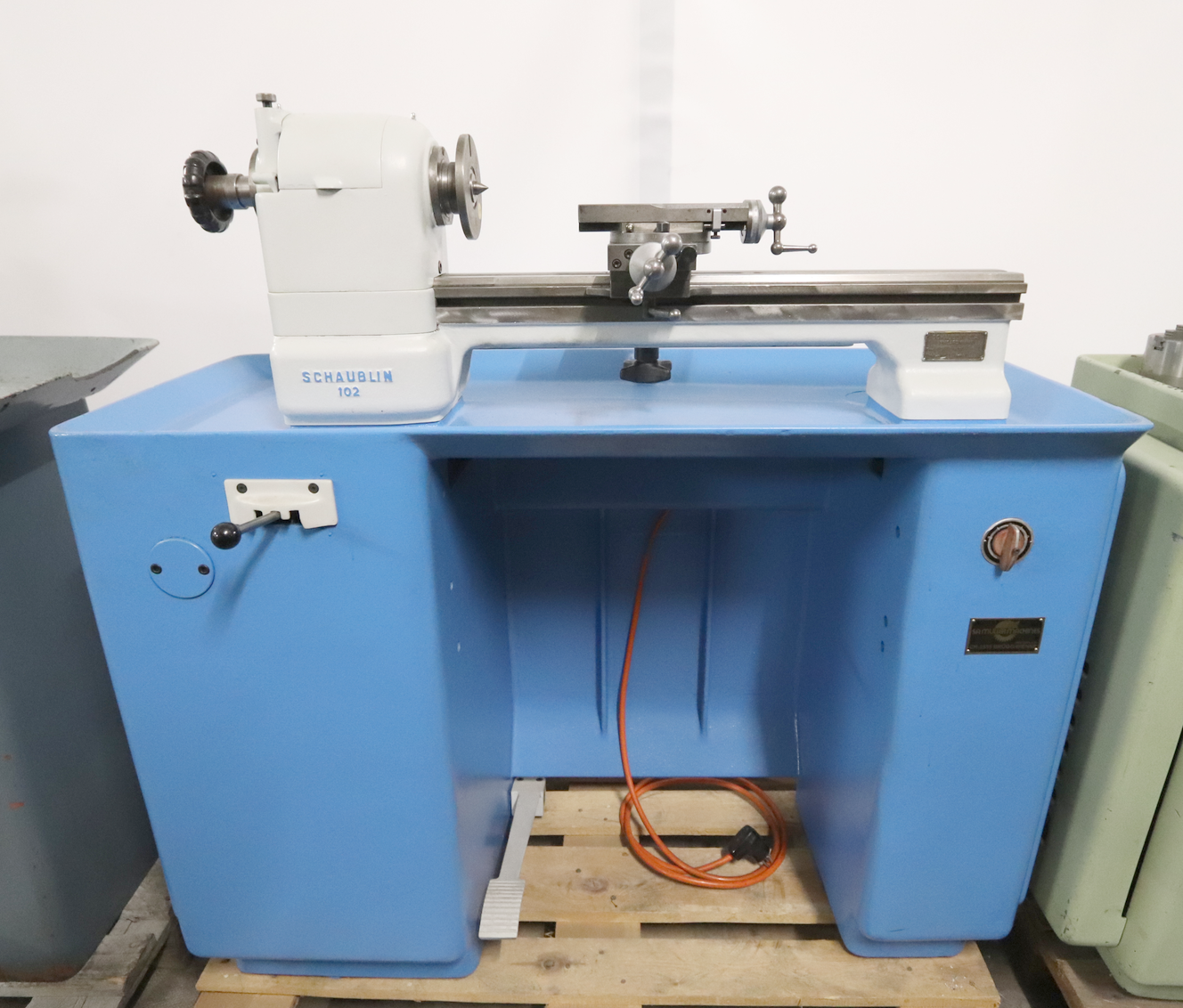

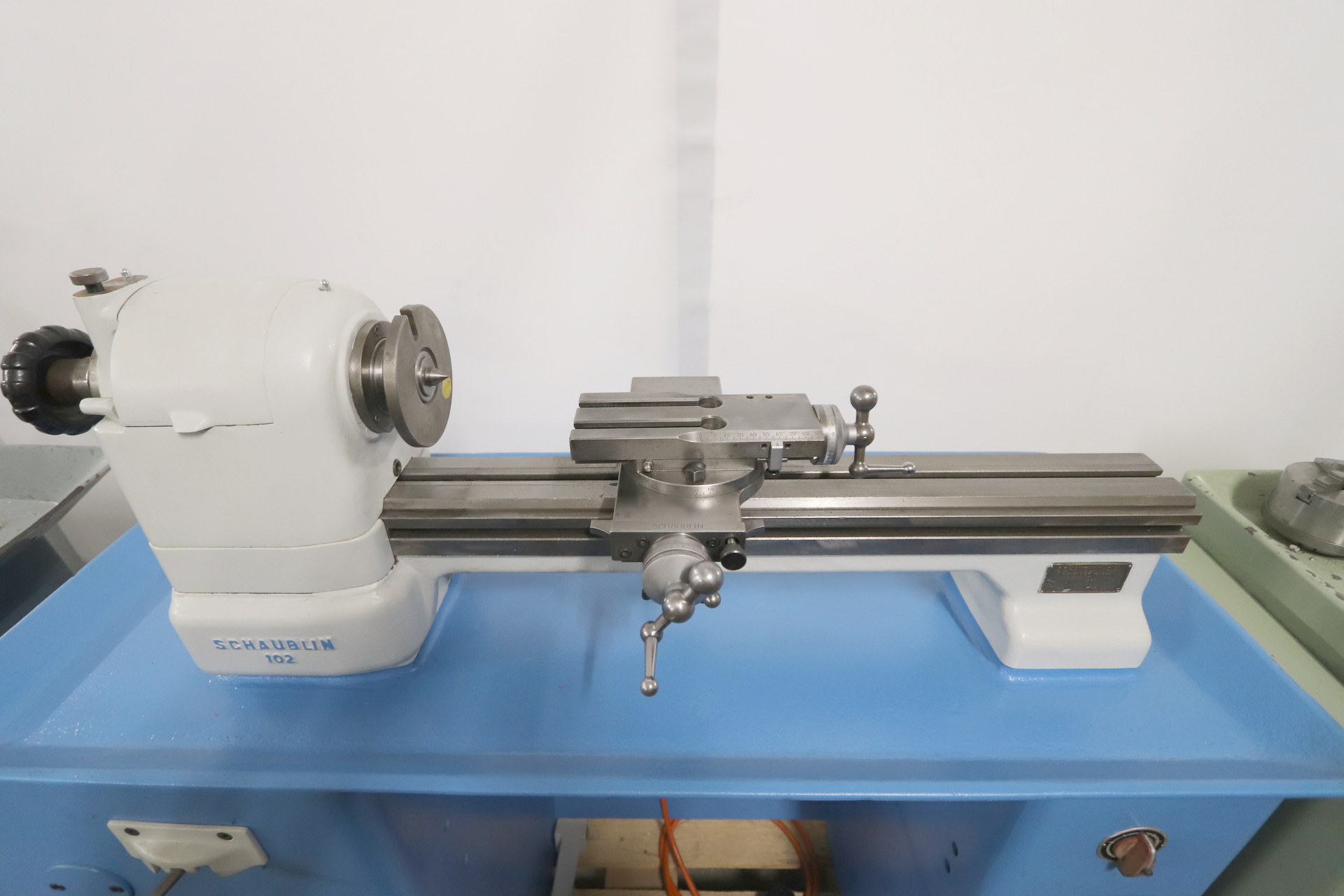

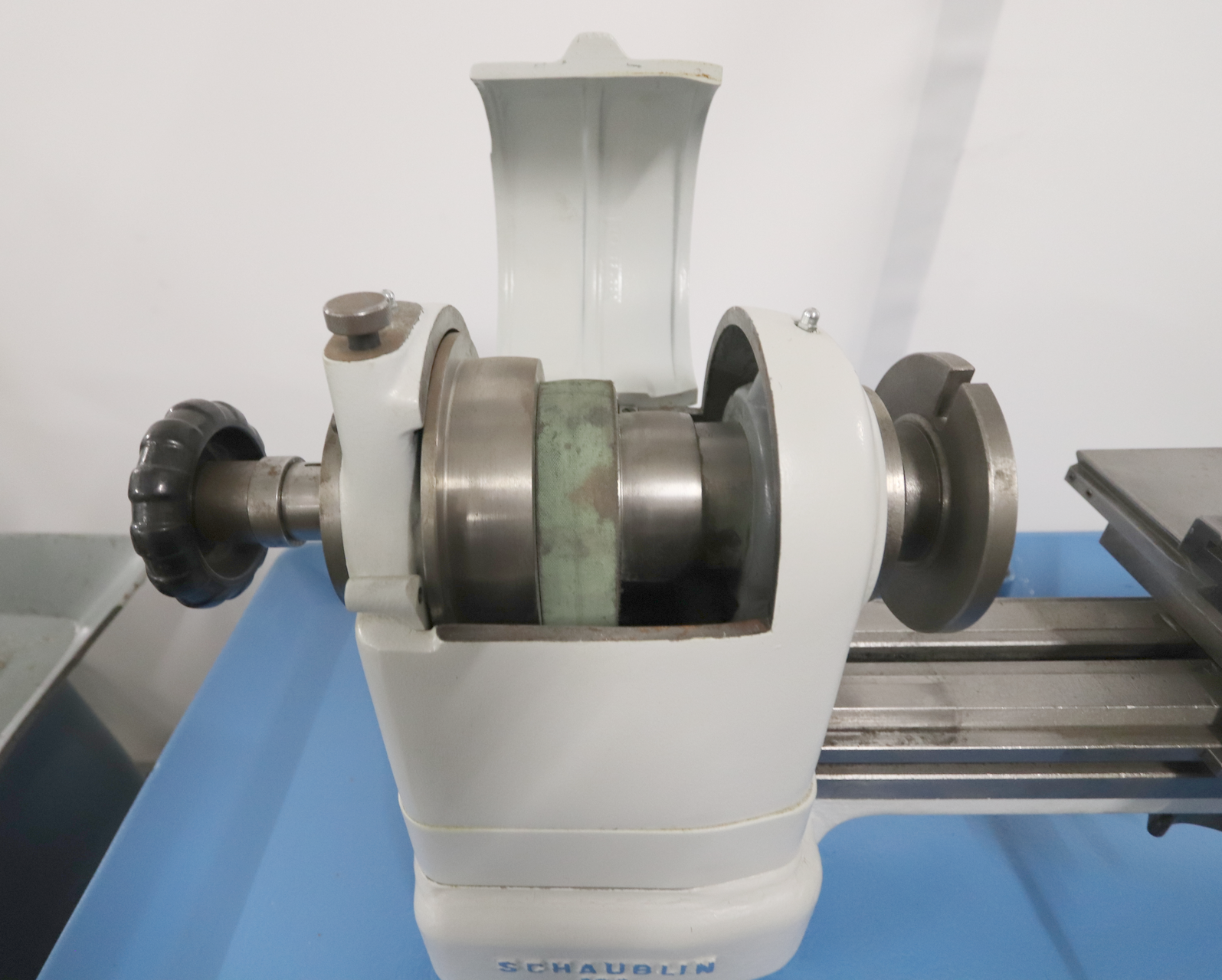

009306 - SCHAUBLIN 102-80

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 450 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.
Spindle hole: 25.0 mm.
Inner taper type: 25 W.
from: 55 t/min.
up to: 3000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.5 CV.
Total power required: 2 CV.
Machine's weight about: 550 kg.
Length: 1400 mm.
Width: 510 mm.
Height: 1300 mm.

+ request more information
