MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DISKUS
  • Model:

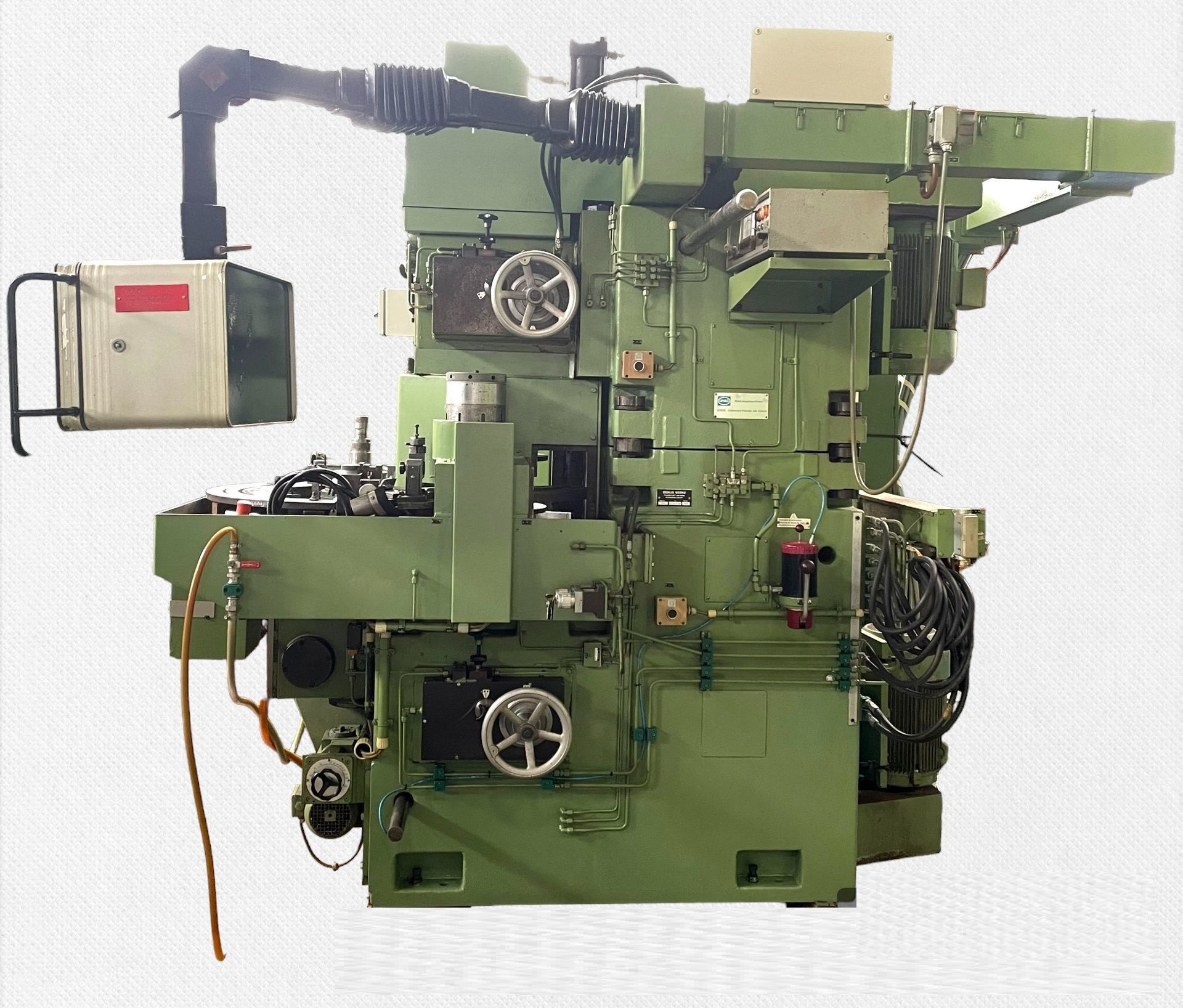

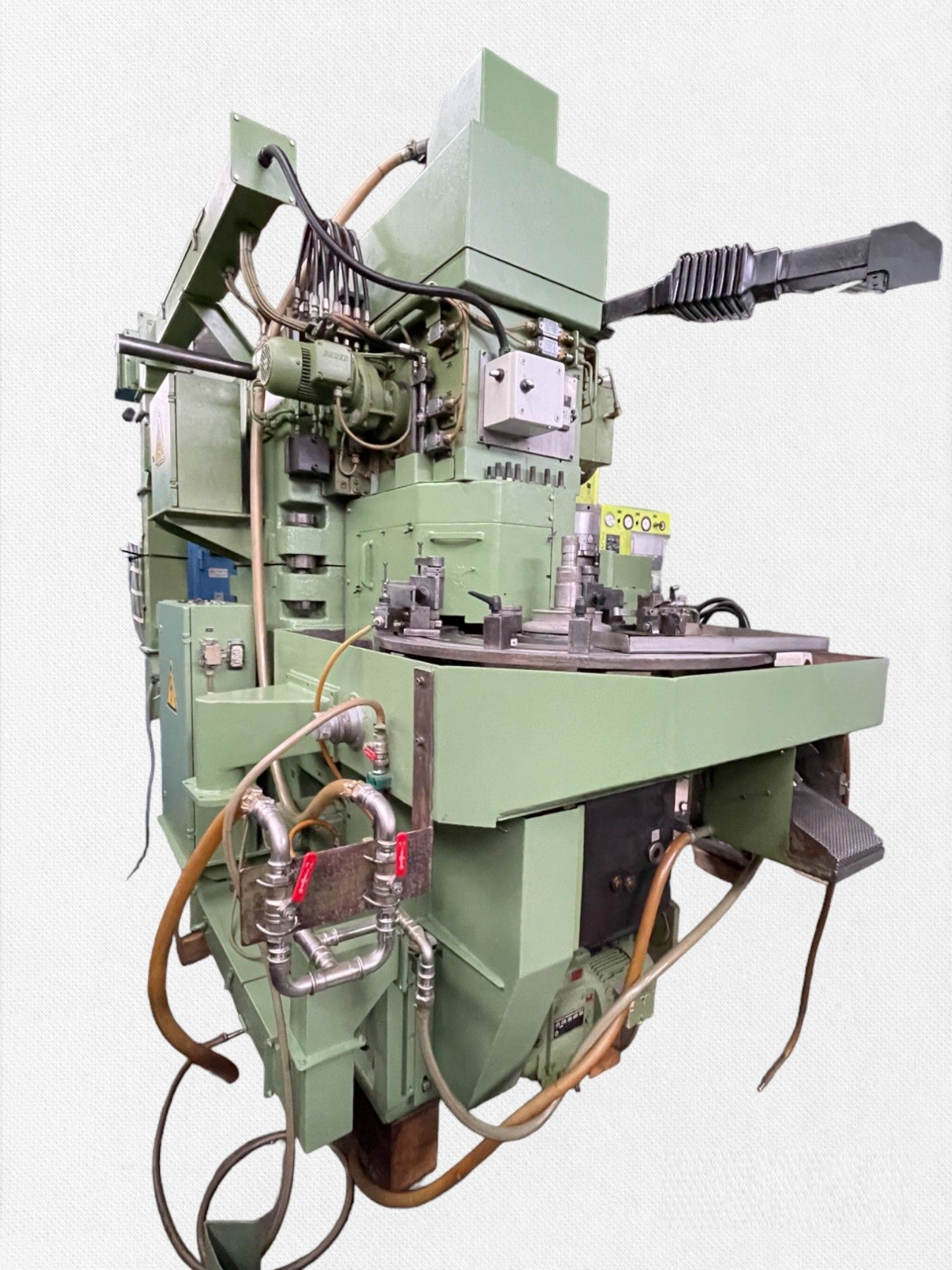

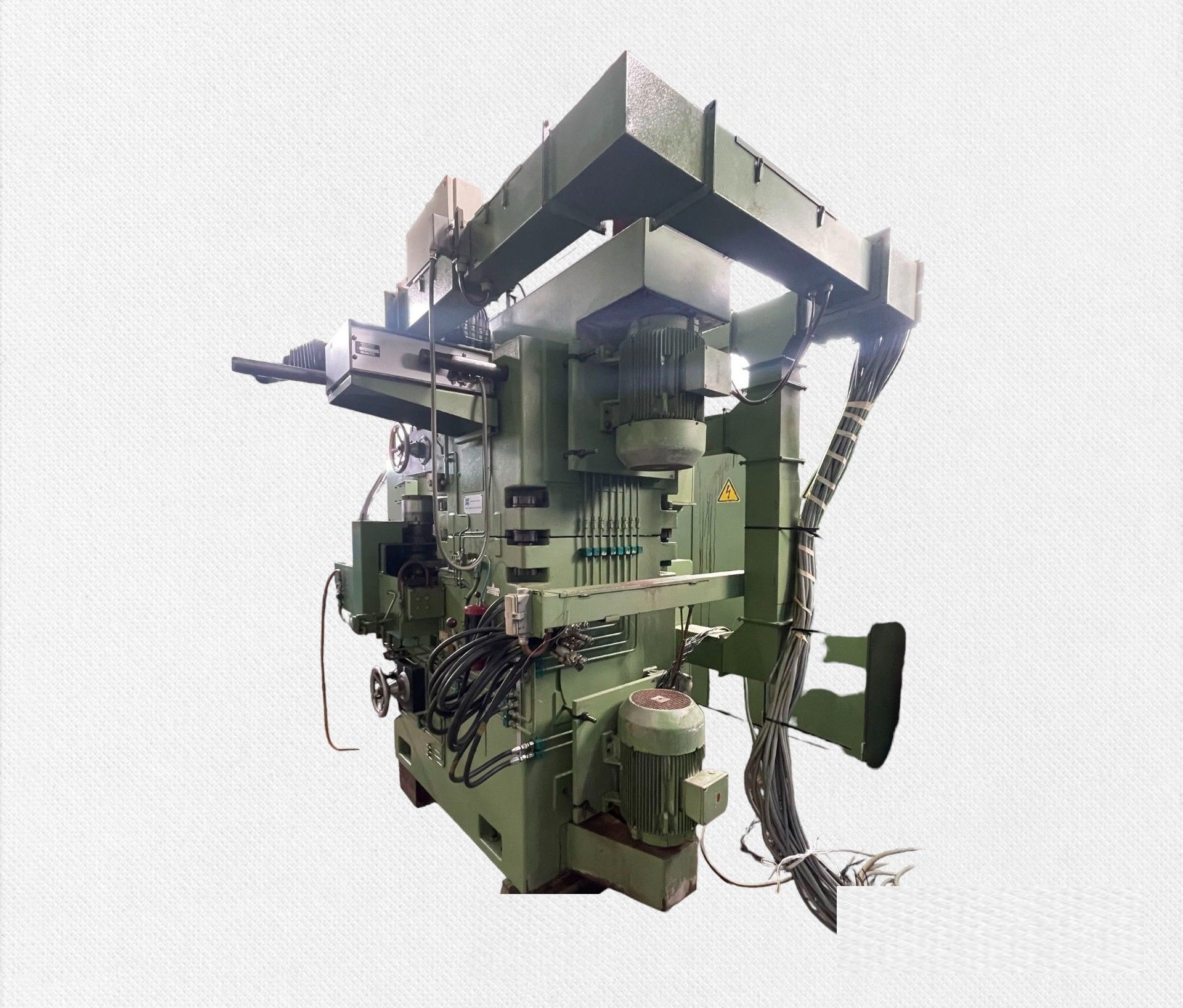

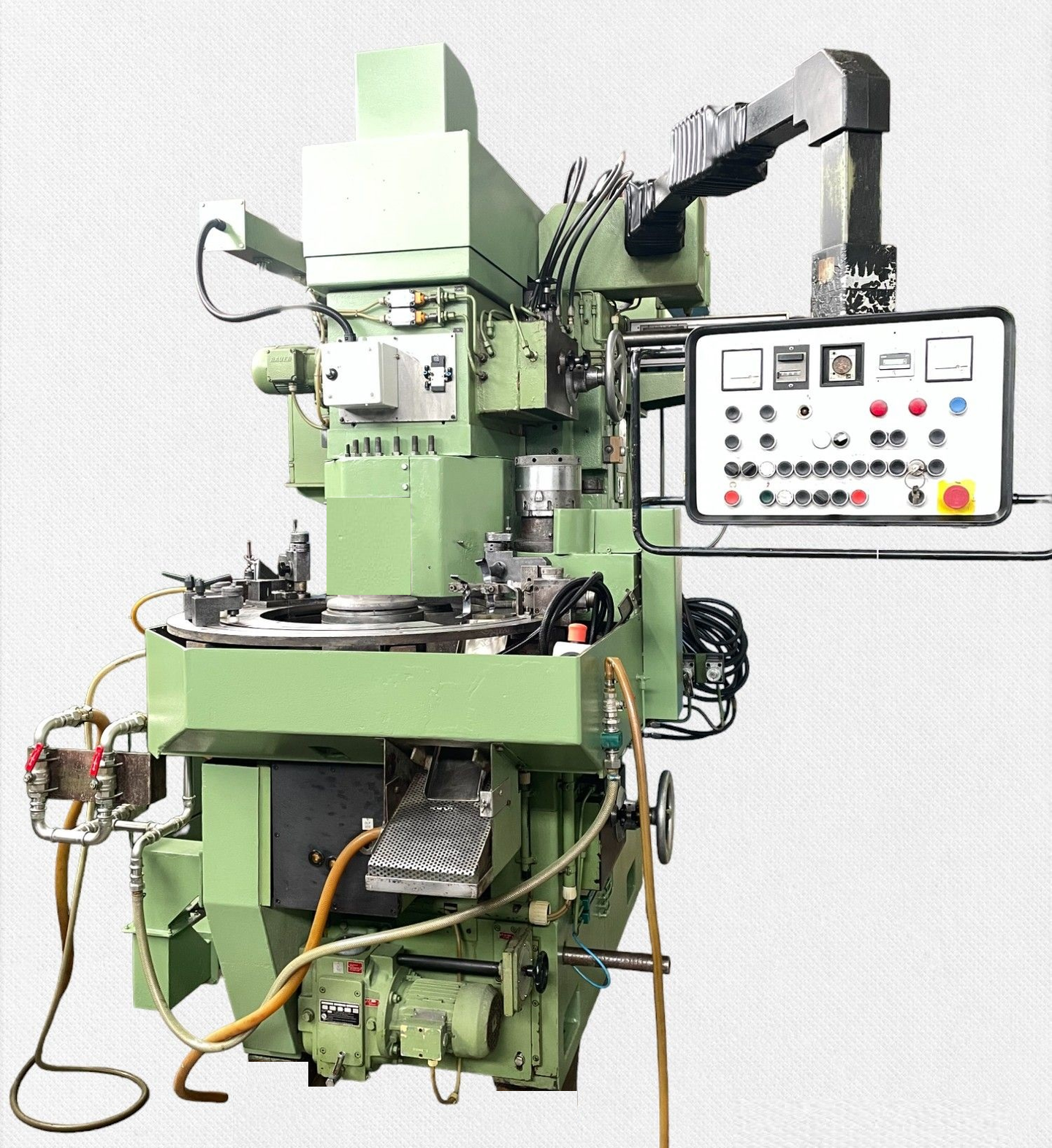

  • 022694 - DISKUS DDS 457 II CRA
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Work-piece diameter: 5 - 60 mm.
Max. work-piece height: 1 - 20 mm.
Number of grinding heads: 2.
outside diameter: 457 mm.
Width / height: 75 mm.
Location hole: 76 mm.
Grinding wheel speeds fix: 753 t/min.
Peripheral speed: 18 m/s.
Voltage: 380 Volt.
Grinding motor power: 2 x 15 kW.
Total installed power: 33 kW.
Machine's weight about: 5000 kg.
Length: 4000 mm.
Width: 3000 mm.
Height: 2700 mm.
