MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Colchester
  • Model:

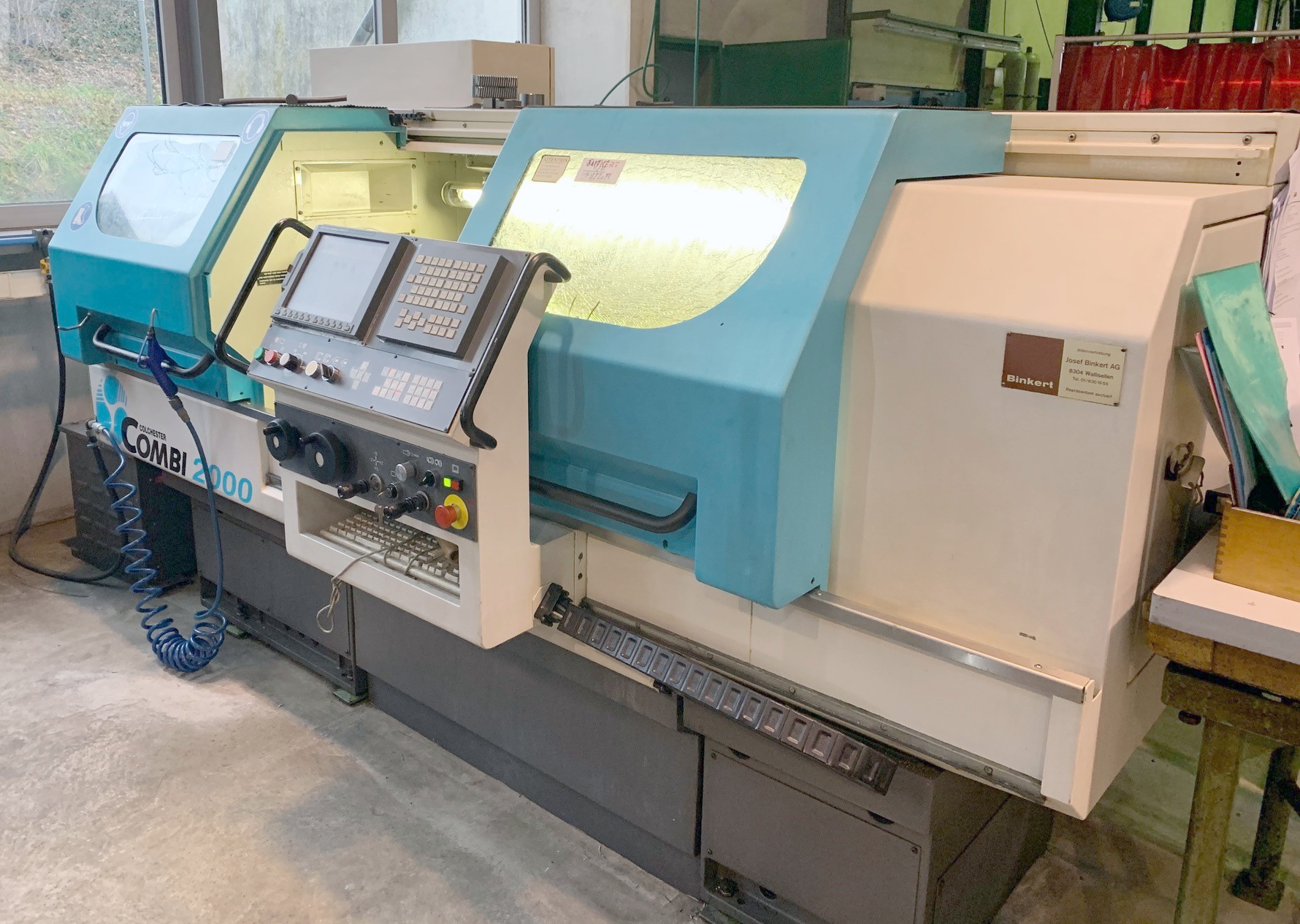

  • 022236 - COLCHESTER COMBI 2000
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 2.
Centre height: 200 mm.
Distance between centres: 1250 mm.
Swing over cross-slide: 246 mm.
Swing over bed: 400 mm.

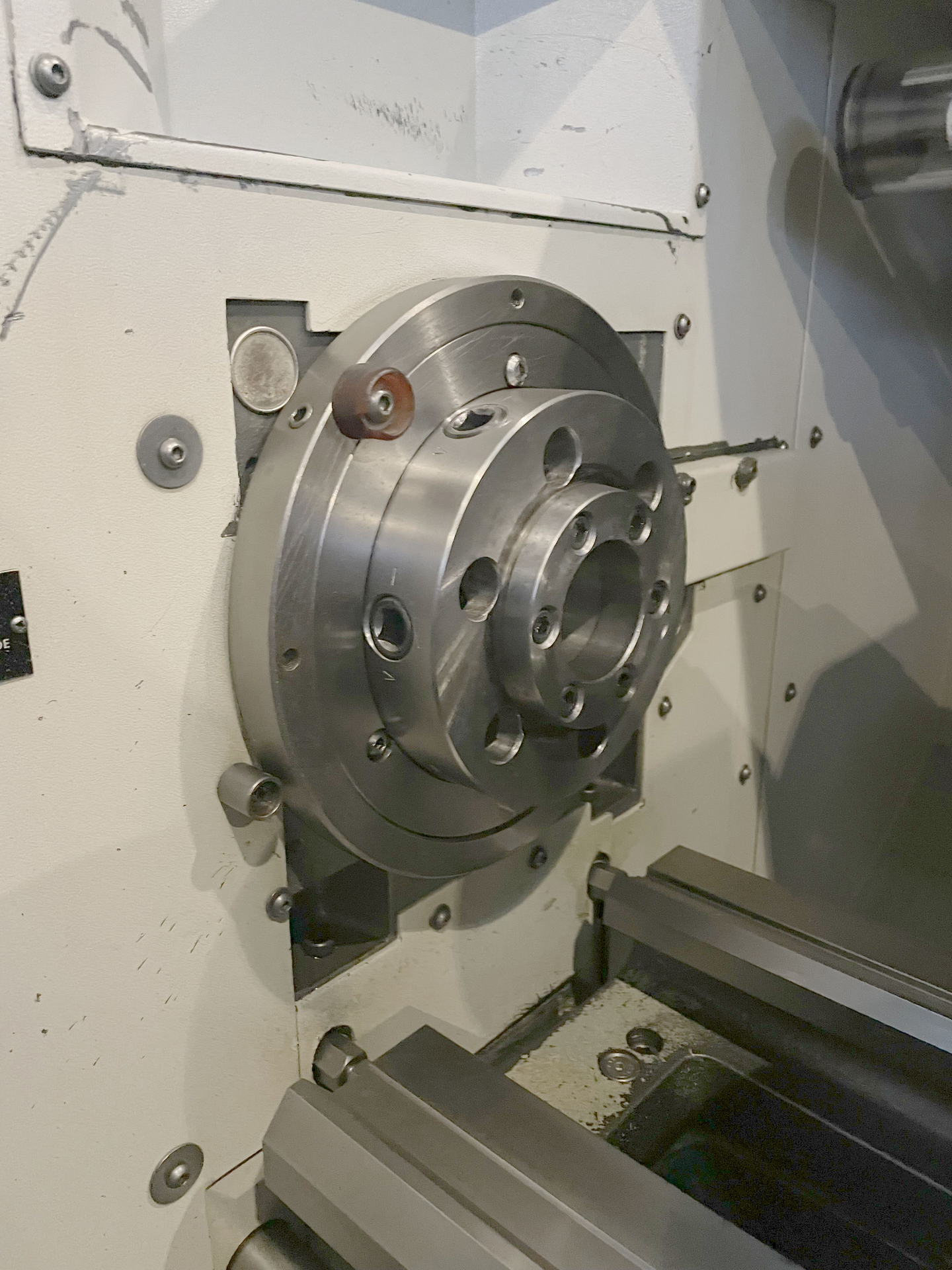

Spindle nose: D1-6.
Spindle hole: 54 mm.
Longitudinal travel (Z-axis): 1156 mm.
Transversal strocke (X axis): 240 mm.
Rapid traverse X: 10 m/min.
Rapid traverse Z: 20 m/min.
Number of positions: 8.

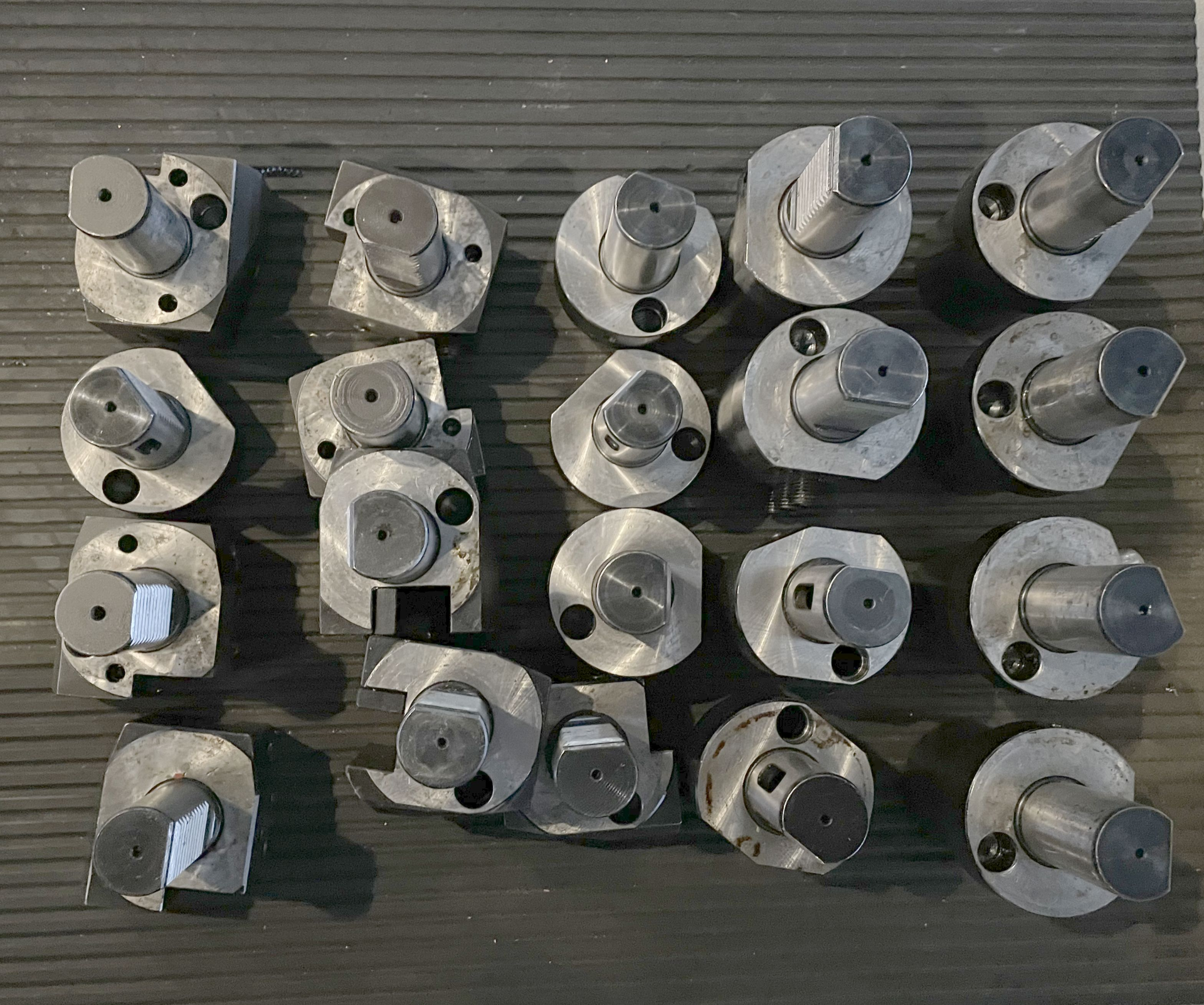

Fixed tools turret: 8.

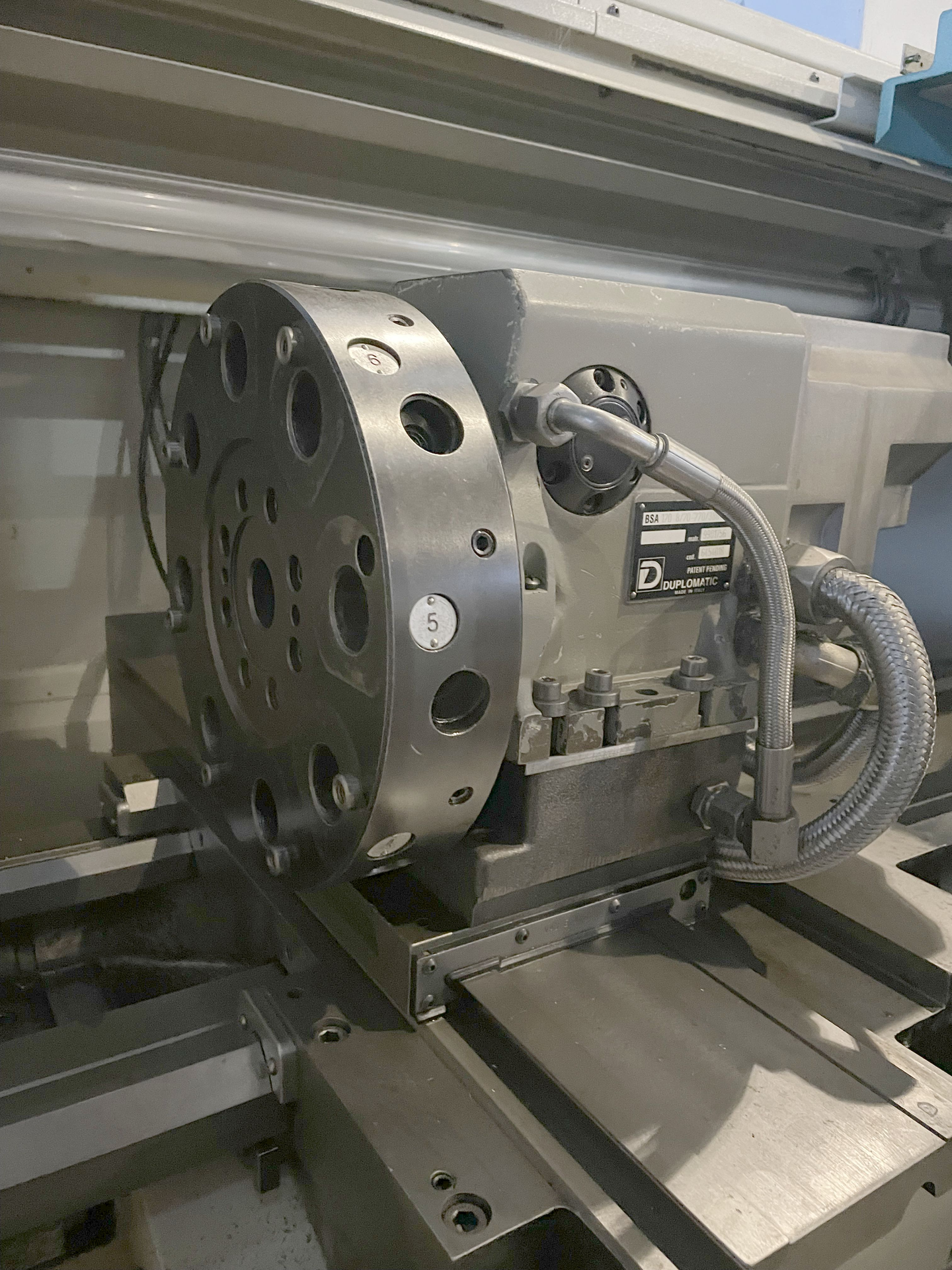

Type: DUPLOMATIC BSA 120.
Spindle nose: VDI: 30.
Camlock: D1-6 CAMLOCK.
from: 12 t/min.
up to: 2500 t/min.
Morse taper: 5 CM.
Spindle stroke: 155 mm.
Spindle diameter: 73 mm.
Spindle motor: 7.5 kW.
Voltage 50 Hz 3x: 380 Volt.
3-jaw chuck diameter: 250 mm.
