MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kellenberger
  • Model:

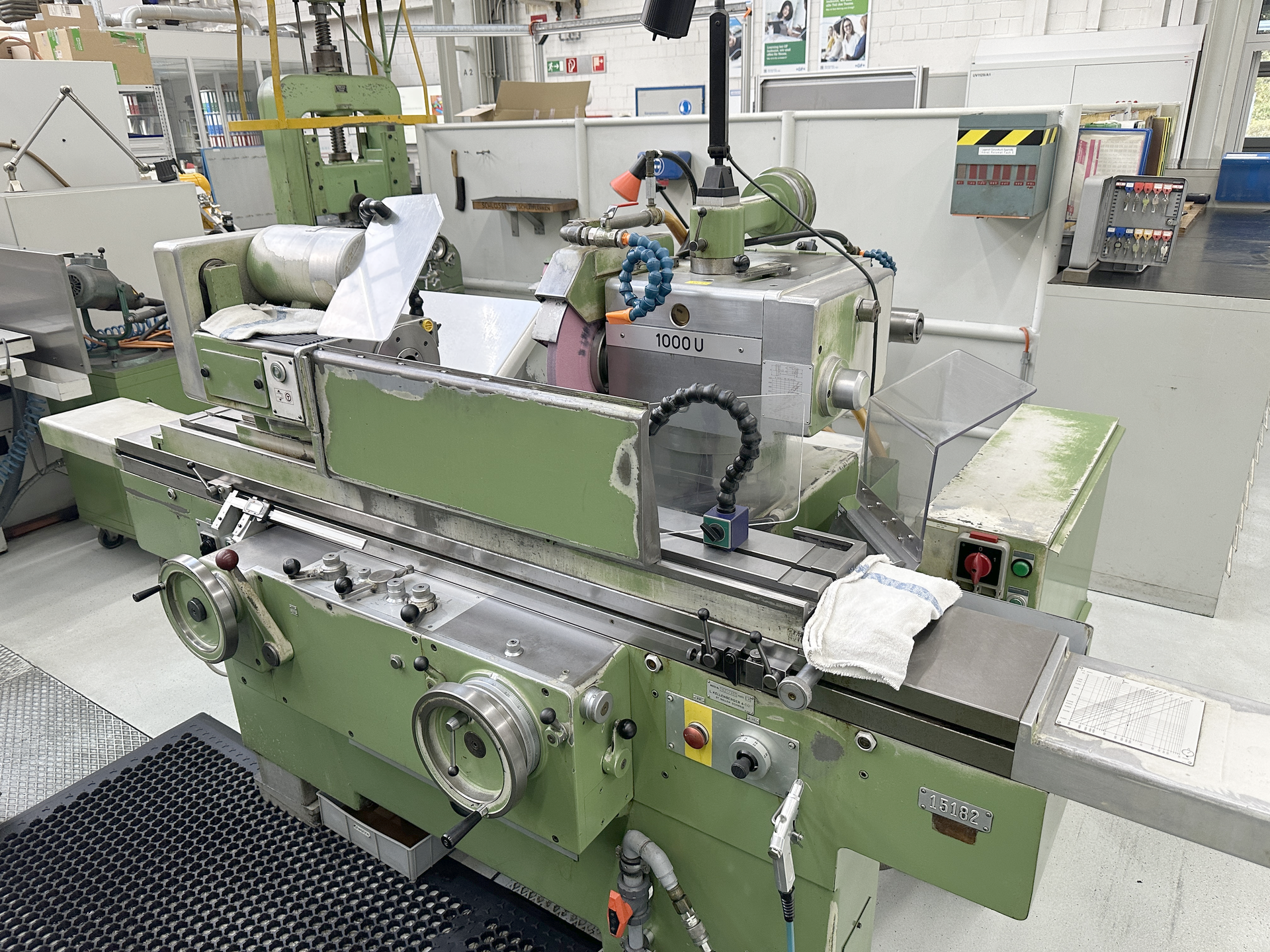

  • 022294 - KELLENBERGER 1000 U
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 125 mm.
Distance between centres: 1000 mm.
grinding diameter: 480 mm.
Diameter: 400 mm.
Width: 50 mm.
Bore: 127 mm.
number (steps): 3.
from: m/min.
up to: 6 m/min.
Angular displacement: 270 °.
rotatable: 360 °.
Inner taper type: W20 / W25.
Spindle taper: 5 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: 8 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 4 CV.
Workpiece spindle motor: 1 kW.
Machine's weight about: 2500 kg.
Length: 2860 mm.
Height: 1670 mm.
Spindle speeds: 23000 t/min.

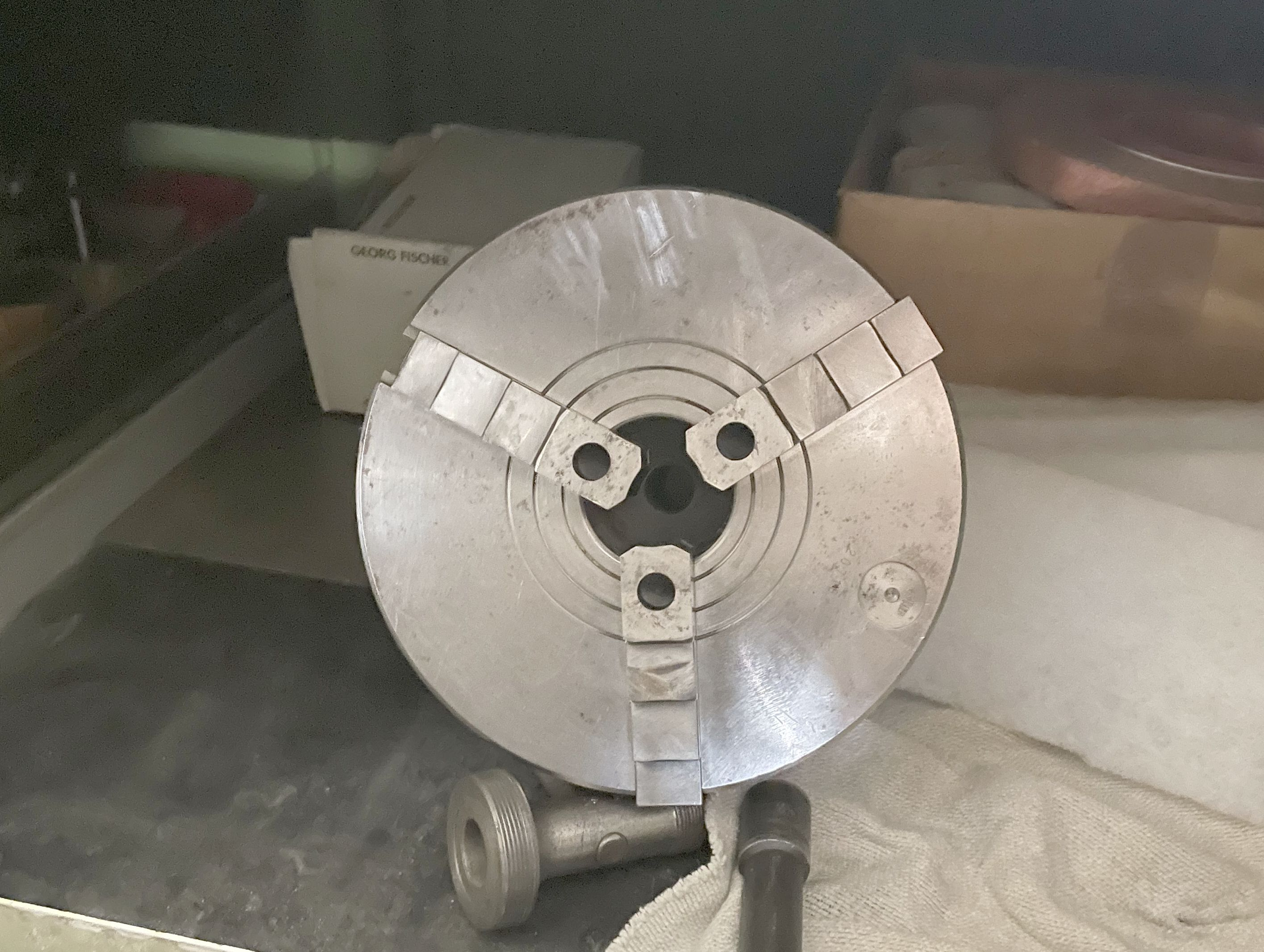

3-jaw chuck diameter: 200 mm.

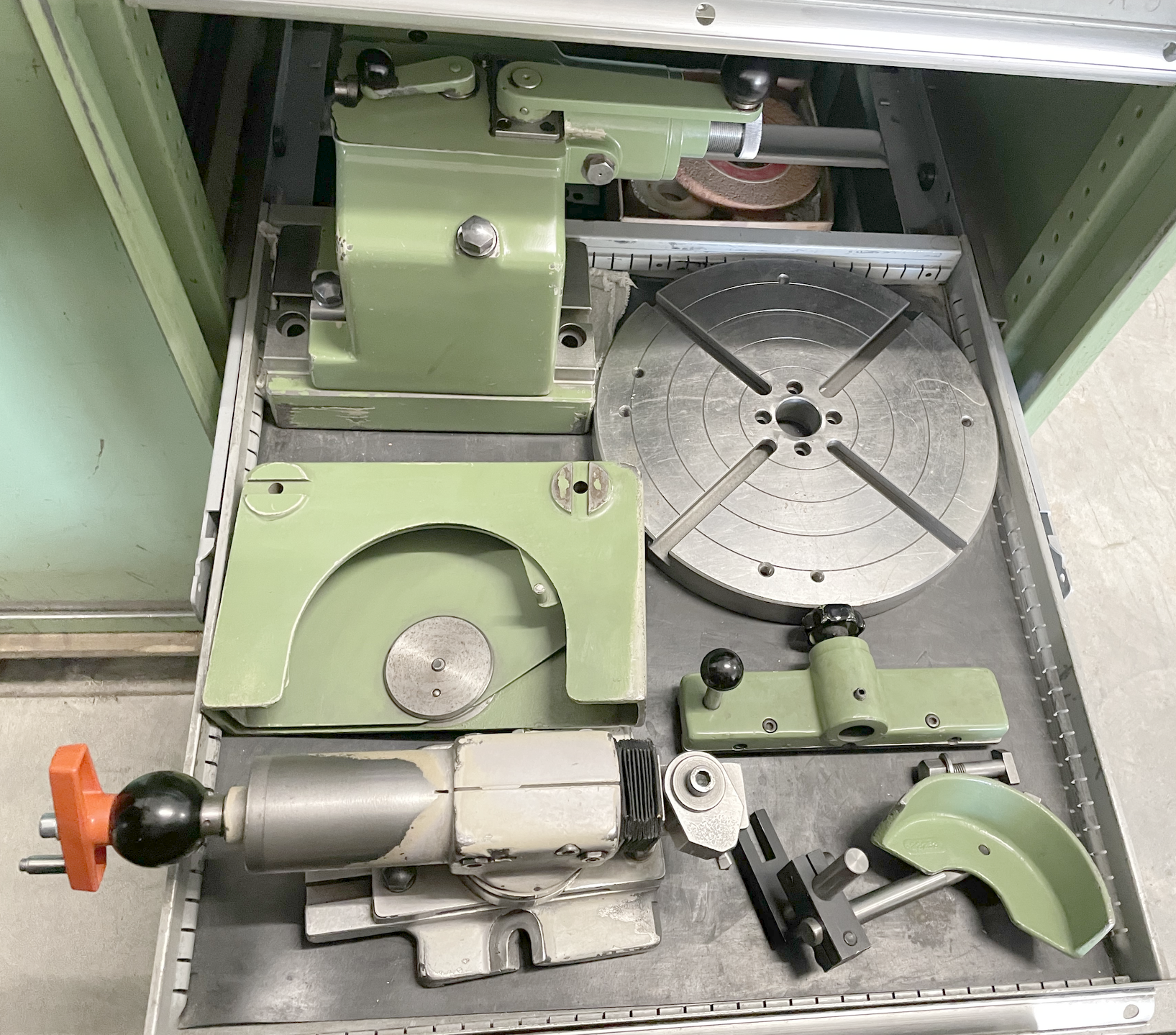

4-jaw face plate diameter: 340 mm.
Macnetic chuck diameter: 300 mm.

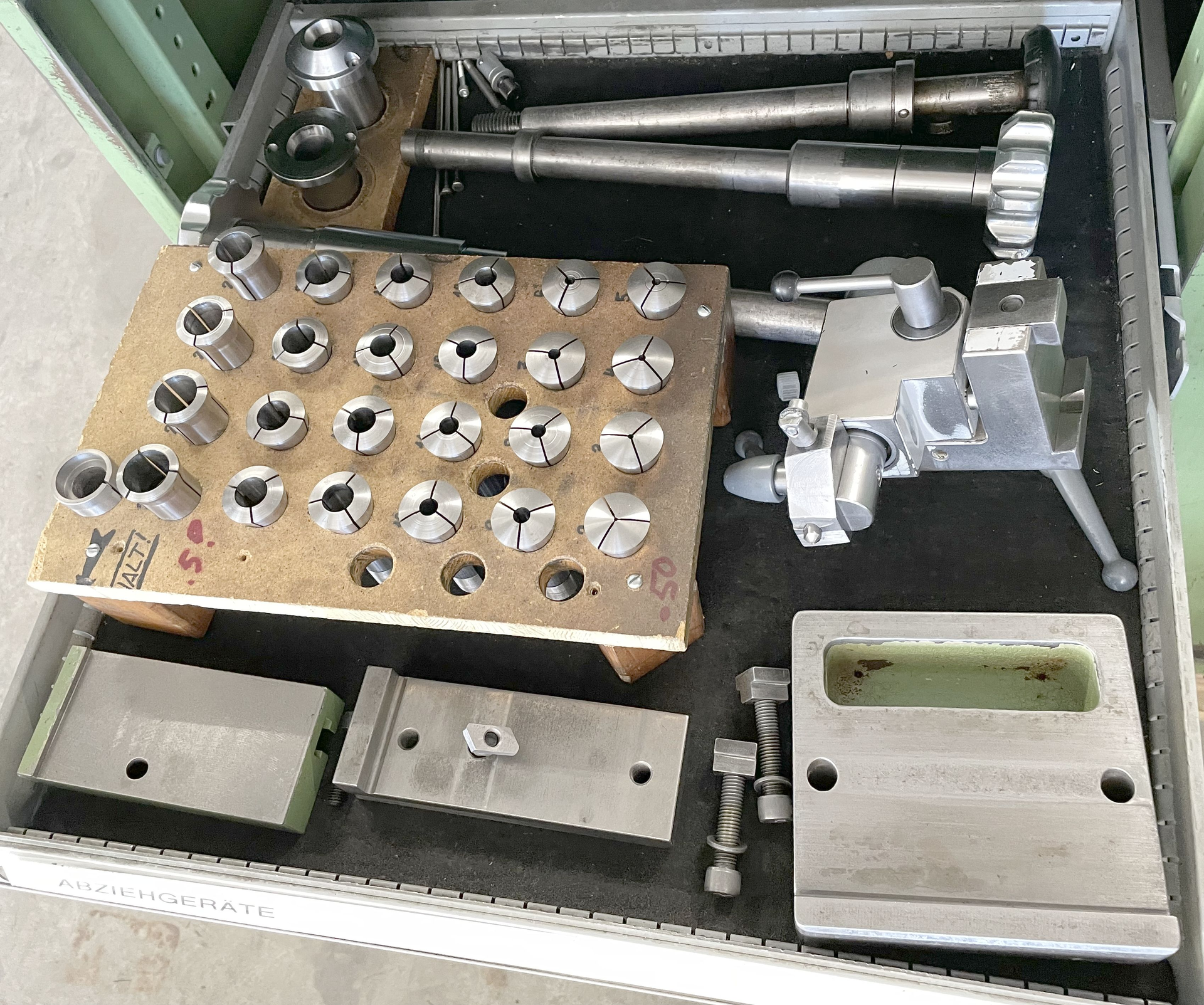

Set of collets: W25.
Set of elevation plates: 50 mm.
