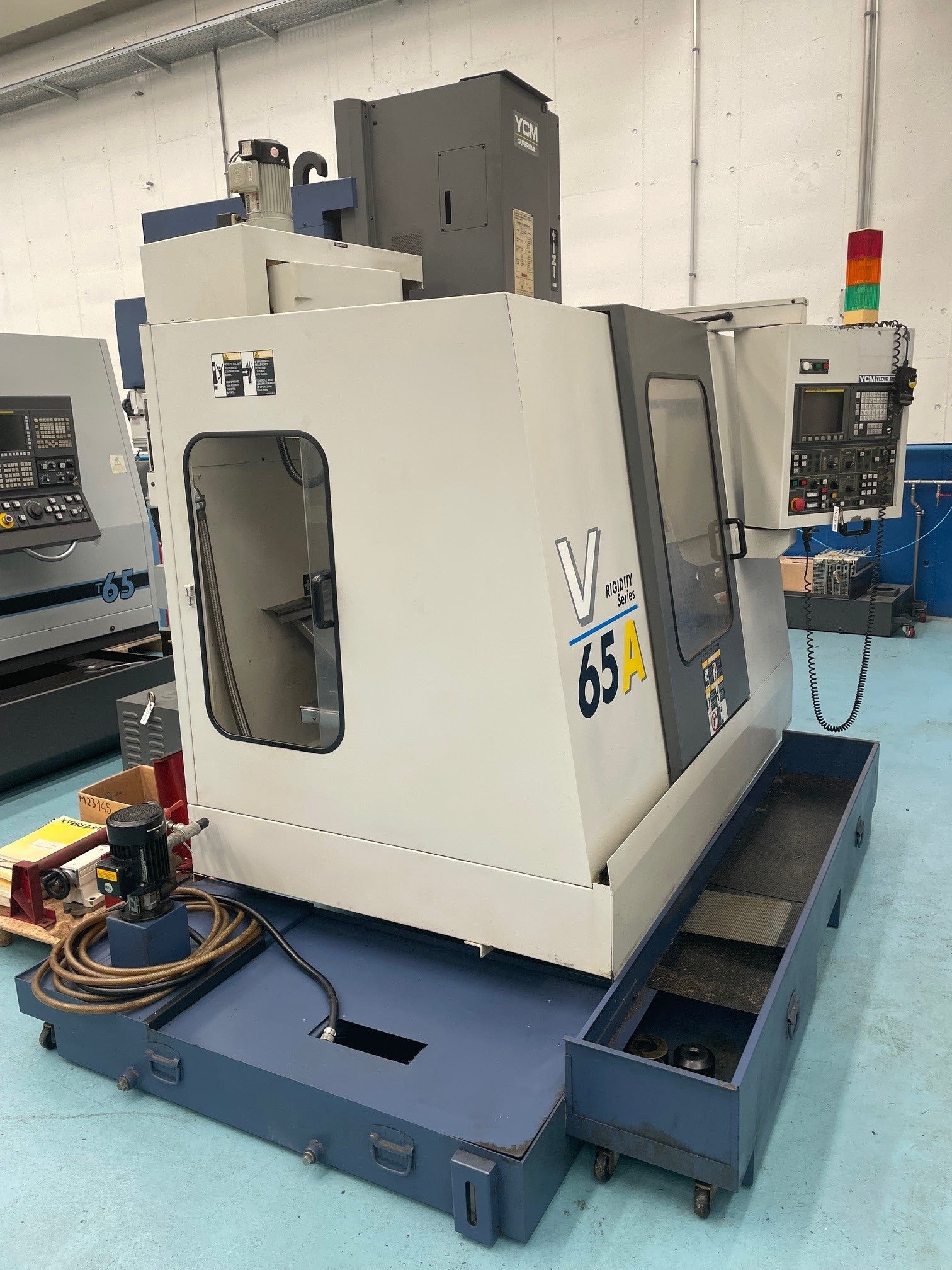

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Supermax
  • Model:
  • 023145 - SUPERMAX YCM - V 65A
  • Condition:
  • 1
  • YOM:
  • NA

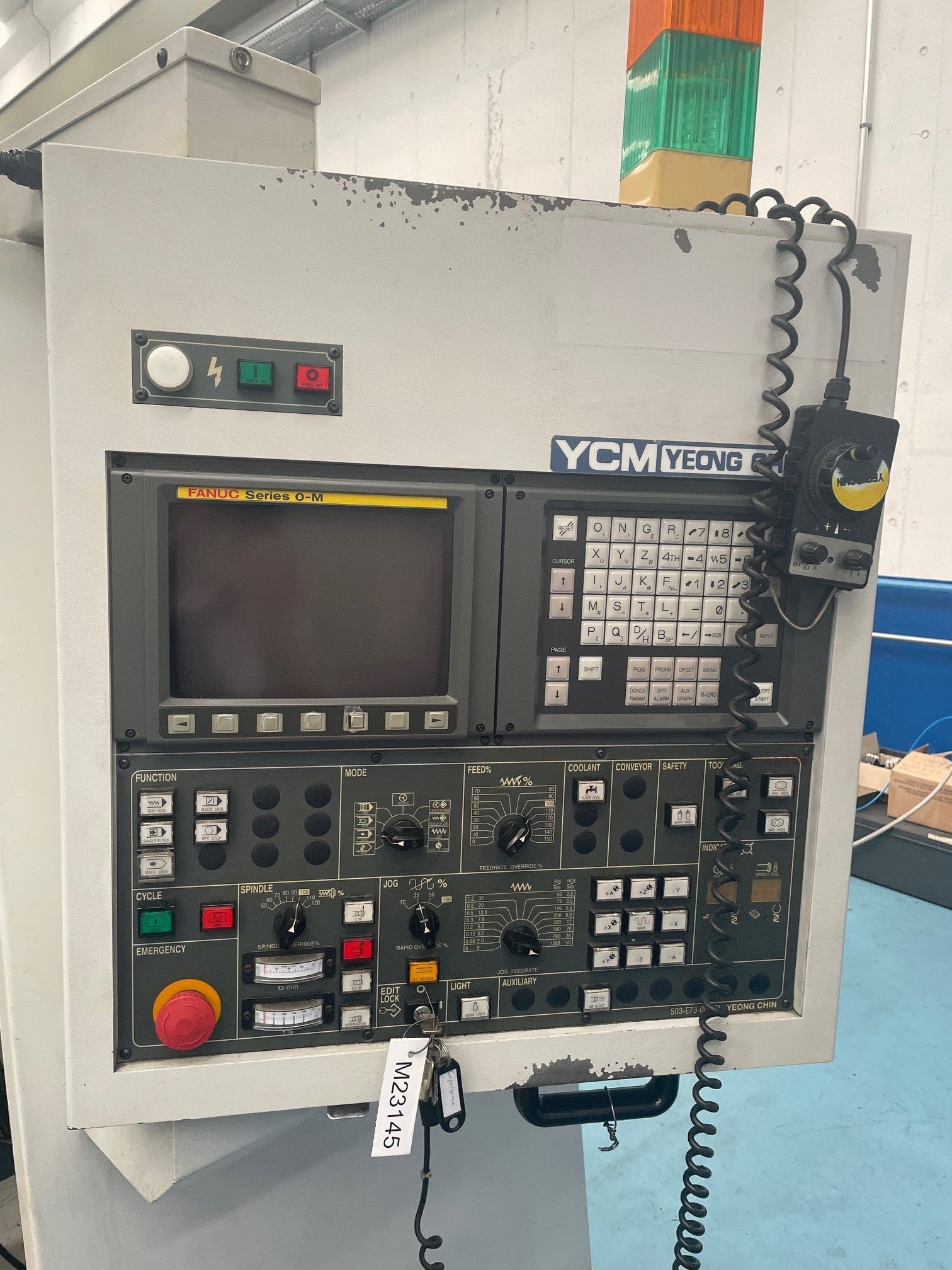

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

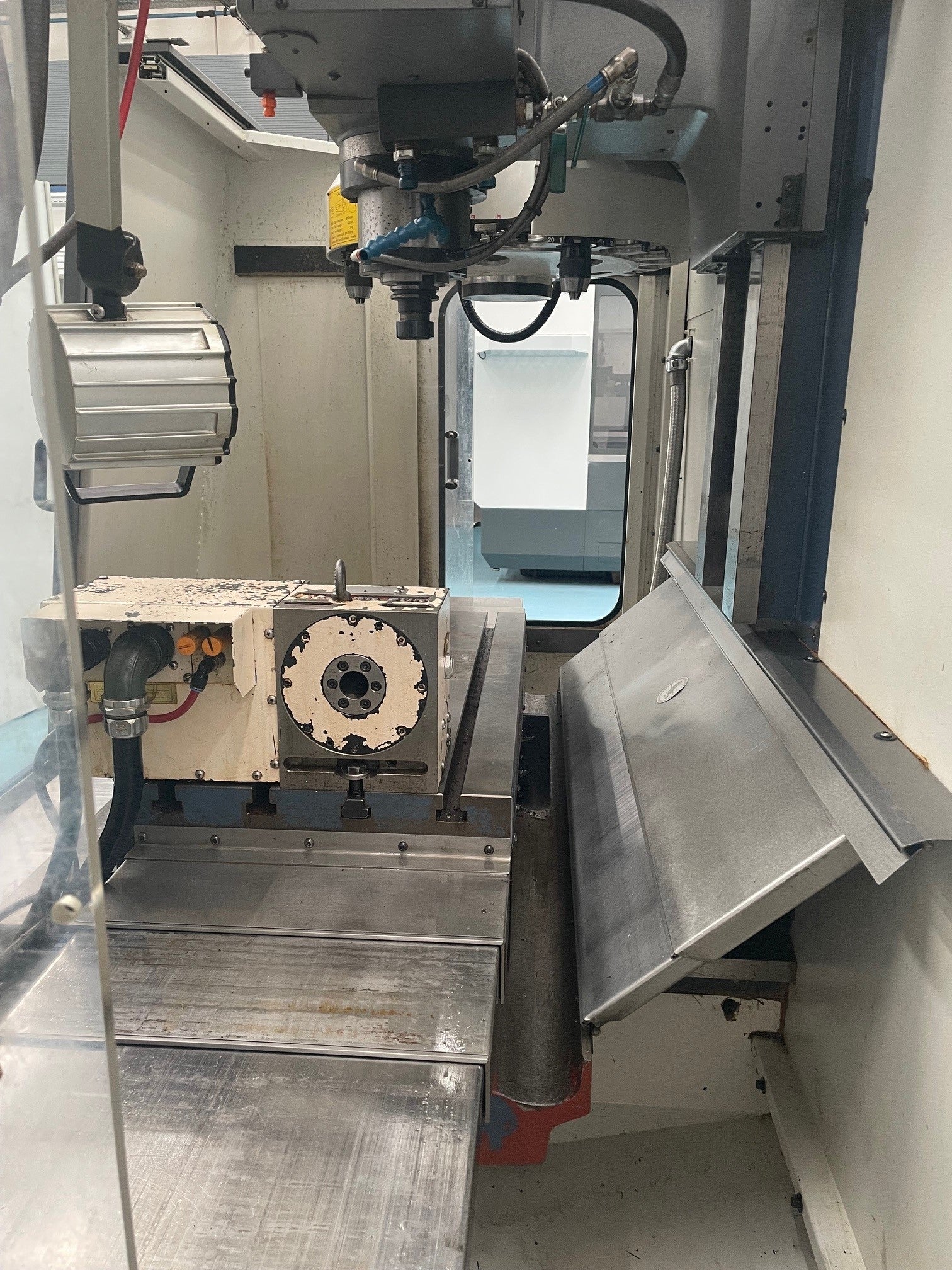

Number of axis total: 4.

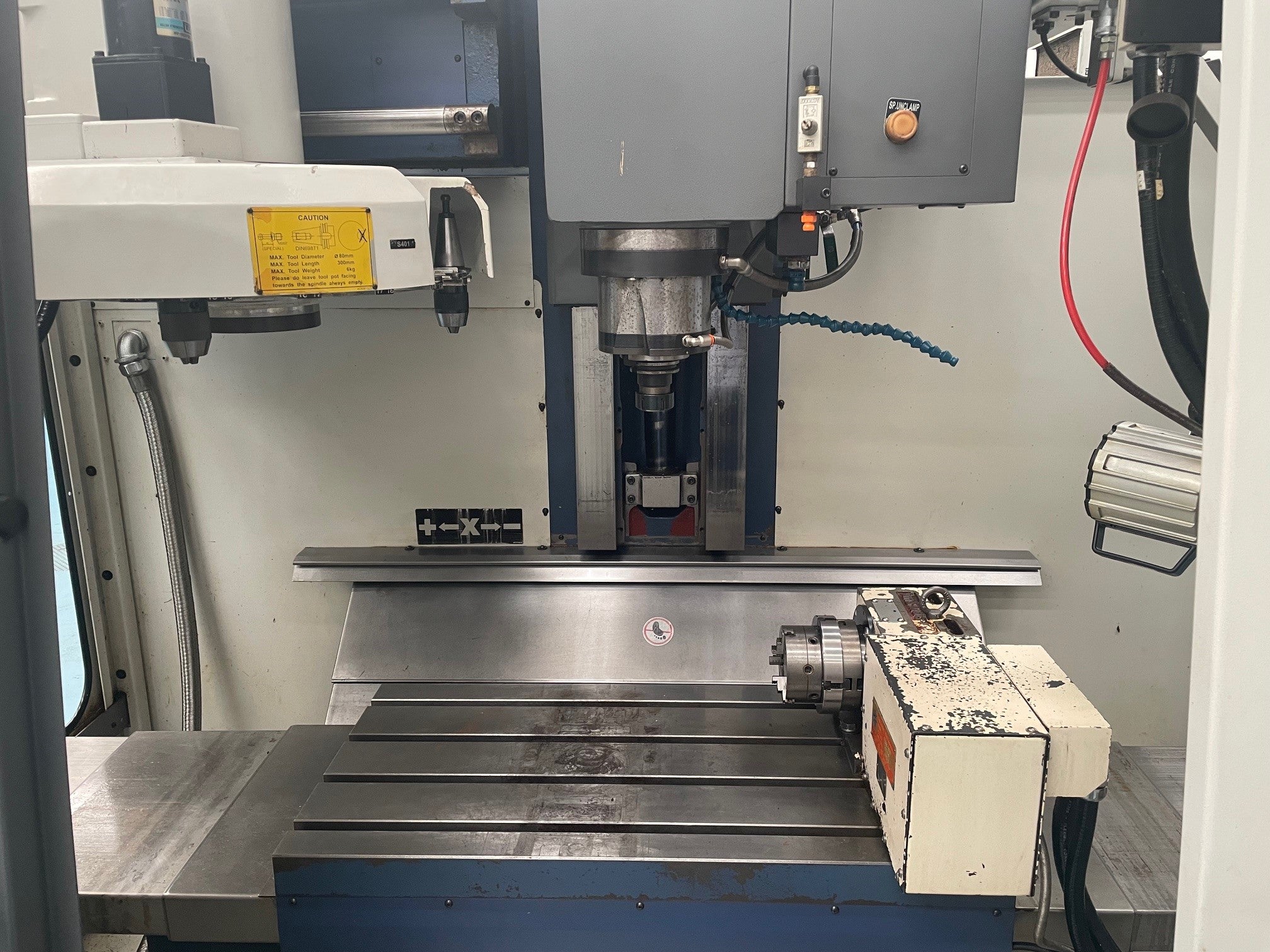

Table length: 840 mm.
Table width: 420 mm.
Number of T-channels: 4.
Distance of the T-slots: 100 mm.
T-channel width: 18 mm.
Table load max.: 350 kg.
Longitudinal travel (X-axis): 650 mm.
Transversal travel (y-axis): 410 mm.
Vertical travel (z axis): 615 mm.

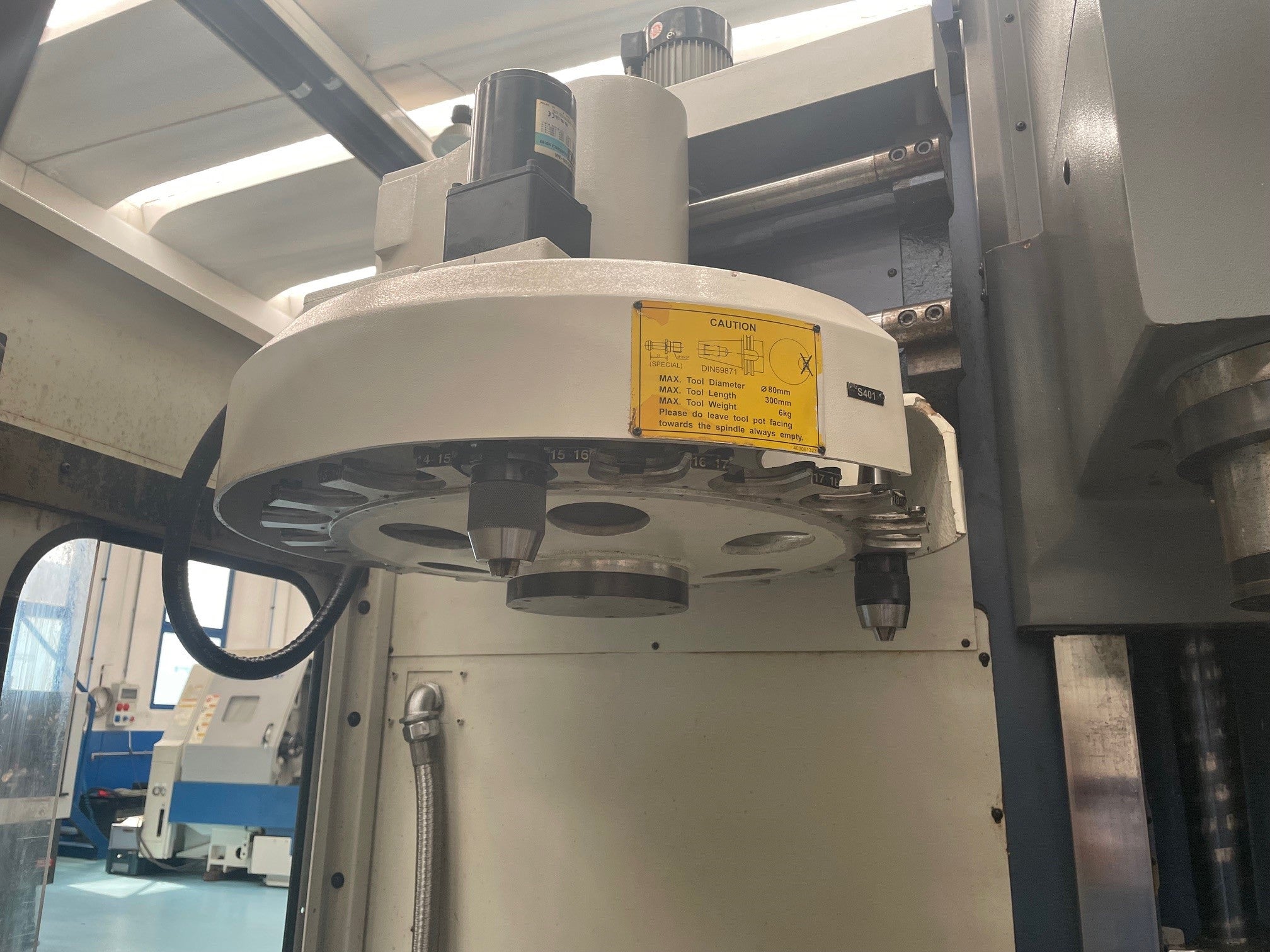

Number of tools: 20.
Tool diameter: 80 mm.
Tool diameter max.: 300 mm.
Max. tool-weight: 6 kg.
Spindle nose: BT: 40.
Distance spindle nose to table: 135 - 750 mm.
from: 45 t/min.
up to: 8000 t/min.
Feed range: 10000 mm/min.
Rapid traverse:: 16 m/min.
Rapid traverse: transversal: 16 m/min.
Rapid traverse: vertical: 16 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 5.5 kW.
Spindle power: 3.7 / 5.5 kW.
Total power required: 17 kW.
Machine's weight about: 3600 kg.
Length: 2770 mm.
Width: 2110 mm.
Height: 1930 mm.
Coolant system: 130 l.
