MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • 020528 - DÖRRIES SCHARMANN Solon 3 HV/DTV
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Longitudinal travel (X-axis): 1500 mm.
Transversal travel (y-axis): 1200 mm.
Vertical travel (z axis): 1250 mm.
Table divisions (B): 360x0.0001 °.
up to: 4000 t/min.
numbers: 2.

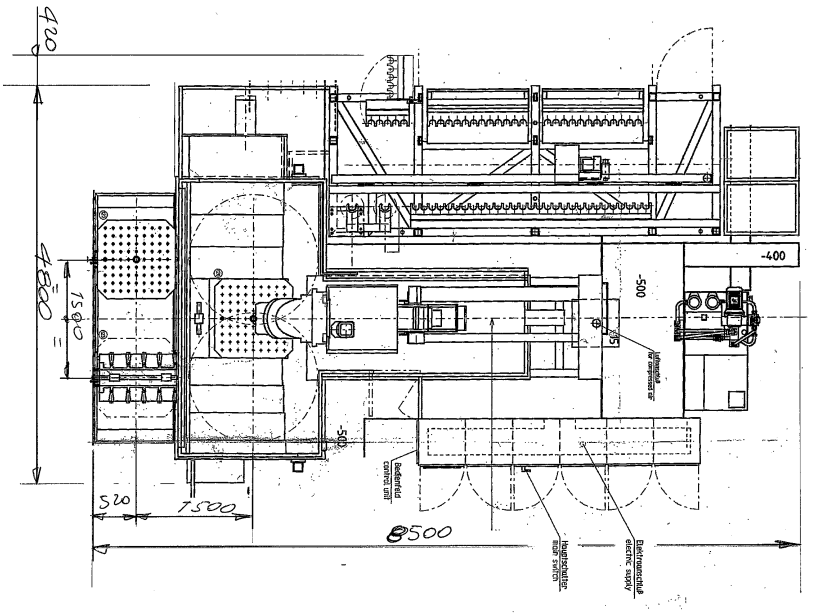

Length: 8500 mm.

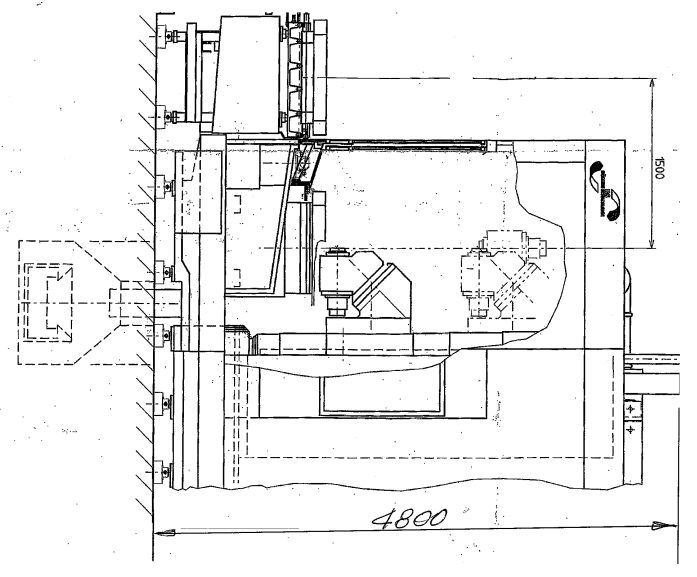

Width: 4800 mm.
Transport weight: 2000 kg.
Number of tools: 161.
Tool diameter: 300 mm.
Max. tool-weight: 25 kg.
Spindle nose:: HSK-A 100.
from: 10 t/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 40 kW.
Total power required: 180 kW.
Machine's weight about: 6000 kg.
Height: 4800 mm.
Pallets: number: 4.
