MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MONFORTS
  • Model:

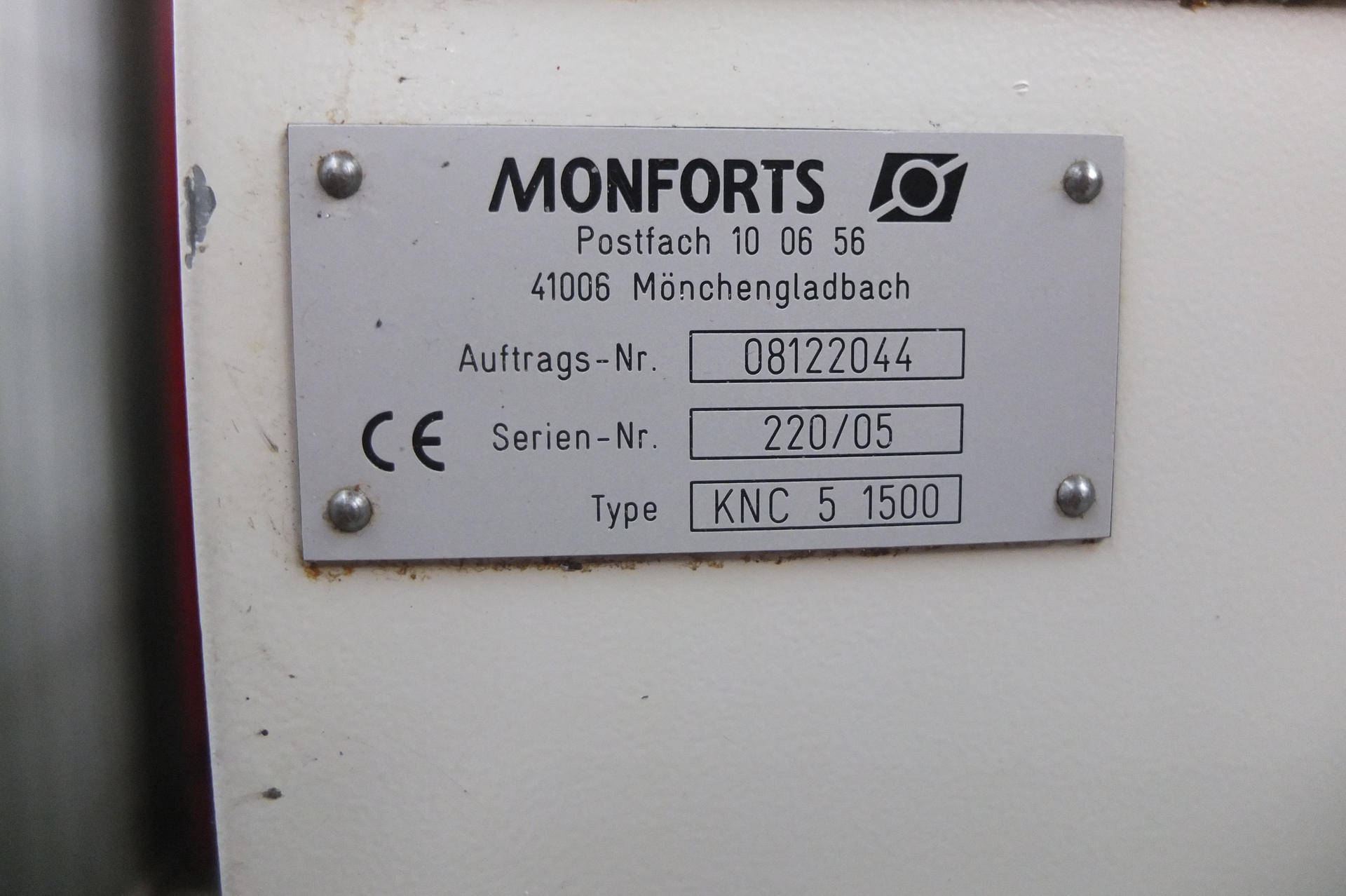

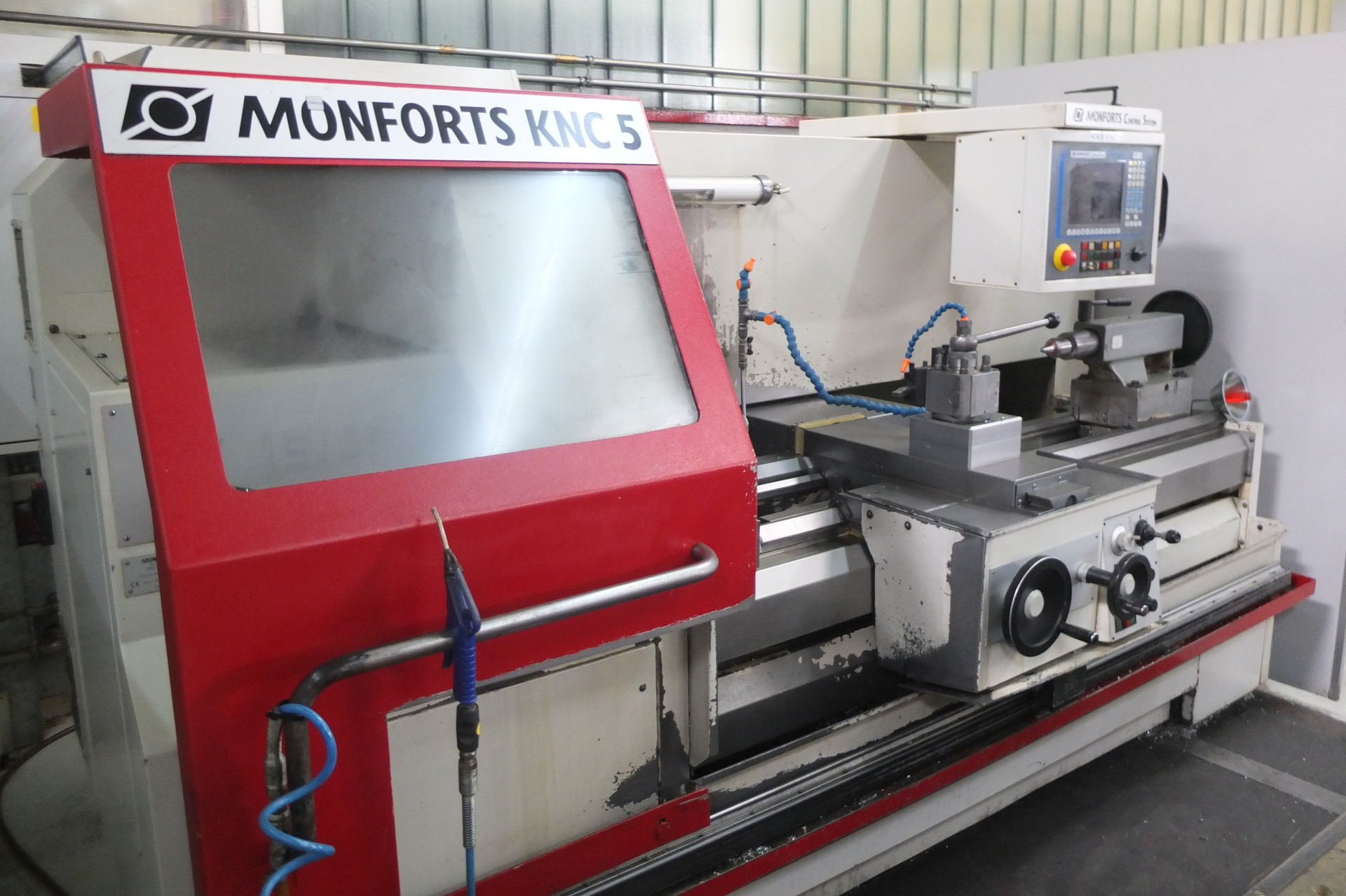

  • 020432 - MONFORTS KNC 5 1500
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 250 mm.
Distance between centres: 1500 mm.
Swing over cross-slide: 290 mm.
Swing over bed: 500 mm.
Taper in spindle: DIN 55027.
Transversal strocke (X axis): 265 mm.
number (steps): 3.
from: 3 t/min.
up to: 2800 t/min.
Morse taper: 5 CM.
Spindle stroke: 160 mm.
Spindle diameter: 80 mm.
Rapid traverse X: 5 m/min.
Rapid traverse Z: 10 m/min.
Spindle motor: 16.5 kW.

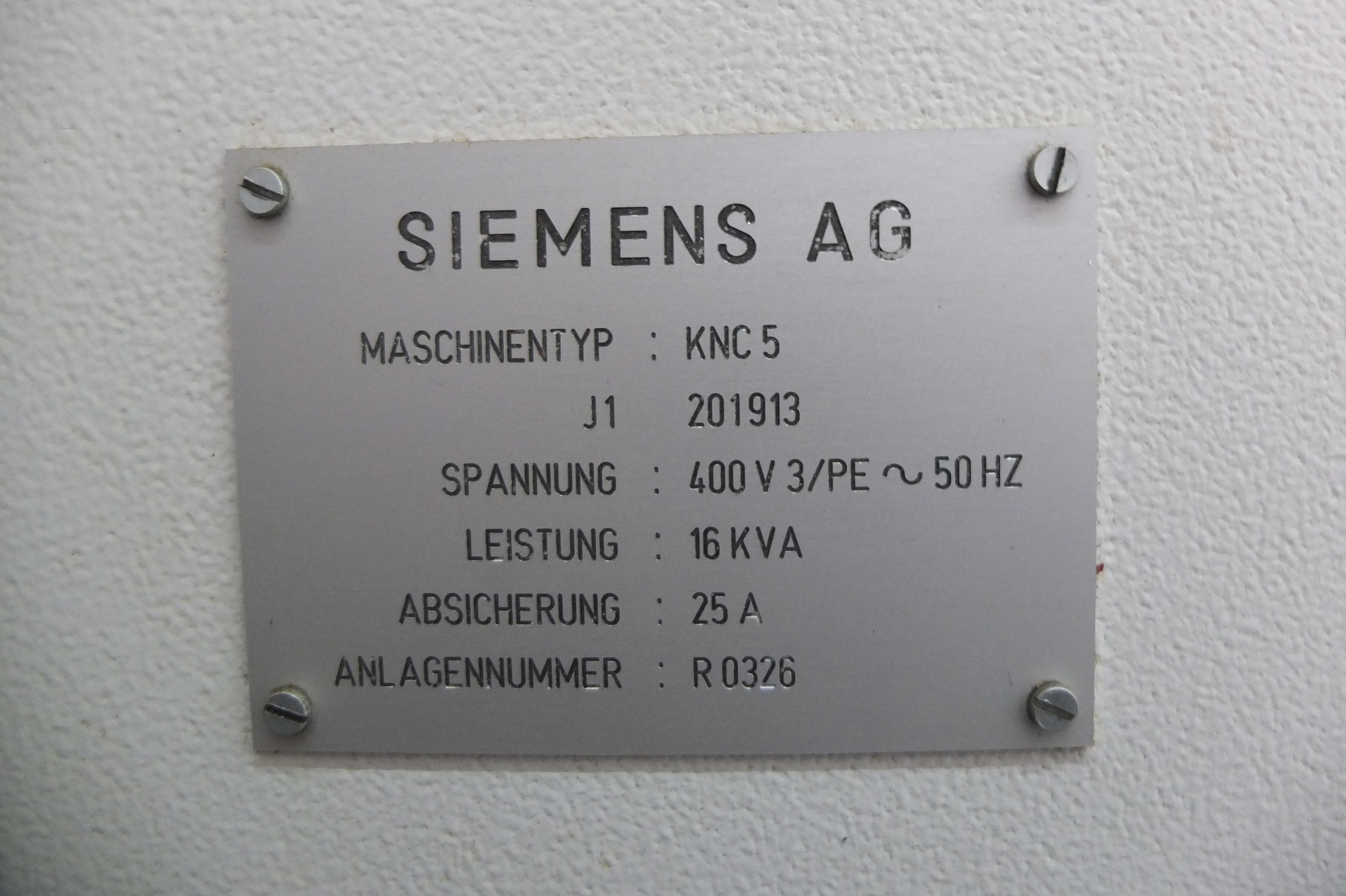

Voltage 50 Hz 3x: 400 Volt.
Total power required: 16 kVA.
Machine's weight about: 3000 kg.

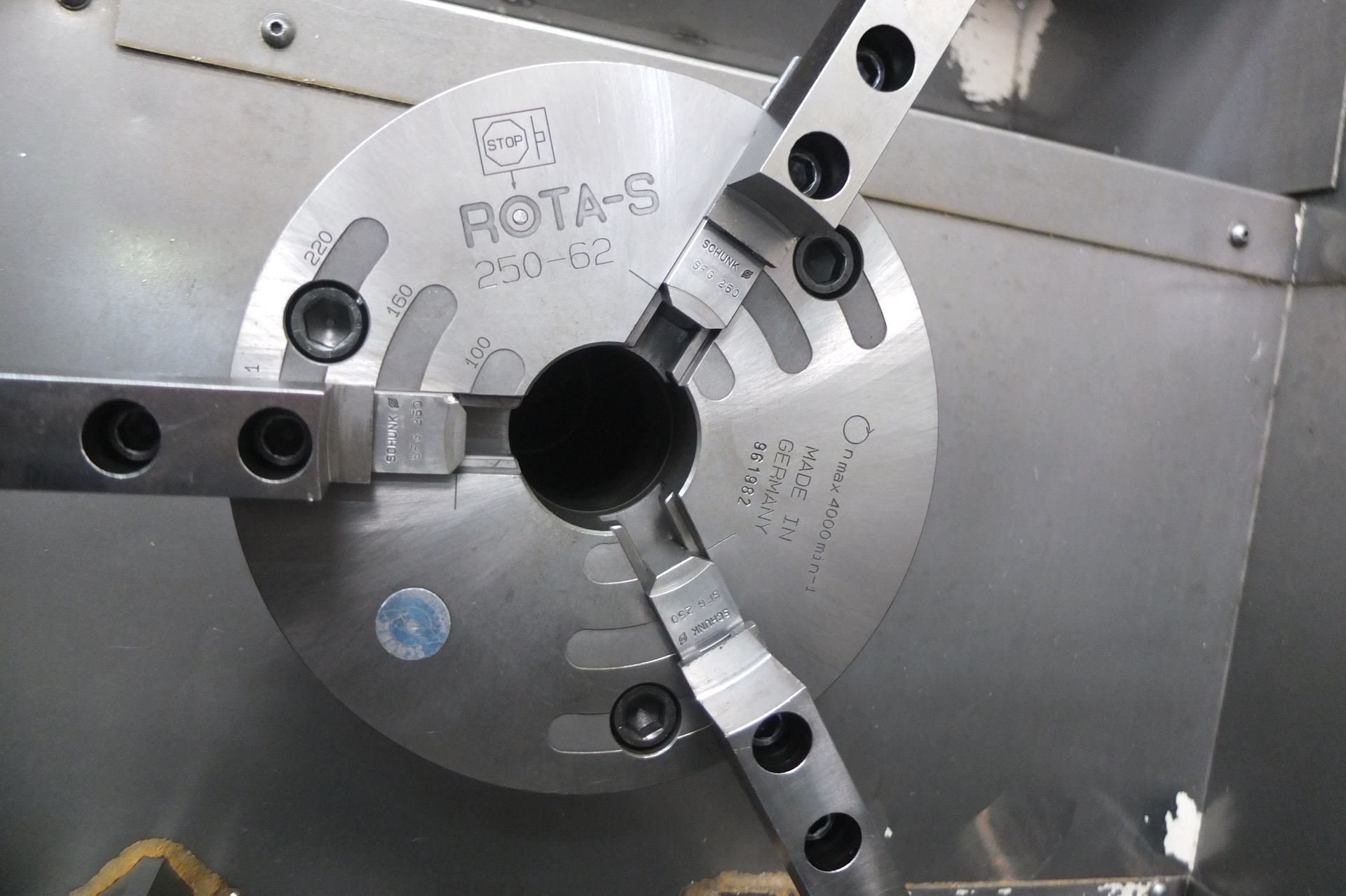

3-jaw chuck diameter: ROTA-S 250 mm.

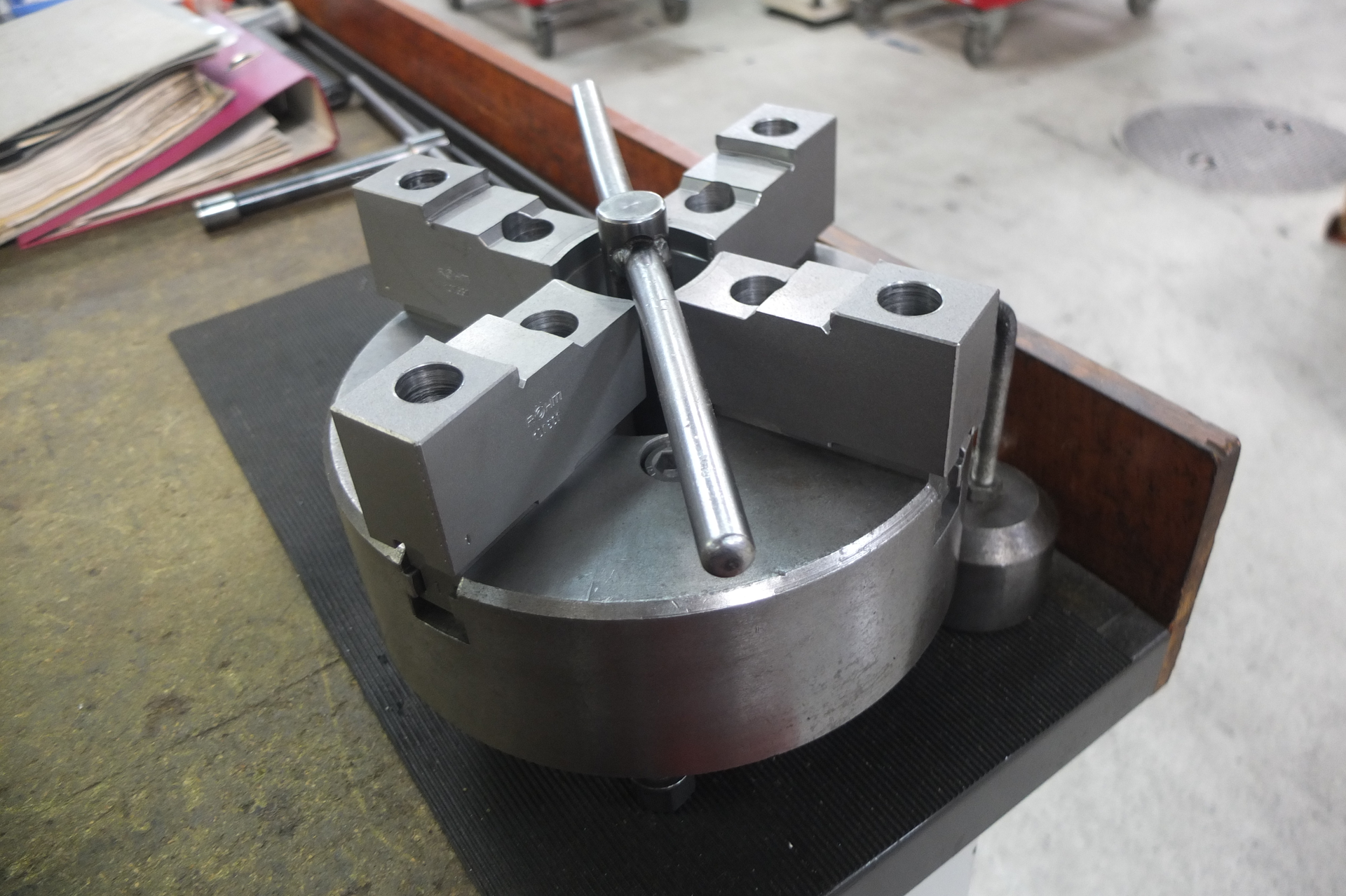

4-jaw chuck diameter: 250 mm.
