MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

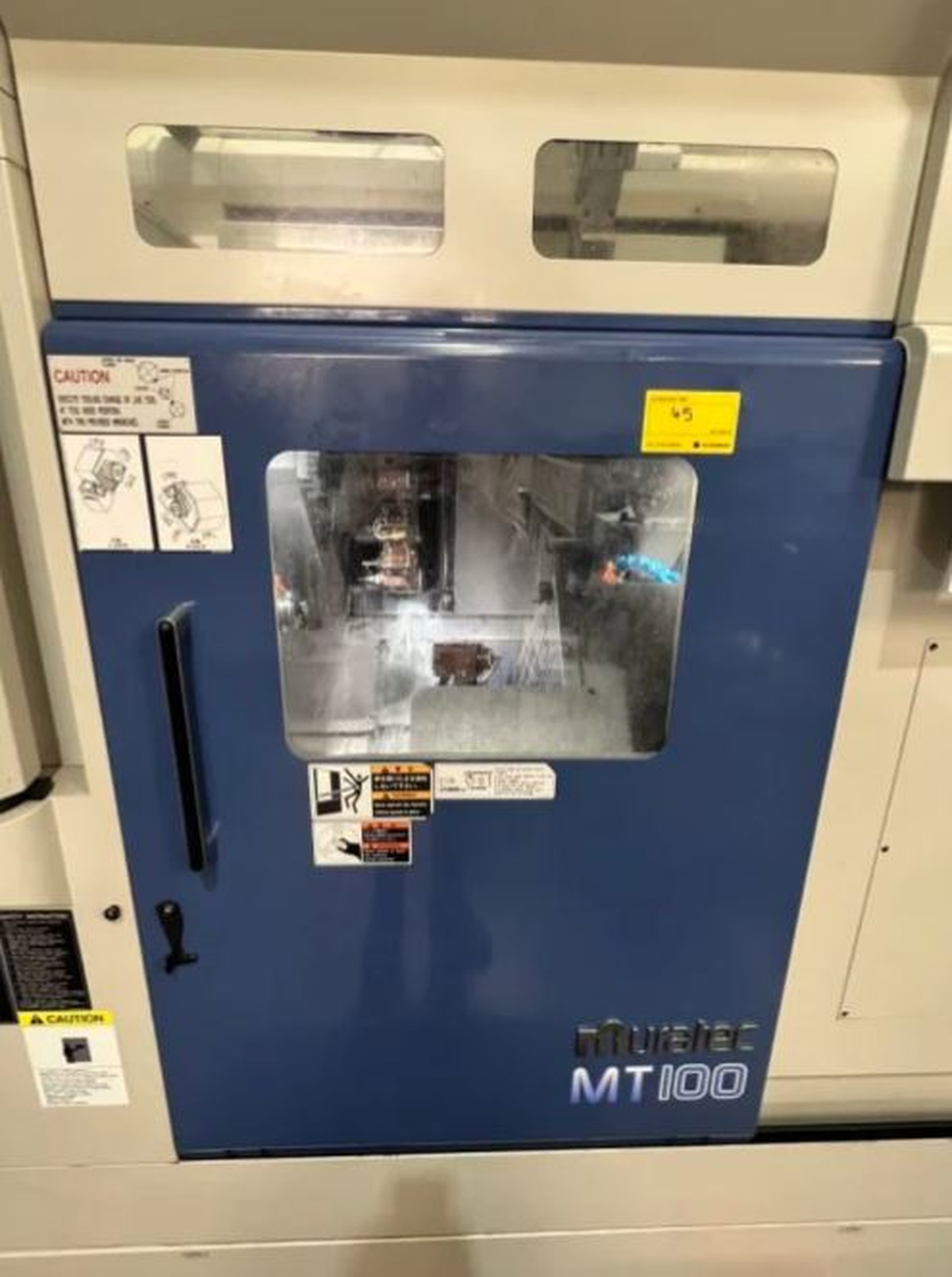

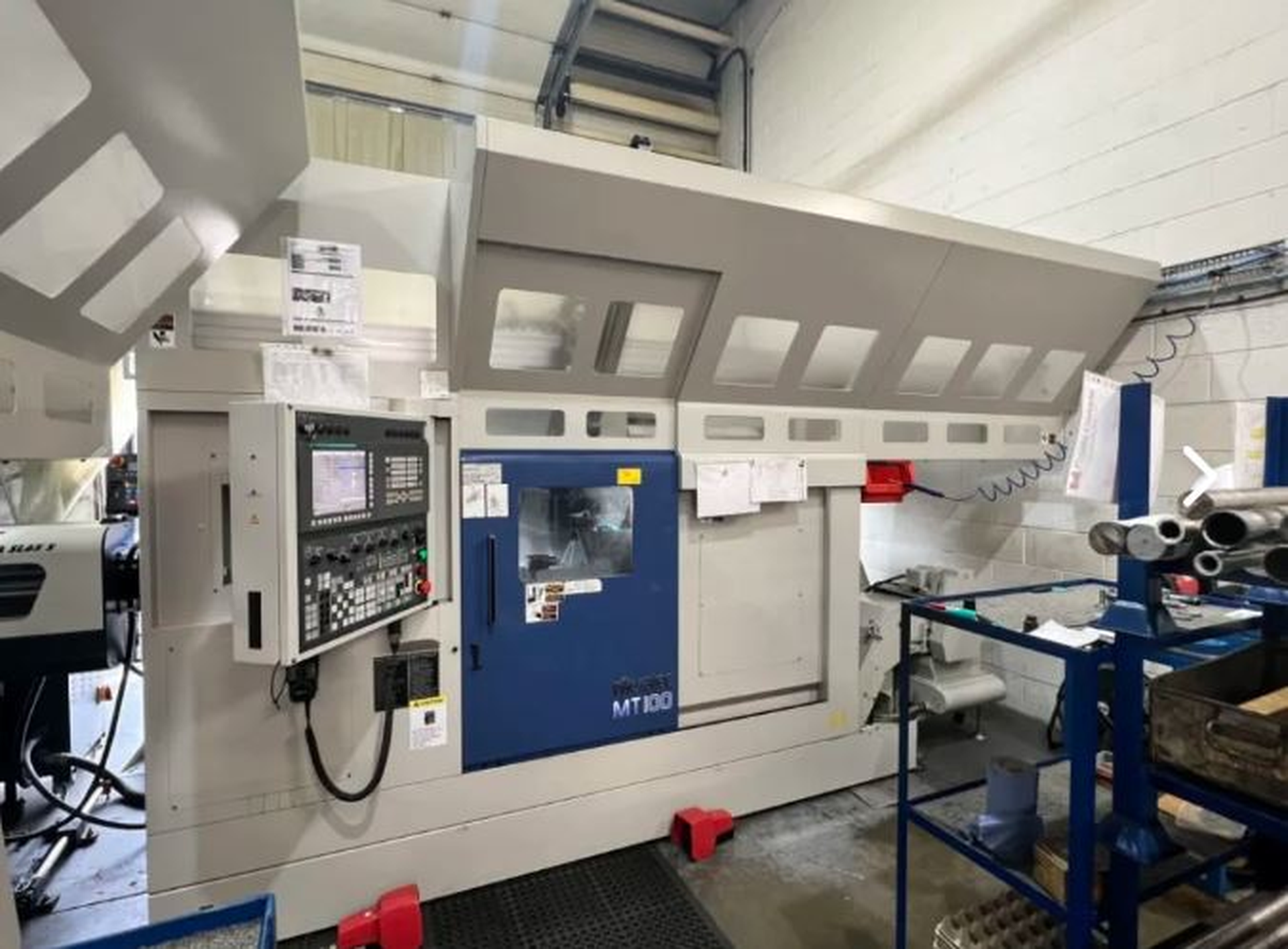

  • 022543 - MURATEC MT 100
  • Condition:
  • 1
  • YOM:
  • NA

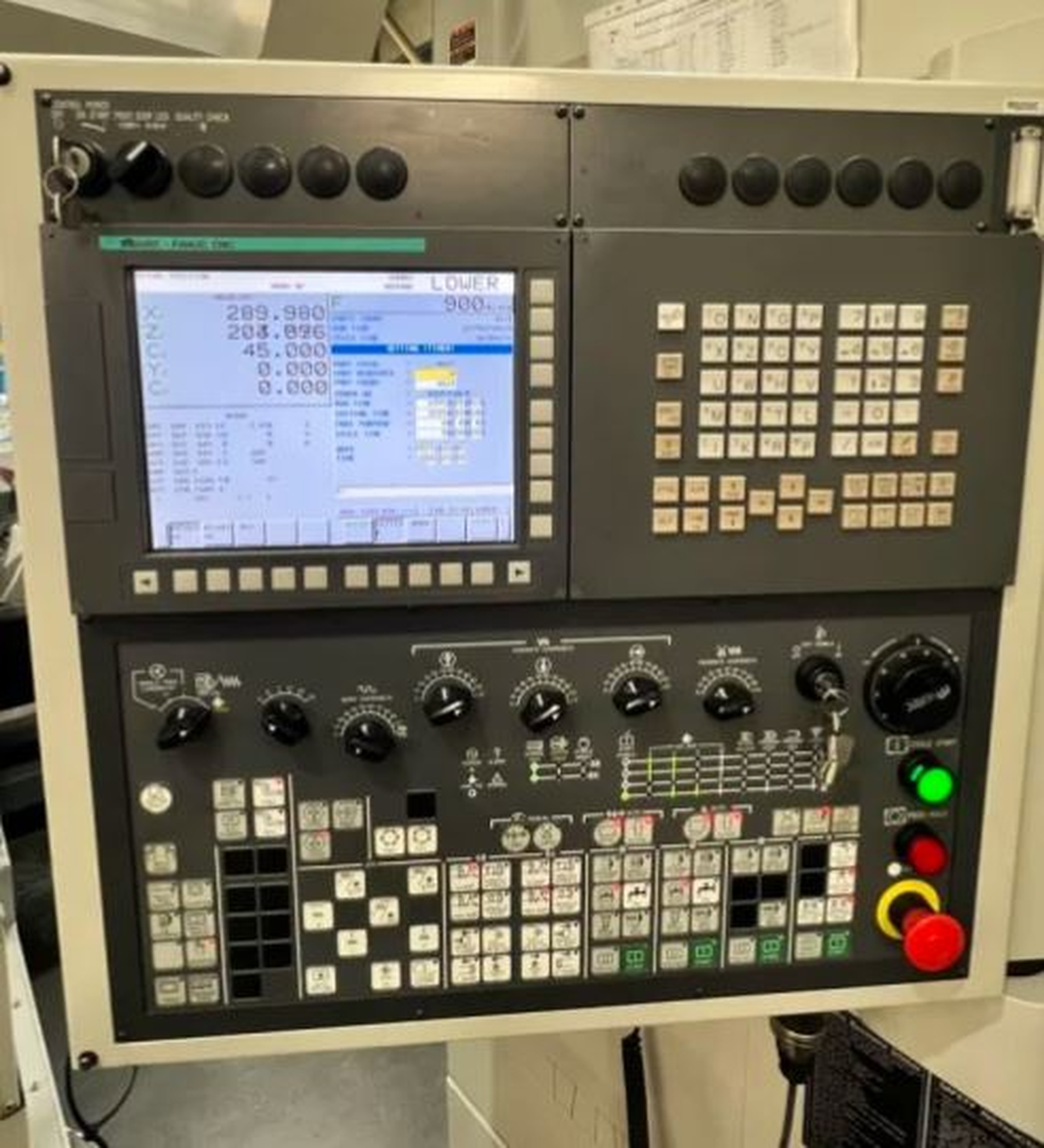

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

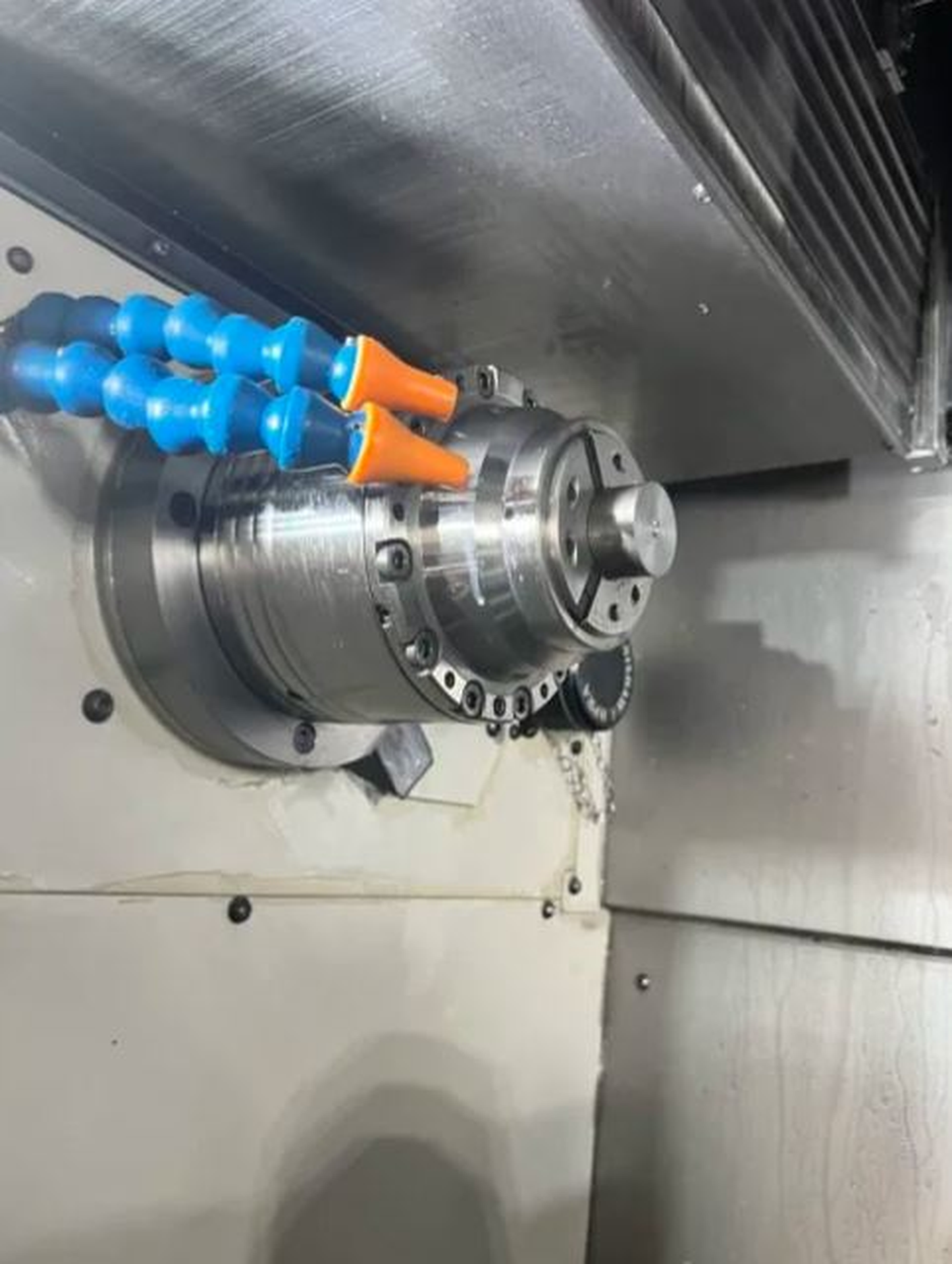

Number of turning spindles: 2.
Number of revolvers: 2.
Swing diameter: 190 mm.
Spindle nose: JIS A2-5 mm.
Max. bar diameter: 51 mm.

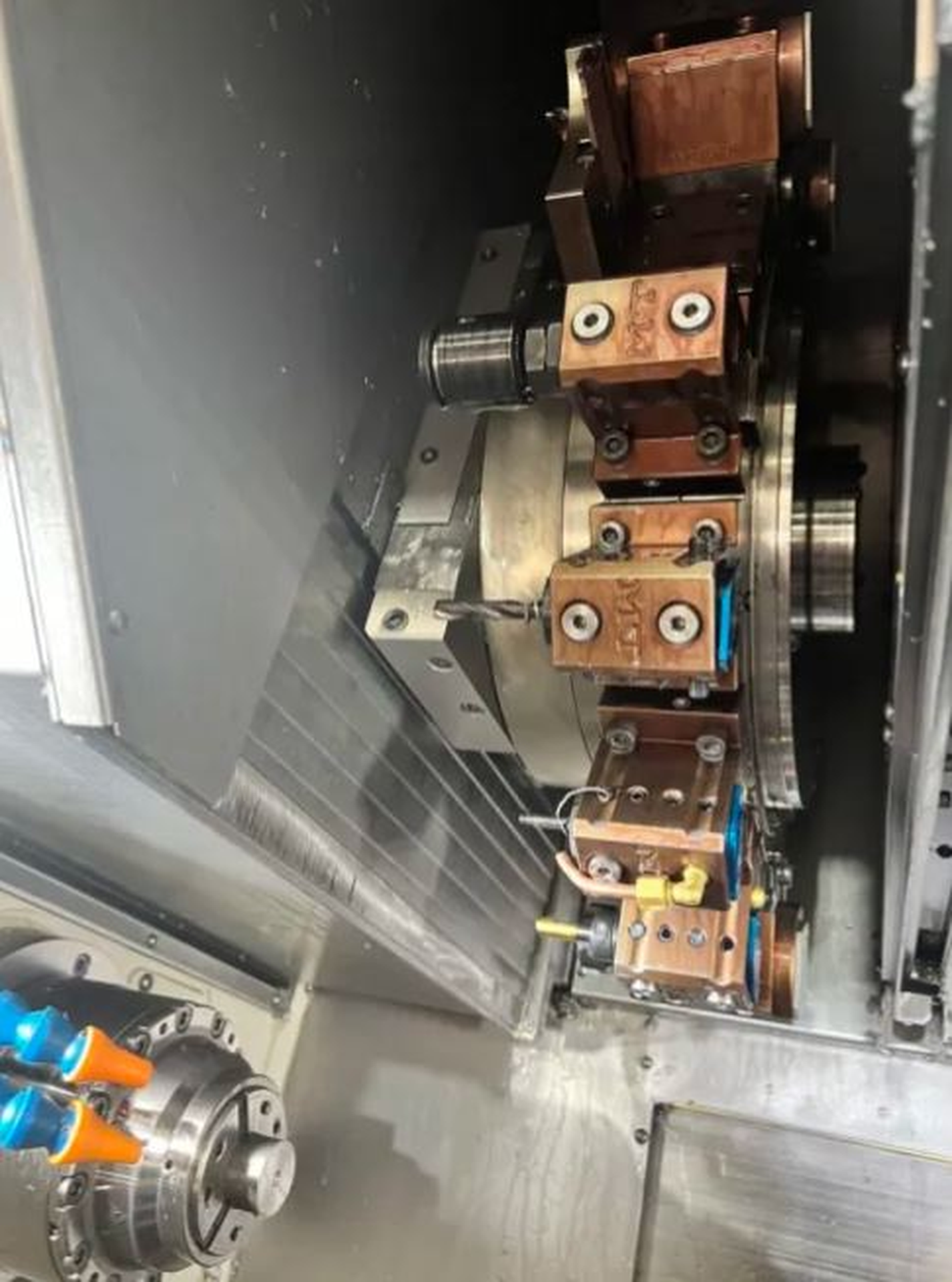

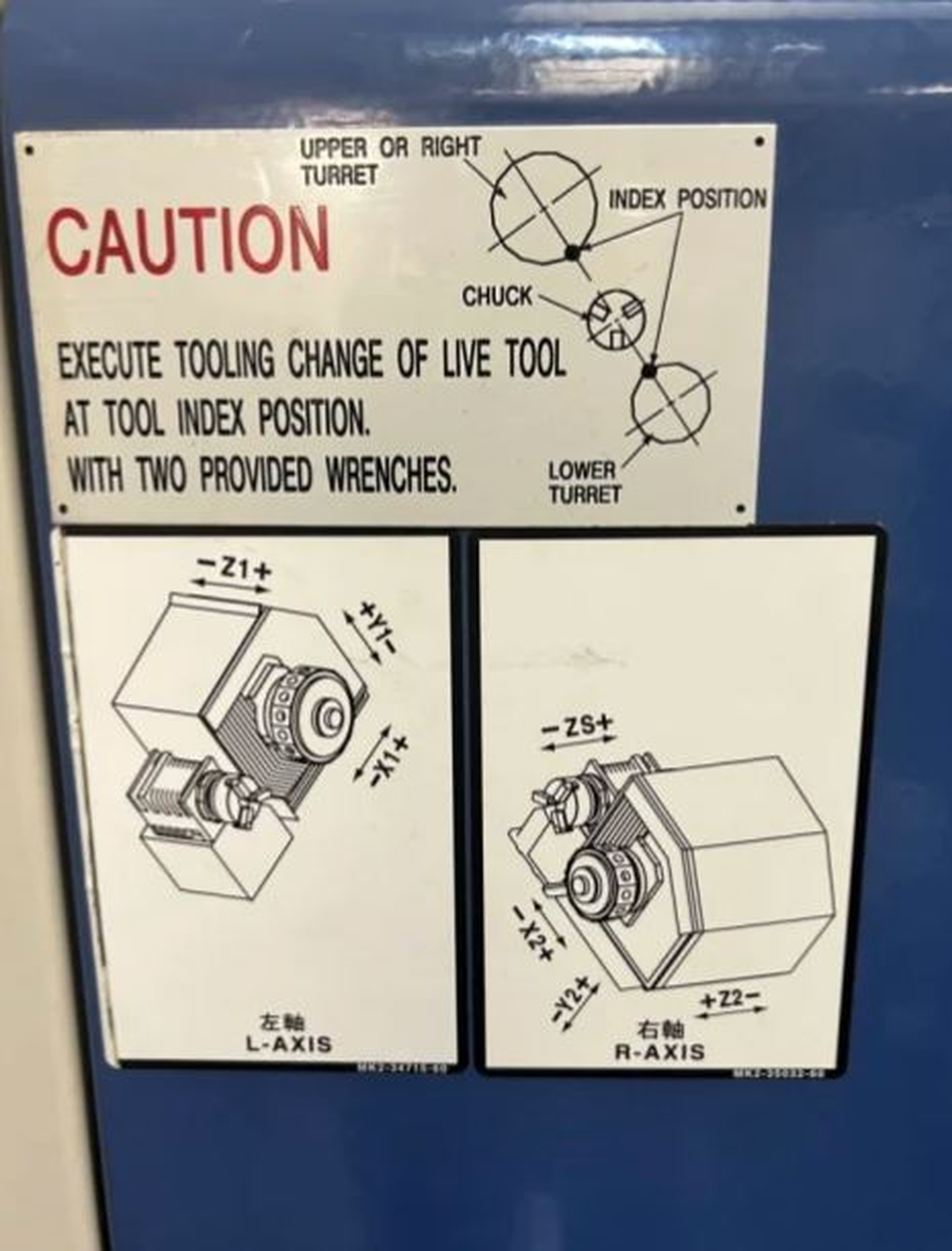

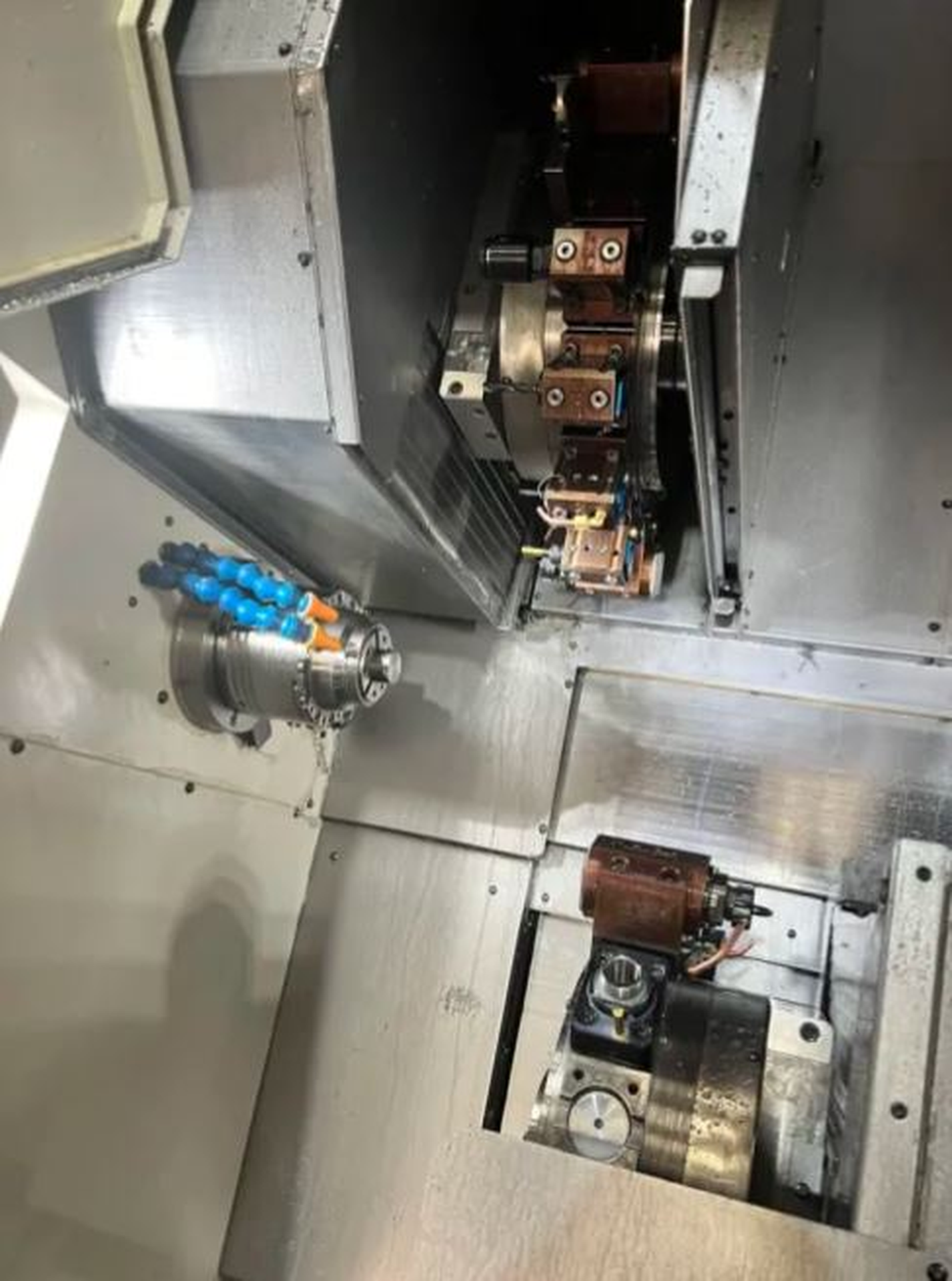

Turret slide: number: 2.
Number of positions turret 1: 15.
Number of positions turret 2: 15.
Driven tools turret: 6000.
Power of driven tools: 2.2 kW.
X axis: 150 mm.
Y axis: + / -30 mm.
Z axis: 620 mm.
from: 0 t/min.
up to: 6000 t/min.
max. speed: 6000 t/min.
Back spindle stroke: 680 mm.
Rapid traverse X: 24 m/min.
Rapid traverse Z: 40 m/min.
Rapid traverse Y: 12 m/min.
Spindle motor: 11 / 7.5 kW.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 8000 kg.
Length: 4120 mm.
Width: 2130 mm.
Height: 2815 mm.

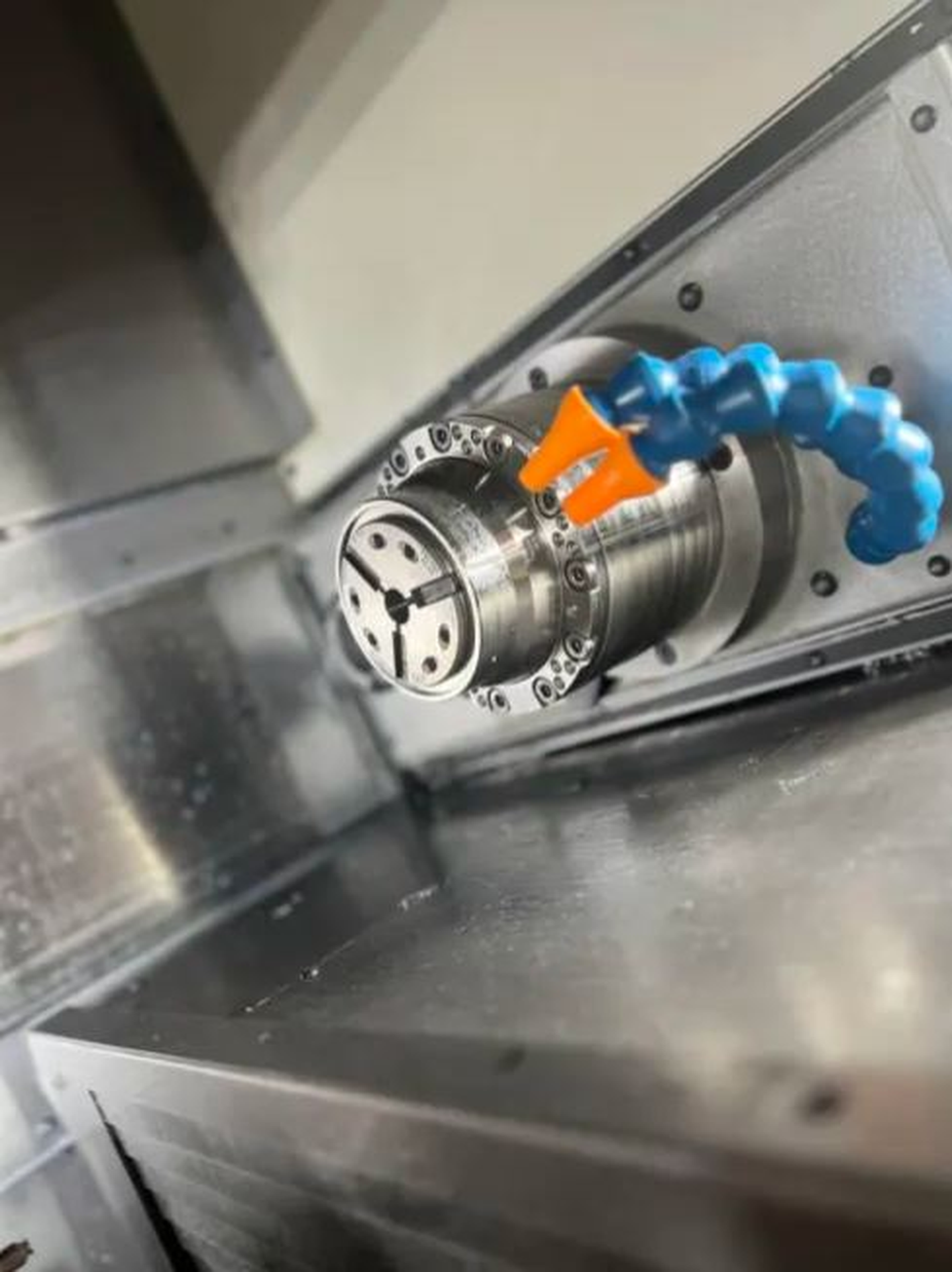

Set of collets: HAINBUCH SK52BZIG.

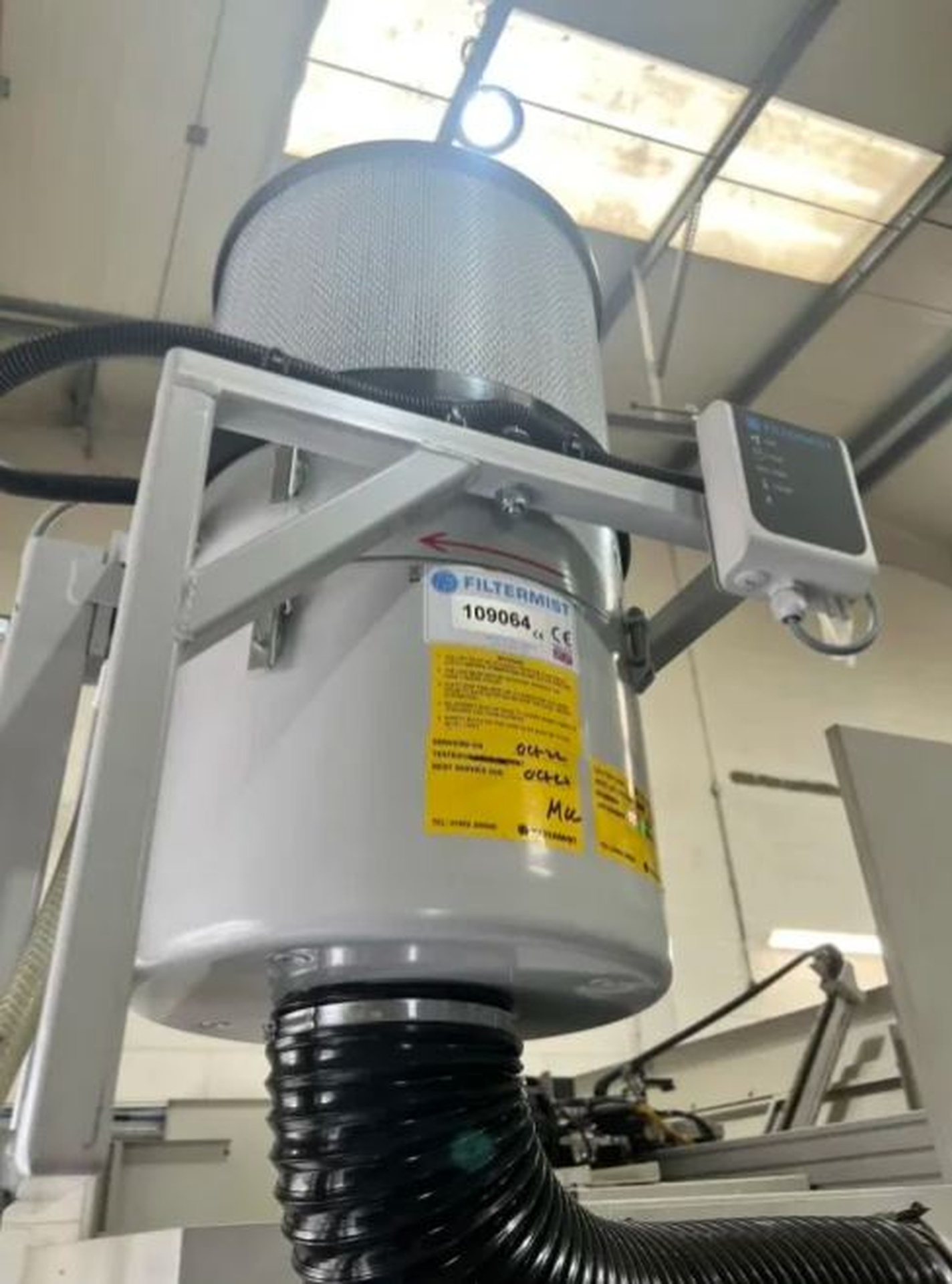

Oil mist extractor: FILTERMIST FX4002.

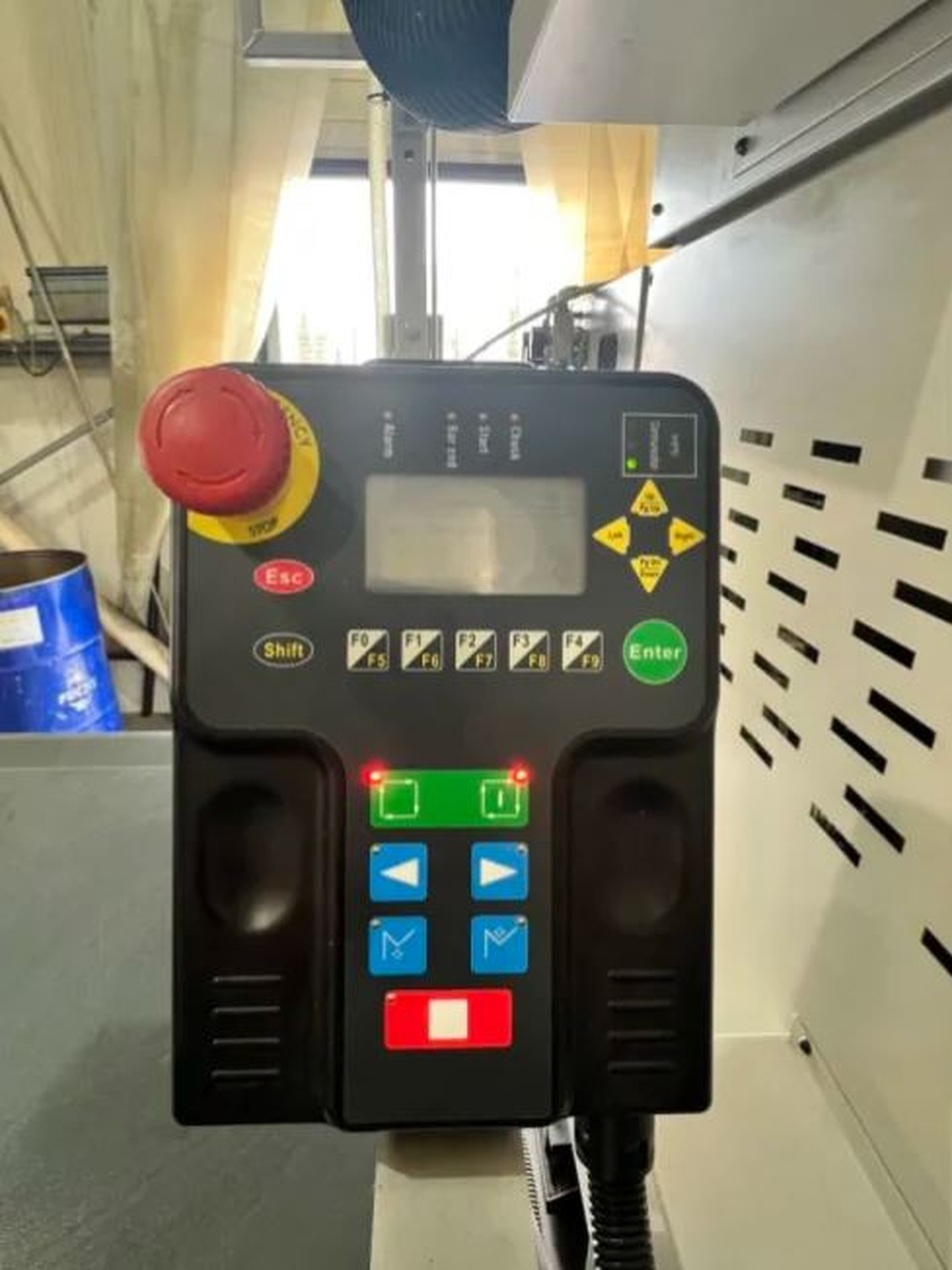

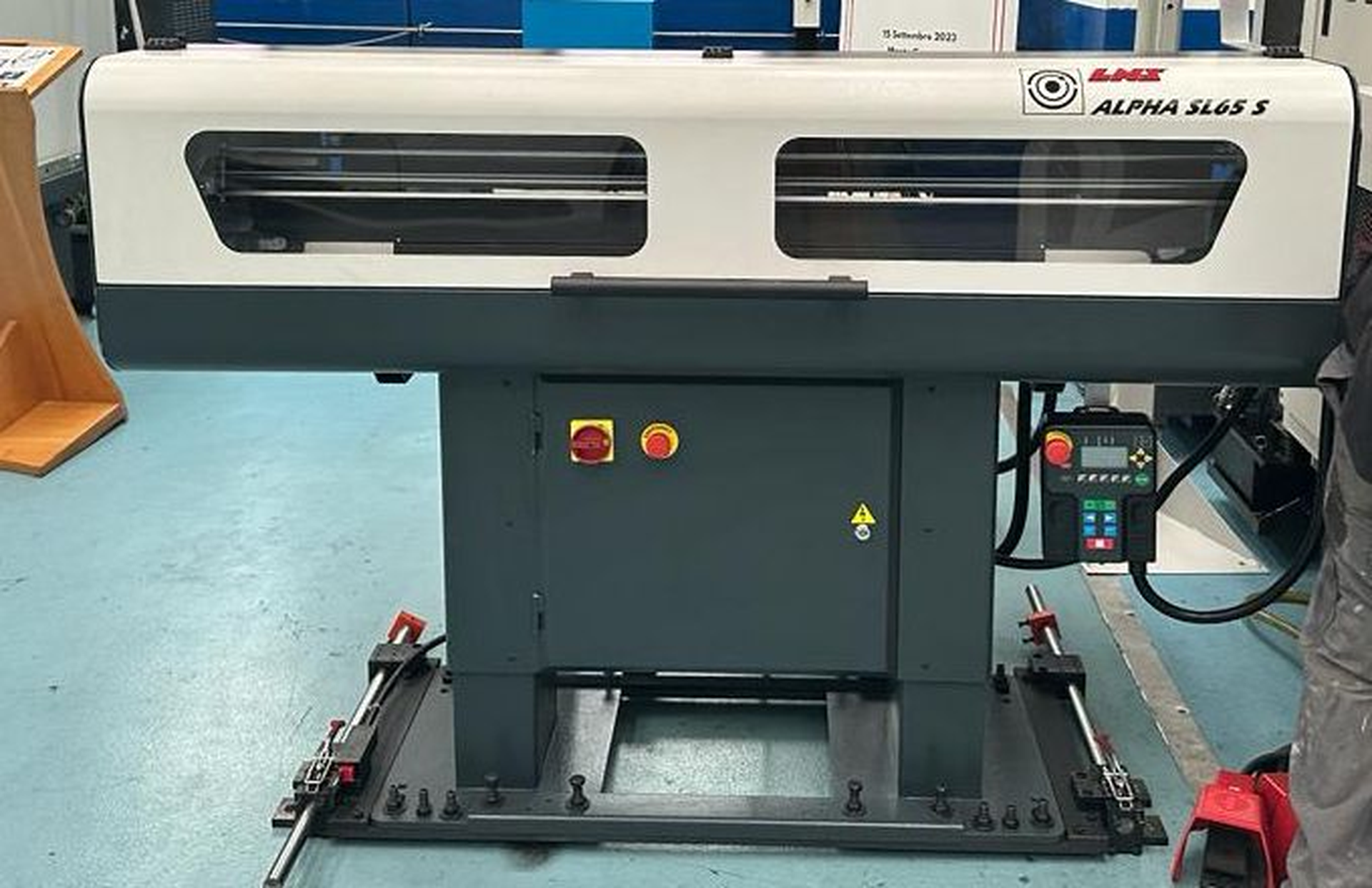

Bar feeder: LNS.
Type: ALPHA SL65 S.
