MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • ZIERSCH
  • Model:

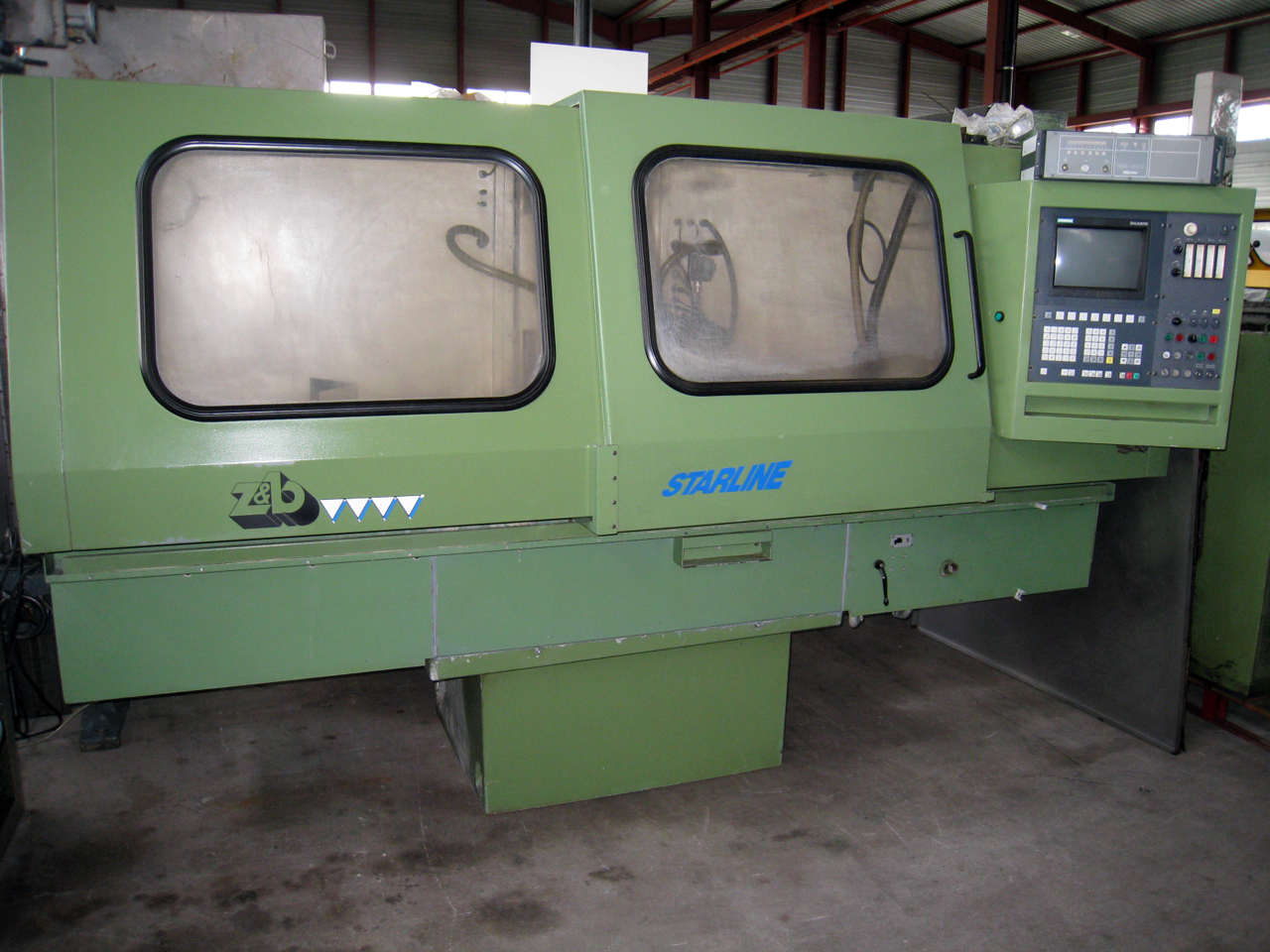

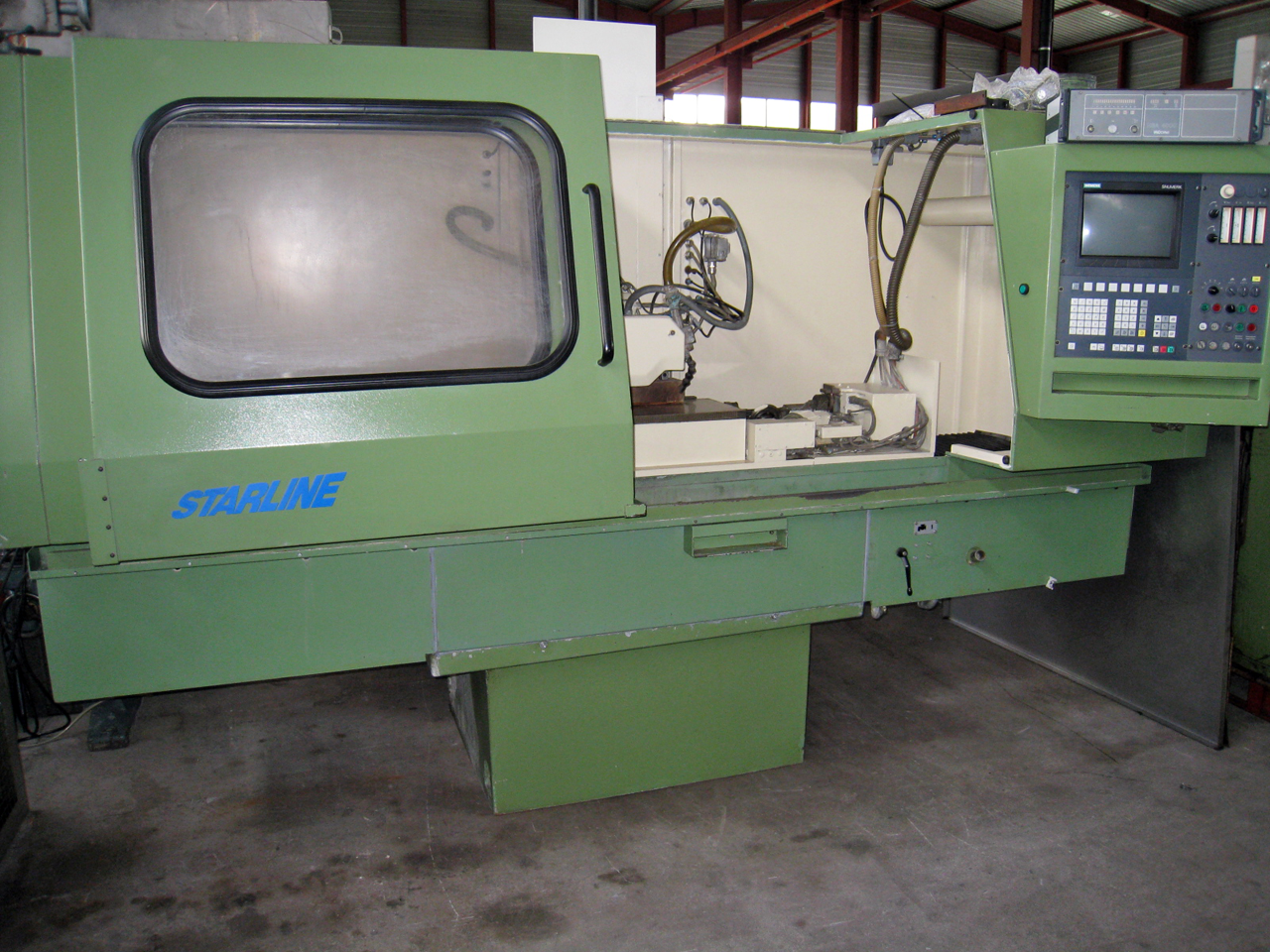

  • 011348 - ZIERSCH + BALTRUSCH STARLINE 800 CNC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 800 mm.
Table width: 300 mm.
to spindle centreline: 600 mm.
Grinding length: 800 mm.
Grinding width: 300 mm.
Diameter: 250 mm.
max. width: 70 mm.
Width: 300 mm.
Bore: 51 mm.
from: mm/min.
up to: 10000 mm/min.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 6.6 kW.
Total power required: 22 kVA.
Machine's weight about: 4500 kg.
Length: 800 mm.
Redressing device: TAG.
Profile wheel trueing attachment: TAD.
