MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Makino
  • Model:

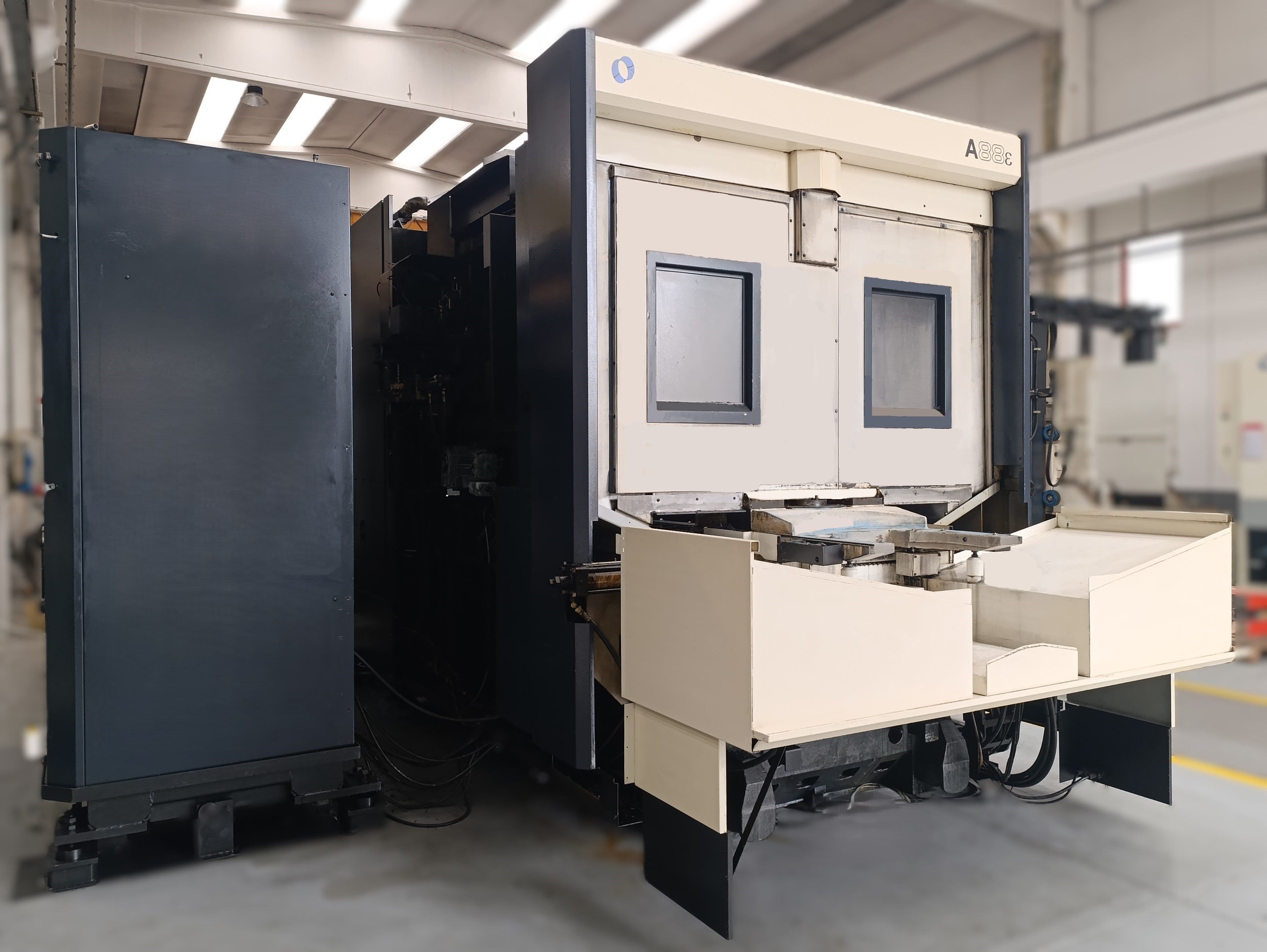

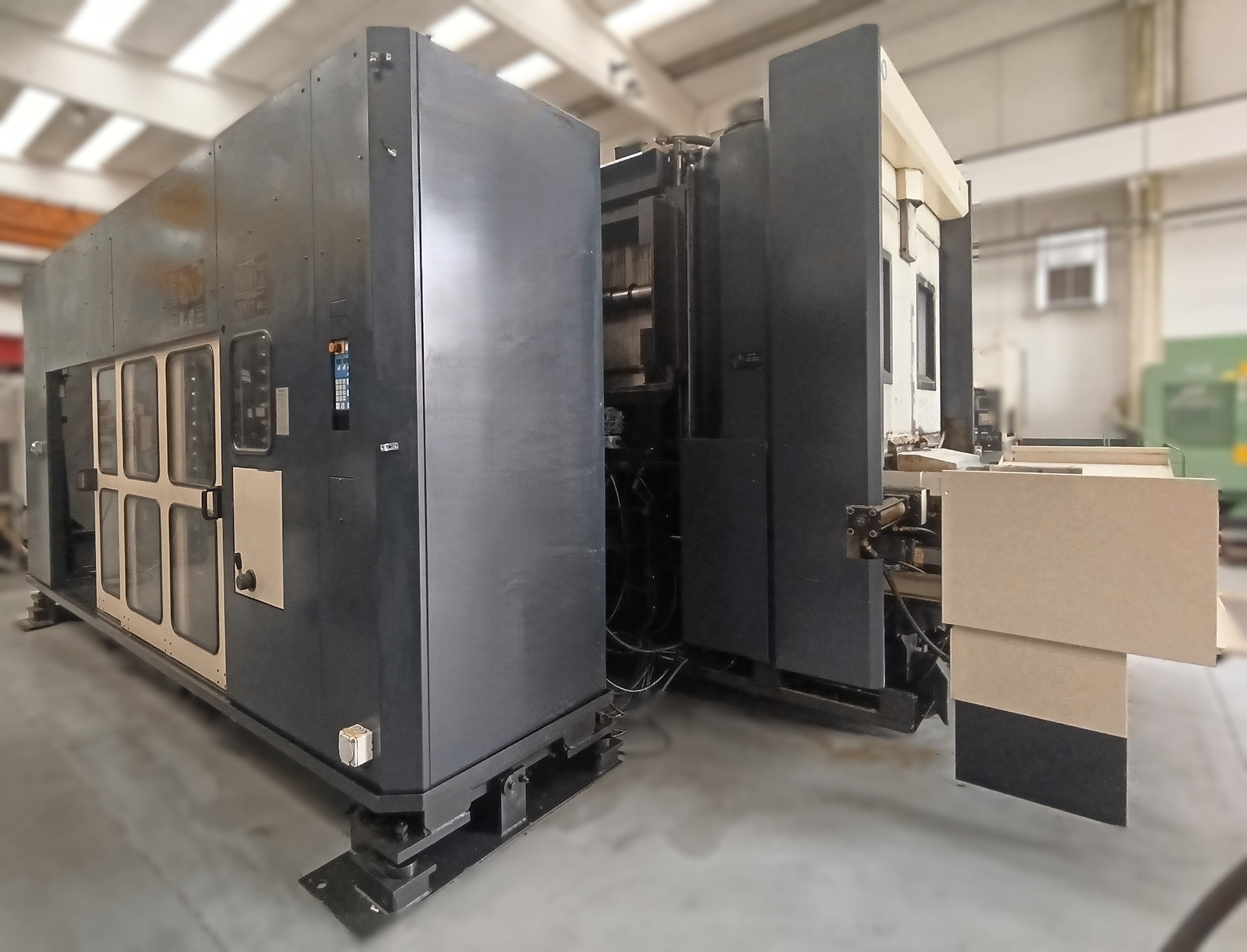

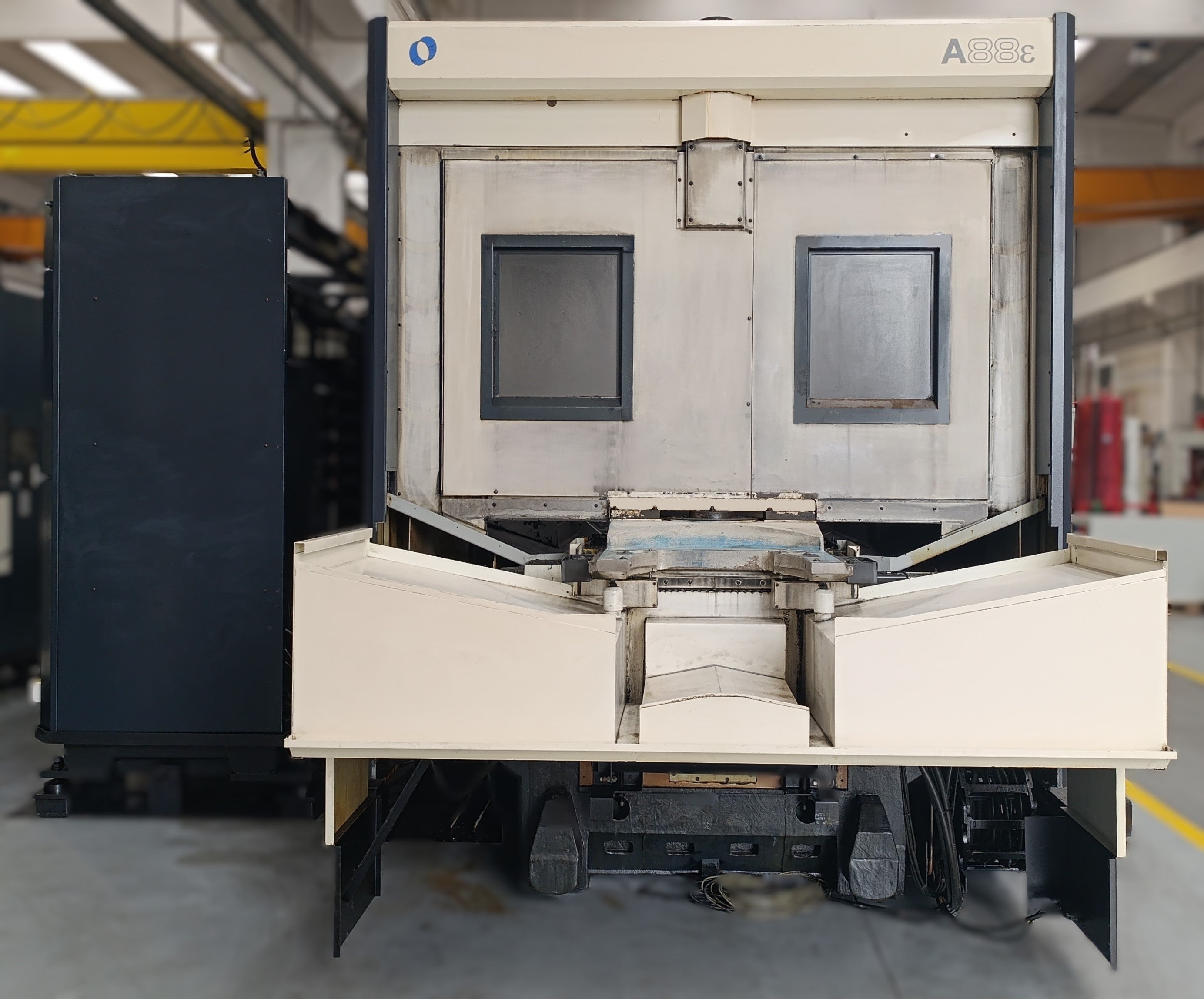

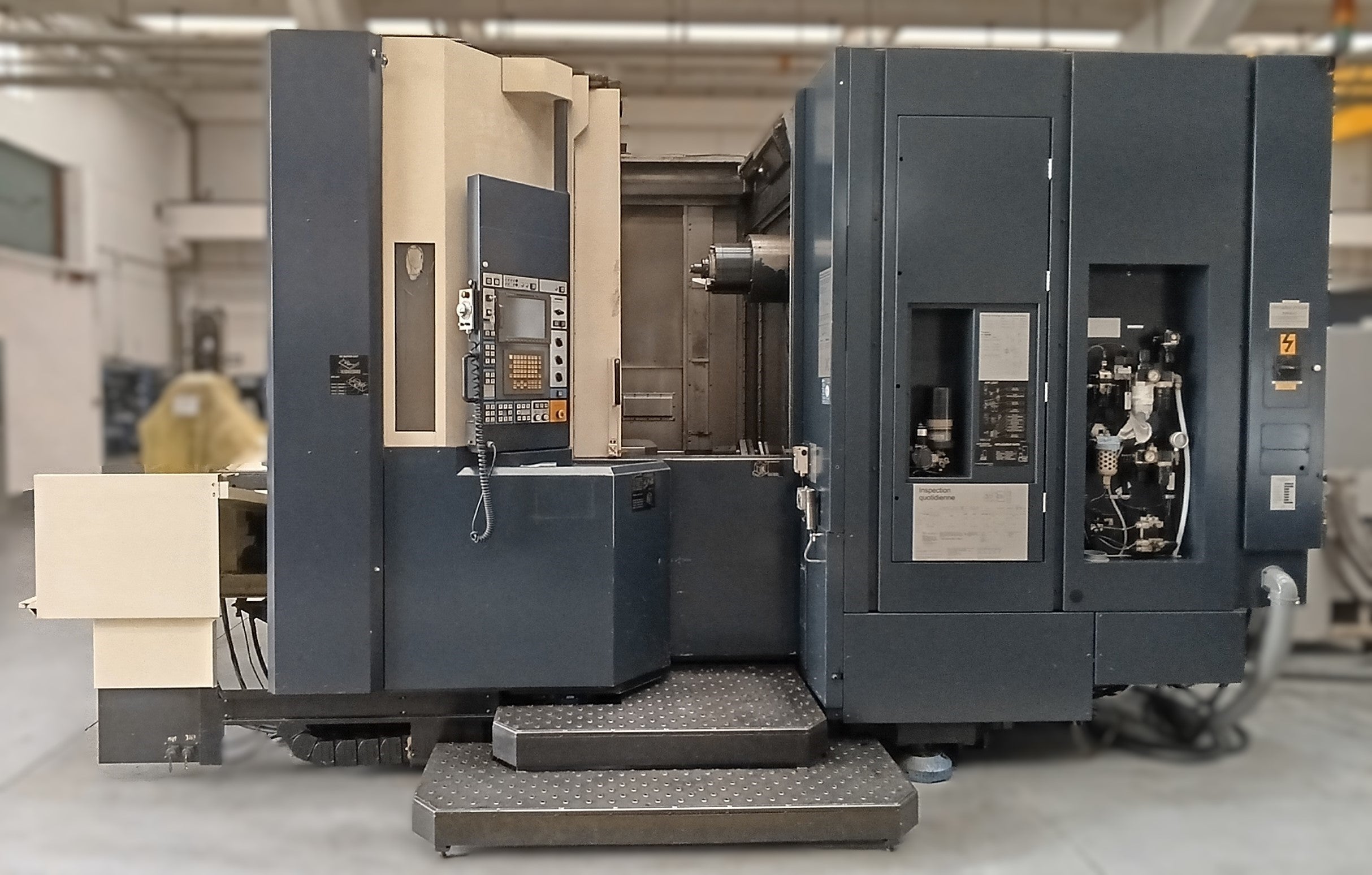

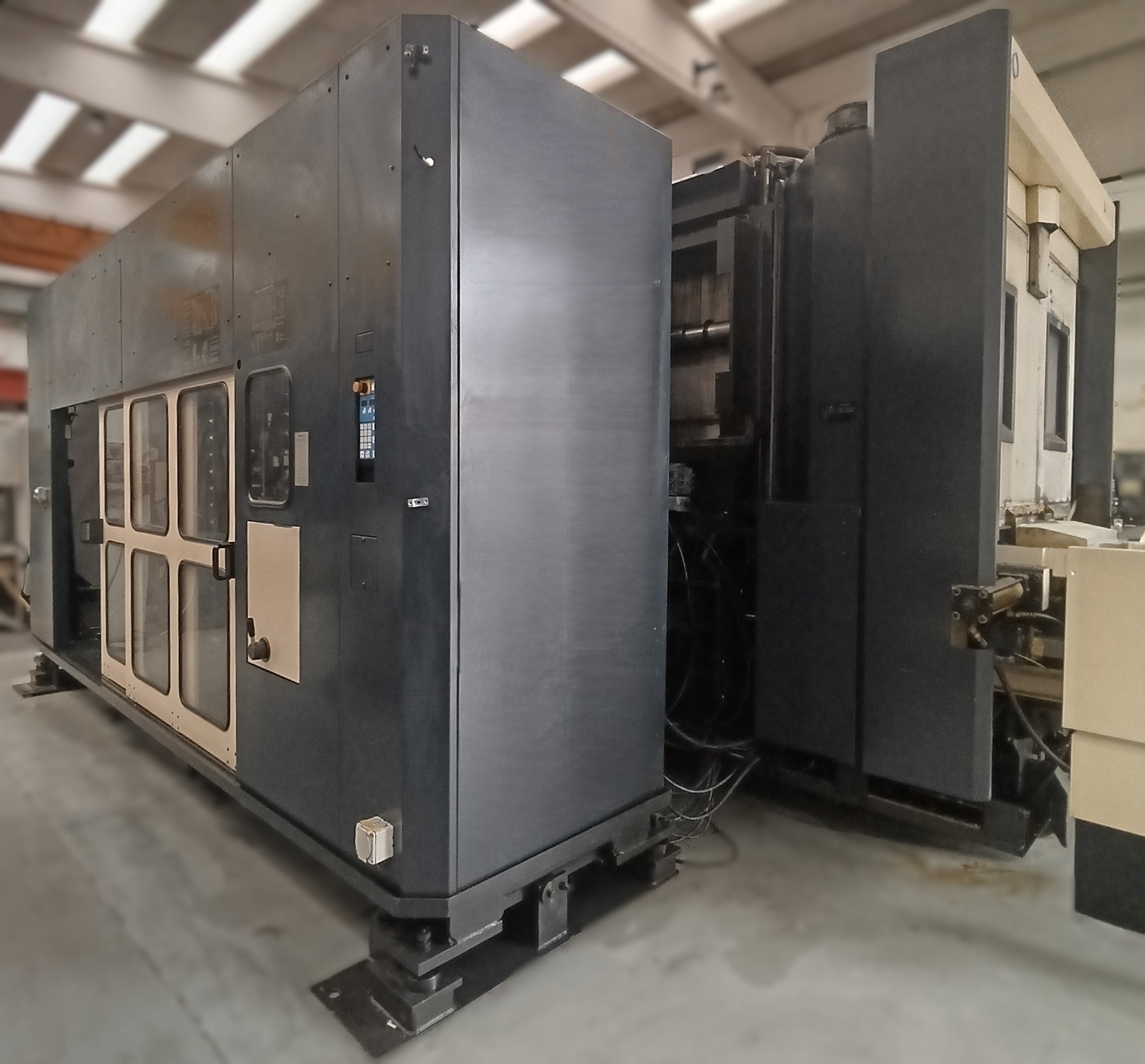

  • 023224 - MAKINO A 88e-A 188
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

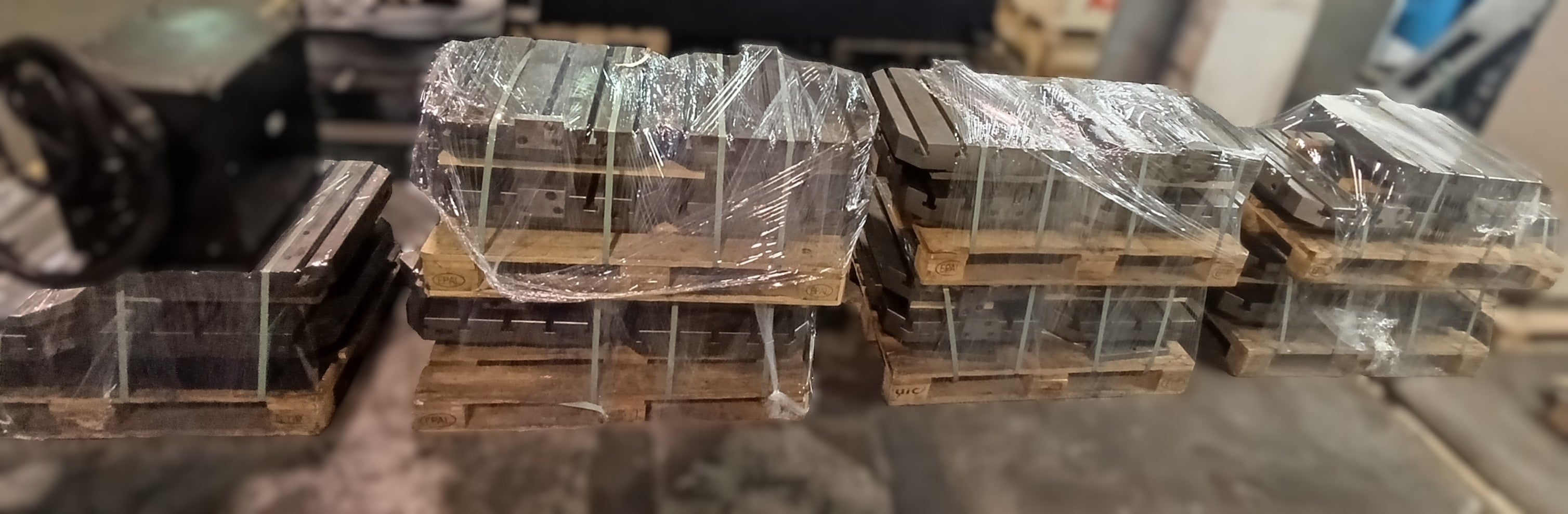

Number of tables: 2.
Table length: 630 mm.
Table width: 630 mm.
Longitudinal travel (X-axis): 800 mm.
Transversal travel (y-axis): 750 mm.
Vertical travel (z axis): 770 mm.

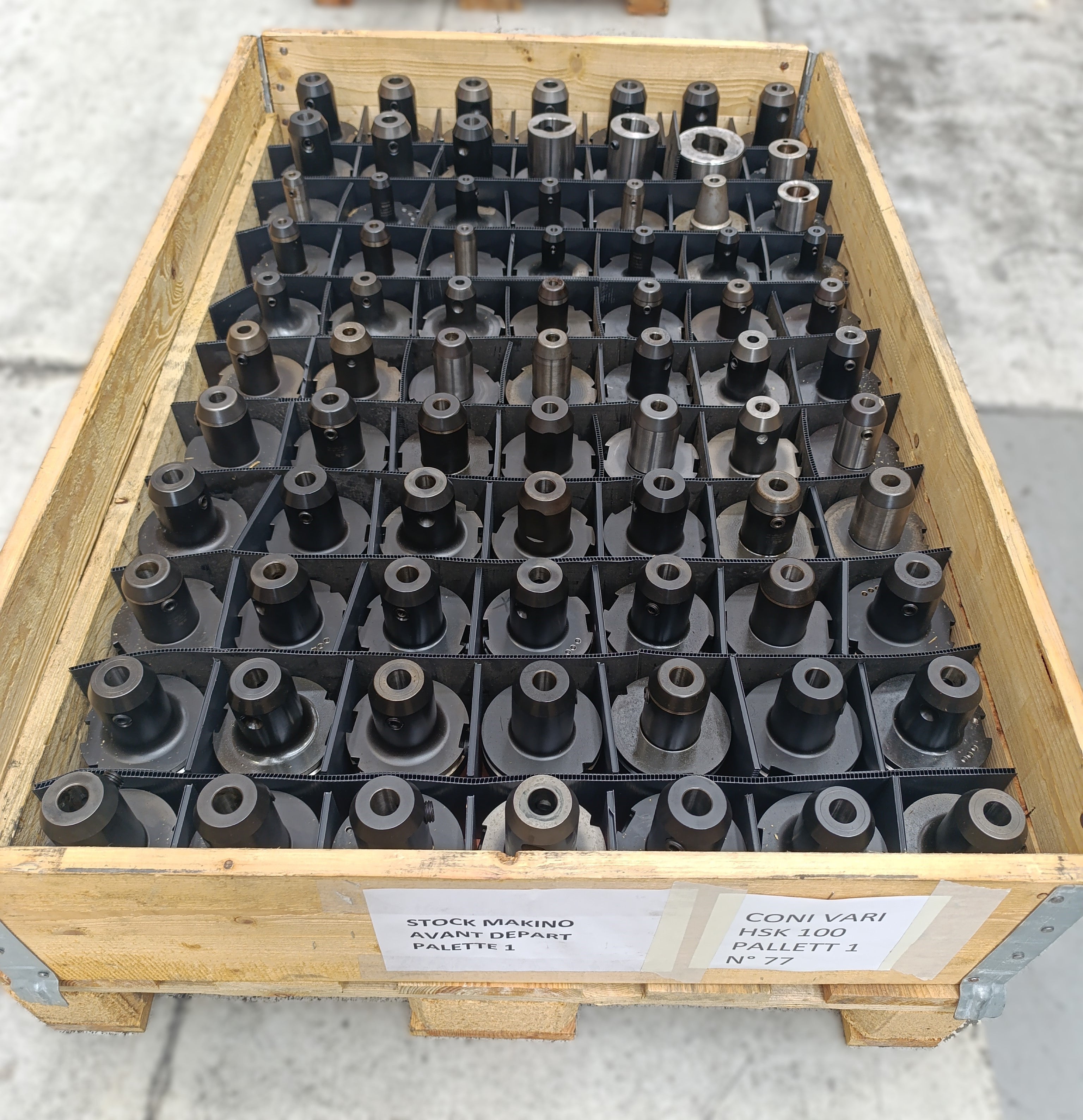

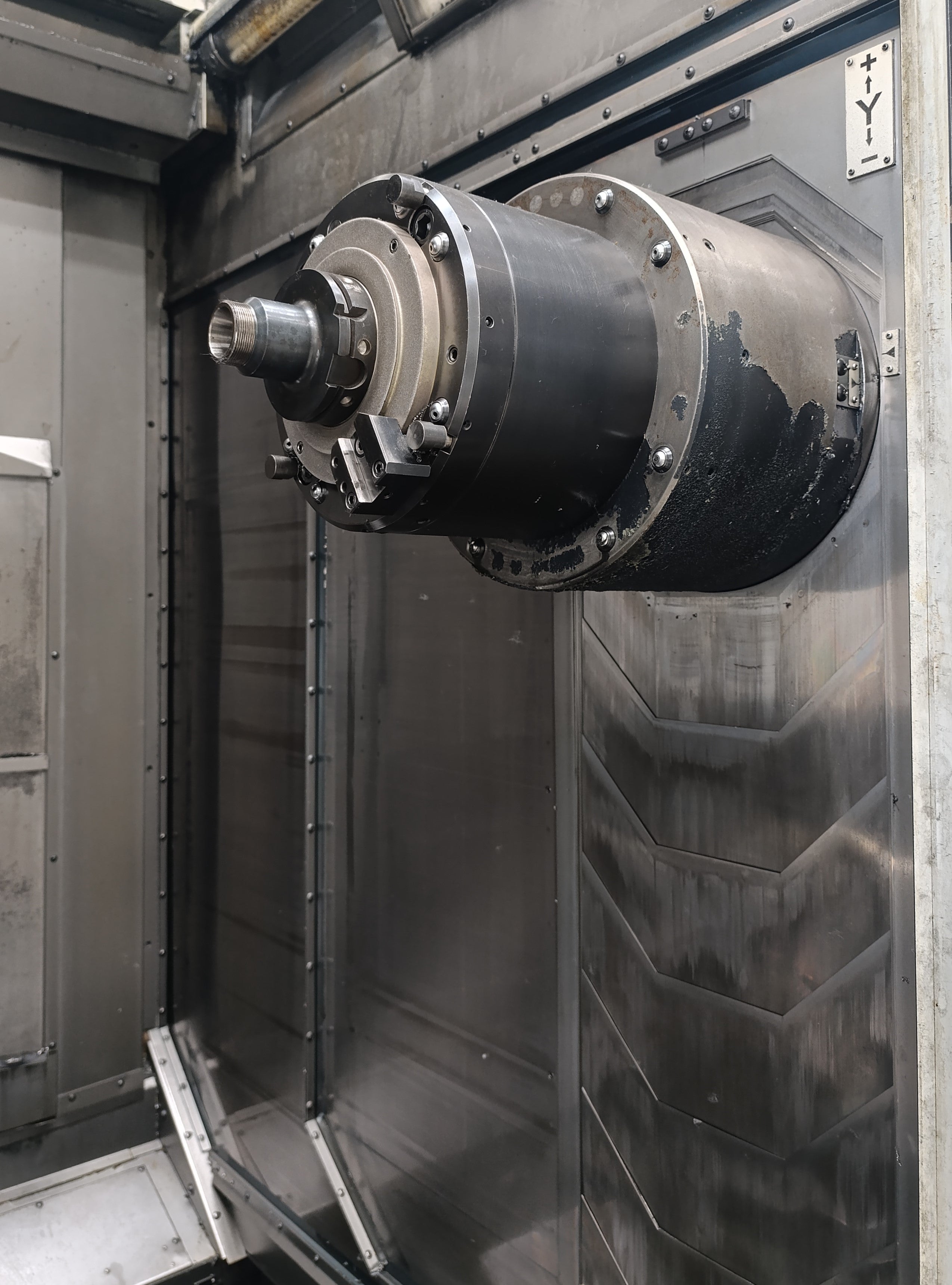

Spindle nose: HSK-A: 100.
from: 20 t/min.
up to: 10000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 30 kW.
Machine's weight about: 18000 kg.
Length: 6430 mm.
Width: 3650 mm.
Height: 3000 mm.
Space requirement env.: 40 / 24 m2.
