MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GRINDING
  • Model:
  • SURFACE GRINDING MACHINE MUELLER TYPE MPS 1
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

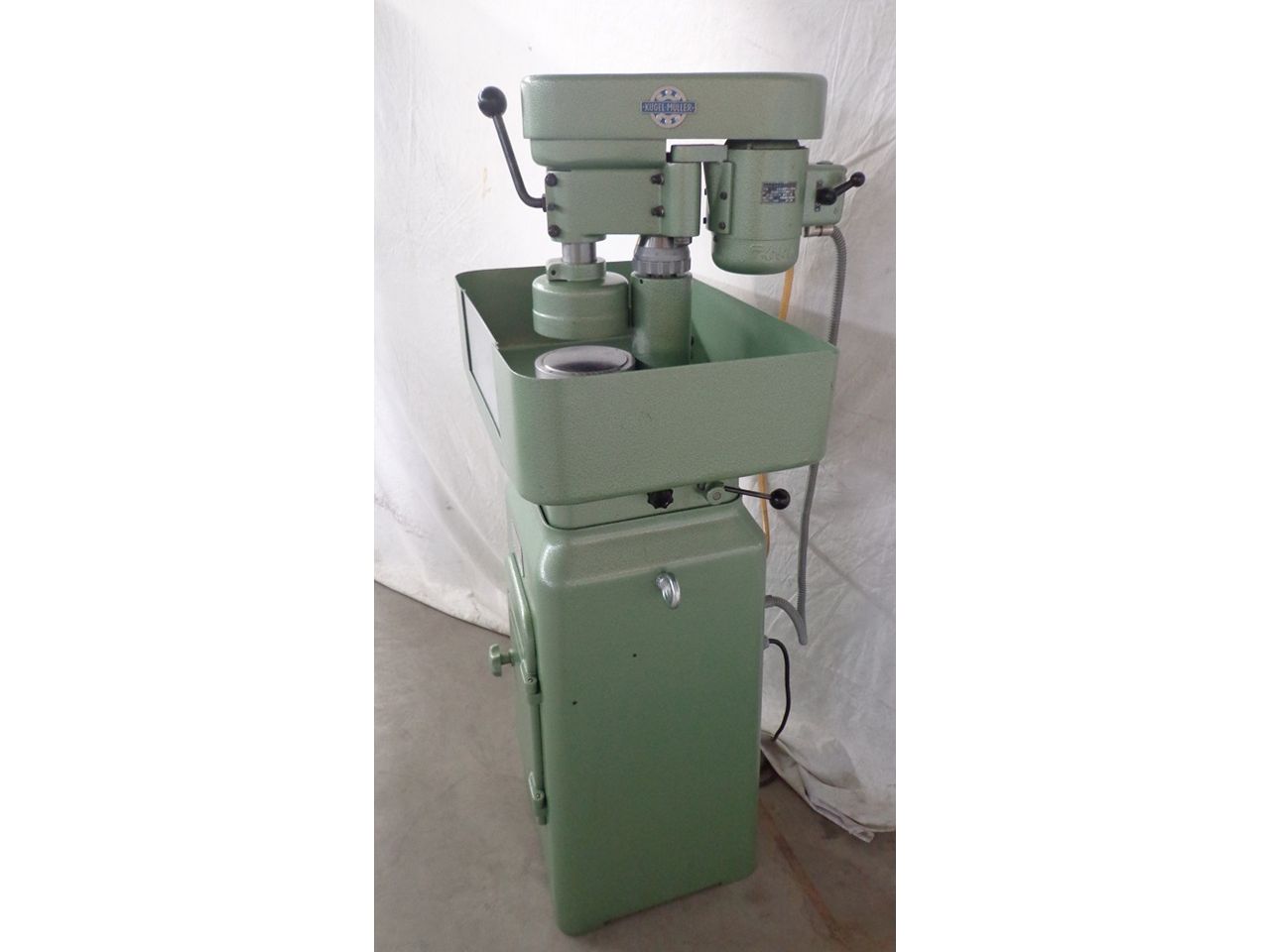

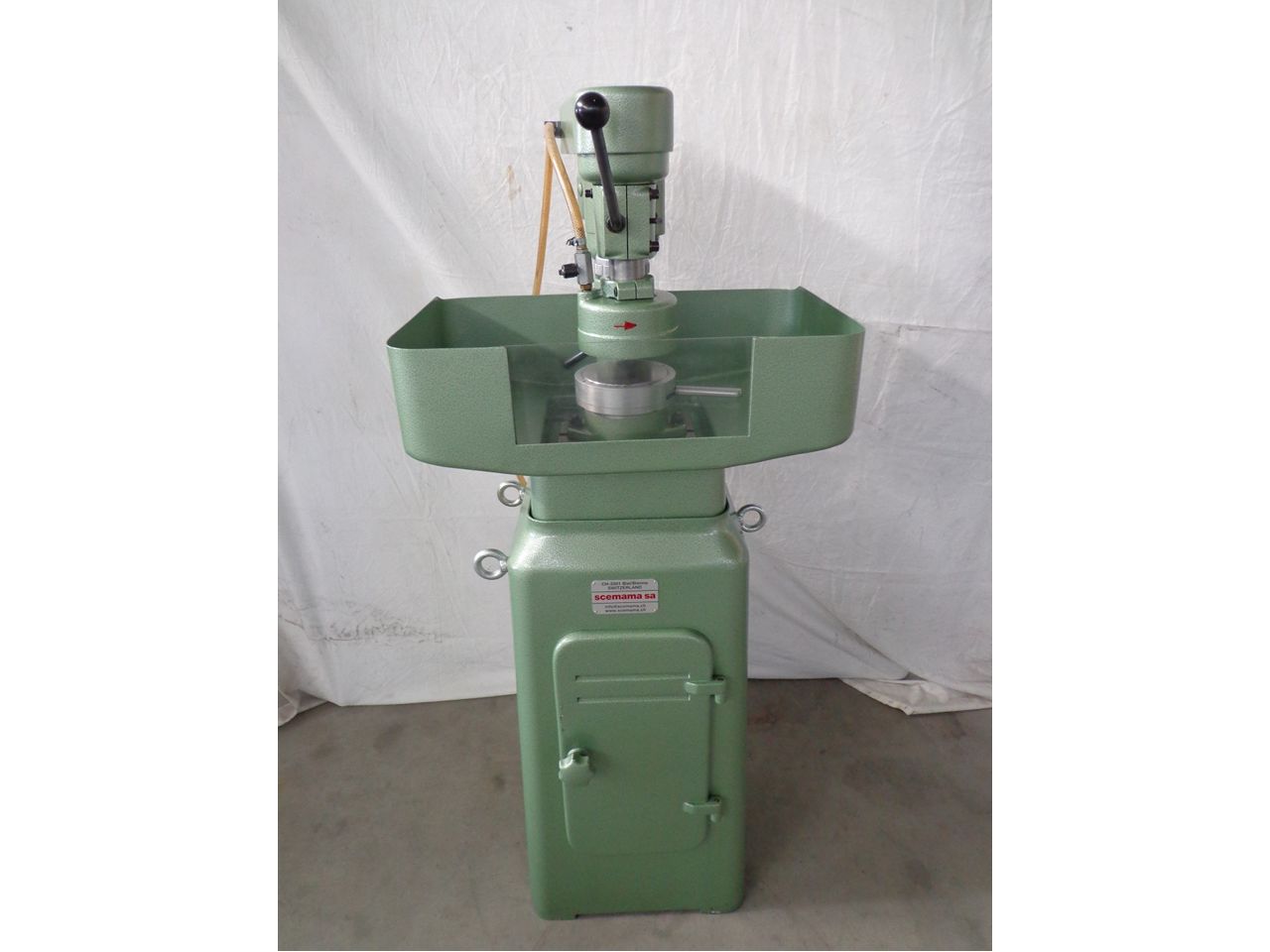

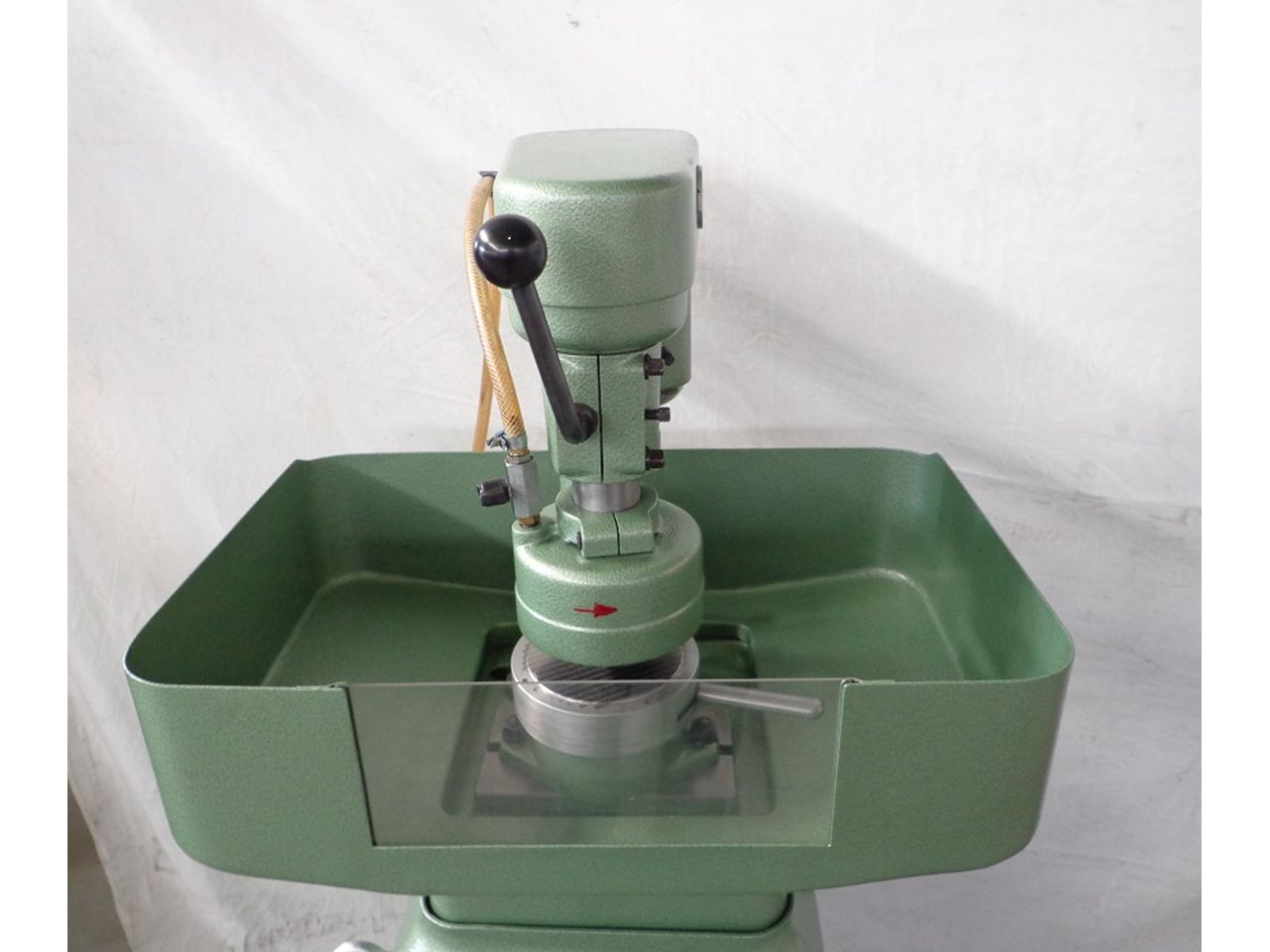

SURFACE GRINDING MACHINE "MUELLER" TYPE MPS 1

Reference: 2150043

magnetic plate 200x100 mm, on base with cooling device


Information

Manufacturing originSwiss
Voltage380/50/3
Netweight58 kg
Custom position8460.1930
Dimensions50x60x170cm

TECHNICAL DATA

Surfacing height upon table
Surfacing height upon magnetic plate (with new wheel) 130 mm
Grinding length for 80 mm width240 mm
Fixing surface of table120x206 mm
Approaching precision0,001 mm
Spindle speed3150 rpm
Grinding wheel125x60x20 mm
Quick vertical stroke140 mm
Slow vertical stroke10 mm
Driving motor2800 rpm
errors and omissions excepted data given without obligation
