MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GRINDING
  • Model:
  • SURFACE GRINDING MACHINE TRIPET MHP-500
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

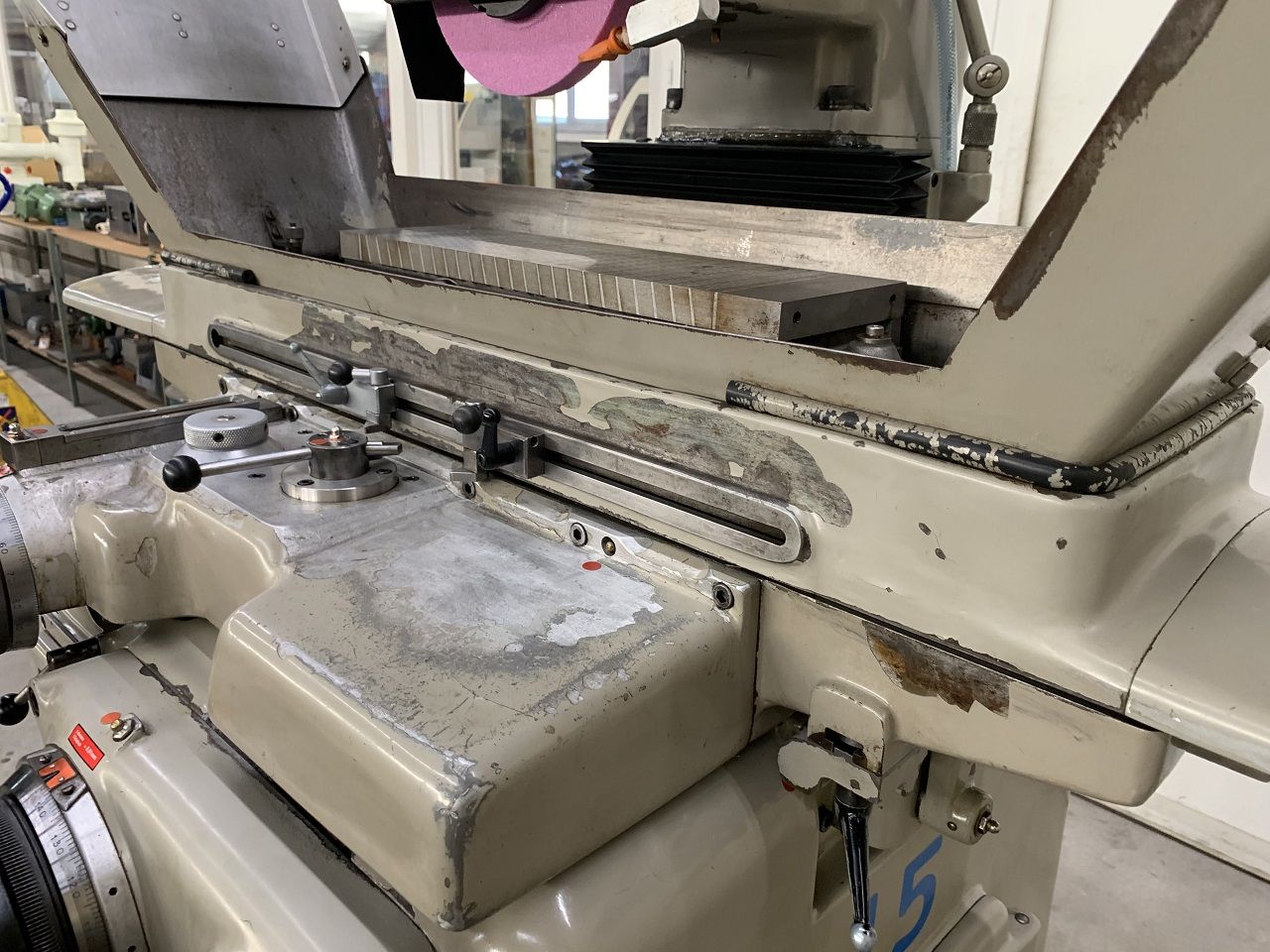

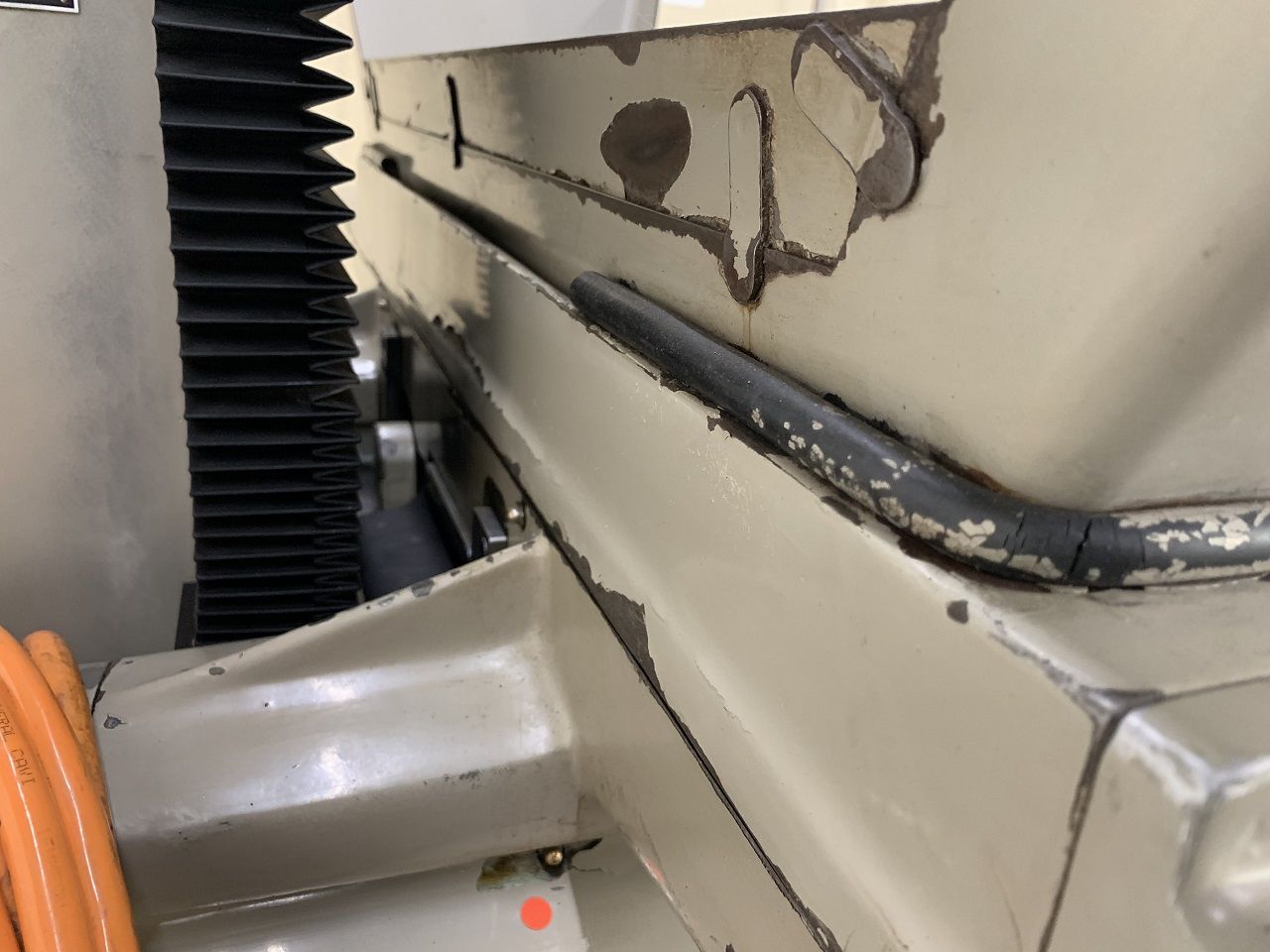

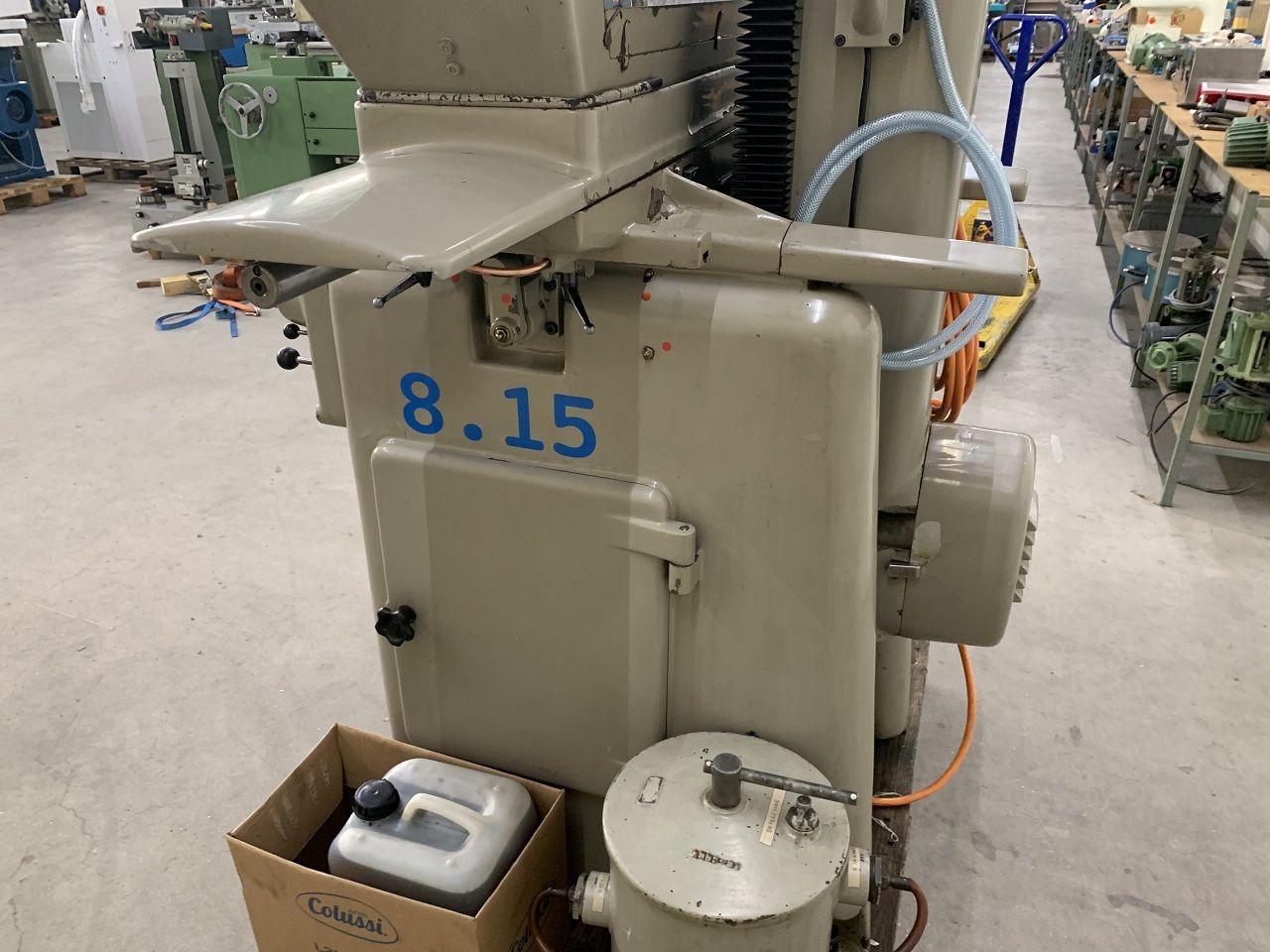

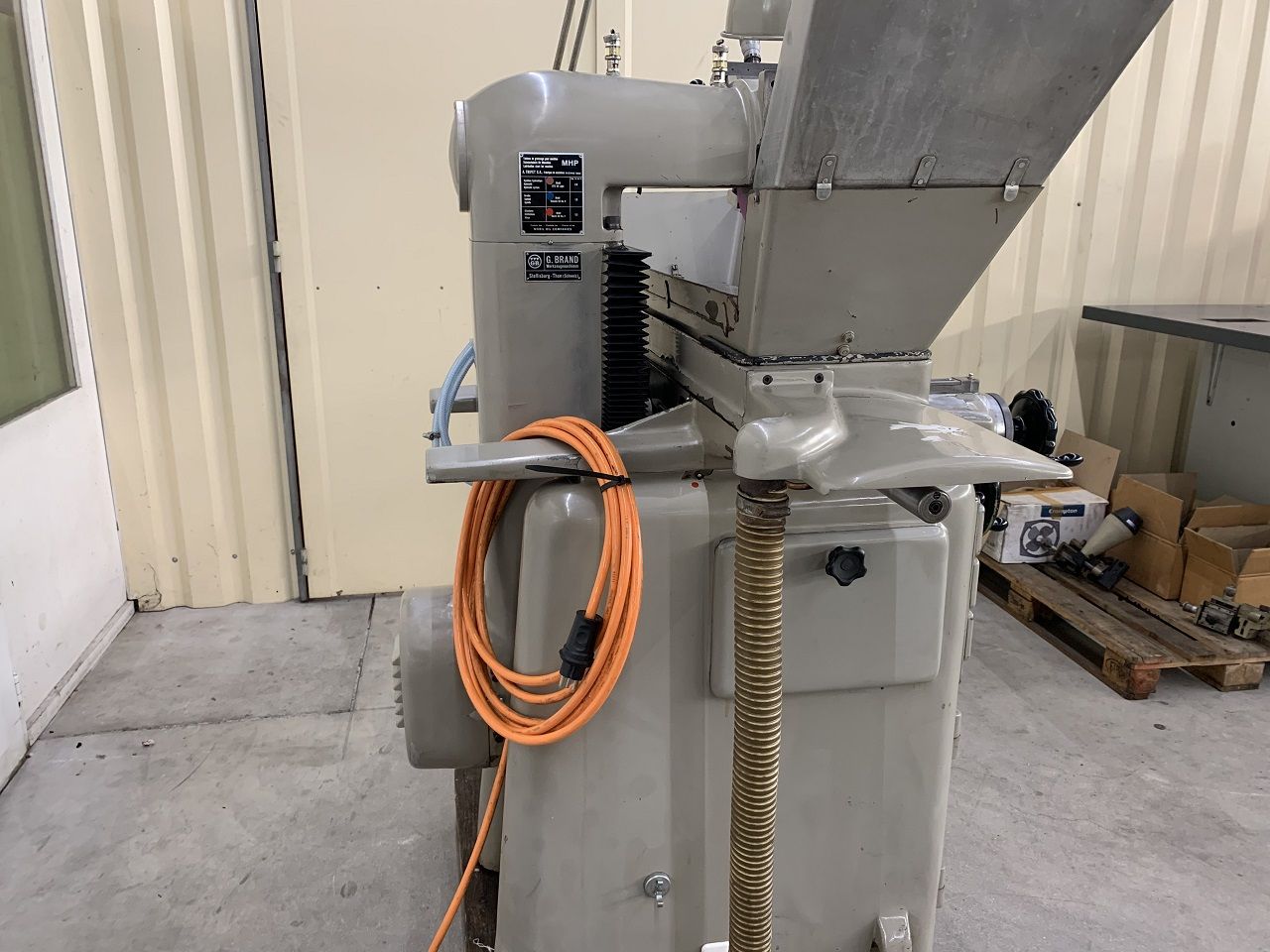

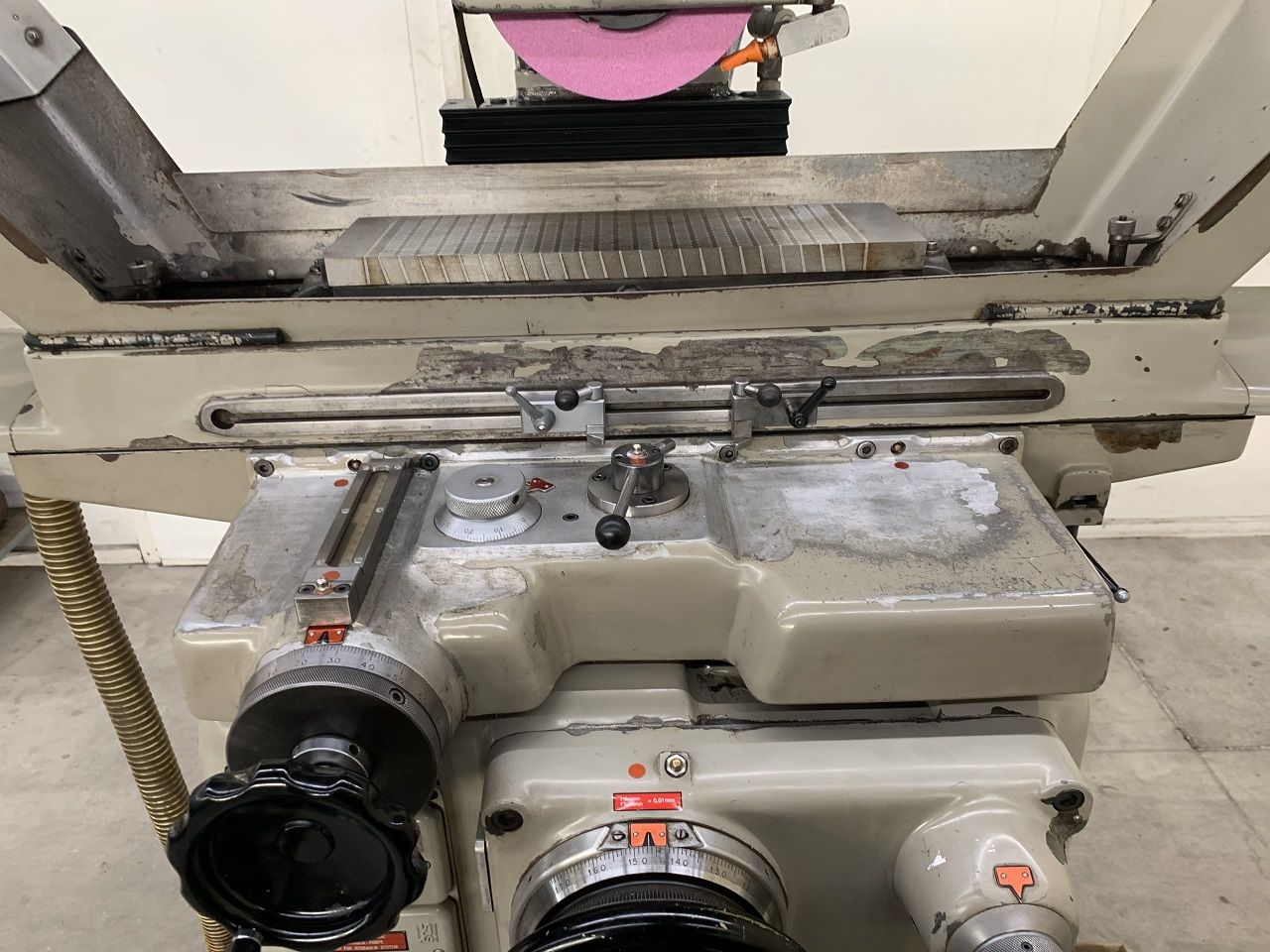

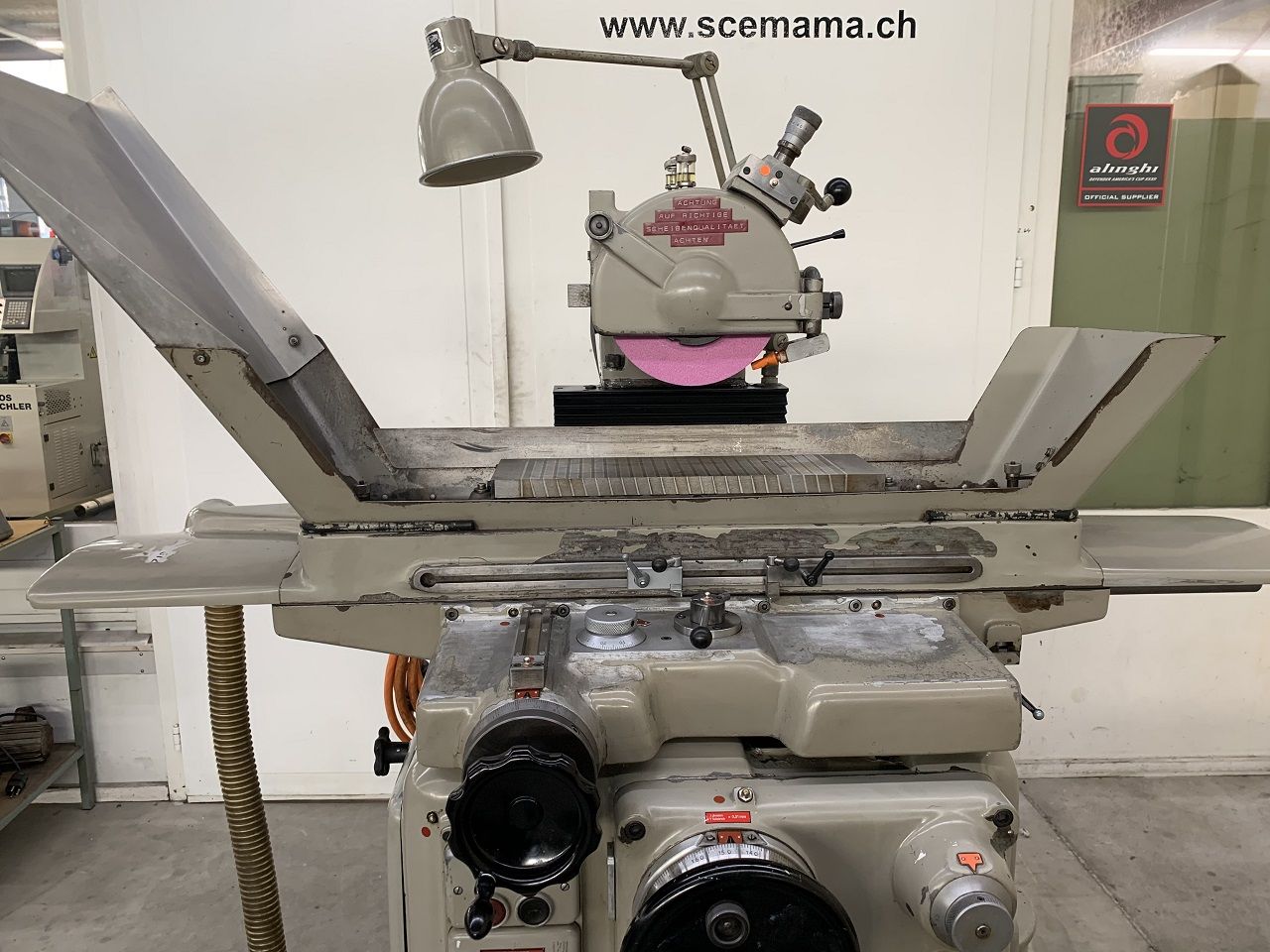

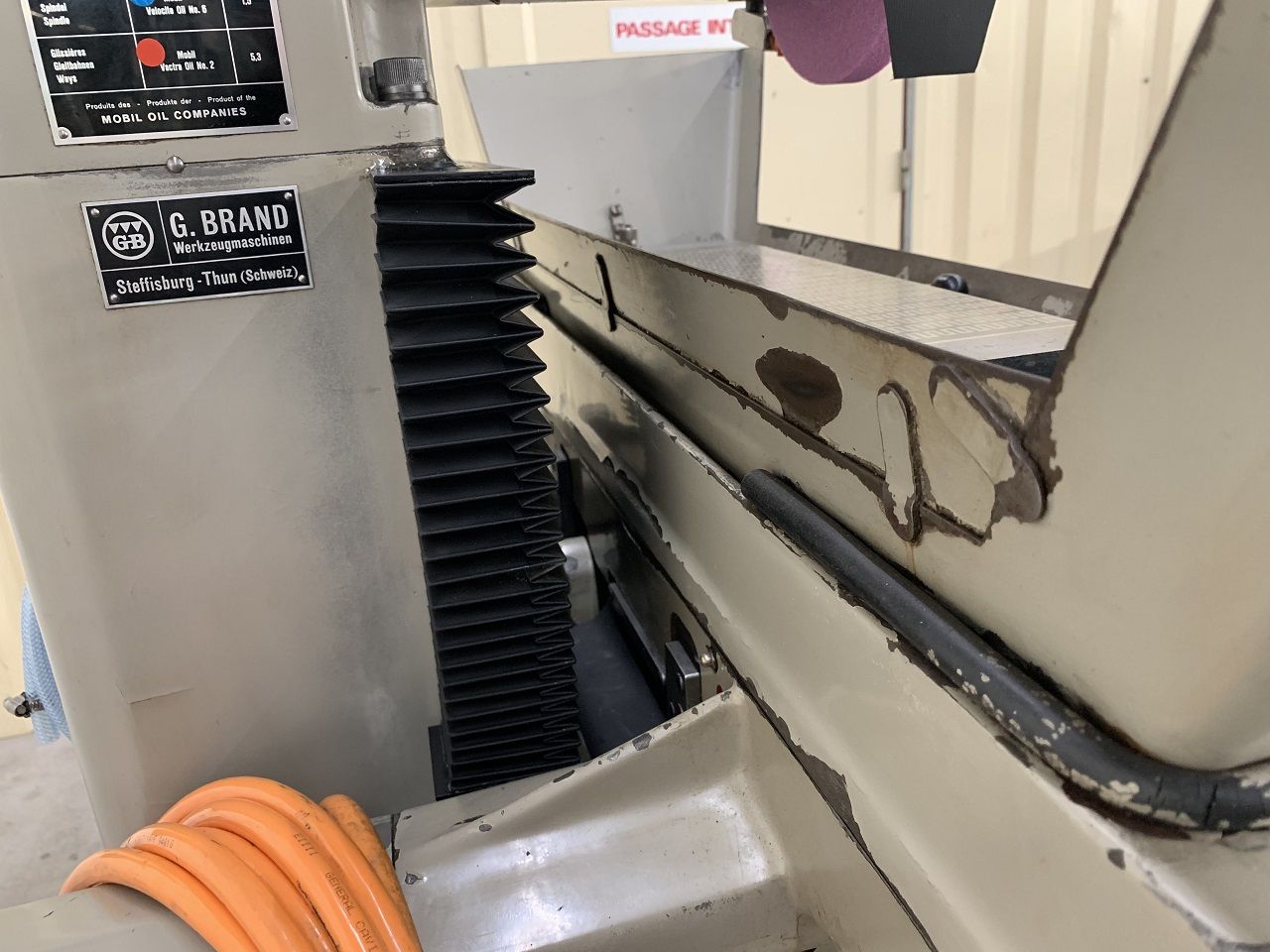

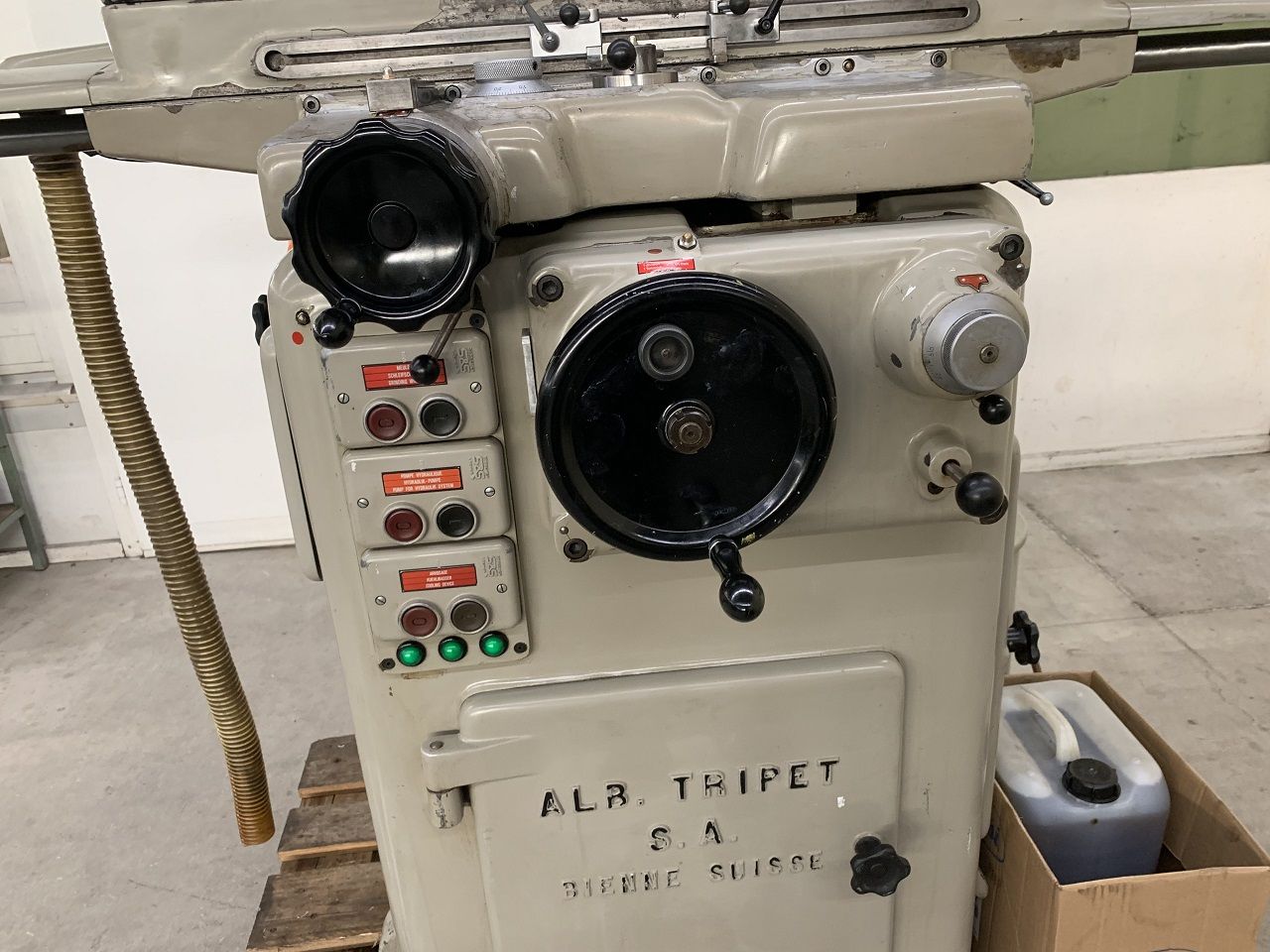

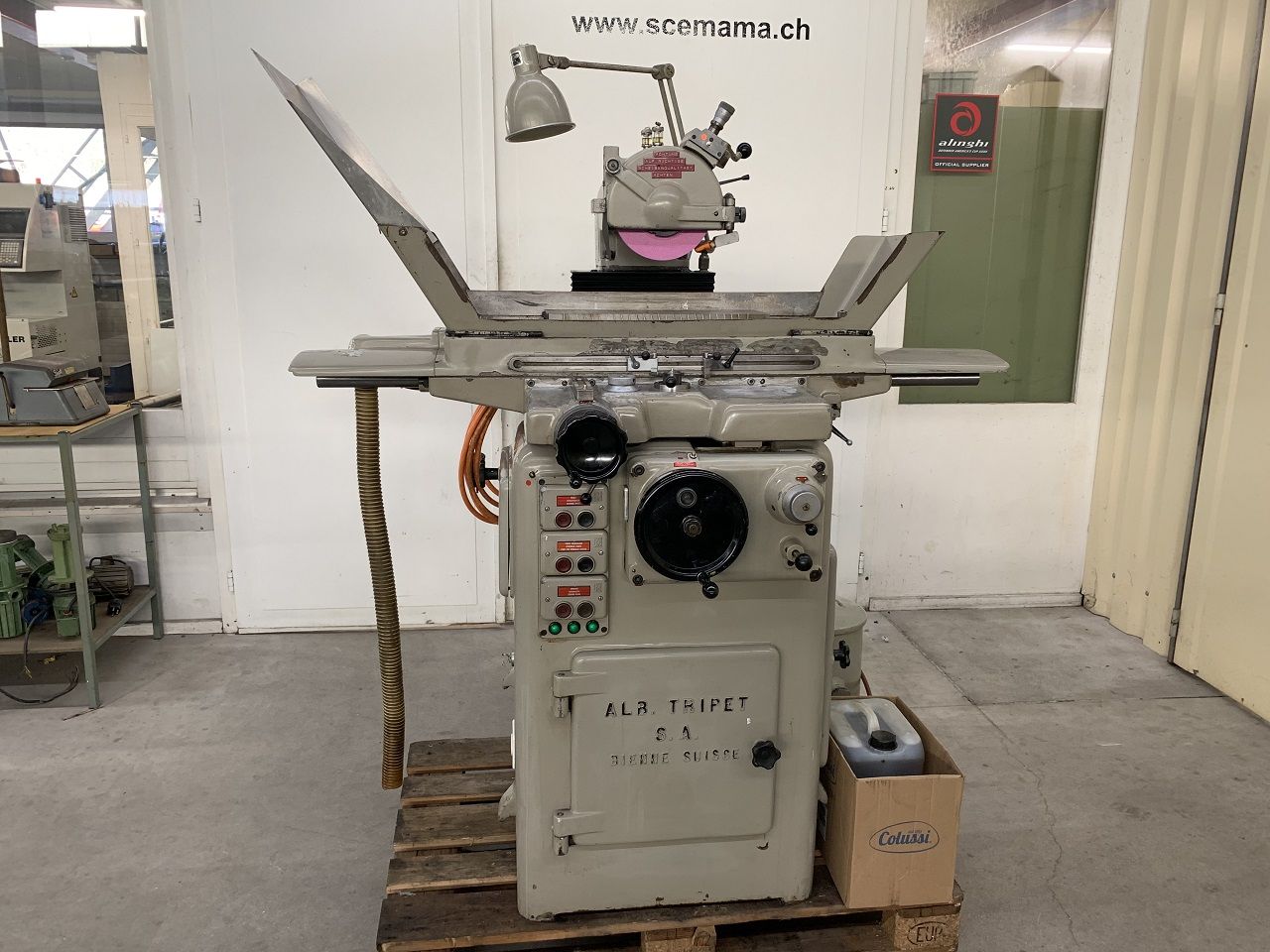

SURFACE GRINDING MACHINE "TRIPET" MHP-500

Reference: 2180131

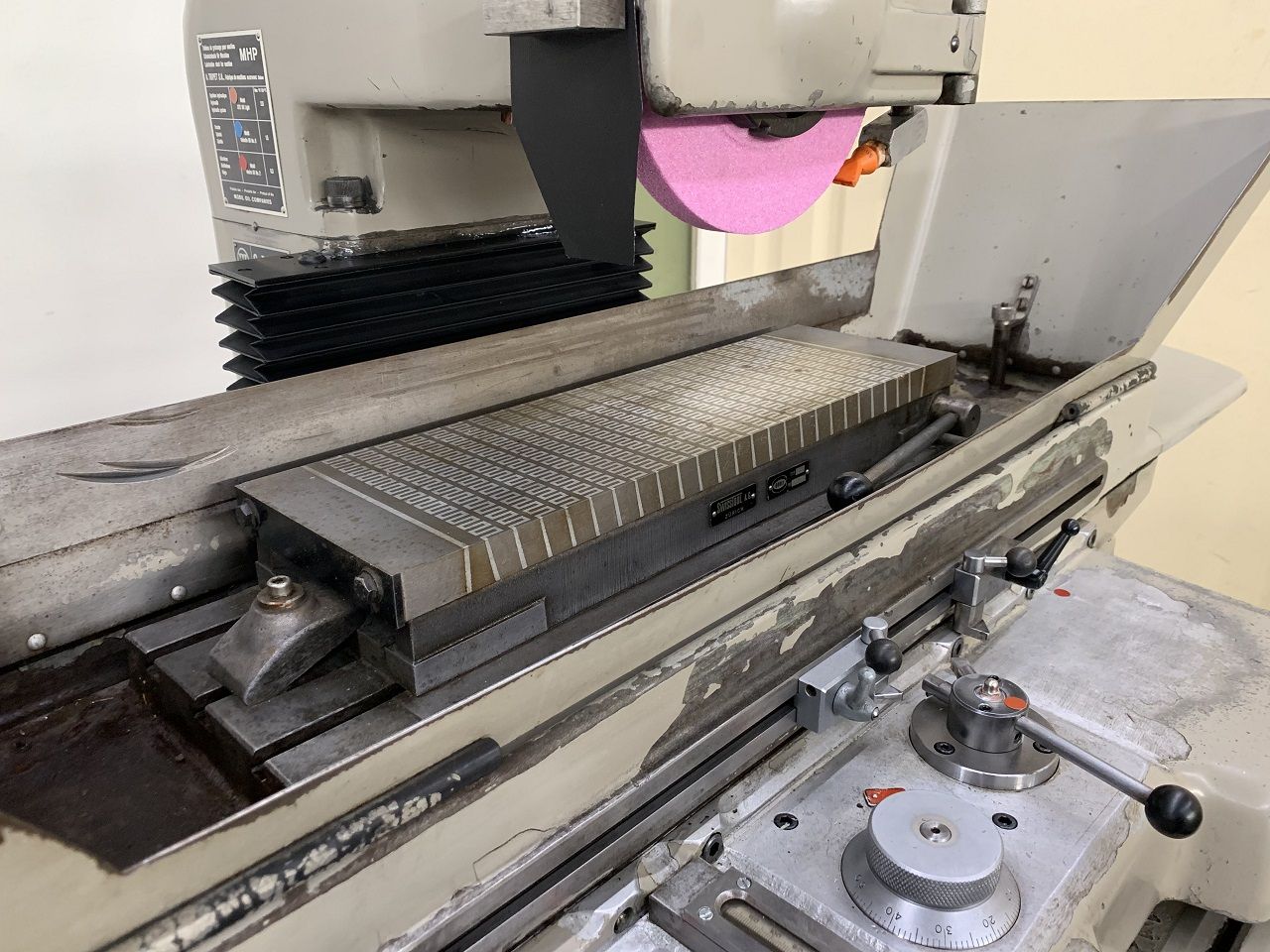

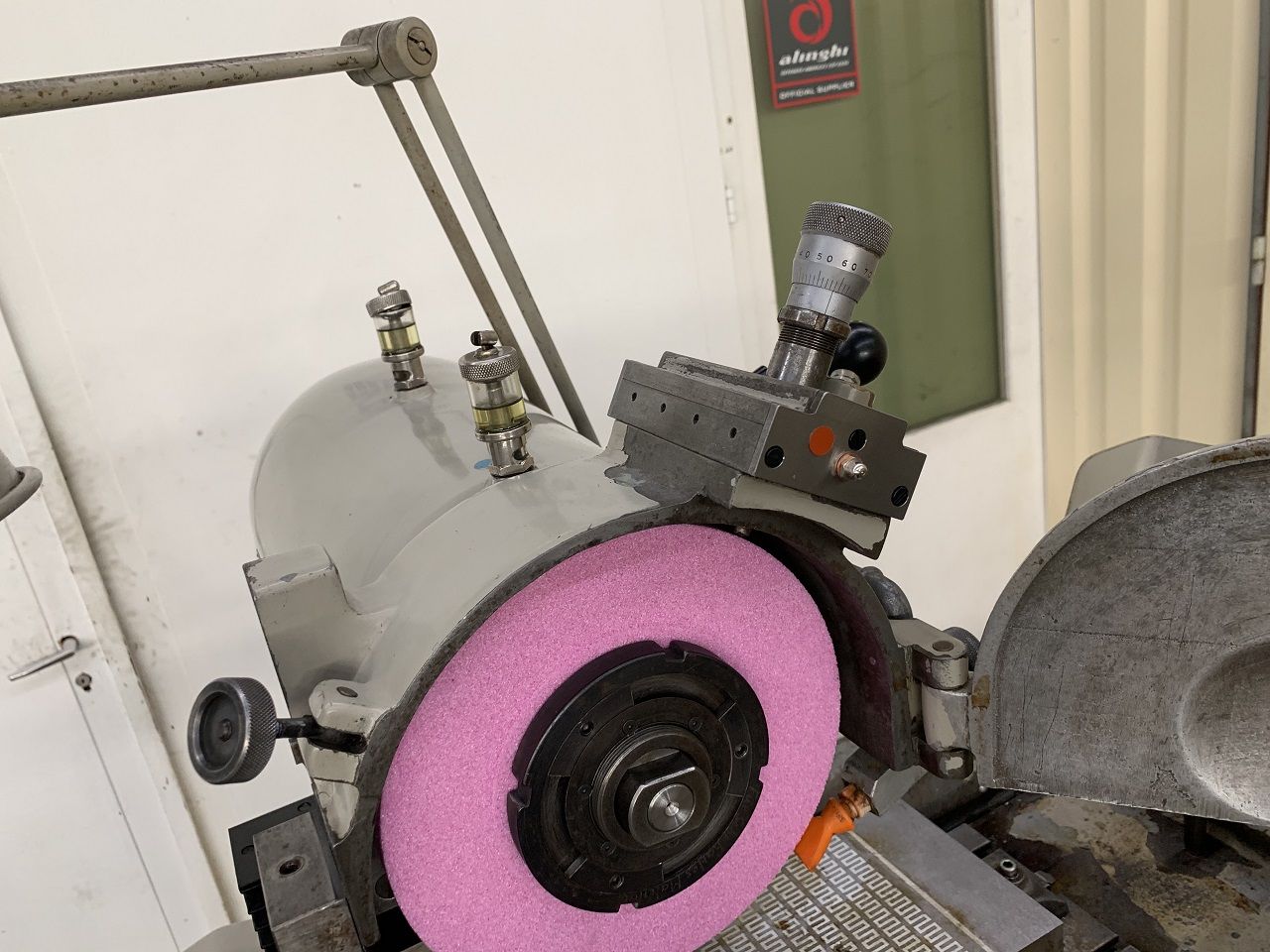

magnetic plate 450x135 mm (380x135), trueing-up apparatus with diamond, lighting



Information

Manufacturing originSwiss
Voltage380/50/3
Netweightabt. 1100 kg
Dimensionsabt. 1500x1340x1600 mm
Customs position8460.29 20

TECHNICAL DATA

Max. stroke on slide-way530x210 mm
Max grinding capacity530x230 mm
Usable table surface600x200 mm
Longitudinal slide-way speed, continuous0-21 m/min
Transverse slide-way speed, continuous0-9 m/min
Vertical move250 mm
Max. way between new grinding-wheel and table250 mm
Vertical movement
On handwheel, 1 division0,01 mm
On micrometric device, 1 division0,001 mm
Automatic0,005-0,10 mm
Transverse movement
On handwheel, 1 division0,01 mm
With comparator0,001 mm

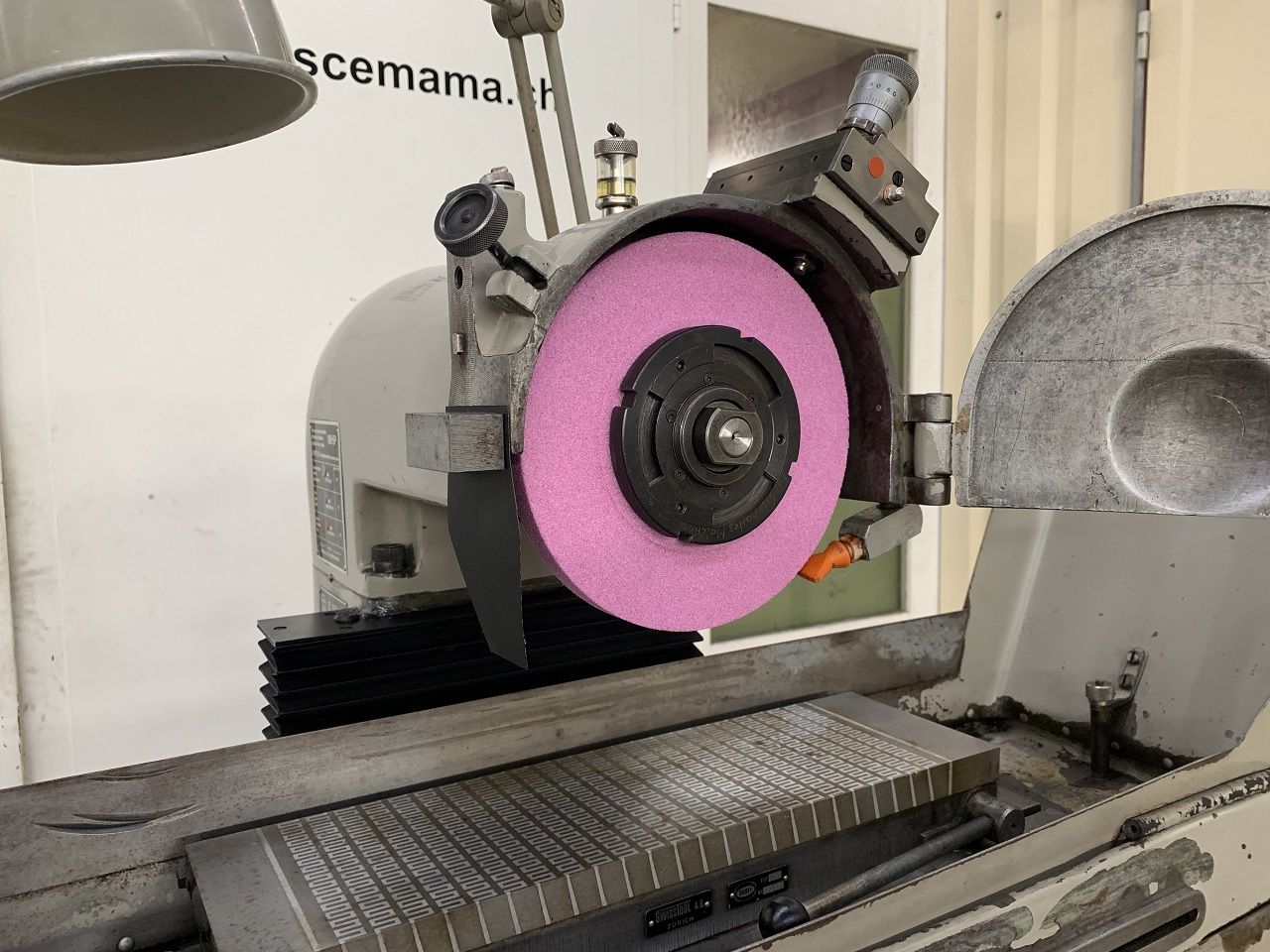

Grinding-wheel
Diameter x width x bore225 x 25 x 50 mm
Normal speed2700 rpm
Speed with variator2700-1000 rpm

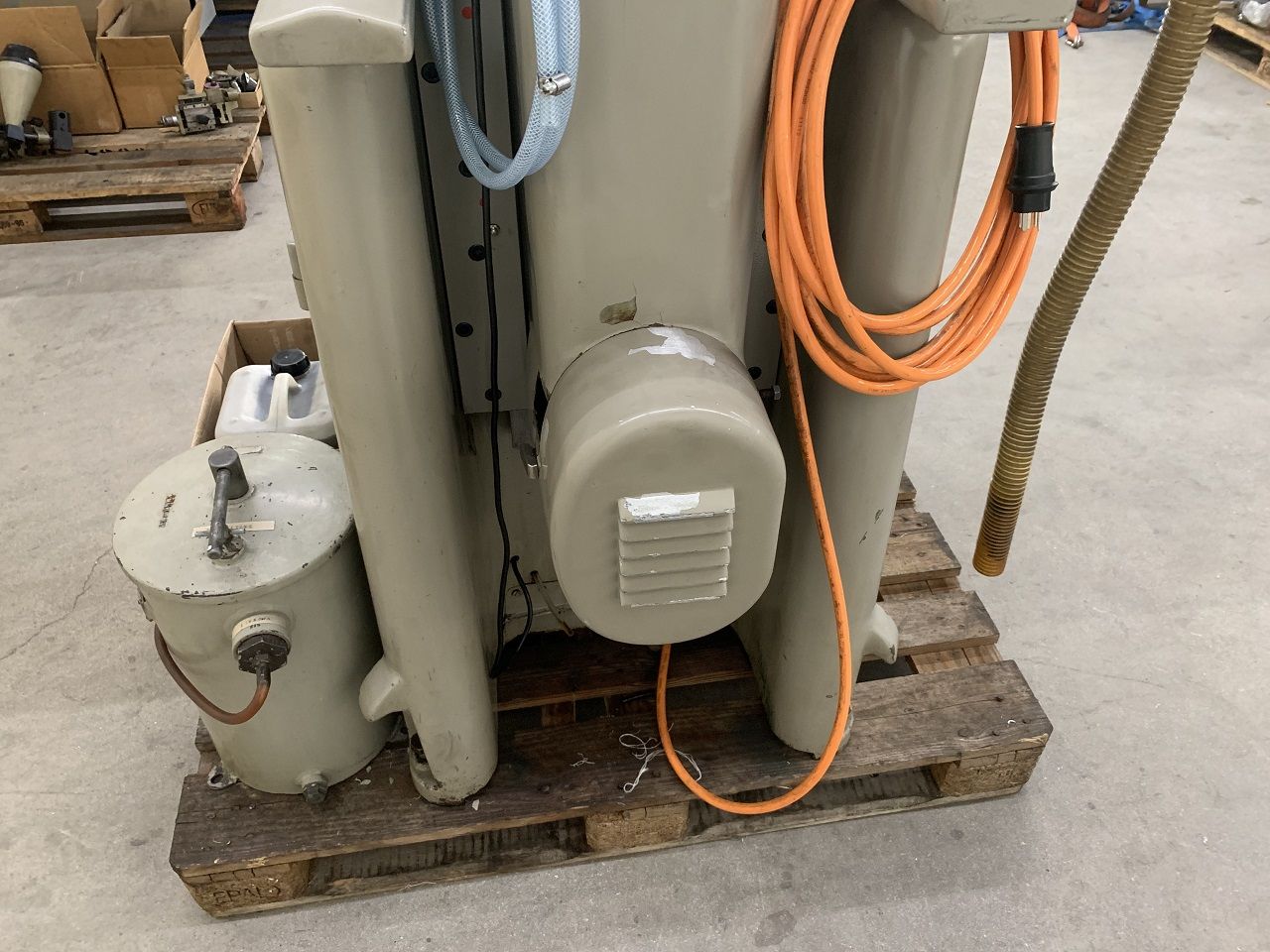

Motors
of spindle3000 rpm 2,5 HP
of hydraulic pump1500 rpm 0,75 HP
of cooling pump2800 rpm 0,15 HP
errors and omissions excepted-data given without obligation
