MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Mazak
  • Model:

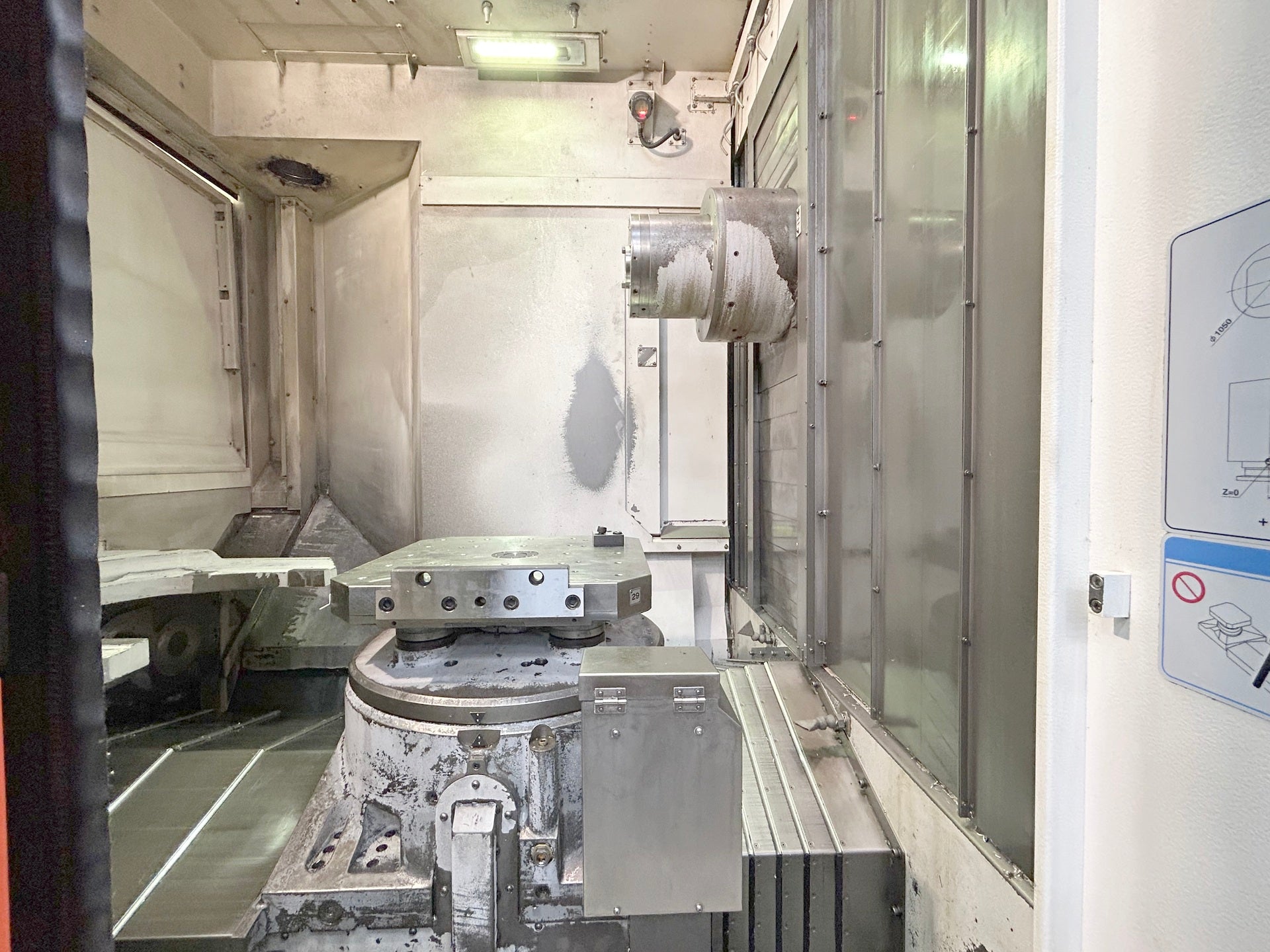

  • 023101 - MAZAK HCN 6800
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

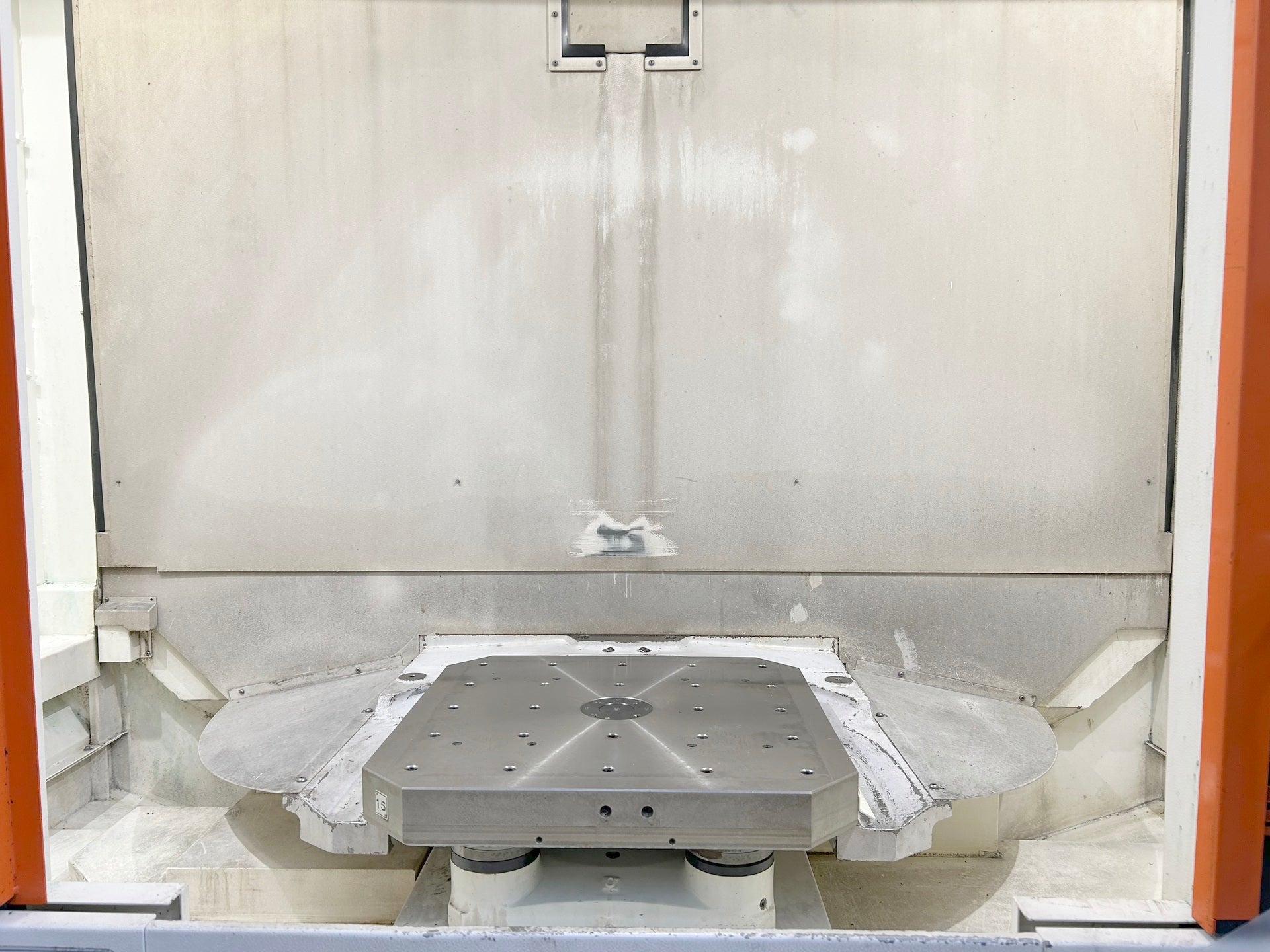

Number of tables: 2.
Longitudinal travel (X-axis): 1050 mm.
Transversal travel (y-axis): 900 mm.
Vertical travel (z axis): 980 mm.
Height: 3400 mm.
Diameter: 1050 mm.

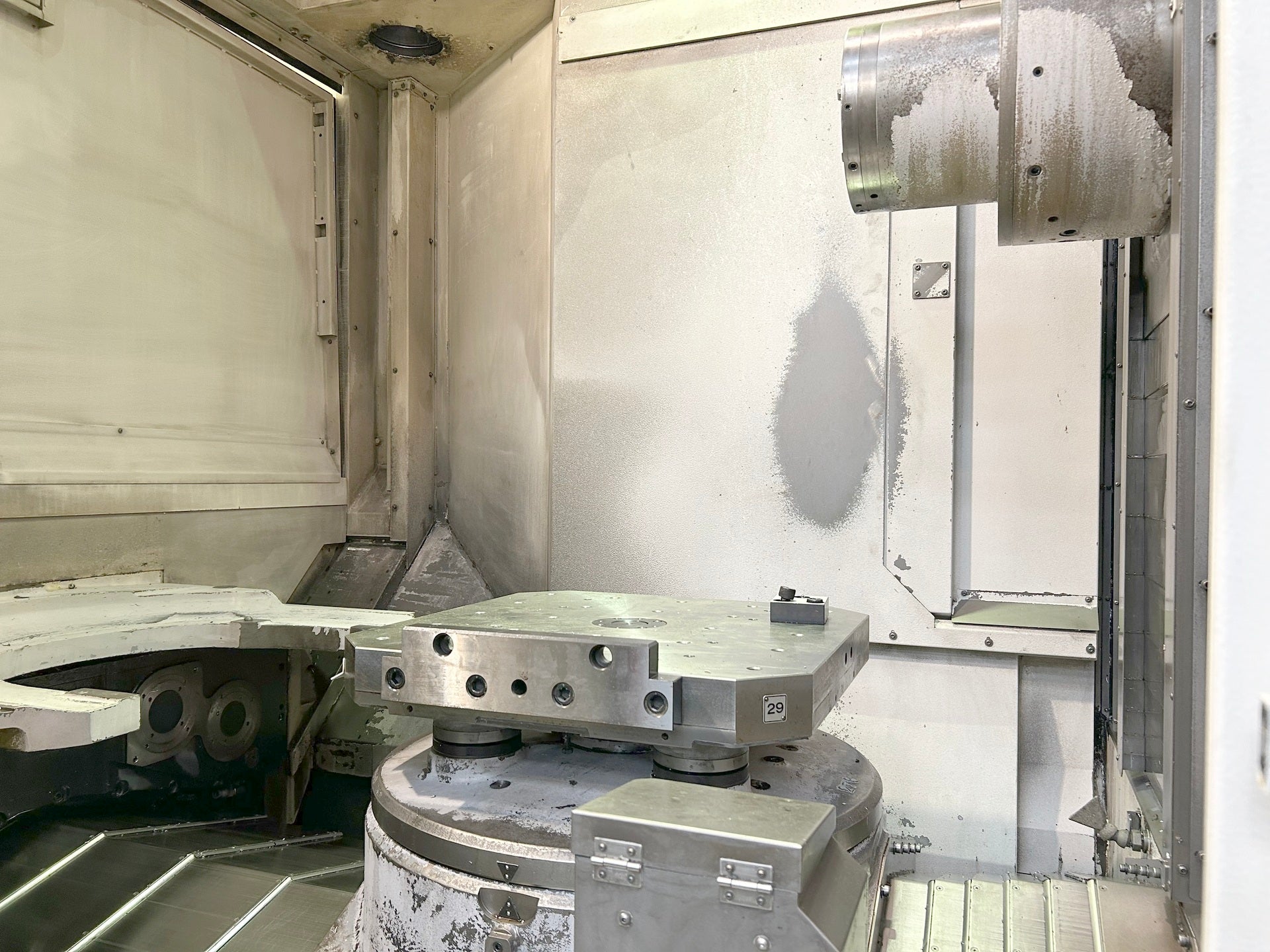

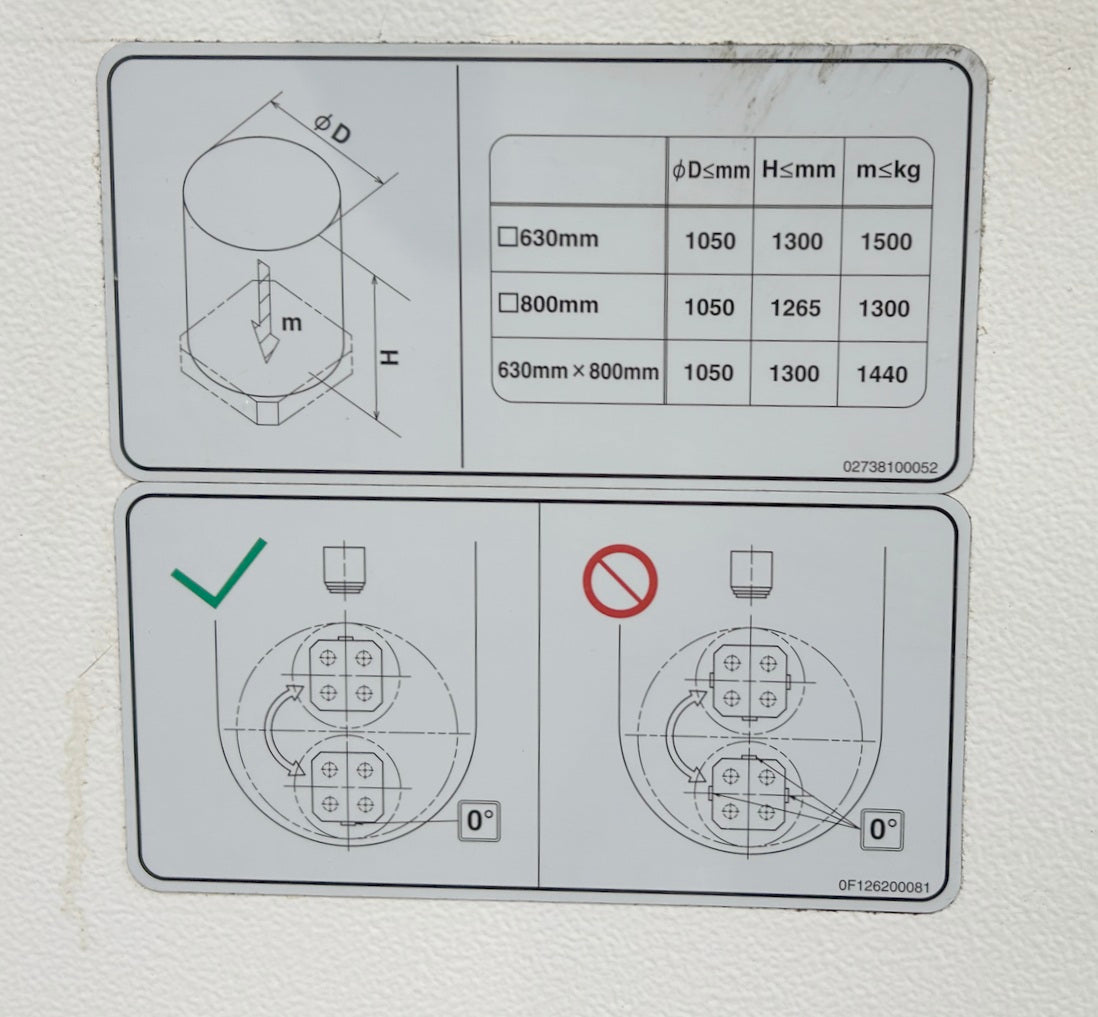

Table load max.: 1500 kg.
Table divisions (B): 0.001 °.
numbers: 2.
Length: 6900 mm.
Width: 4210 mm.

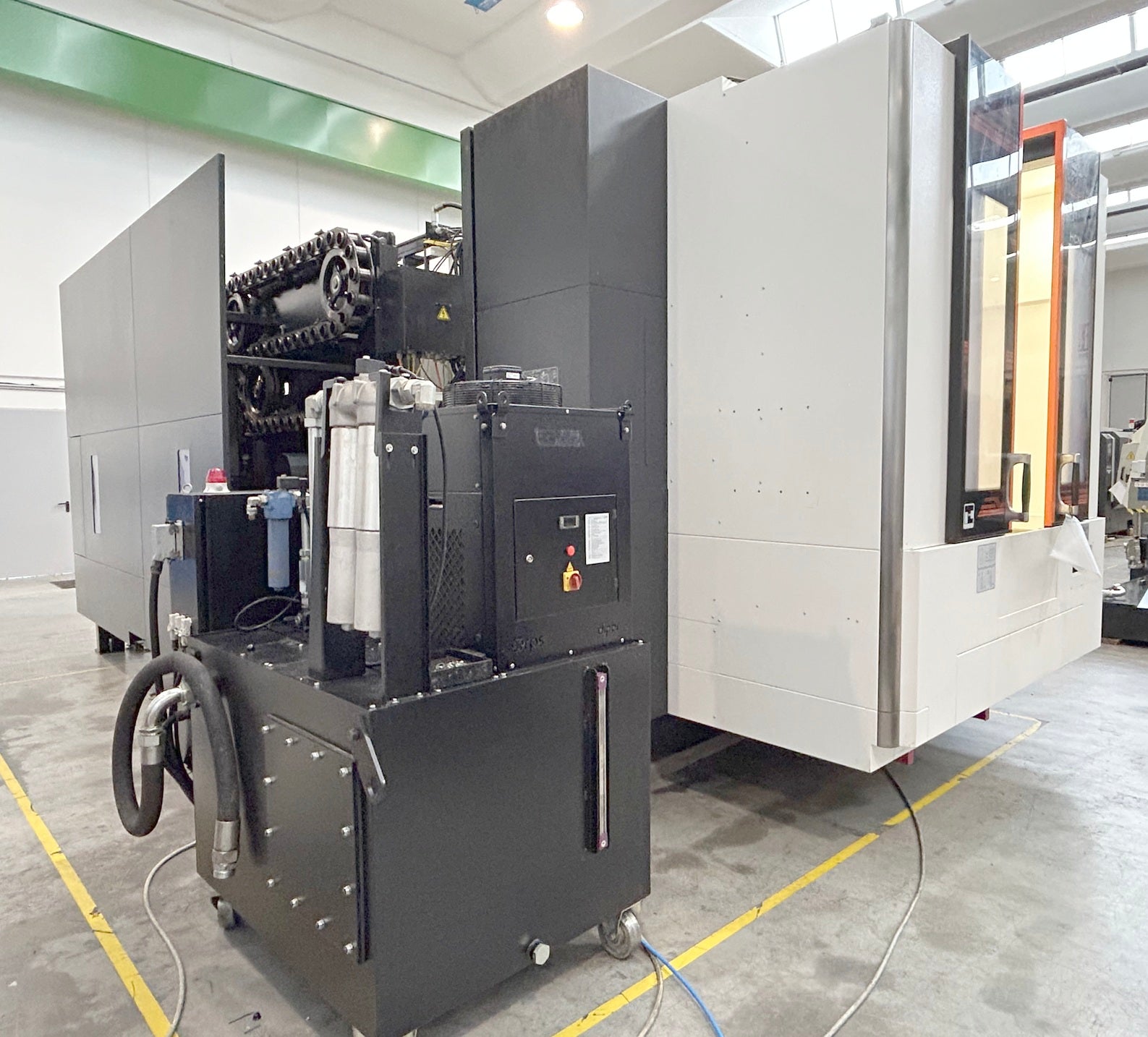

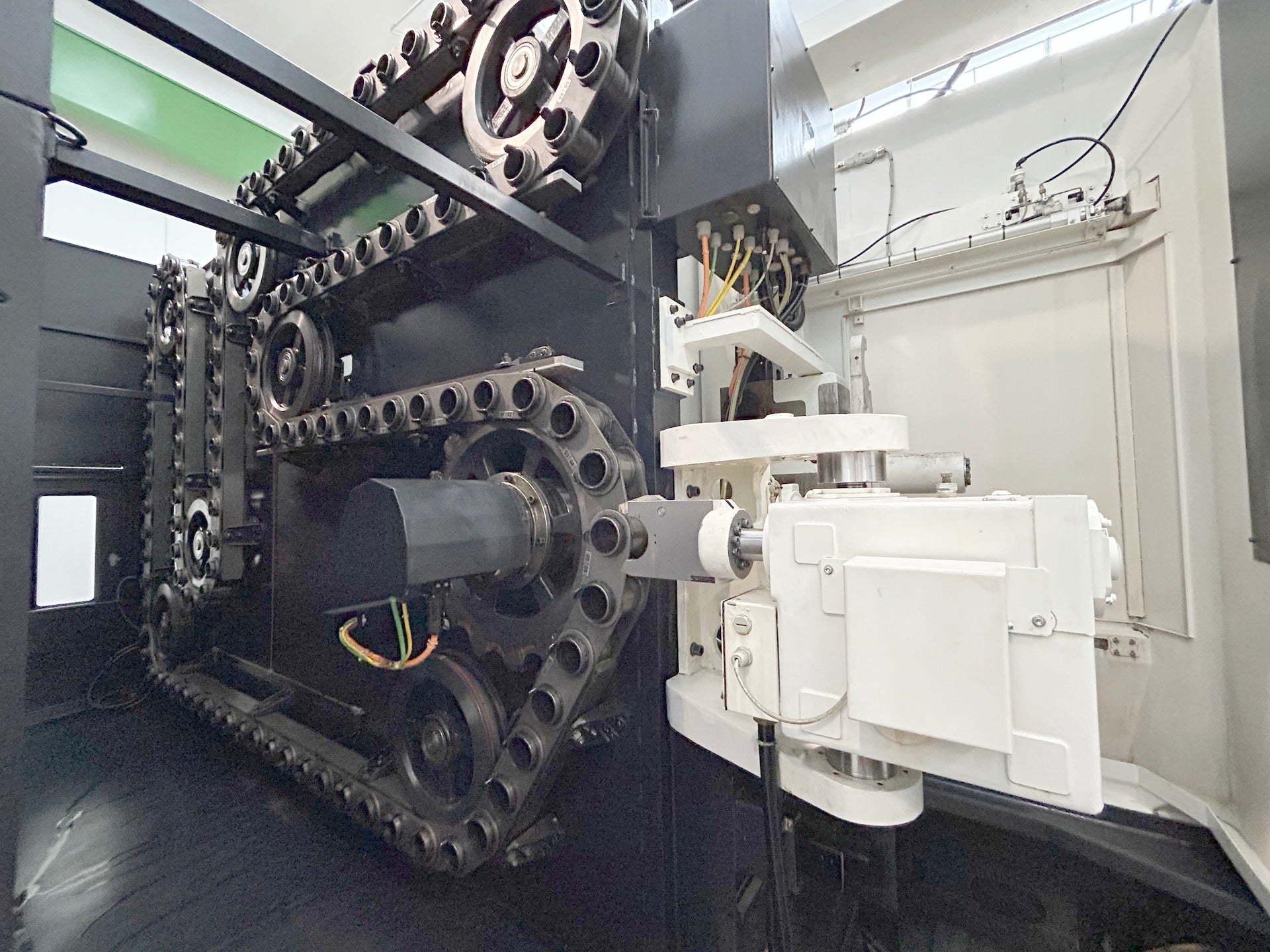

Tool magazine number of tool places: 120.
Tool diameter max.: 125 mm.
Diameter with free adjacent pockets: 250 mm.
Tool lenght: 630 mm.
Max. tool-weight: 30 kg.

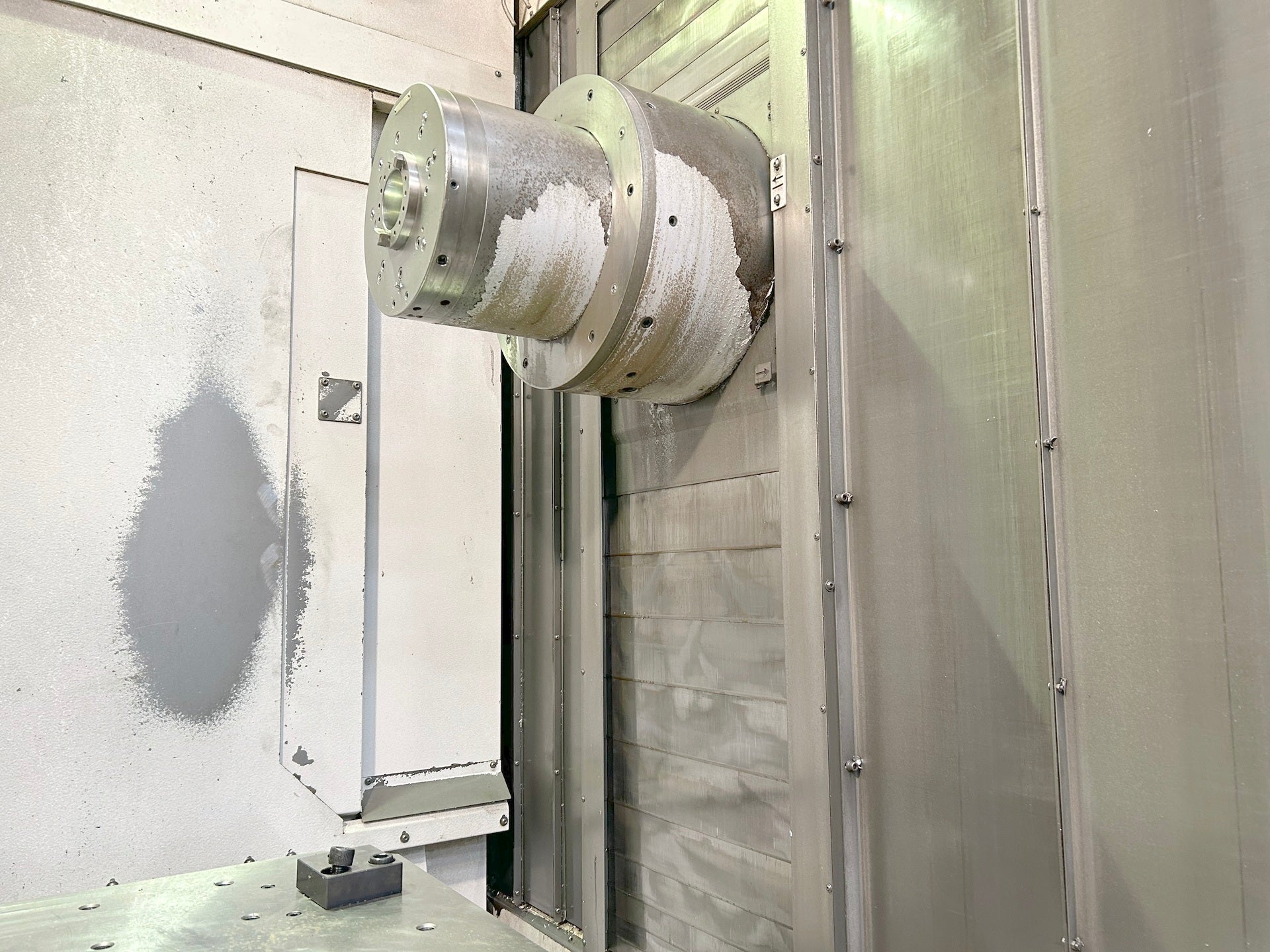

Spindle nose: ISO: 50.
Distance spindle nose to table: 100 - 1000 mm.
from: 0 t/min.
up to: 10000 t/min.
Torque max.: 350 Nm.
Rapid traverse:: 60 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 30 / 37 kW.
Machine's weight about: 21500 kg.
High pression colant device: 50 bar.
