MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:

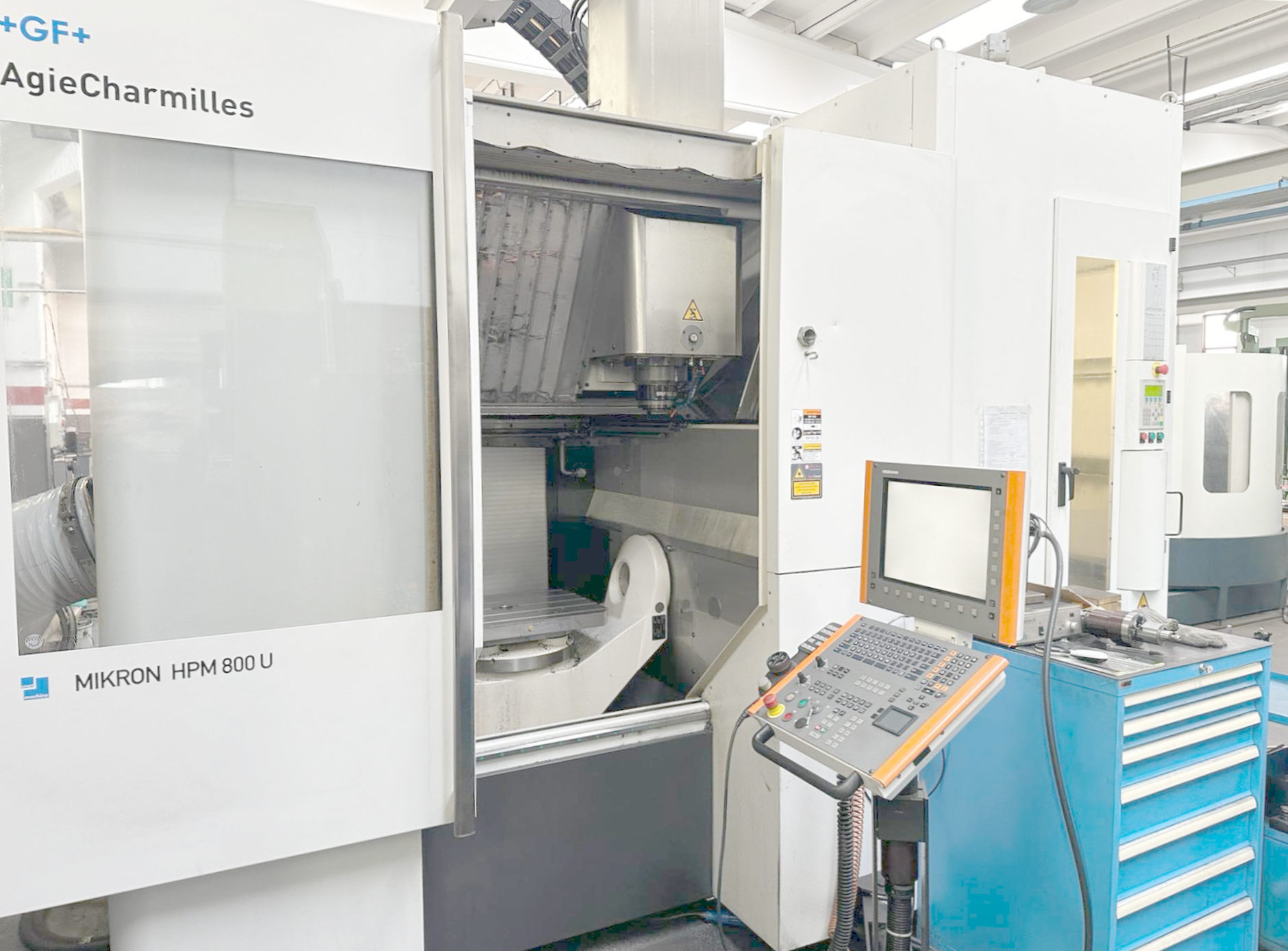

  • 022738 - MIKRON HPM 800 U
  • Condition:
  • 1
  • YOM:
  • NA

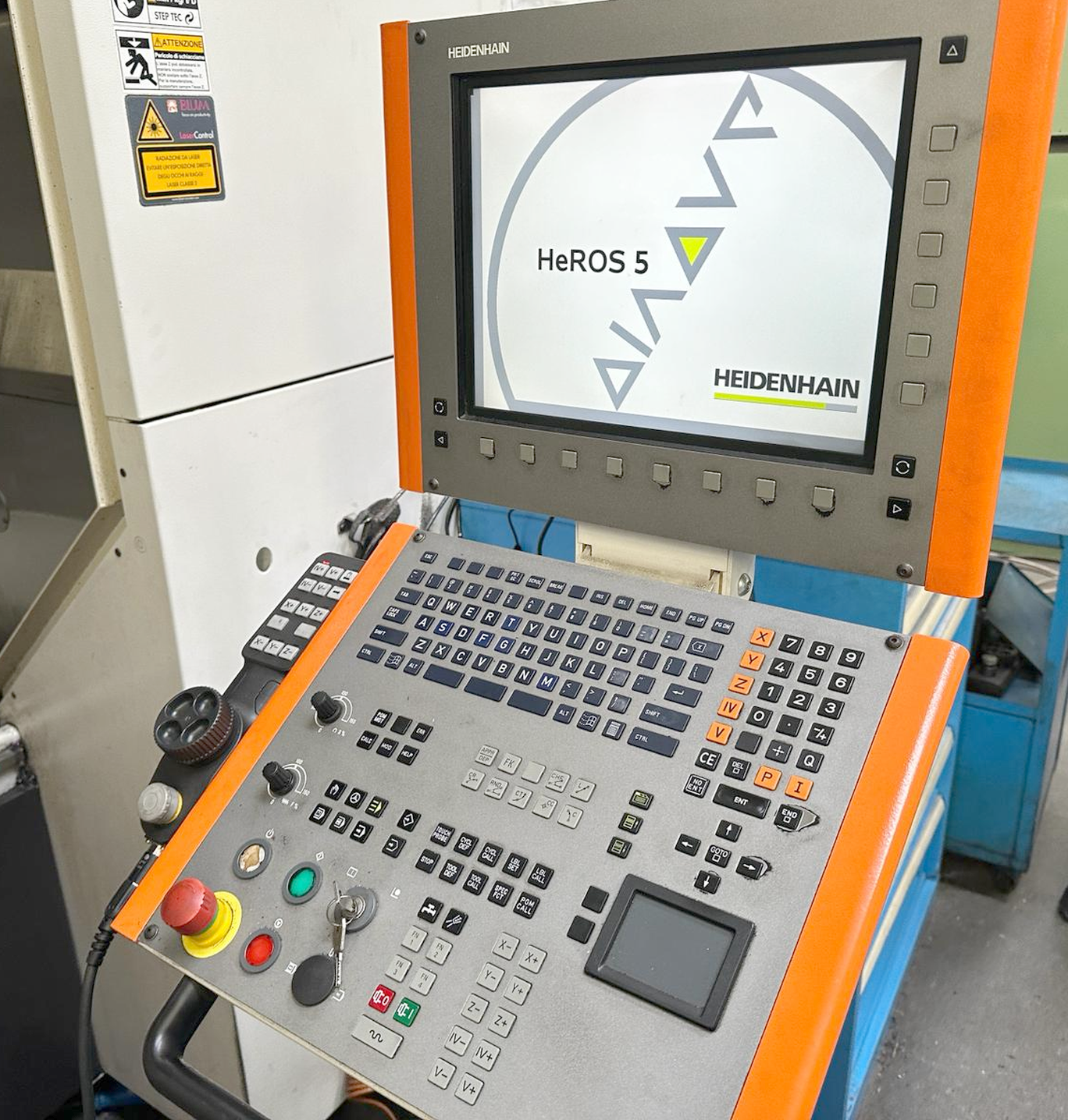

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis simultaneous: 5.

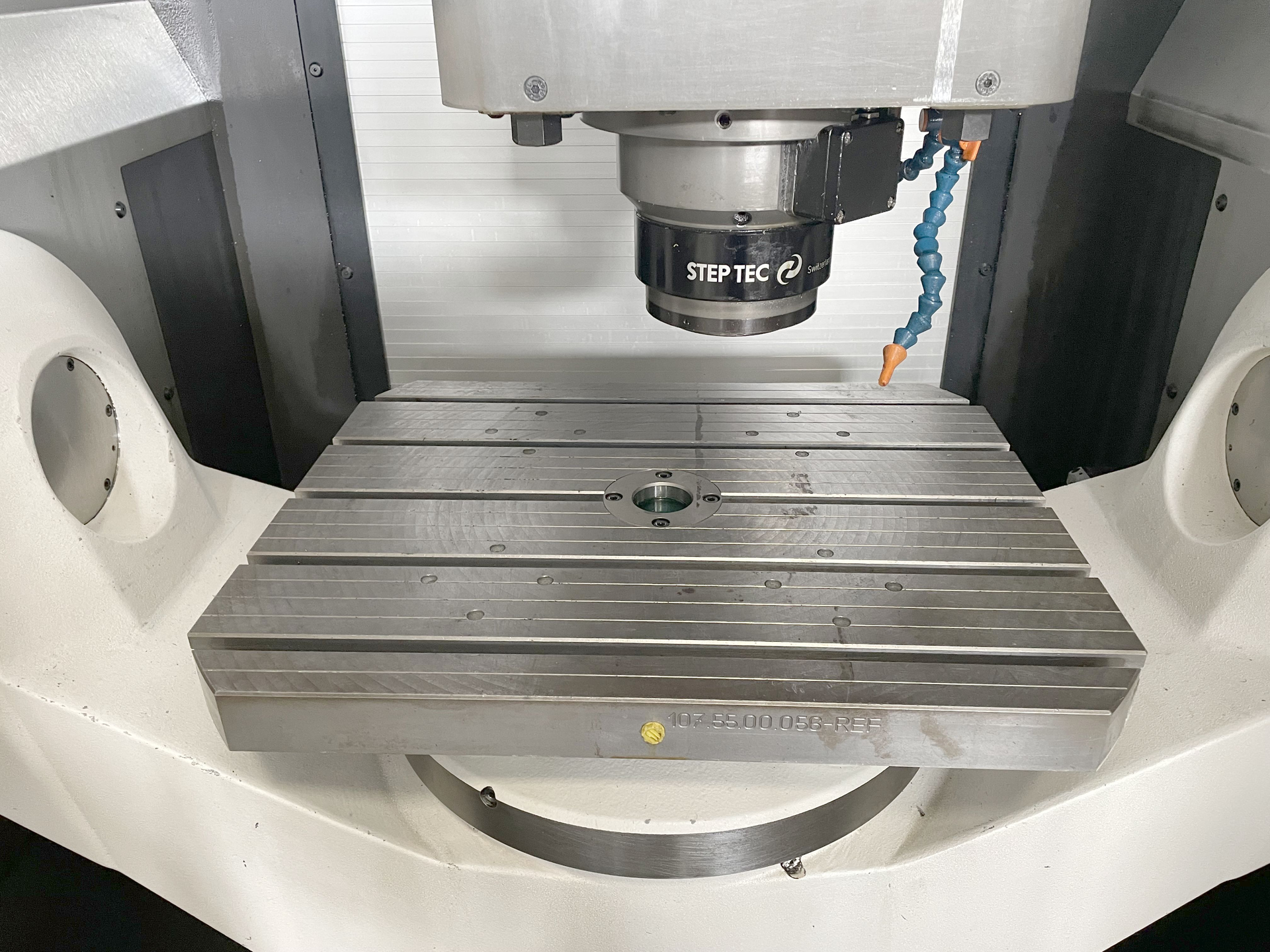

Table length: 630 mm.
Table width: 440 mm.
Number of T-channels: 5.
Distance of the T-slots: 100 mm.
T-channel width: 16 mm.
Table load max.: 800 kg.
Maximum swing circle of up to: 800 mm.
Longitudinal travel (X-axis): 800 mm.
Transversal travel (y-axis): 800 mm.
Vertical travel (z axis): 550 mm.
A axis: +91 / -121°.
C axis: 360 °.
Resolution: °.

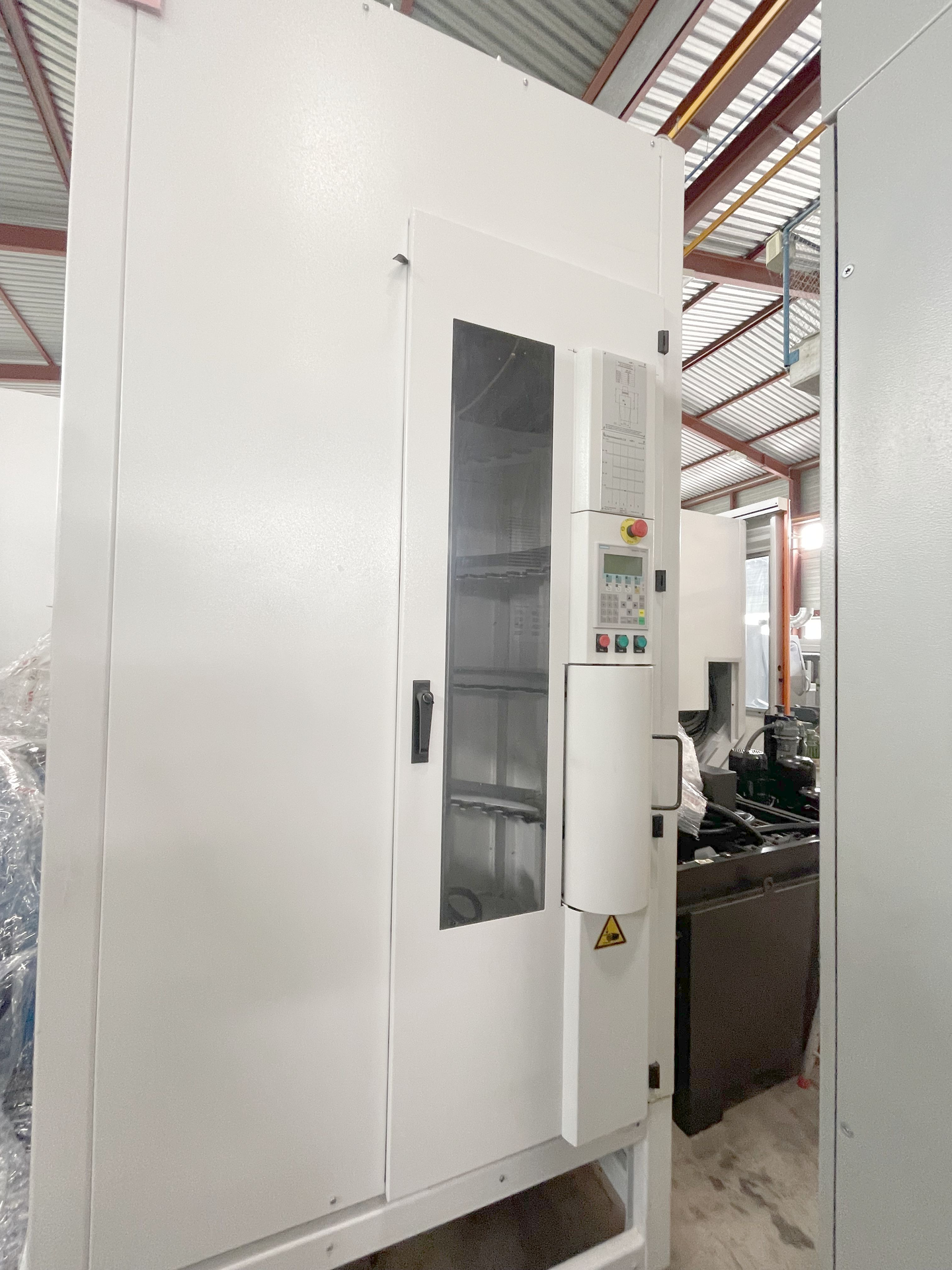

Number of tools: 115.
Tool diameter max.: 80 mm.
Diameter with free adjacent pockets: 160 mm.
Tool lenght: 350 mm.
Max. tool-weight: 8 kg.

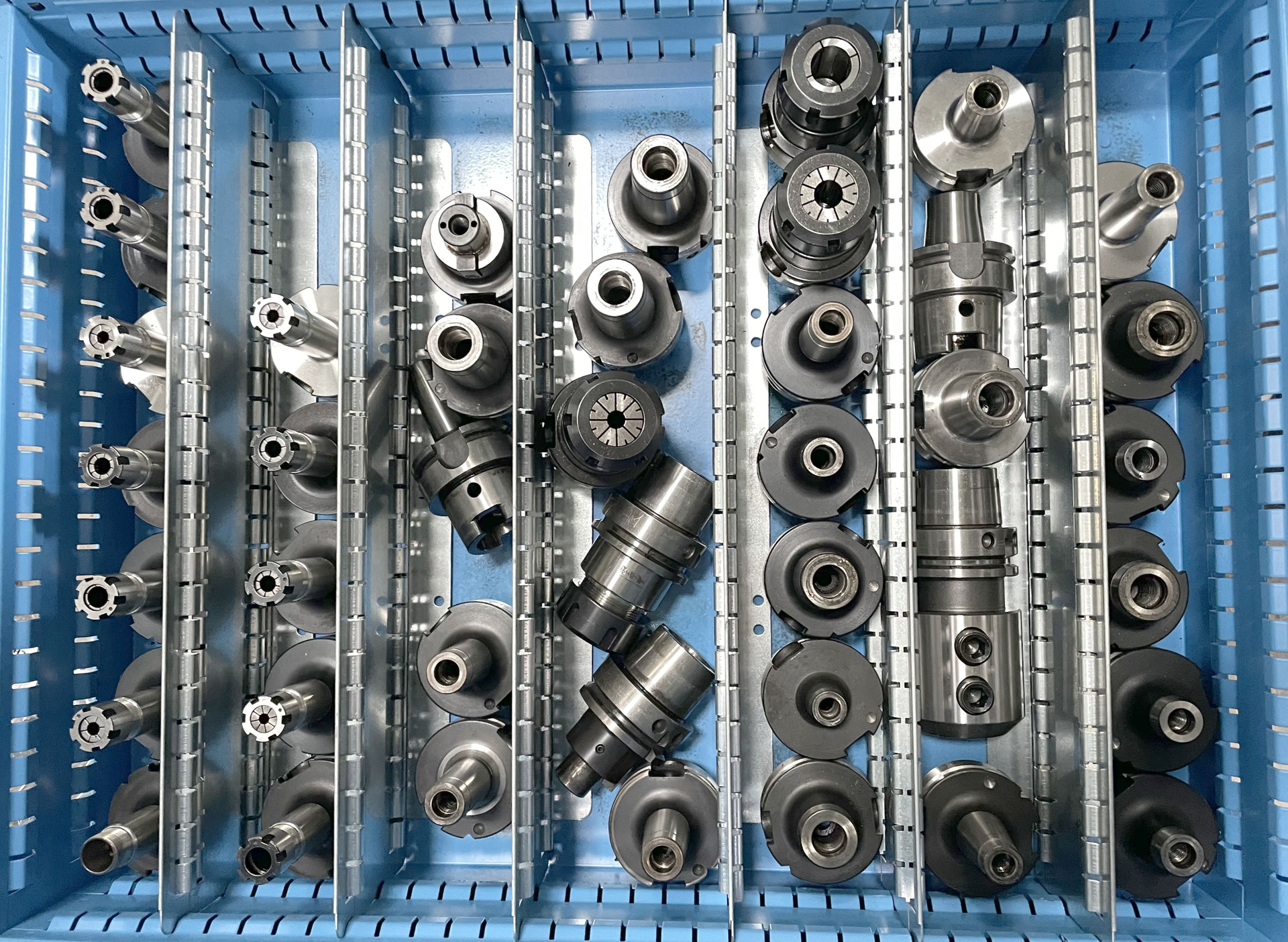

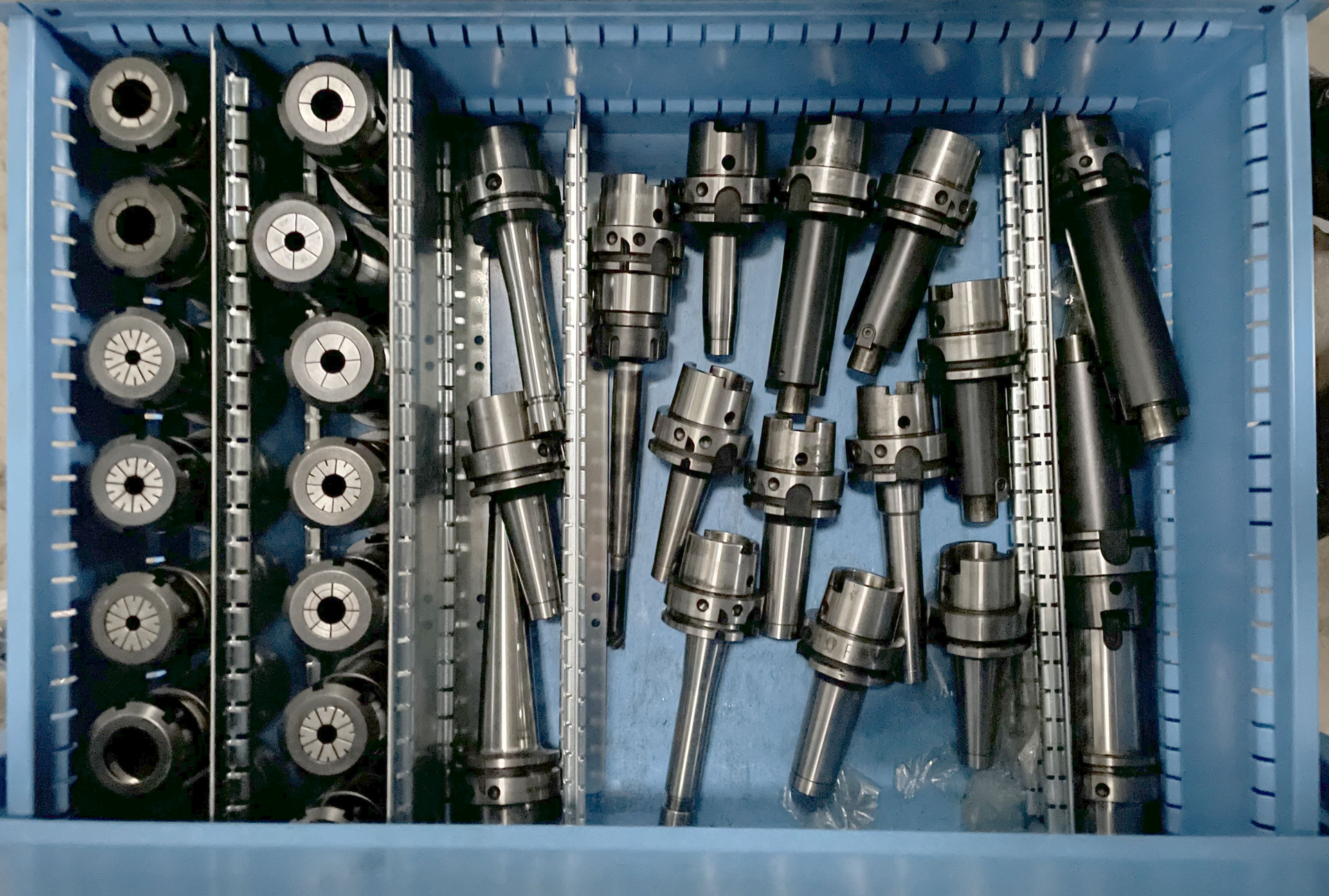

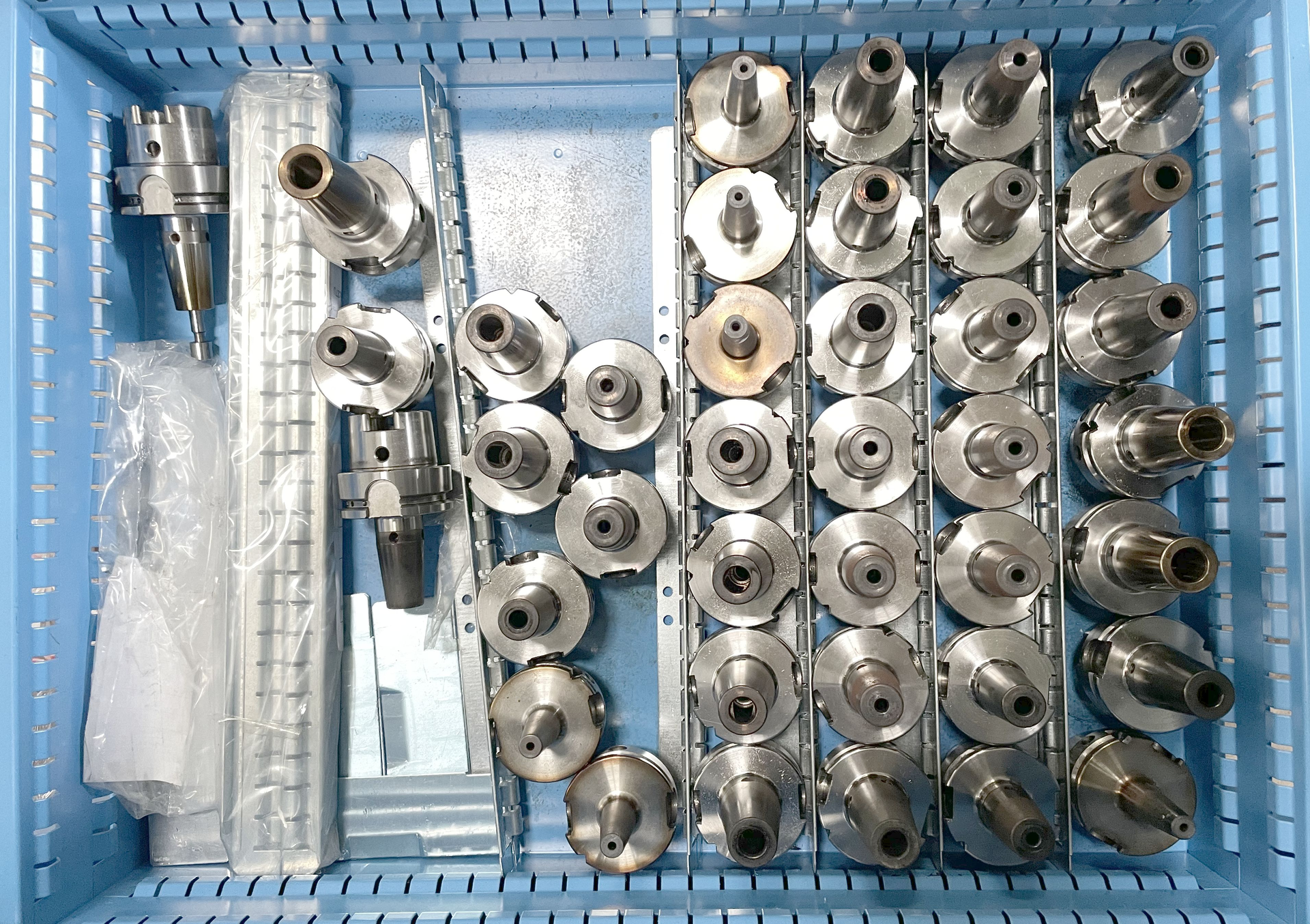

Spindle nose: HSK-A: 63.
Distance spindle nose to table: 600 mm.
from: 0 t/min.
up to: 20000 t/min.
Feed range: 0 - 20000 mm/min.
Rapid traverse:: 45 m/min.
Acceleration: 6 m/s.
Max. Feed force: 6000 N.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 55 kW.
Noise level: 75 dB (A).
Machine's weight about: 15000 kg.
Length: 3505 mm.
Width: 3100 mm.
Height: 2980 mm.

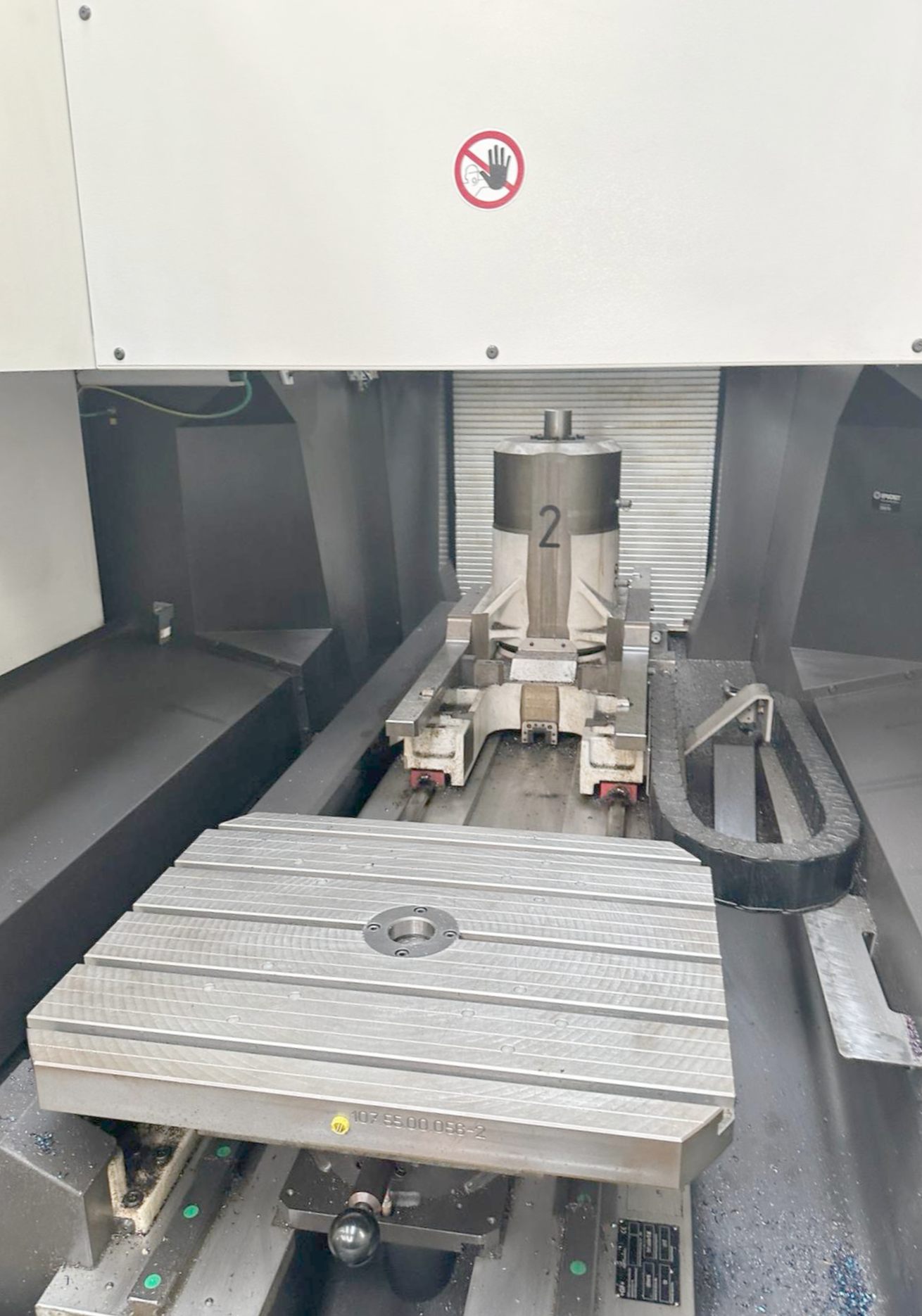

Pallets: number: 2.
