MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

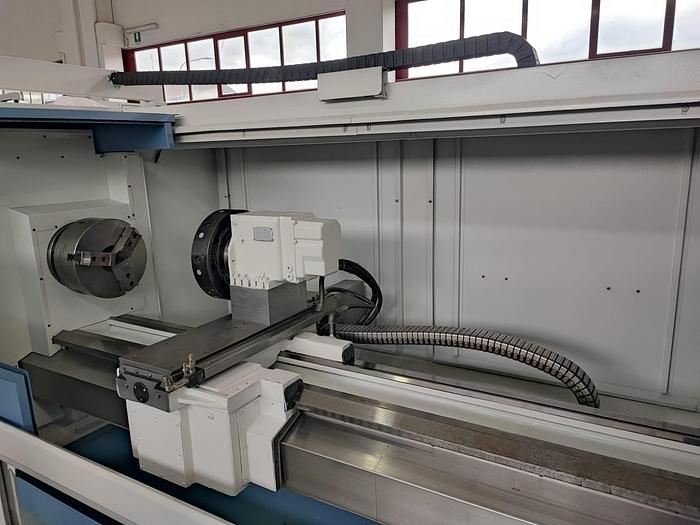

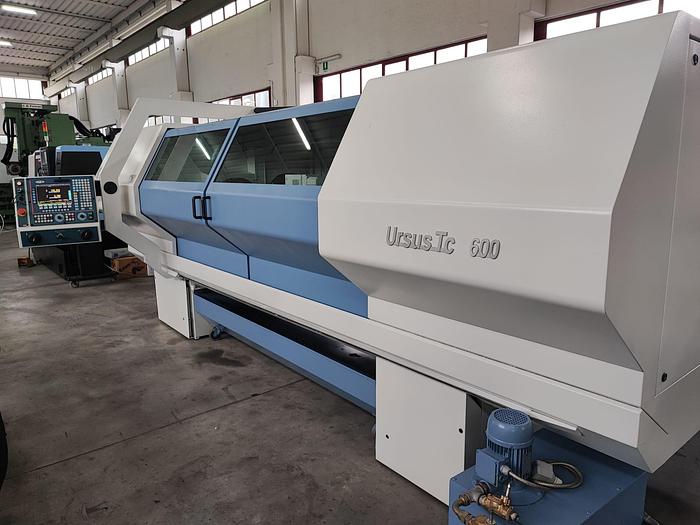

  • LATHE CMT URSUS TC 600x2000
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

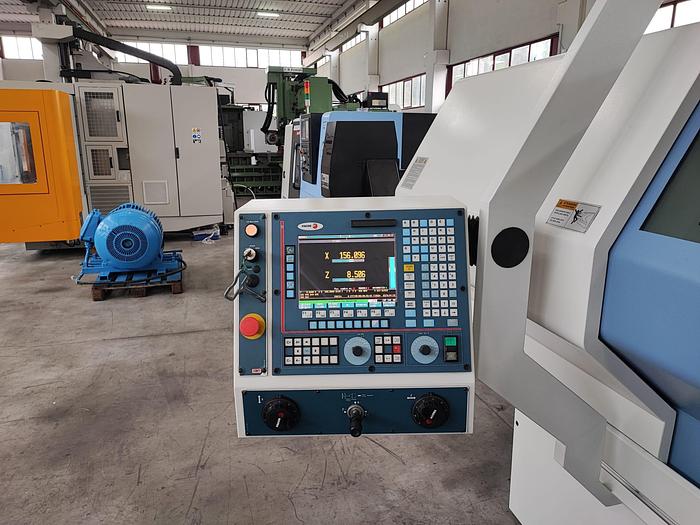

CMT 10018 CNC Control: Fagor SPECIFICATIONS TURNING CAPACITY: Maximum swing over bed: 600 mm Maximum swing over carriage: 365 mm TRAVELS: X axis travel: 250 mm Z axis travel (longitudinal): 2,000 mm SPINDLE: Spindle speed: 1,800 rpm Spindle bore: 105 mm Distance between centers: 2,000 mm Spindle nose: 8" Spindle power: 9/13 kW Spindle speed ranges: 2 (automatic change) AXIS MOVEMENT: Ball screw motion Rapid traverse Z axis: 5 m/min Rapid traverse X axis: 5 m/min Continuous thrust Z axis: 750 DaN Continuous thrust X axis: 250 DaN TAILSTOCK: Manual quill stroke: 220 mm Quill diameter: 68 mm Quill taper: MT 5 TURRET: Electric turret: 8 stations USED MACHINE
