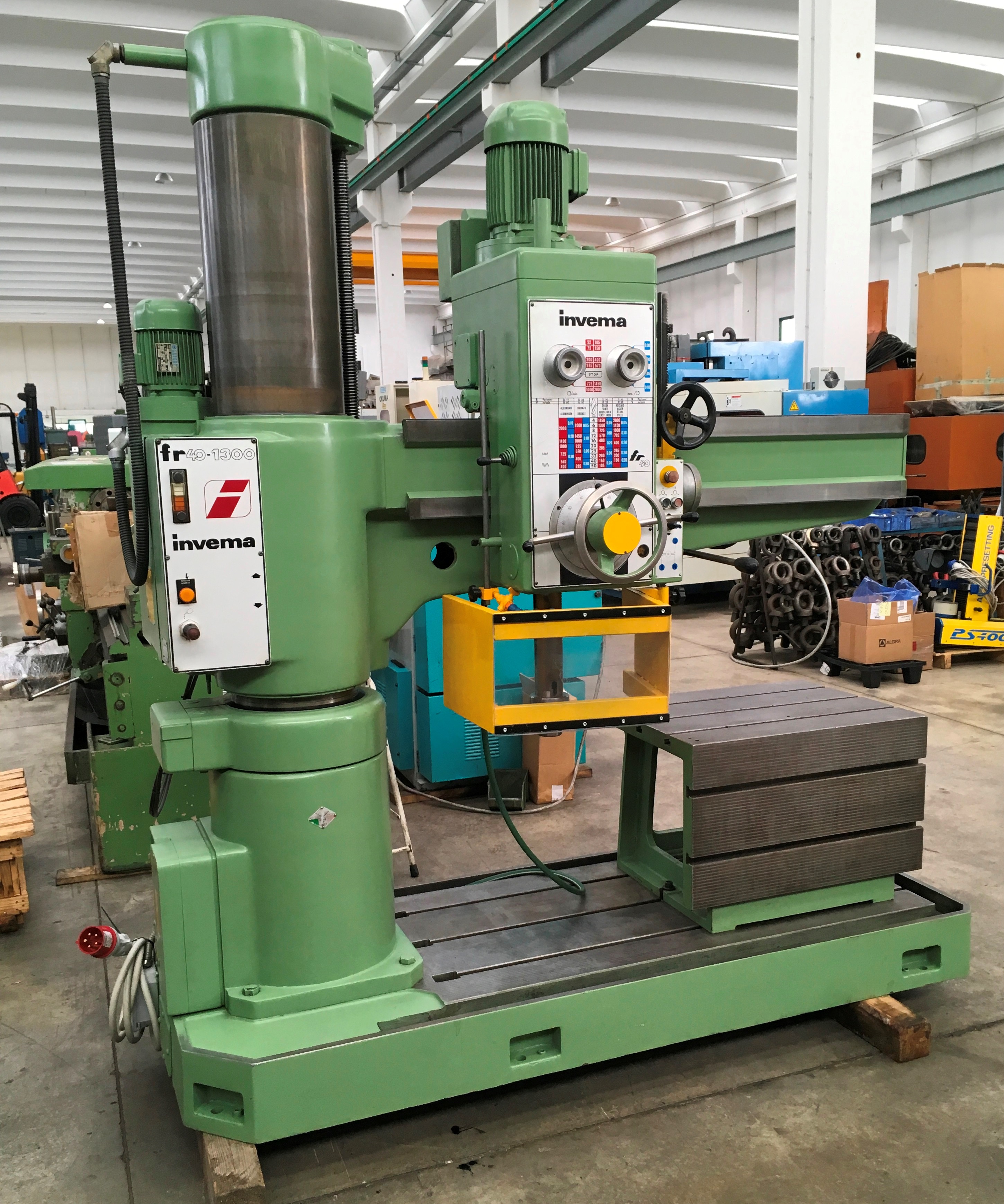

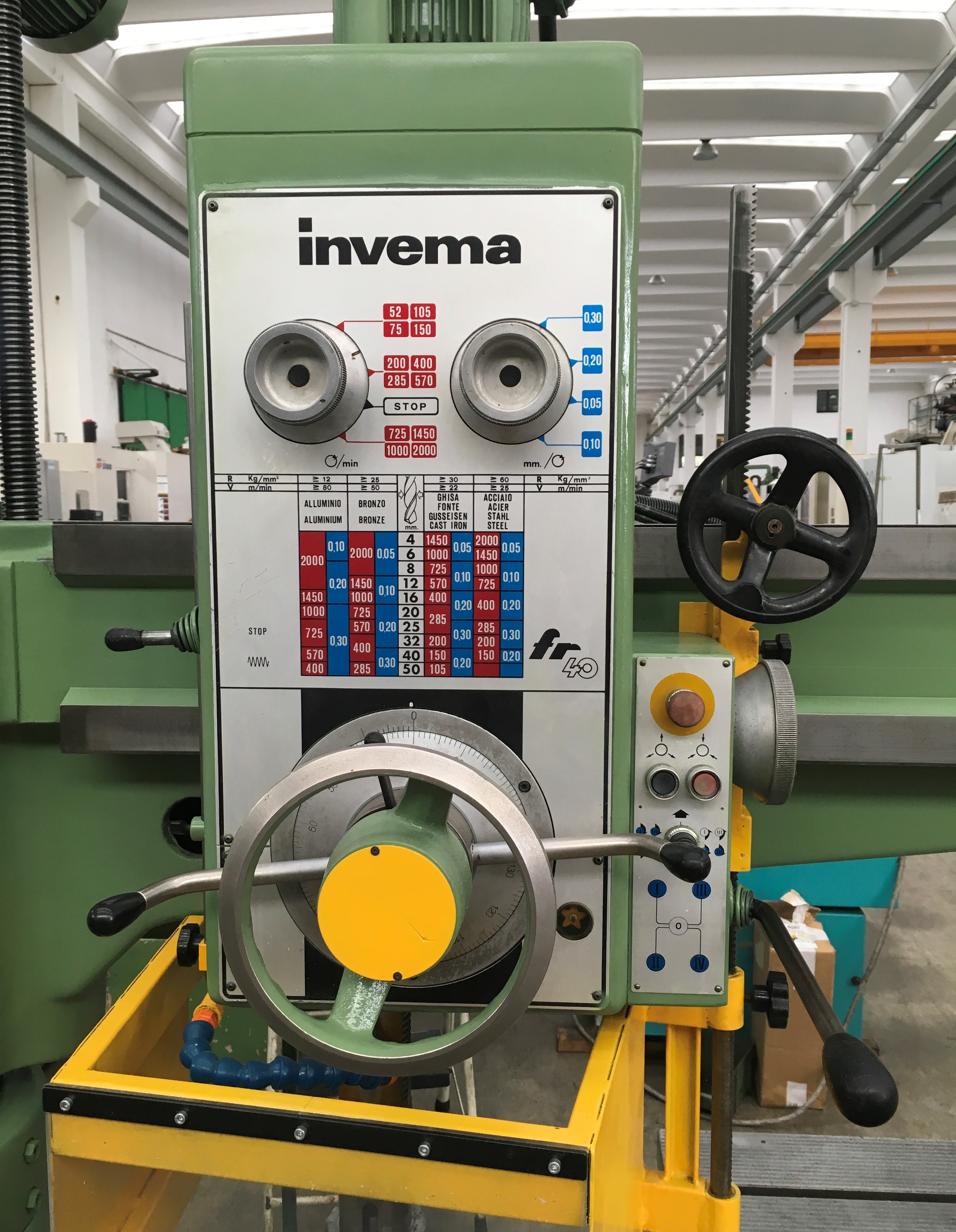

INVEMA
08204
Drilling capacity on steel mm 40
Drilling capacity on cast iron mm 50
Max arm mm 1300
Horizontal head stroke mm 1015
Vertical arm stroke mm 600
Column diameter mm 280
Spindle quill diameter mm 68
Quill stroke mm 280
Taper CM 4
Spindle speed n.12 / rpm 52-2000
Motor power CV 4/3
EQUIPPED WITH:

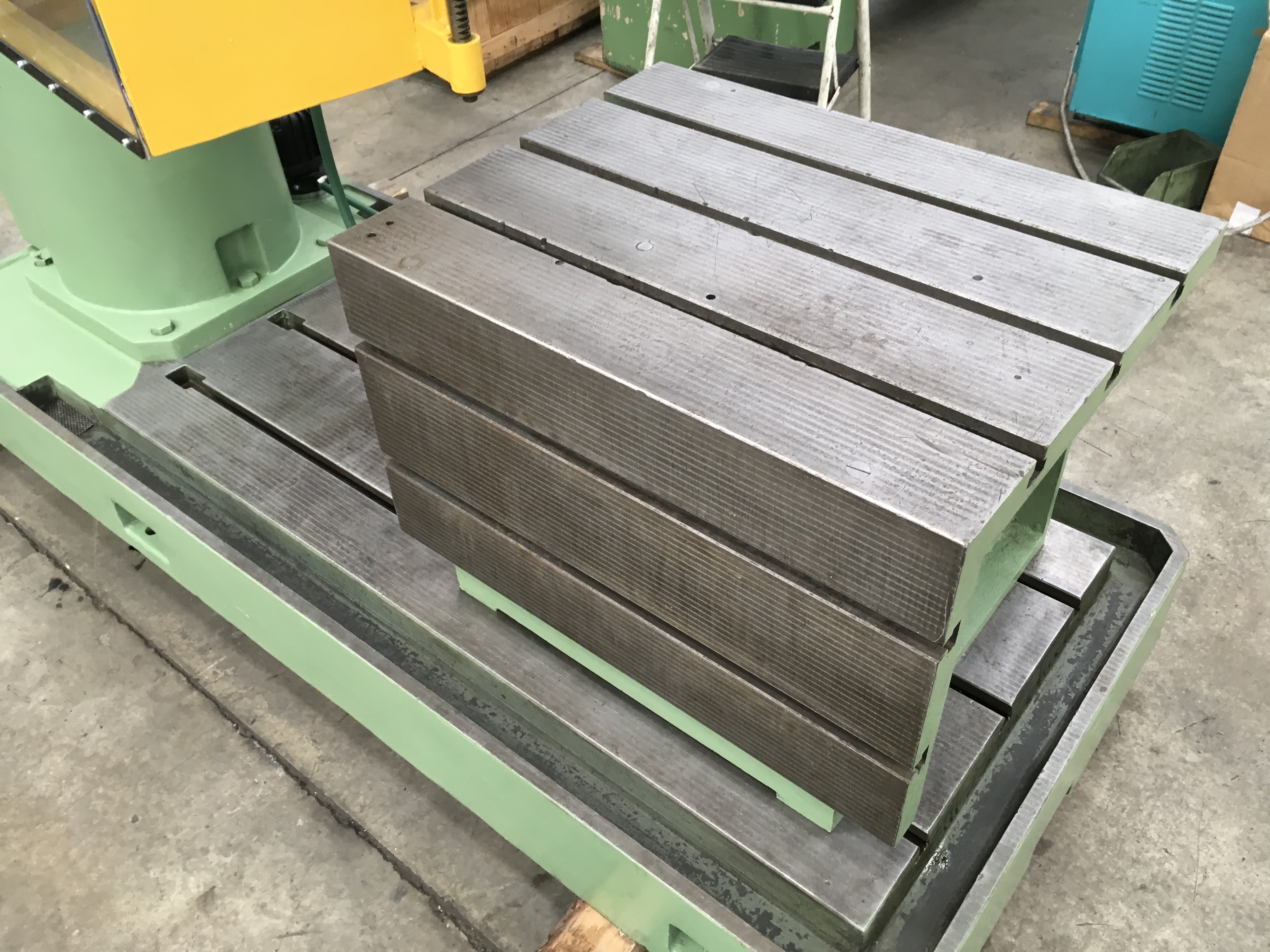

-Cube mm 700x550x500
USED MACHINE
AVM ANGELINI
08227
MOD. MAAS 165/JOLLY
CNC FANUC OT/C
Distace between center mm 800
Height of center mm 165
Max turning diameter over the bed mm 330
Max diameter over the cross carriage mm 160
Spindle bore mm 38
Spindle speed rpm 200-3600
Spindle tap...
GOODWAY
09741
LIVE TOOLS
AXIS C, AXIS Y
SUB-SPINDLE
CNC FANUC 18i-TB
CAPACITY:
Max swing diameter 470 mm
Max turning diameter 400 mm
Max turning length 500 mm
Bar passaging 75 mm
STROKES:
X axis 270 mm
Z axis 630 mm
Y axis 120(+65/-55) mm
B axis 430 ...
