MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • ZEULENRODA RASTER
  • Model:
  • ZEULENRODA RASTER PDA 100
  • Condition:
  • Used
  • YOM:
  • 1995
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

stock no.: 1131-0067

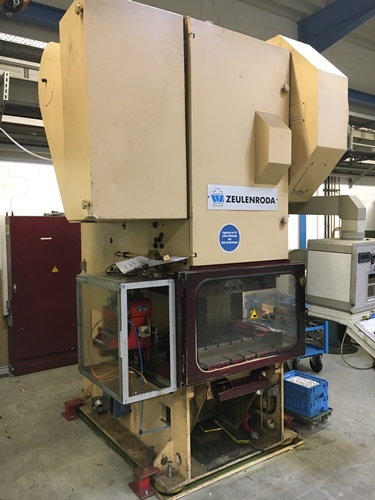

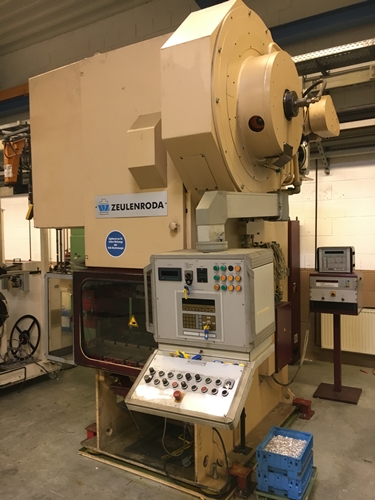

Machine type: Eccentric C-Frame press

Manufacturer: ZEULENRODA RASTER

Type: PDA 100

YOM: 1995

Delivery time: immediately

Location: Germany

Technical details:

Capacity: 100 ton

Ram stroke: 6 - 82 mm

Slide adjustment: 100 mm

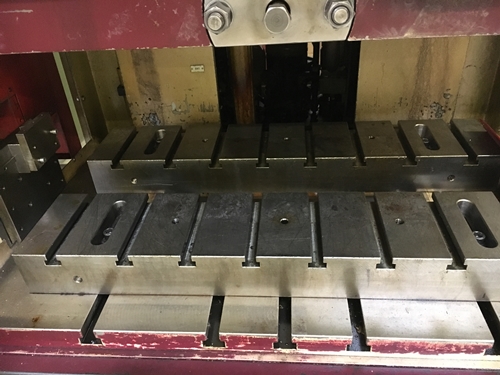

Table surface area : 1.200 x 710 mm

Slide area: 900 x 500 mm

Number of strokes: 50 / 200 s.p.m.

Required power: 18,5 kW

Dimensions L x W x H: 2700 x 2400 x 3500 mm

Weight of machine approx.: 13,5 ton

Extended machine accessories:

Roll Feeder WE 16

Material width max.: 160 mm

Material thickness: 0 – 3 mm

Cross section: 300 mm²

Roll diameter: 63 mm

Feeding speed: 40 m/min

Description: The ram was completely overhauled from RASTER Zeulenroda.
