MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • WEINGARTEN
  • Model:
  • WEINGARTEN ARS 80
  • Condition:
  • Used
  • YOM:
  • 1971
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • stock no.: 1131-0156

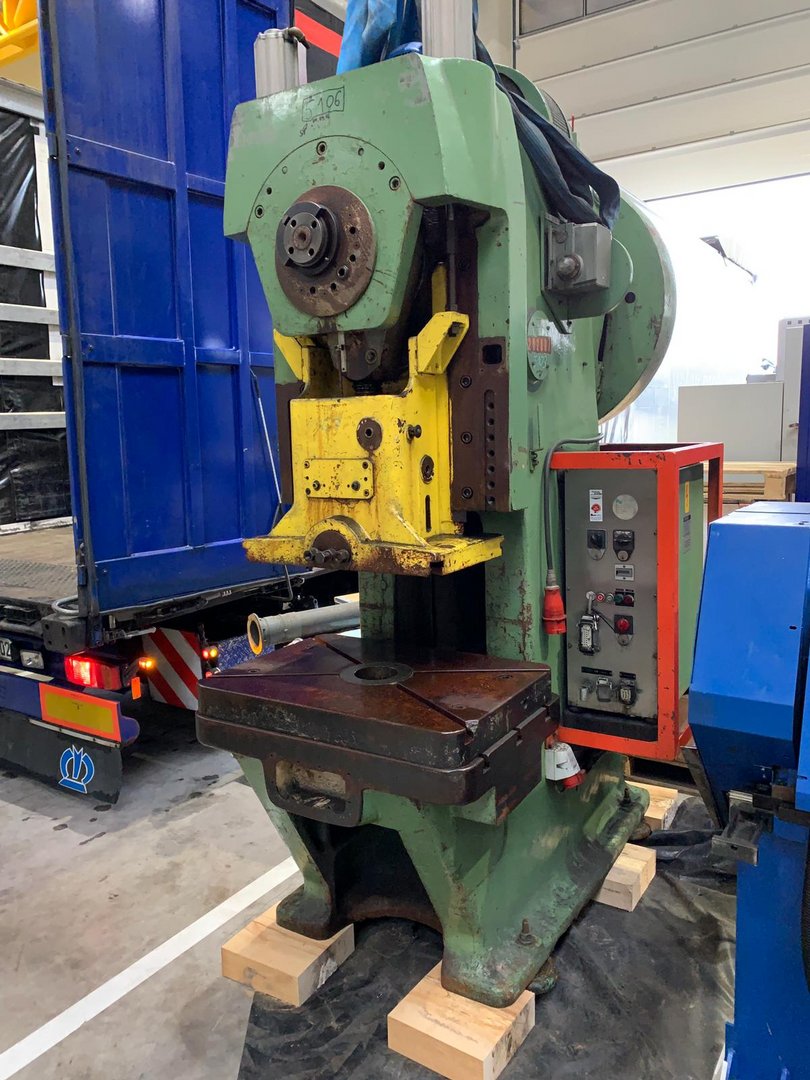

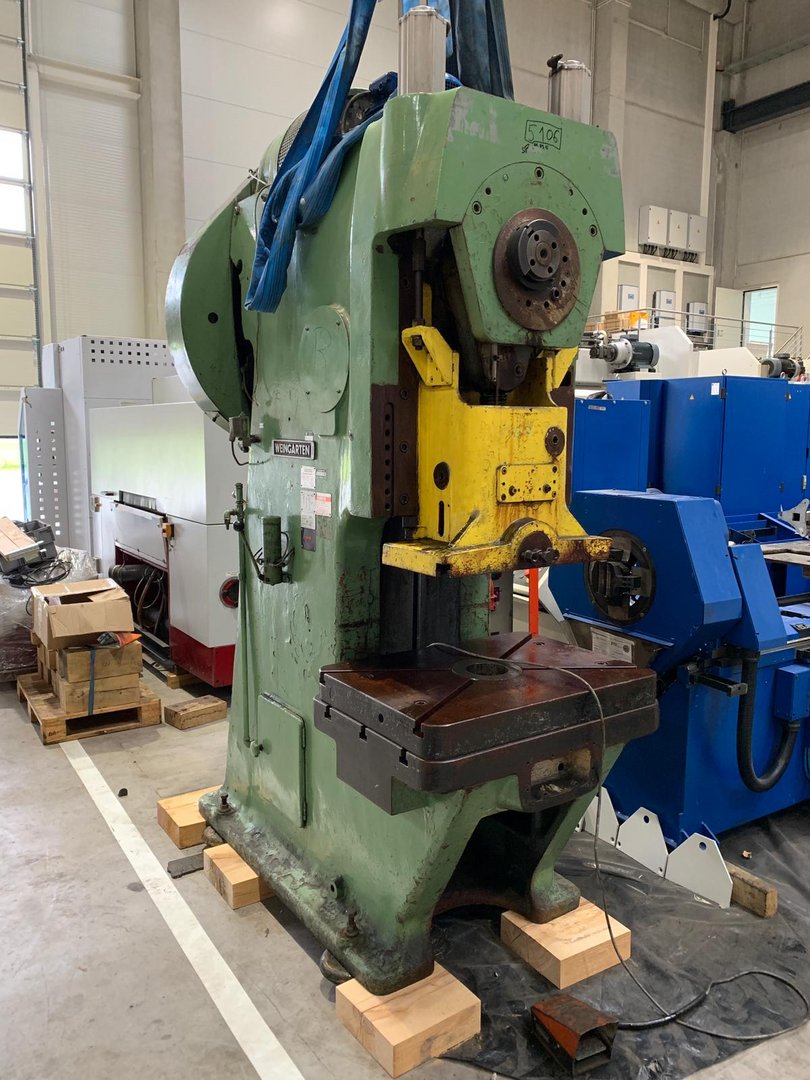

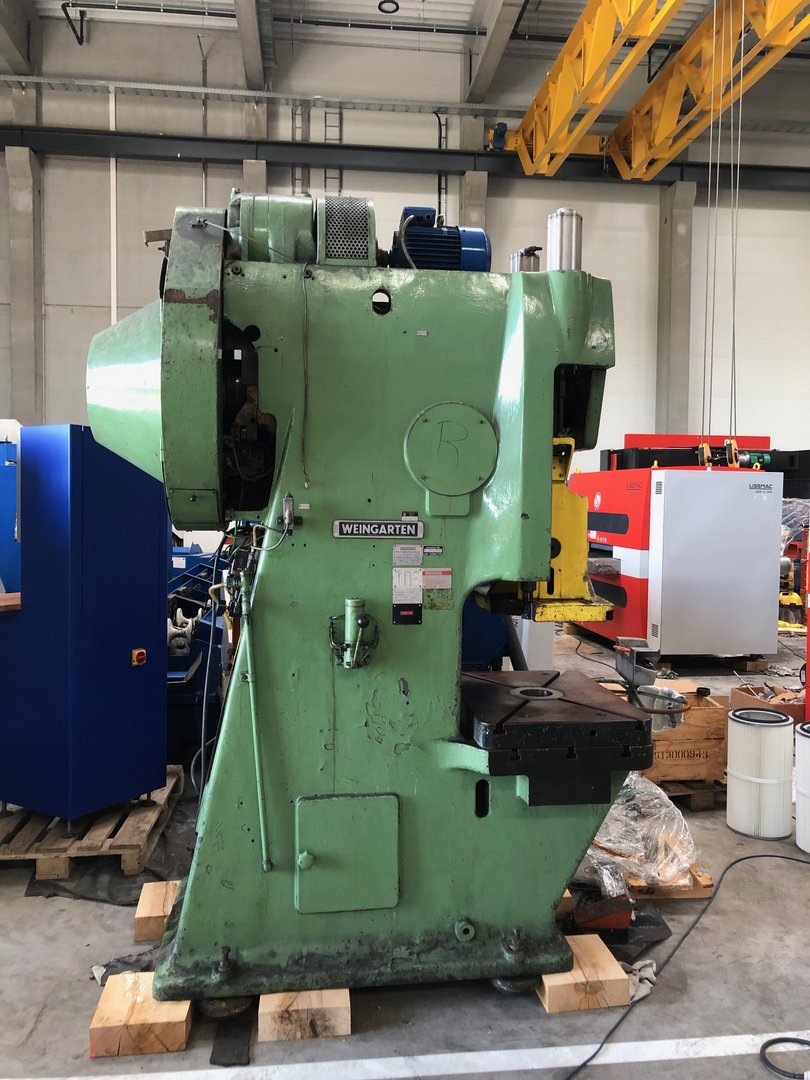

  • Machine type: Eccentric C-Frame press

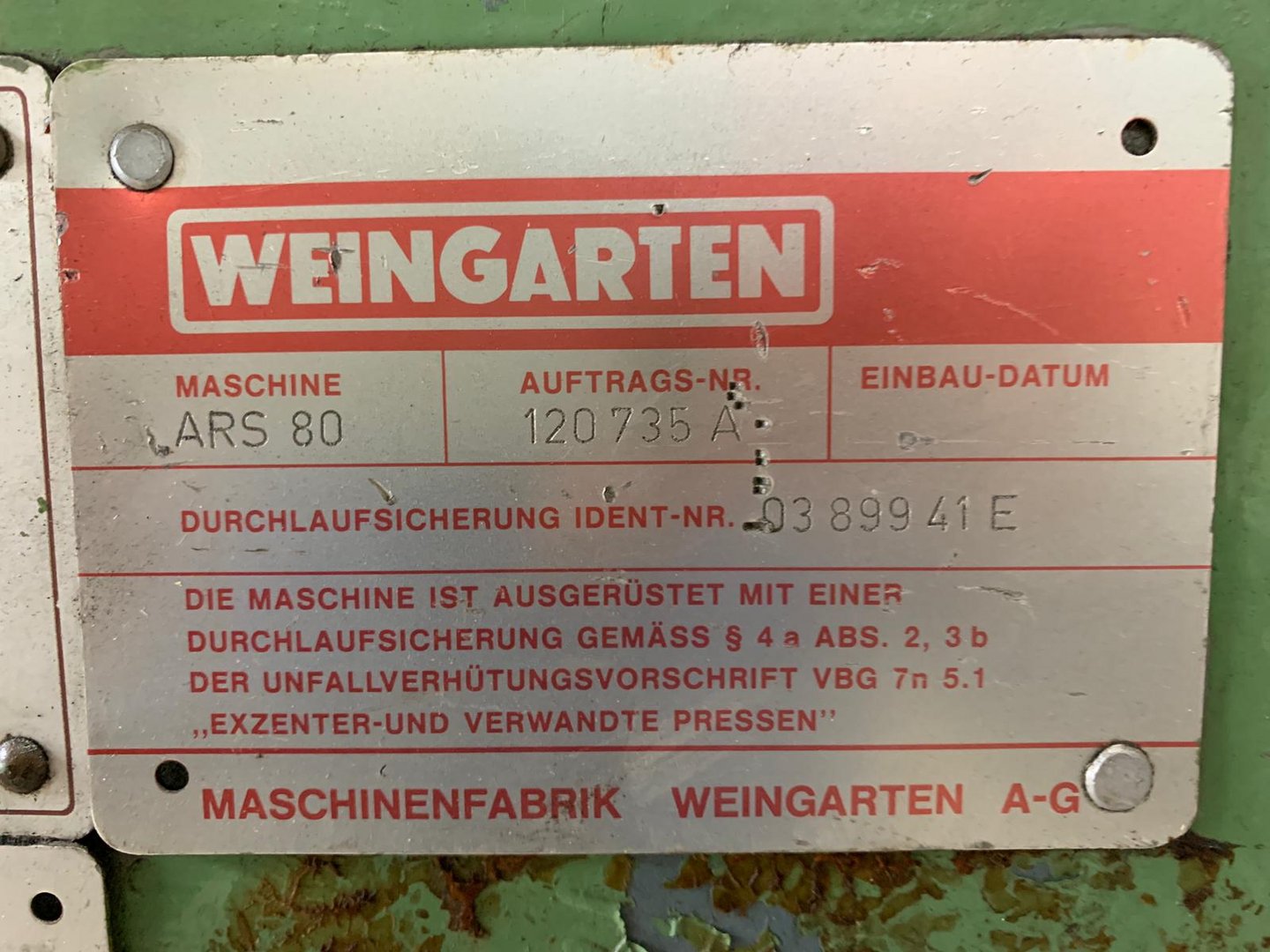

  • Manufacturer: WEINGARTEN Type: ARS 80
  • Serial no.: 120 735A
  • YOM: 1971
  • delivery time: immediately
  • Location: 72479 Strassberg
  • technical details:
  • Capacity: 80 ton
  • Throat depth: 360 mm

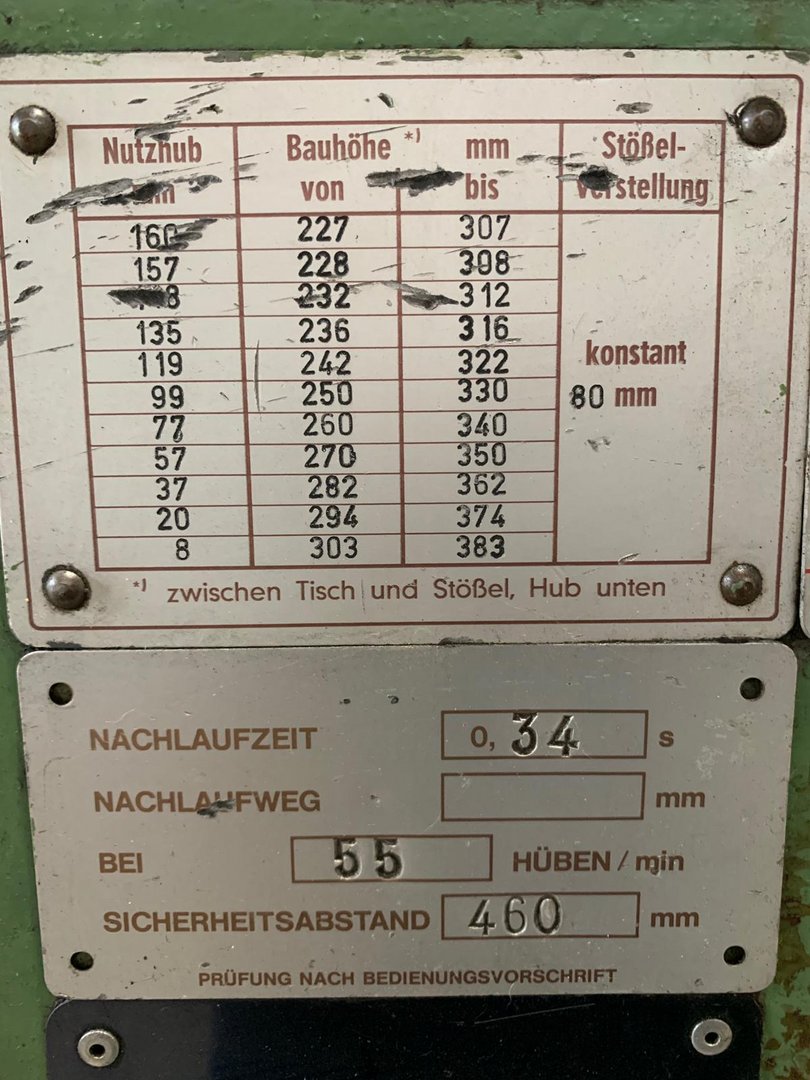

  • Ram stroke: 8 - 160 mm
  • Slide adjustment: 80 mm
  • Shut height (stroke down, adjustment up): 412 mm
  • Height of the bolster plate: 100 mm
  • Table surface area : 900 x 630 mm
  • Slide area: 640 x 400 mm
  • Distance between the columns: 320 mm
  • Number of strokes: 52 / 78 s.p.m.
  • Weight of machine approx.: 7,5 ton
  • Standard configuration:
  • Press is equipped with safety stop device.
  • 2-Hand-control and foot switch.
