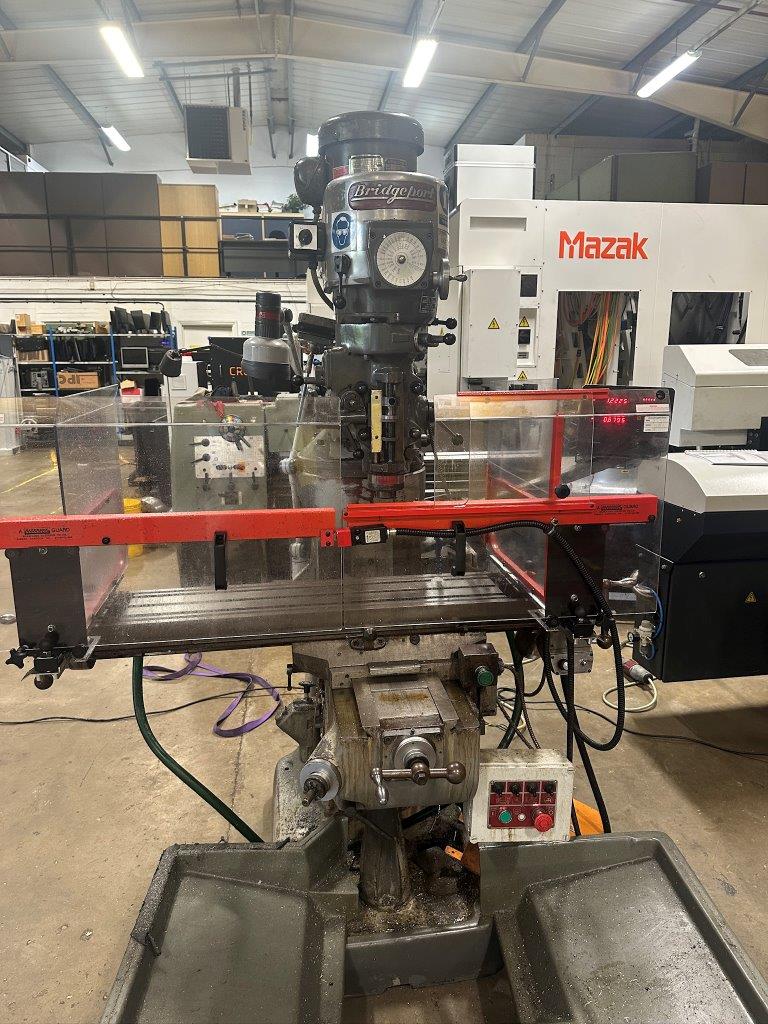

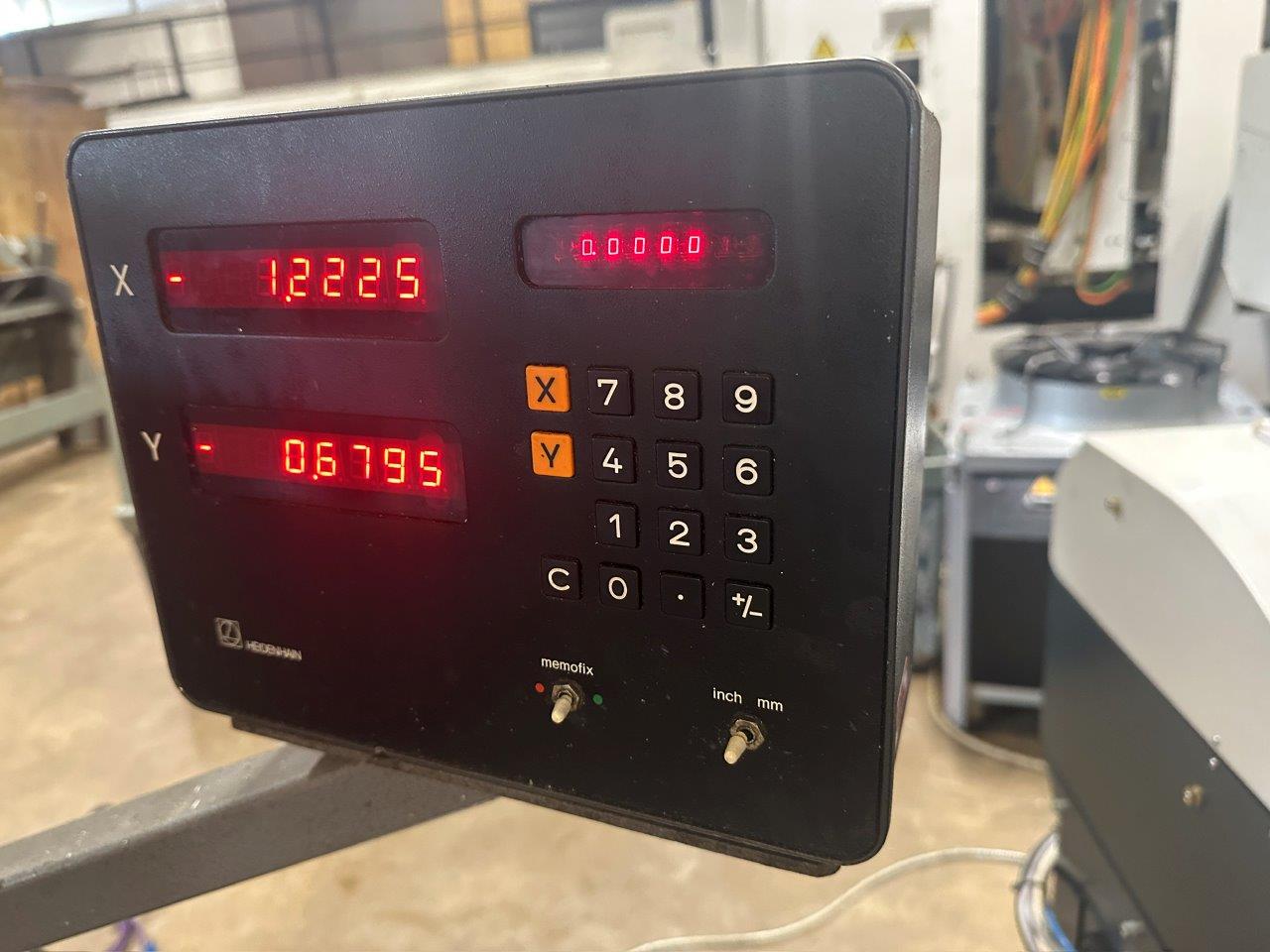

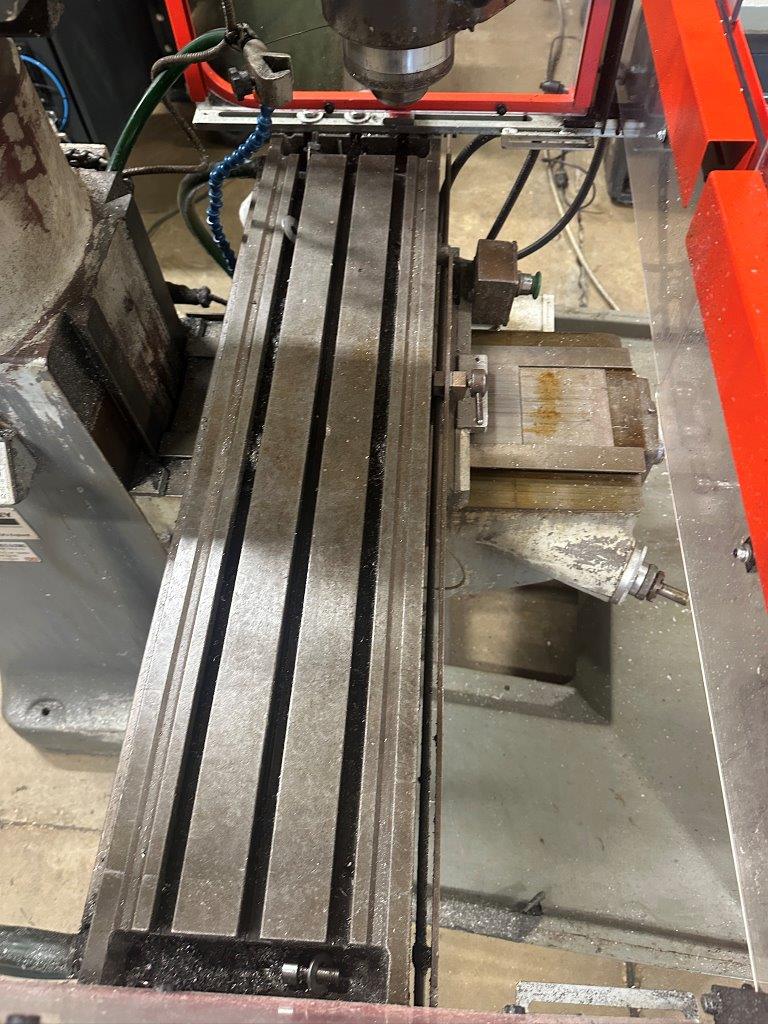

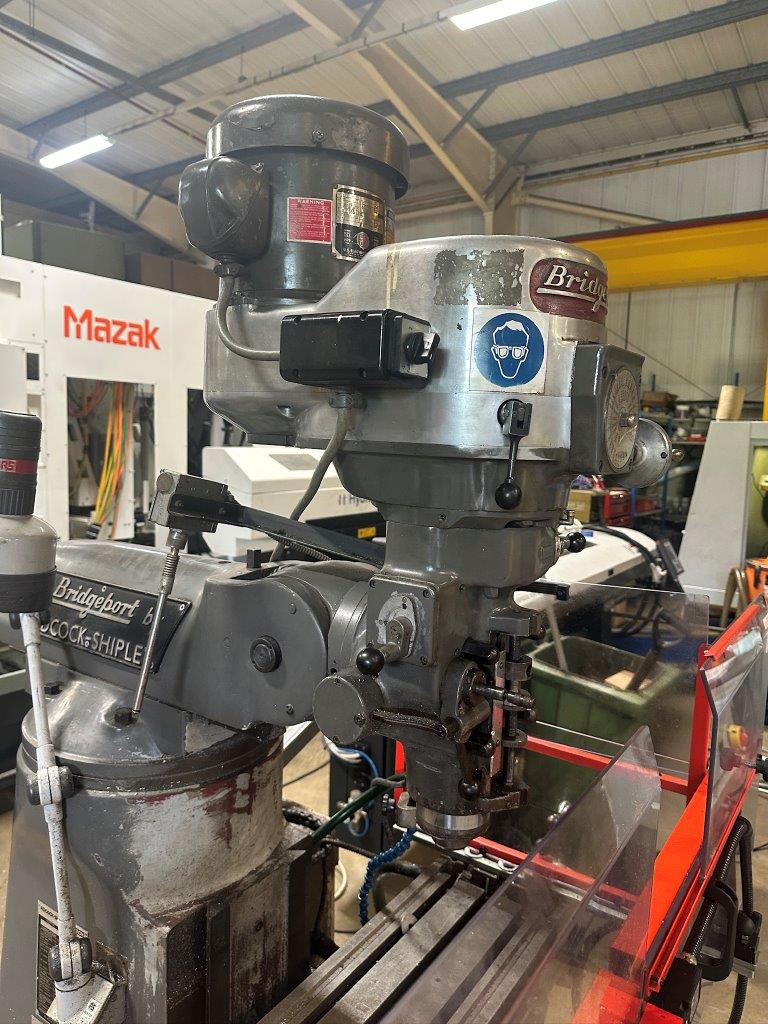

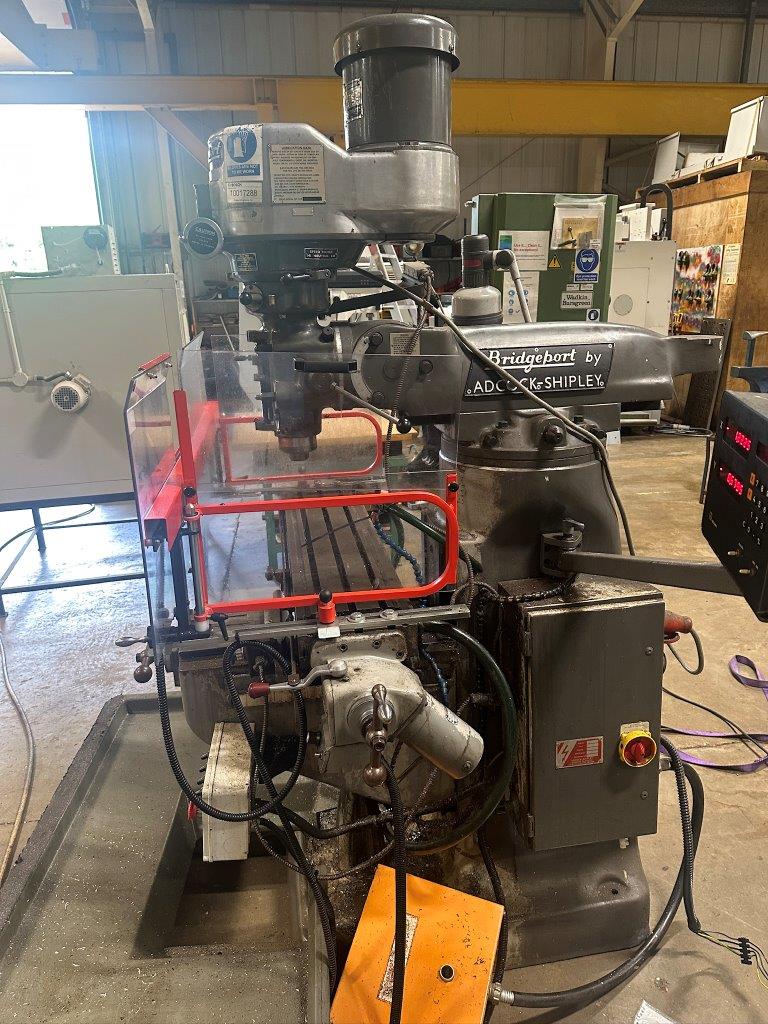

used Bridgeport BR2J2 Turret Mill, 1977, Ser no.264171177U, Table (48") 1220 x 230 mm, trav 915 x 305 x 127mm, R8 taper, Power Feed Long, Quill feed, Coolant, Heidenhain DRO, Light
Sold as seen for spares and repairs
£1,000.00 + VAT - No offers
BIGLIA
08341
CNC FANUC 32i
CAPACITY:
MAX SWING DIAMETER 580 mm
MAX TURNING LENGTH 560 mm
MAX TURNING DIAMETER 290 mm
BAR CAPACITY 65 mm
SPINDLE:
SPINDLE 4000 rpm; 22-26 kW; ASA 6''; 250 mm
AXIS:
X-AXIS TRAVEL 170 mm
Z-AXIS TRAVEL 560 mm
FEED:
RAPID F...
Brand: Chester Machine ToolsModel: V6LSpindle Speed: 10,000 RPMYear: 2018Table Size: 750 x 400mmT-Slot: 14 x 3 x 125mm (Width x number x Distance)Max Load: 350kgX/Y/Z Travel: 600 / 400 / 450mmSpindle Nose to table: 110-560mmSpindle Center to Column: ...
KSJ-06L Steel Soft Jaws to suit a 6 Inch power chuck.
Jaws are manufactured from 080M15 Steel.
Good Quality of of material allows for machining with a good finish.
All Swift Klamp flange work holders are attached to the workpiece using simple threaded holes and attached to the base using the HSK-A connection. Setup is quick with easy preparation, and no distortion to the workpiece. Flange work holders will acce...
