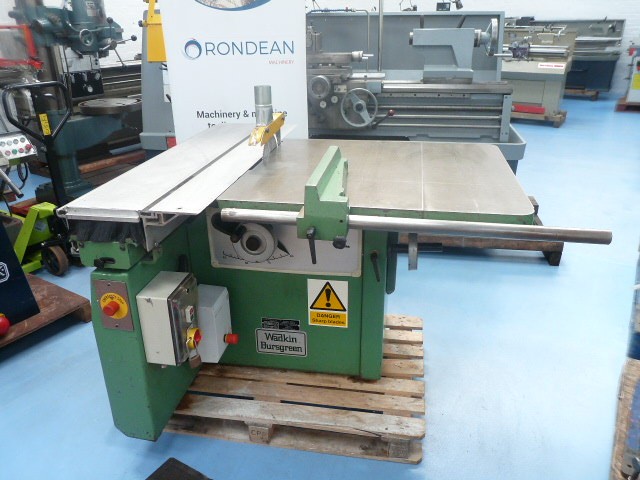

Manufacturer
Wadkin
Model
SP12
Type
Panel Sizing Saw, Circular Saw Bench
Capacity
10” BLADE (12” Max Blade)
50-100mm (2-4”) saw projection with 300mm blade
25-75mm (1-3”) saw projection with 250mm blade
1300mm sliding table (1250mm max length of cut)
2500mm max width of cut with crosscut fence

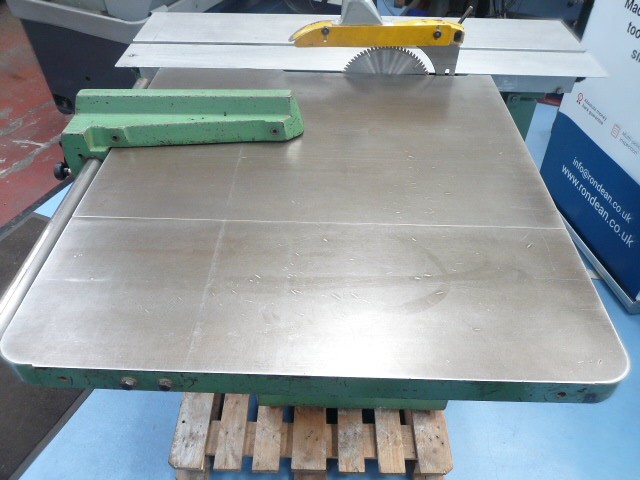

865 x 610mm Fixed Table
Power
Three Phase Electrics
Motor
4kW 7.8 amps 50 htz
Features
Scoring
Rise / Fall
Tilt Arbour
Blade Guard with Extraction Outlet
Safety
DC Injection Brake Fitted
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Delivery Options
To suit your needs, call us for a quote.
