MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • INDEX
  • Model:
  • 023110 - INDEX G 160
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 2.
Number of revolvers: 3.
Swing over bed: 200 mm.

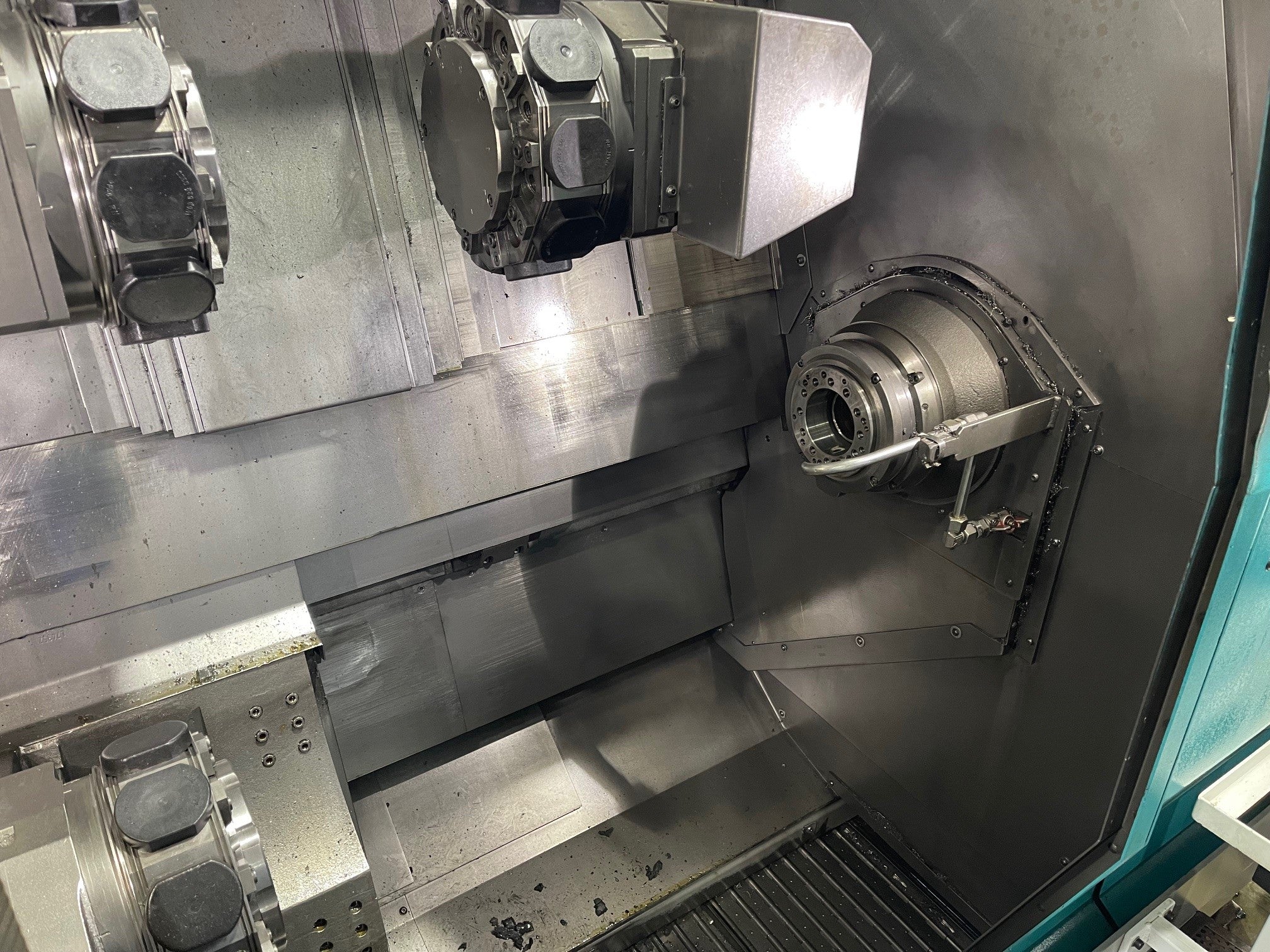

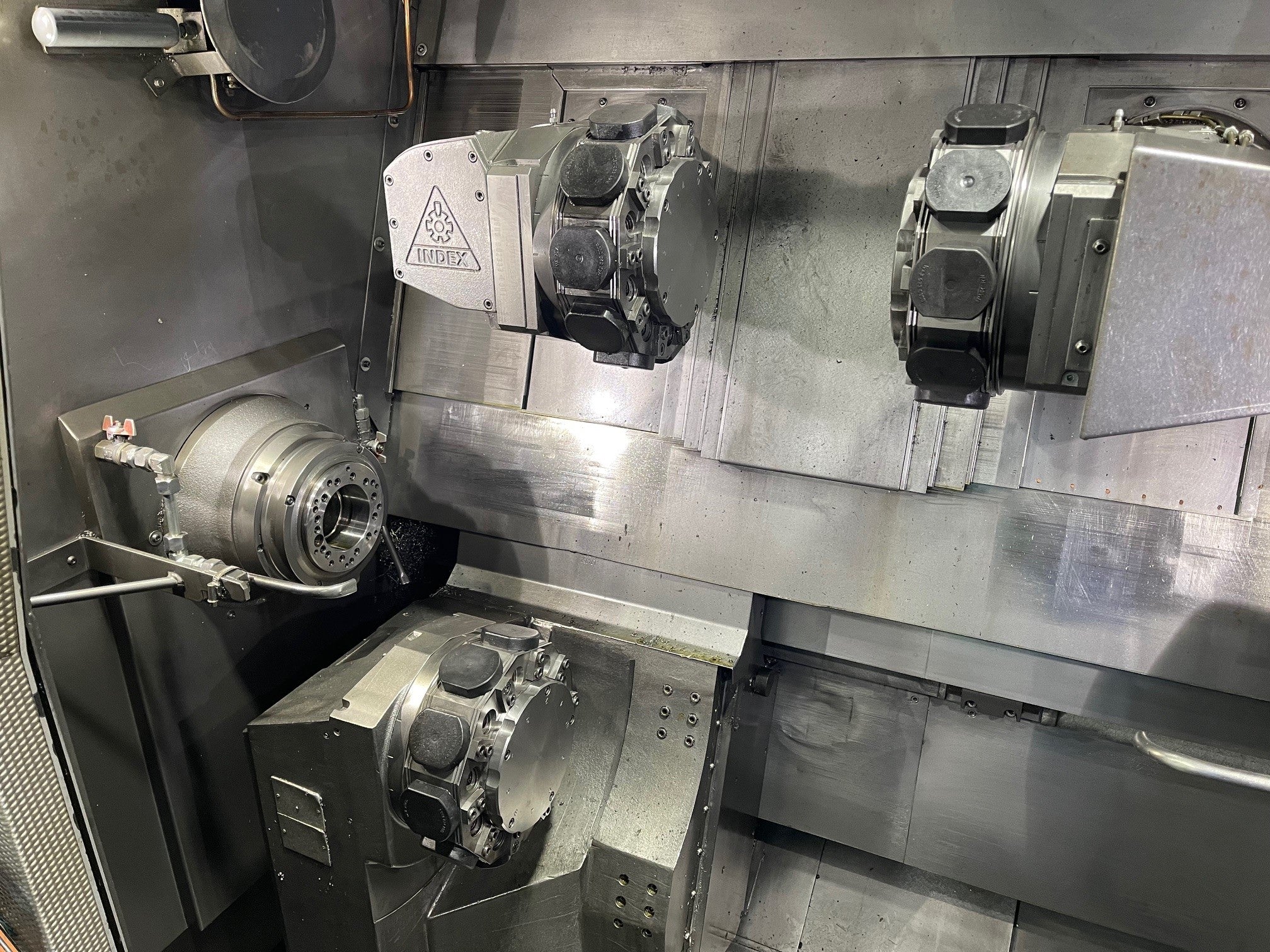

Number of positions turret 1: 10.
Number of positions turret 2: 10.
Spindle nose: VDI: 25.
Number of positions: 10.
Spindle speeds: 6000 t/min.
Power of driven tools: 8 kW.
C axis (spindle,resolution): 0.001 °.
from: 0 t/min.
up to: 5000 t/min.
Spindle power: 27 kW.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 43 kW.
Machine's weight about: 7500 kg.
Length: 3200 mm.
Width: 2100 mm.
Height: 2100 mm.
