MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Strausak
  • Model:
  • 023093 - STRAUSAK FLEXIMAT
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

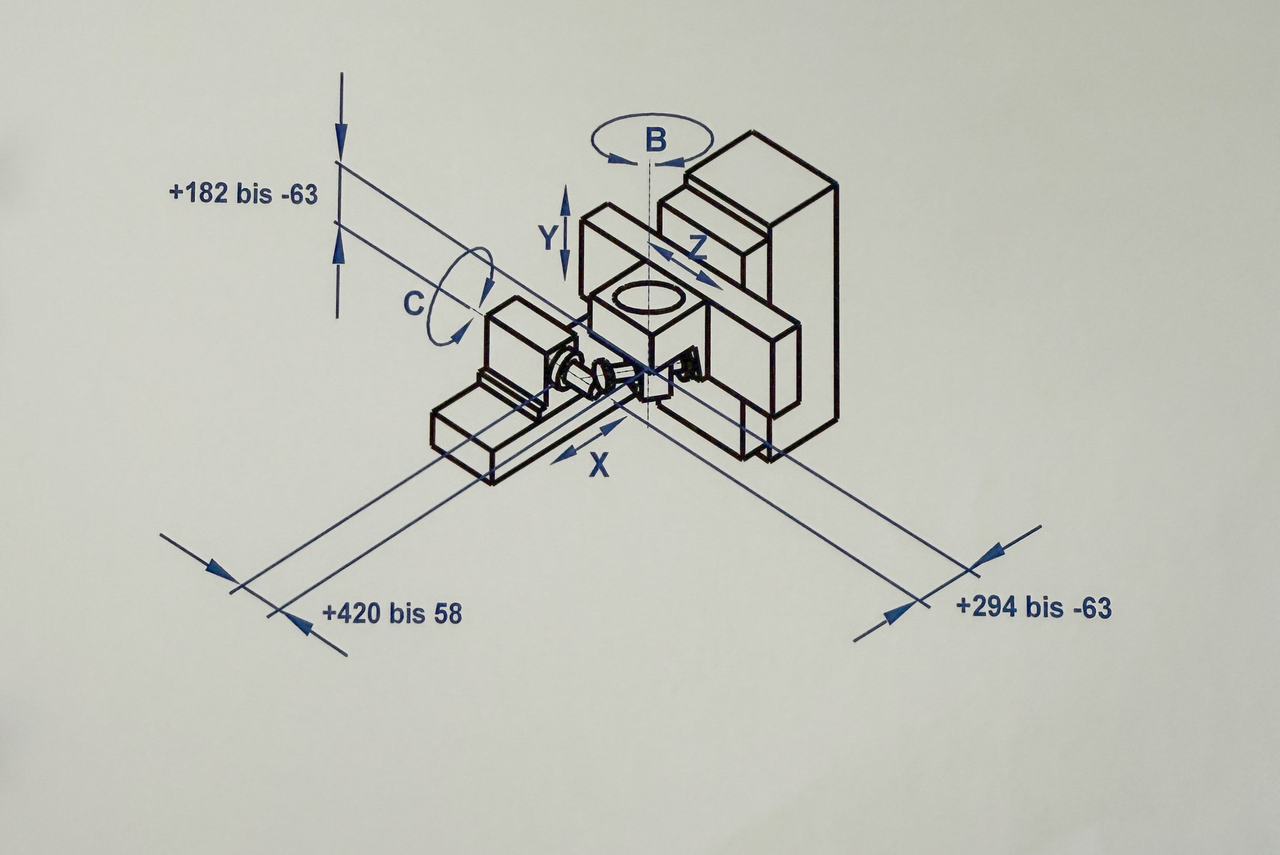

Number of axis total: 5.
Max. grinding wheel diamter: 160 mm.
Taper in spindle: 50 ISO.
Crosswise: 360 mm.
Longitudinal: 240 mm.
Vertical: 360 mm.
B axis (grinding head rotation): 470 °.
Resolution: 0.001 °.
Work piece spindle speed: 1000 t/min.
C axis (spindle,resolution): 0.001 °.
from: 1000 t/min.
up to: 9000 t/min.
Spindle motor: 6 / 8 kW.
Rapid traverse:: 10 m/min.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 3.7 kW.
Total power required: 10 kVA.
Machine's weight about: 2750 kg.
Length: 2050 mm.
Width: 1945 mm.
Height: 2040 mm.
