MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

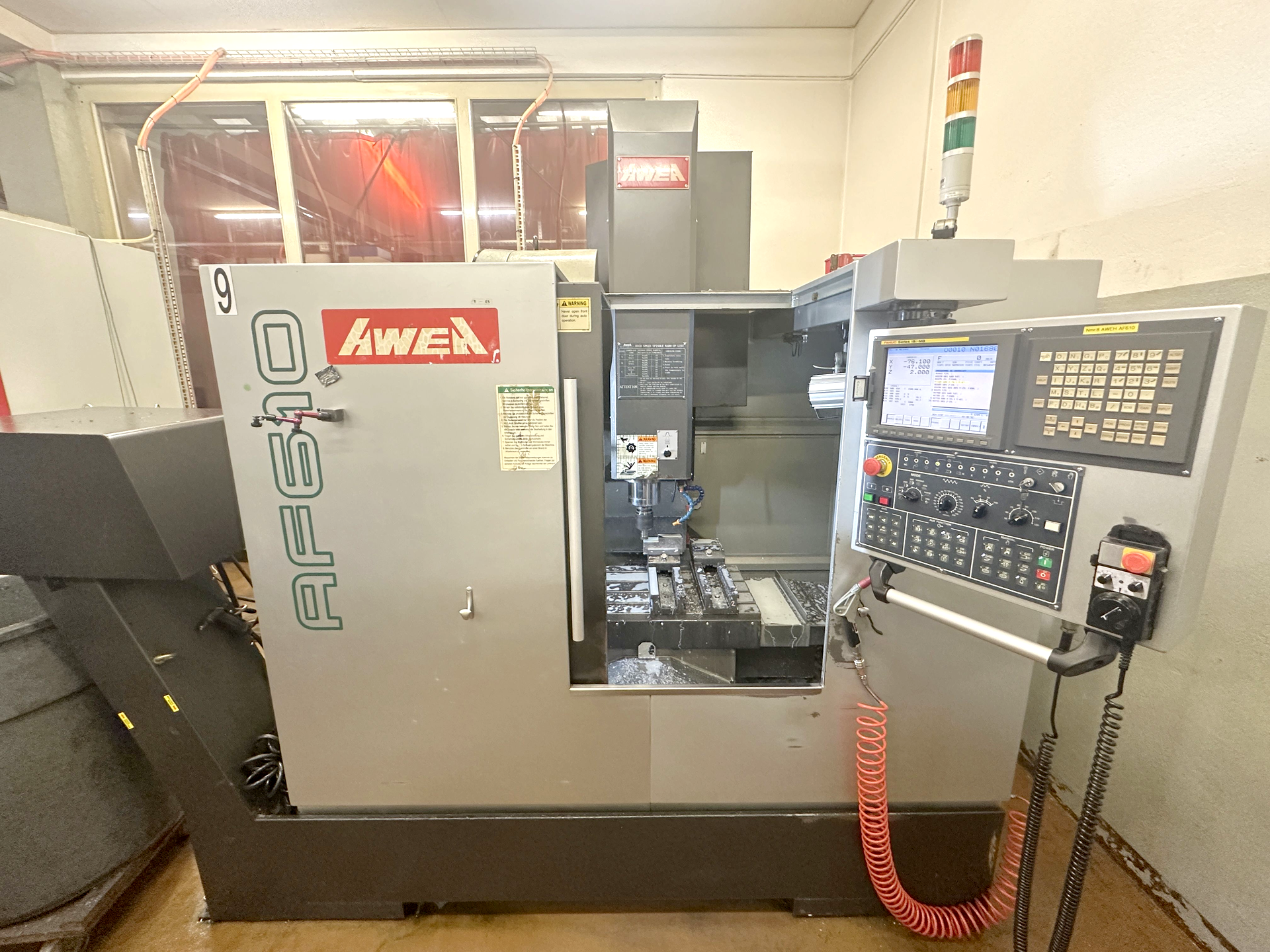

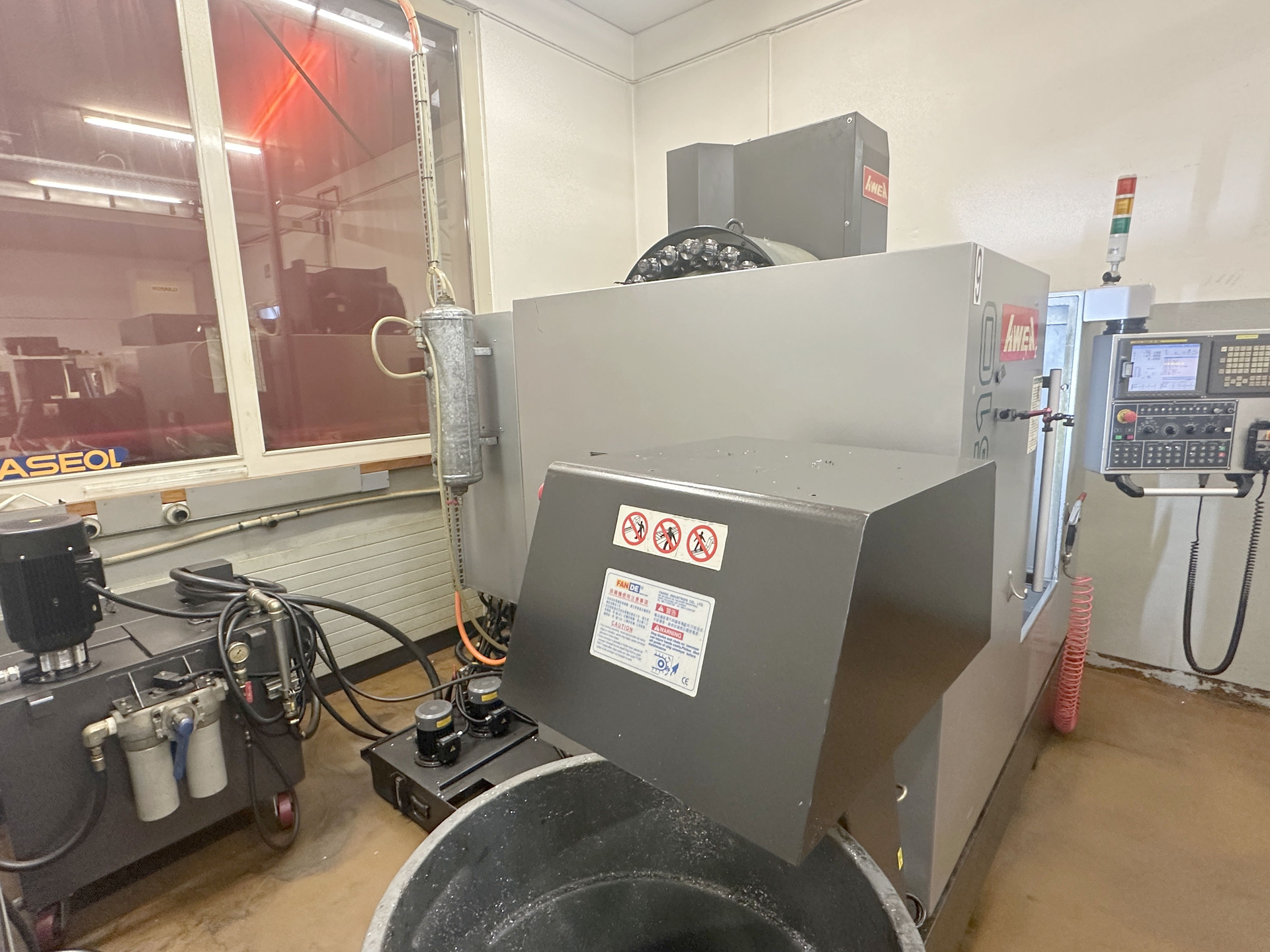

  • 023077 - AWEA AF-610
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 700 mm.
Table width: 450 mm.
Number of T-channels: 4.
T-channel width: 14 mm.
Table load max.: 450 kg.
Longitudinal travel (X-axis): 610 mm.
Transversal travel (y-axis): 420 mm.
Vertical travel (z axis): 420 mm.
Tool magazine number of tool places: 20.
Tool diameter max.: 63 mm.
Diameter with free adjacent pockets: 100 mm.
Tool lenght: 200 mm.
Max. tool-weight: 4 kg.
Spindle nose: ISO: 40.
Distance spindle nose to table: 150 - 600 mm.
from: 0 t/min.
up to: 12000 t/min.
Feed range: 1 - 10000 mm/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 5.5 / 7.35 kW.
Total power required: 24 kVA.
Machine's weight about: 3500 kg.

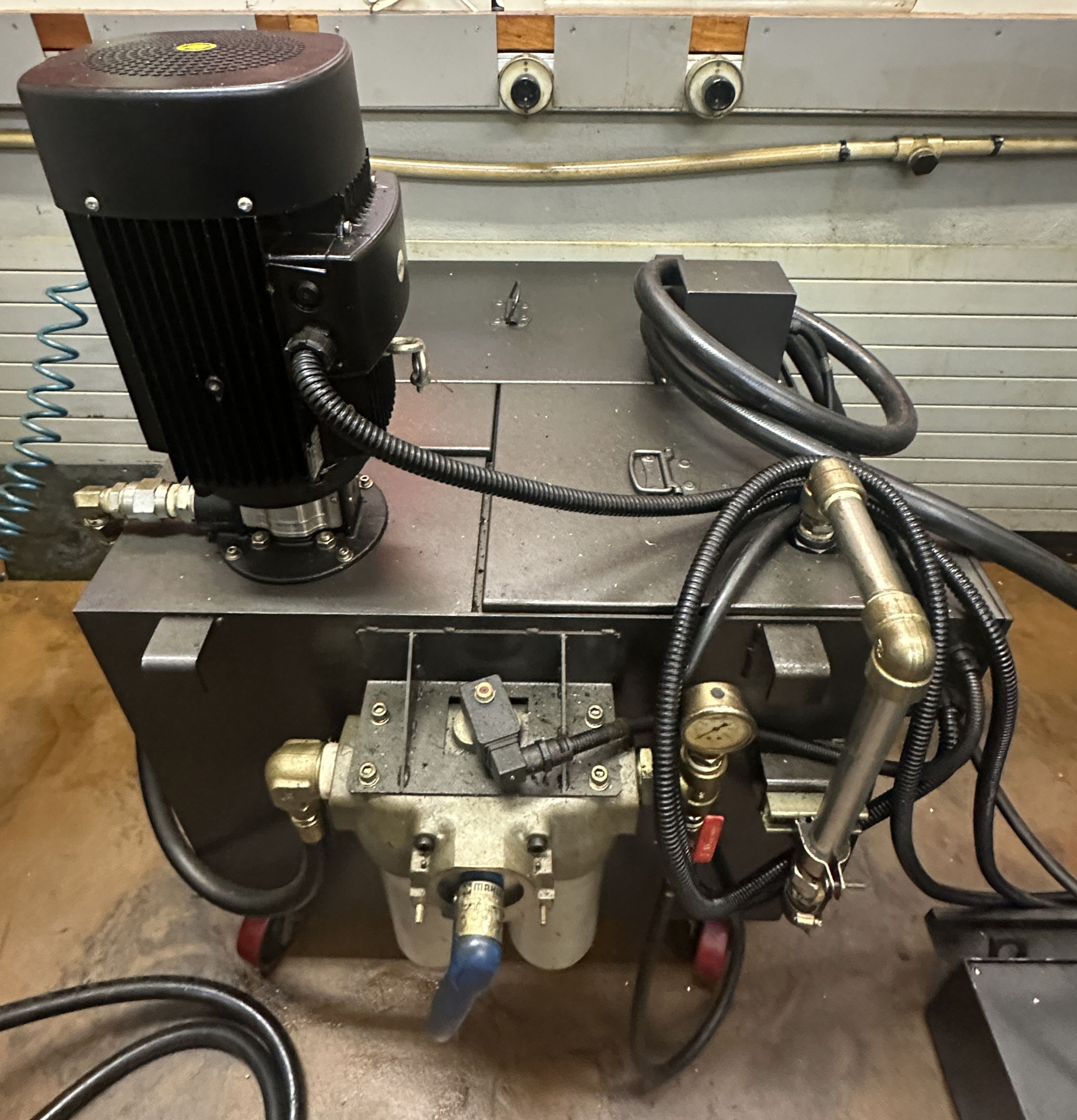

Coolant through spindle (cts): 25 bar.
Length: 2600 mm.
Width: 2150 mm.
Height: 2500 mm.
