MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kern
  • Model:

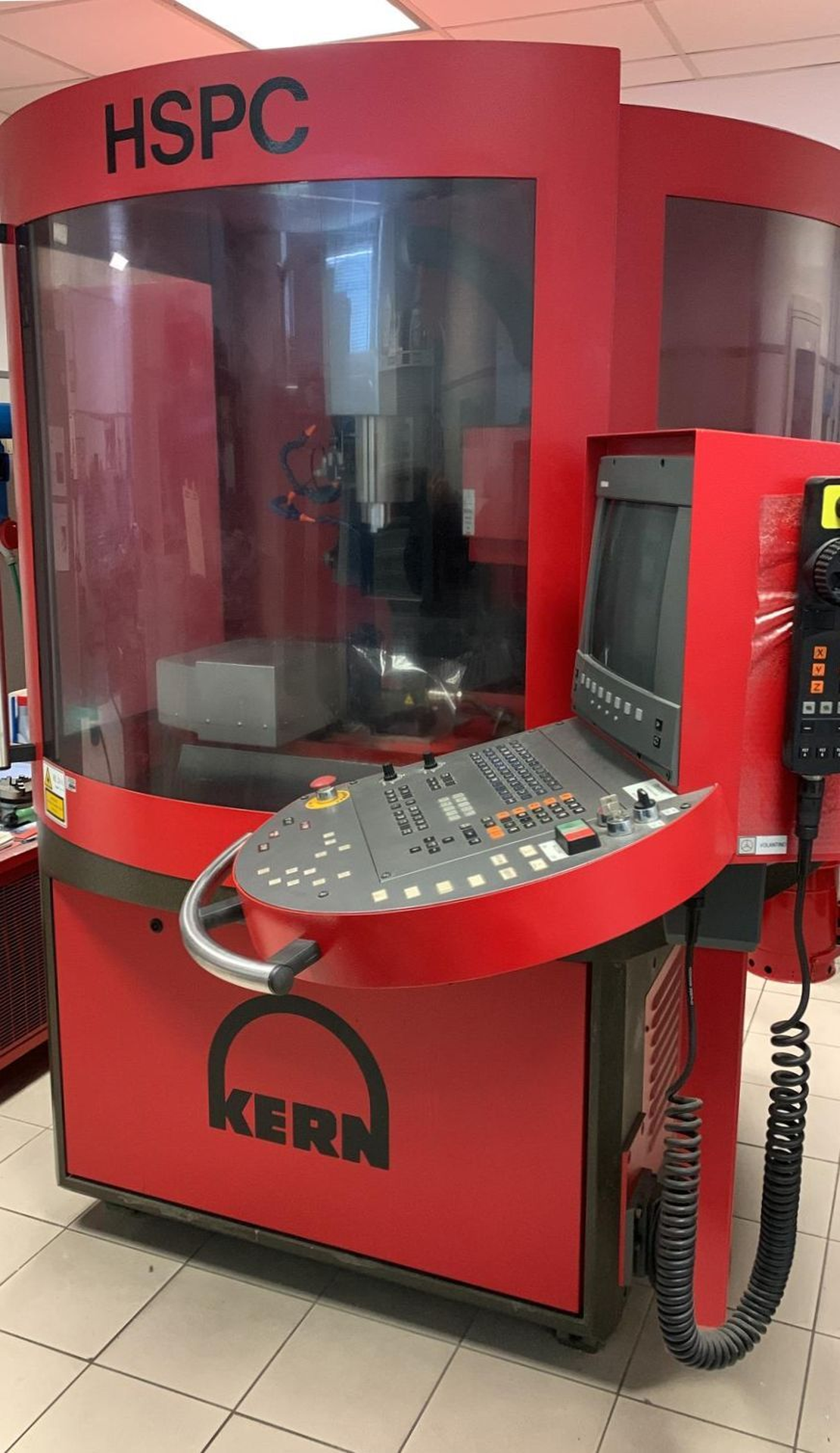

  • 023049 - KERN HSPC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Longitudinal travel (X-axis): 250 mm.
Transversal travel (y-axis): 220 mm.
Vertical travel (z axis): 250 mm.

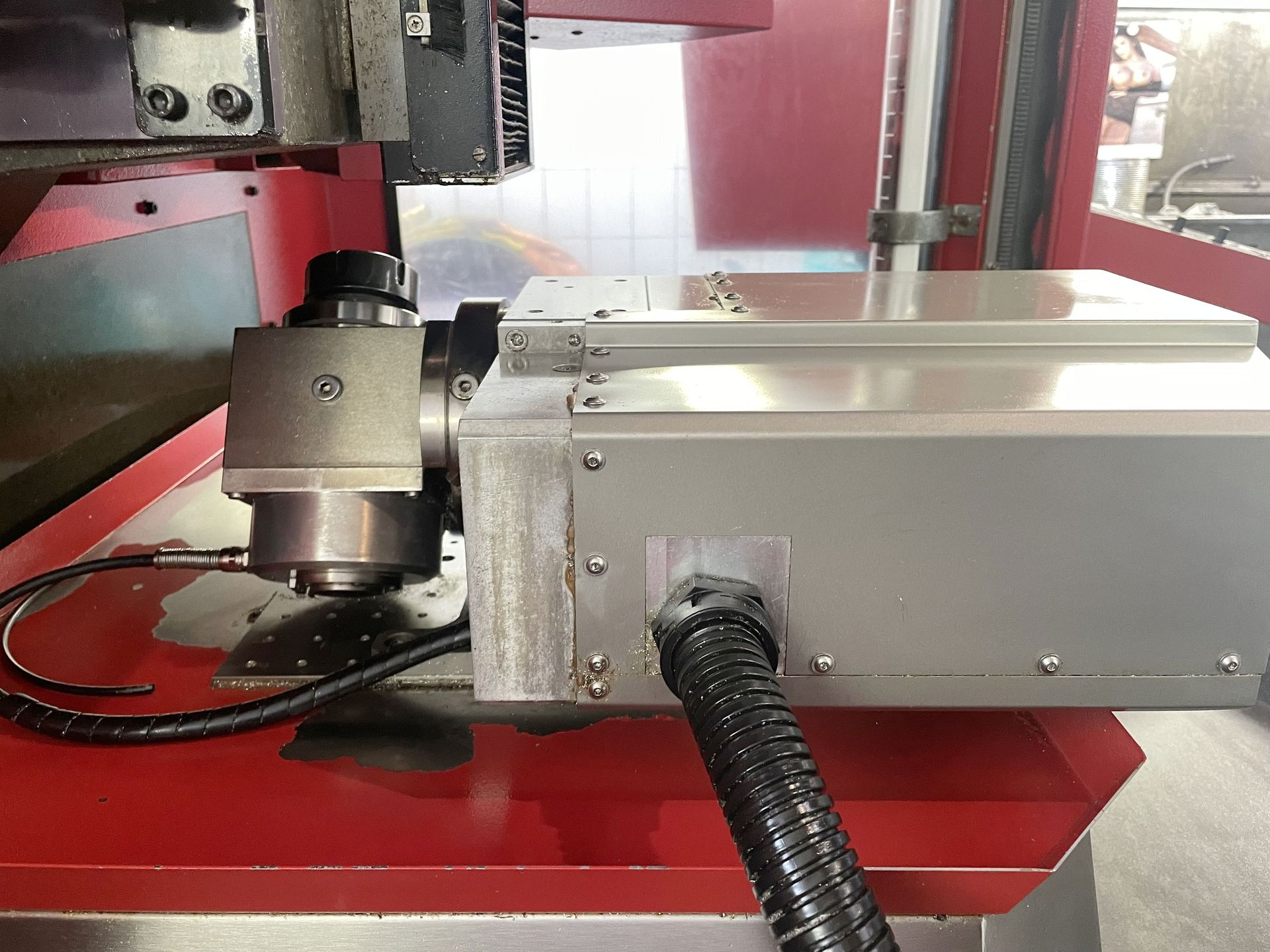

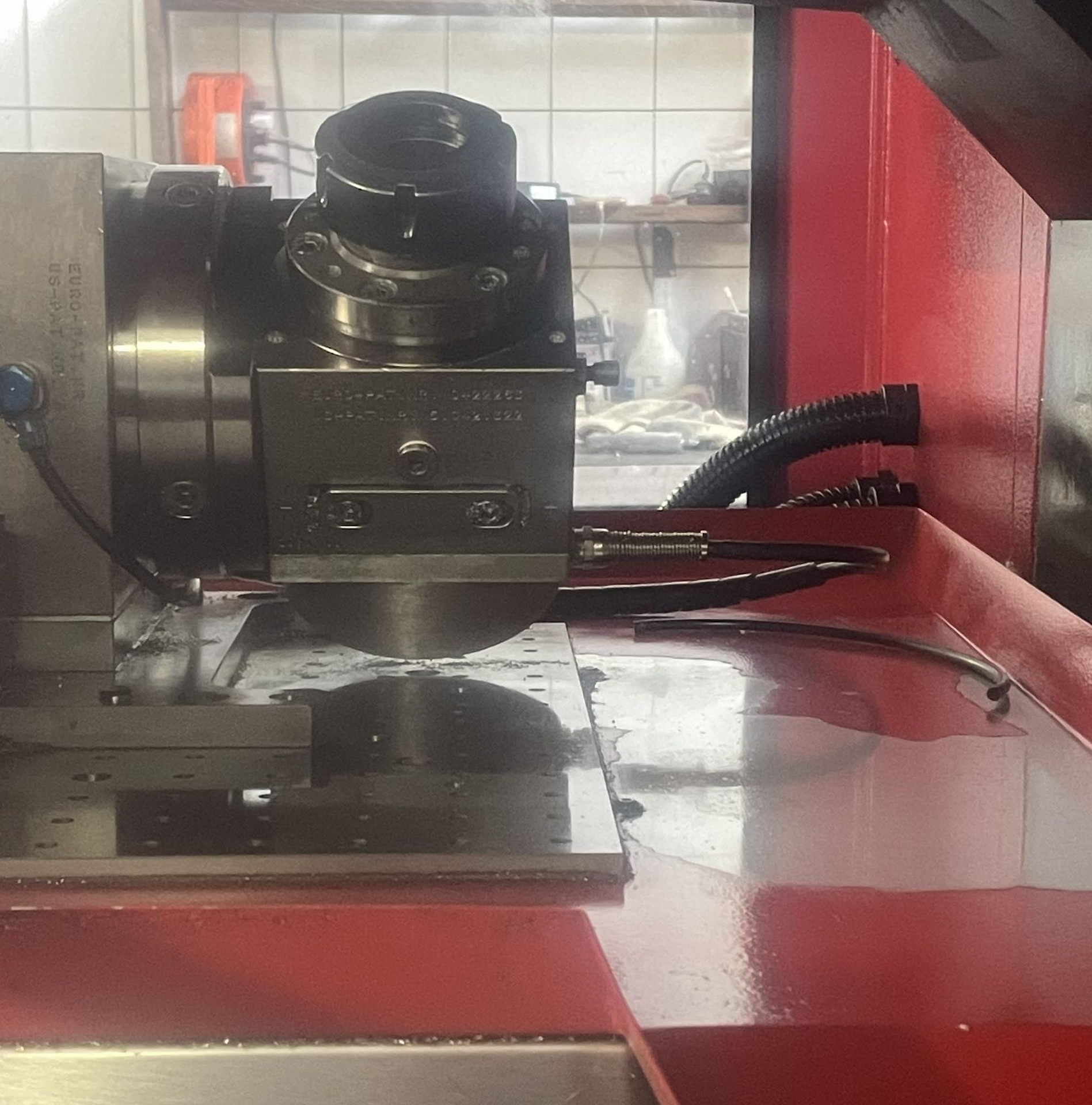

Swivel angle (a-axis): -100 / +100 °.

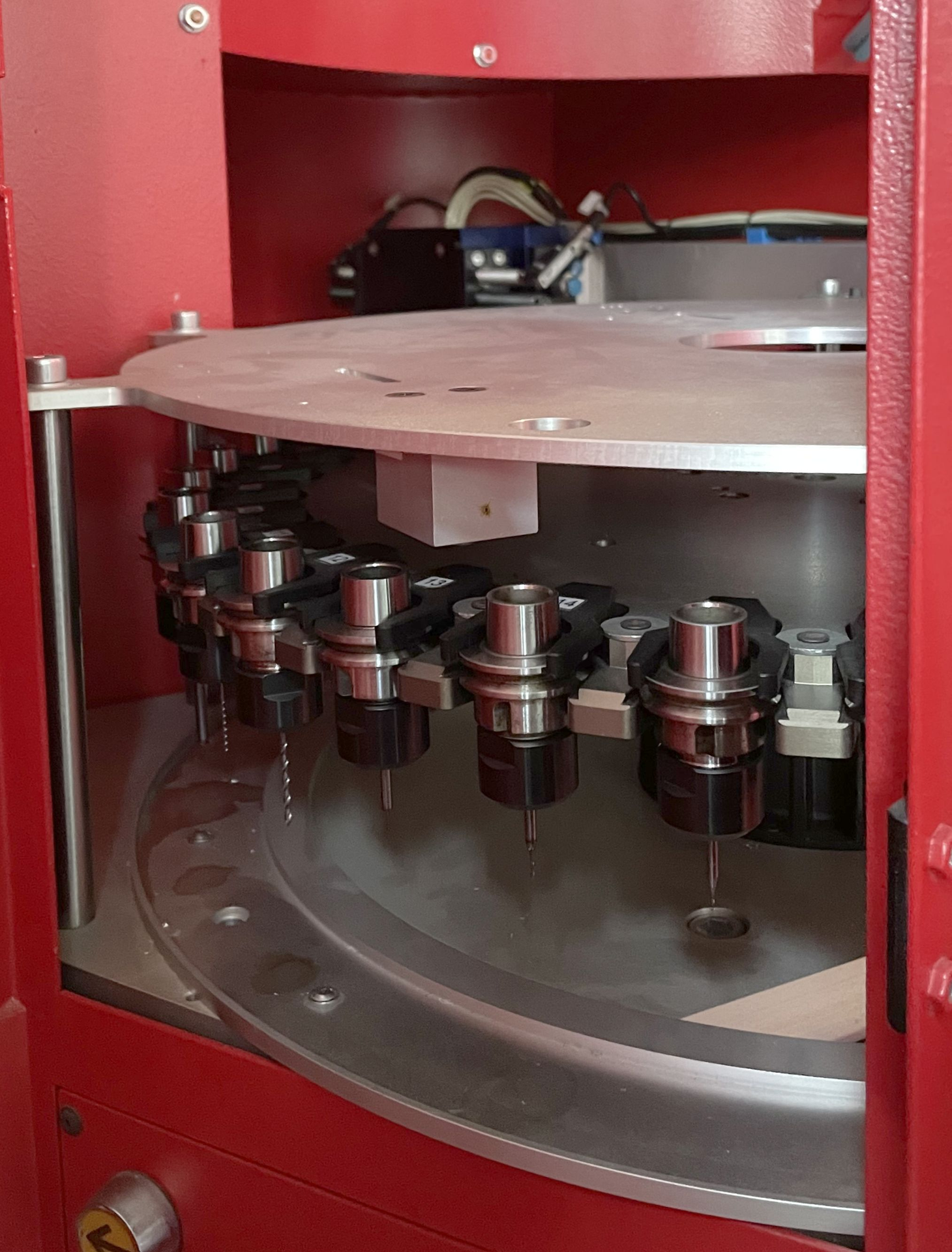

Tool magazine number of tool places: 32.
Tool diameter max.: 50 mm.
Tool lenght: 75 mm.
Time of tool changing: 3 s.
Average chip-to-chip time: 7 s.

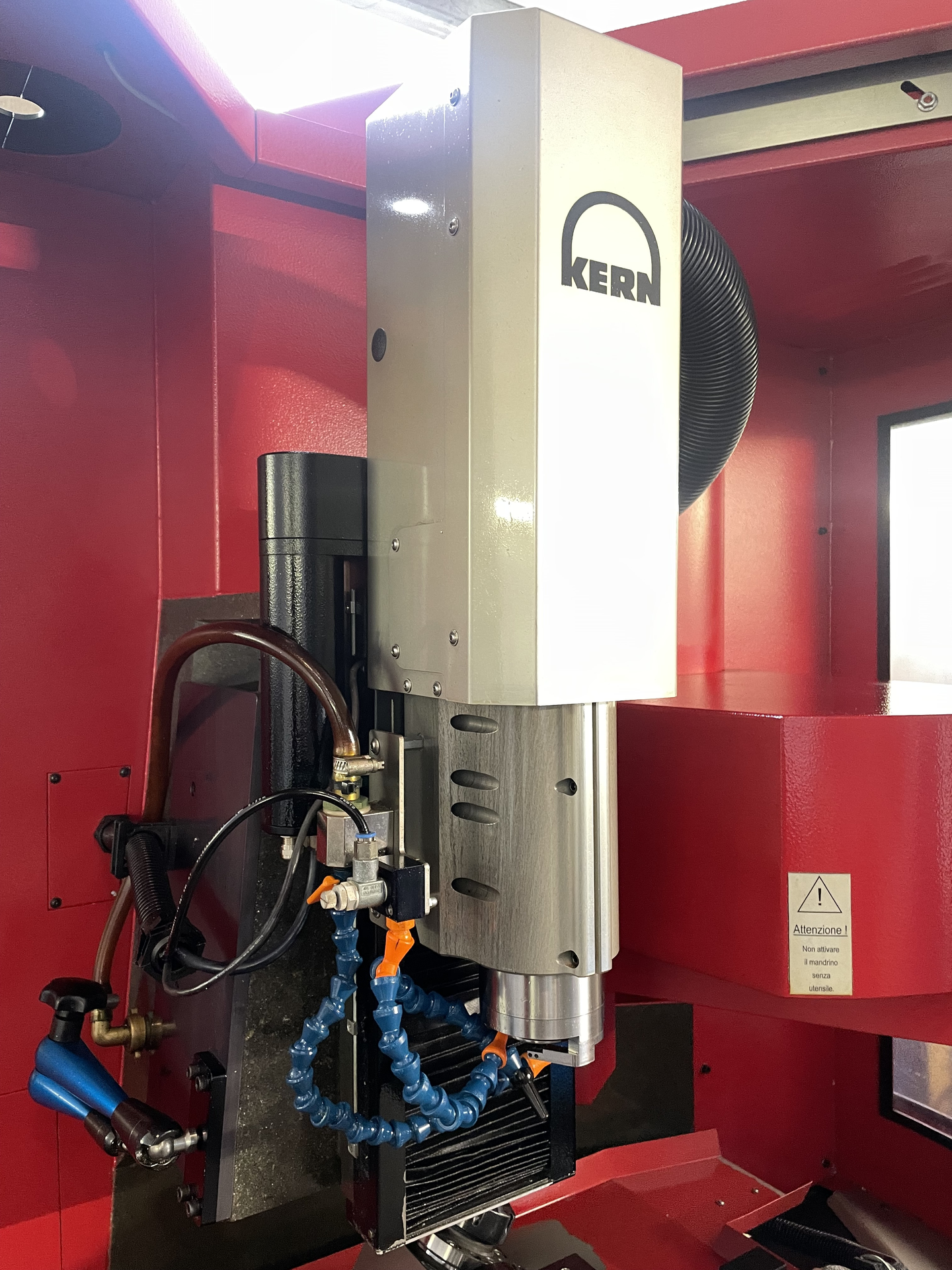

Spindle nose: HSK-A: 25.
from: 300 t/min.
up to: 20000 t/min.
Feed range: 0 - 6000 mm/min.
Rapid traverse:: 6 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 8 kW.
Machine's weight about: 2800 kg.
Length: 1000 mm.
Width: 600 mm.
Height: 2100 mm.
Coolant system: 42 l.
