Home > Miscellaneous Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

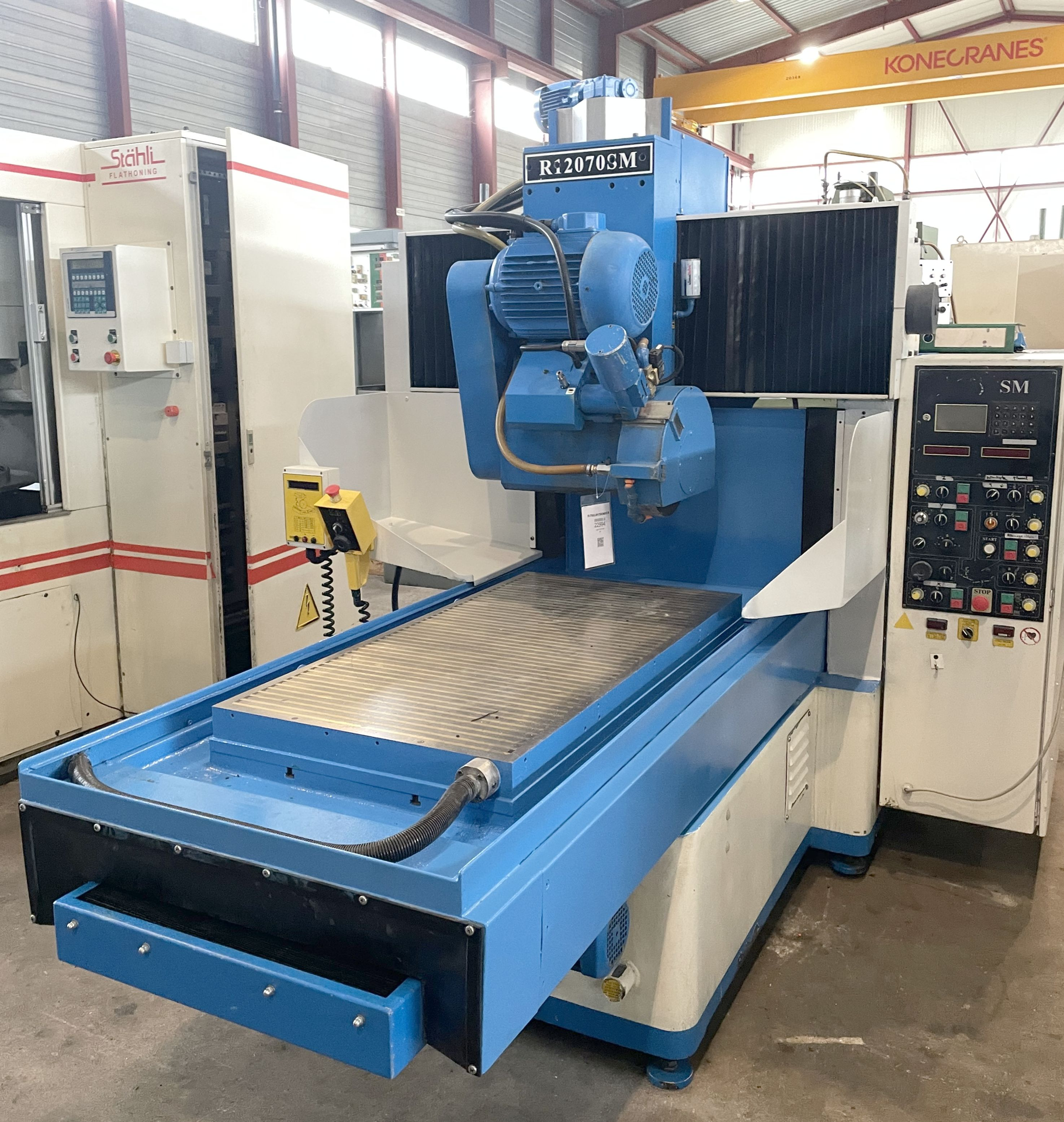

  • 022994 - LGB R12070SM
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

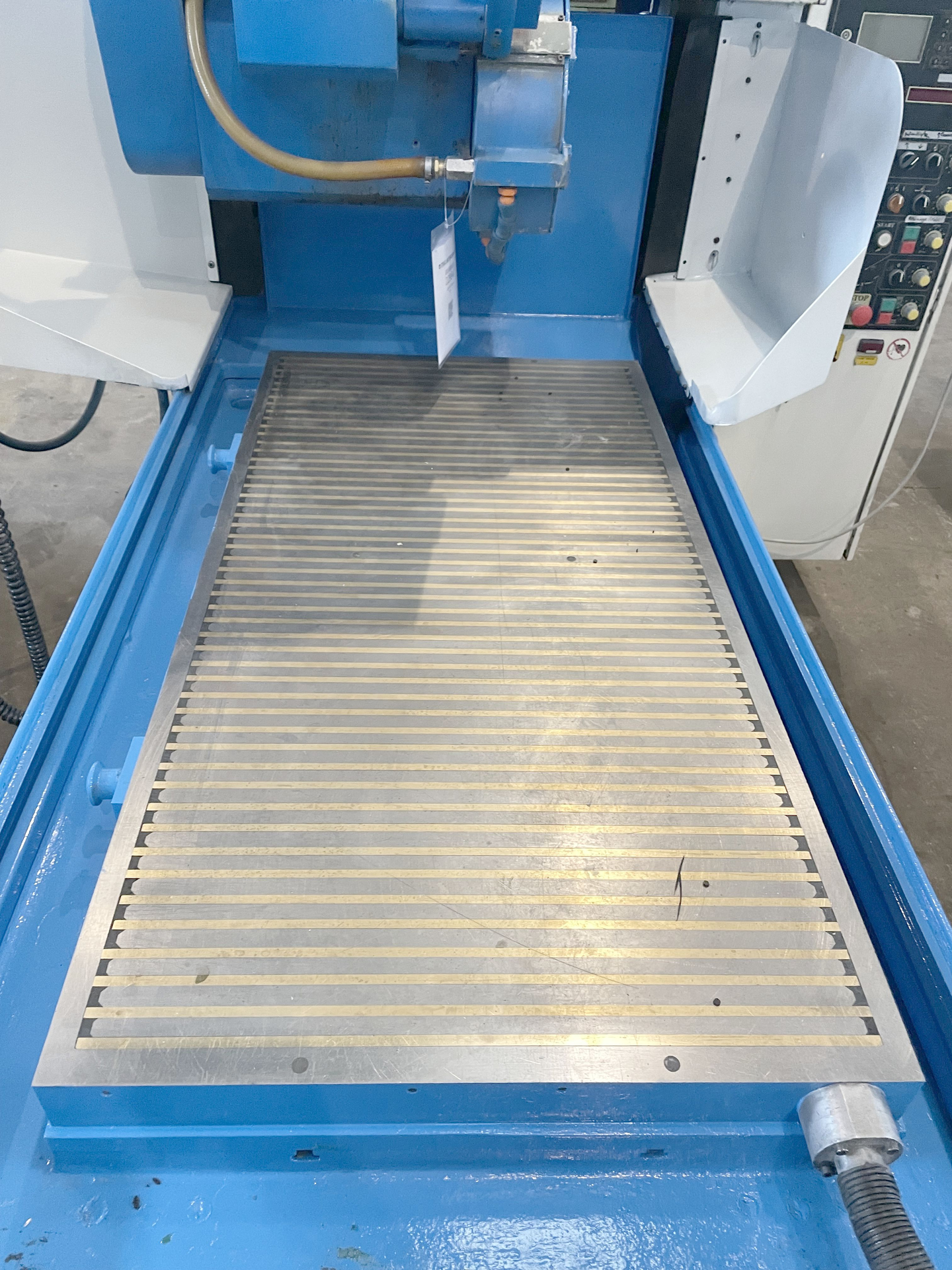

Table length: 1200 mm.
Table width: 600 mm.
Longitudinal travel (X-axis): 1320 mm.
Cross travel (z-axis): 730 mm.
vertical travel (Y-axis): 480 mm.
Table load max.: 1400 kg.
Grinding height over table: 520 mm.
Diameter: 350 mm.
max. width: 50 mm.
Bore: 127 mm.
from: mm/min.
up to: 10 mm/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 9 kW.
Machine's weight about: 4500 kg.
Length: 1180 mm.
Width: 600 mm.
Height: 2300 mm.
Oil mist extractor: AIRTECH.
+ request more information
