MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Citizen
  • Model:

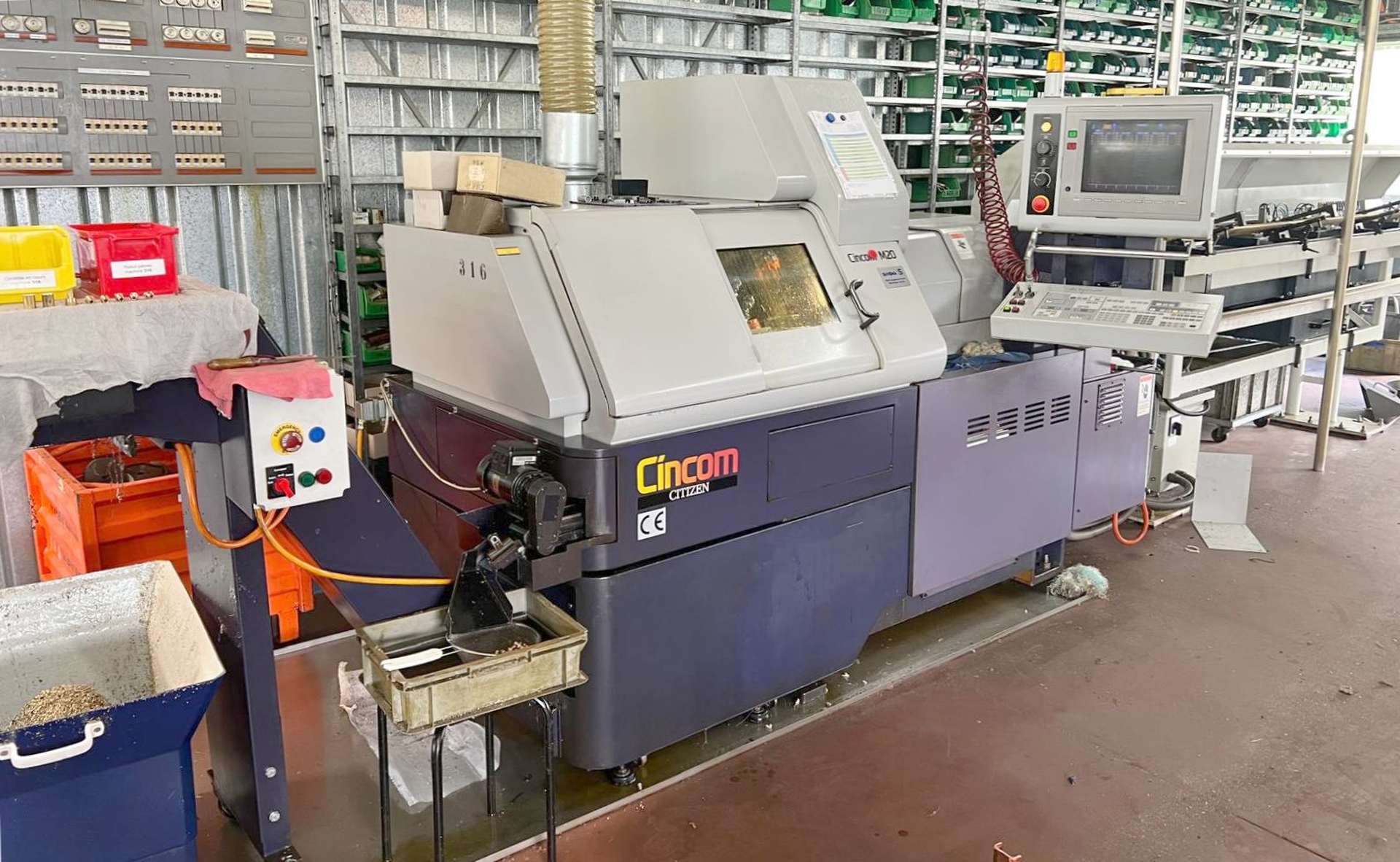

  • 022974 - CITIZEN CINCOM M 20
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Max. turning diameter: 20 mm.
Turning length: 320 mm.
Max. drilling diameter: 10 mm.
Max. threading diameter: 8 M.
Internal spindle diameter: 24 mm.
from: 200 t/min.
up to: 5000 t/min.
Number of positions: 10.
numbers: 2.
number of driven tools: 3.
Turning tools: 5 pce.
Rapid traverse X: 20 m/min.
Rapid traverse Y: 20 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 3.7 / 7.5 kW.
Power of back spindle: 1.5 / 3.7 kW.
Power of driven tools: 1.5 / 2.2 kW.
Total power required: 8 kVA.
Machine's weight about: 2500 kg.
Length: 2800 mm.
Width: 1370 mm.
Height: 1800 mm.
Manufacturer: LNS.
Type: HYDROBAR MINI-SPRINT.
