MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

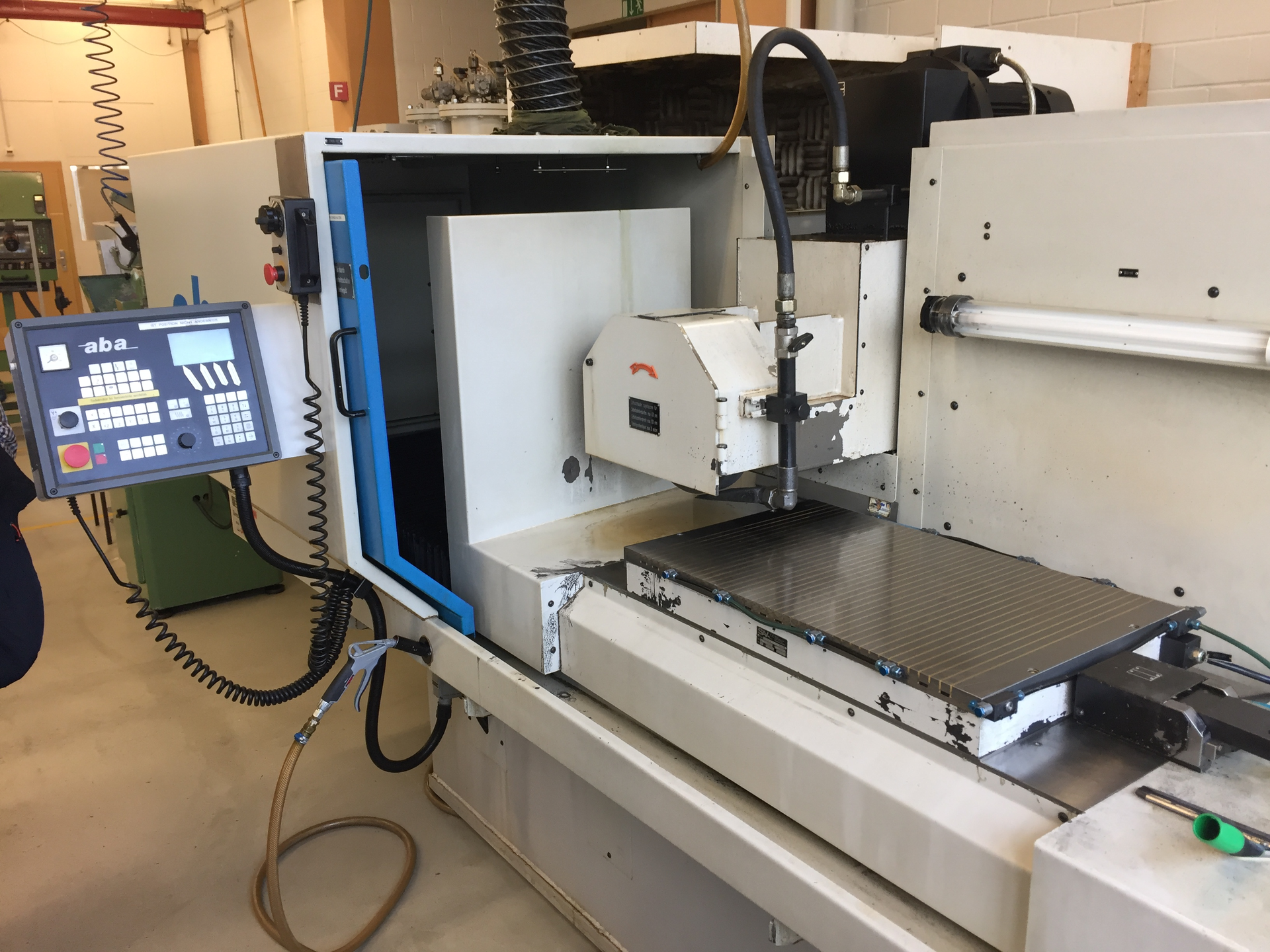

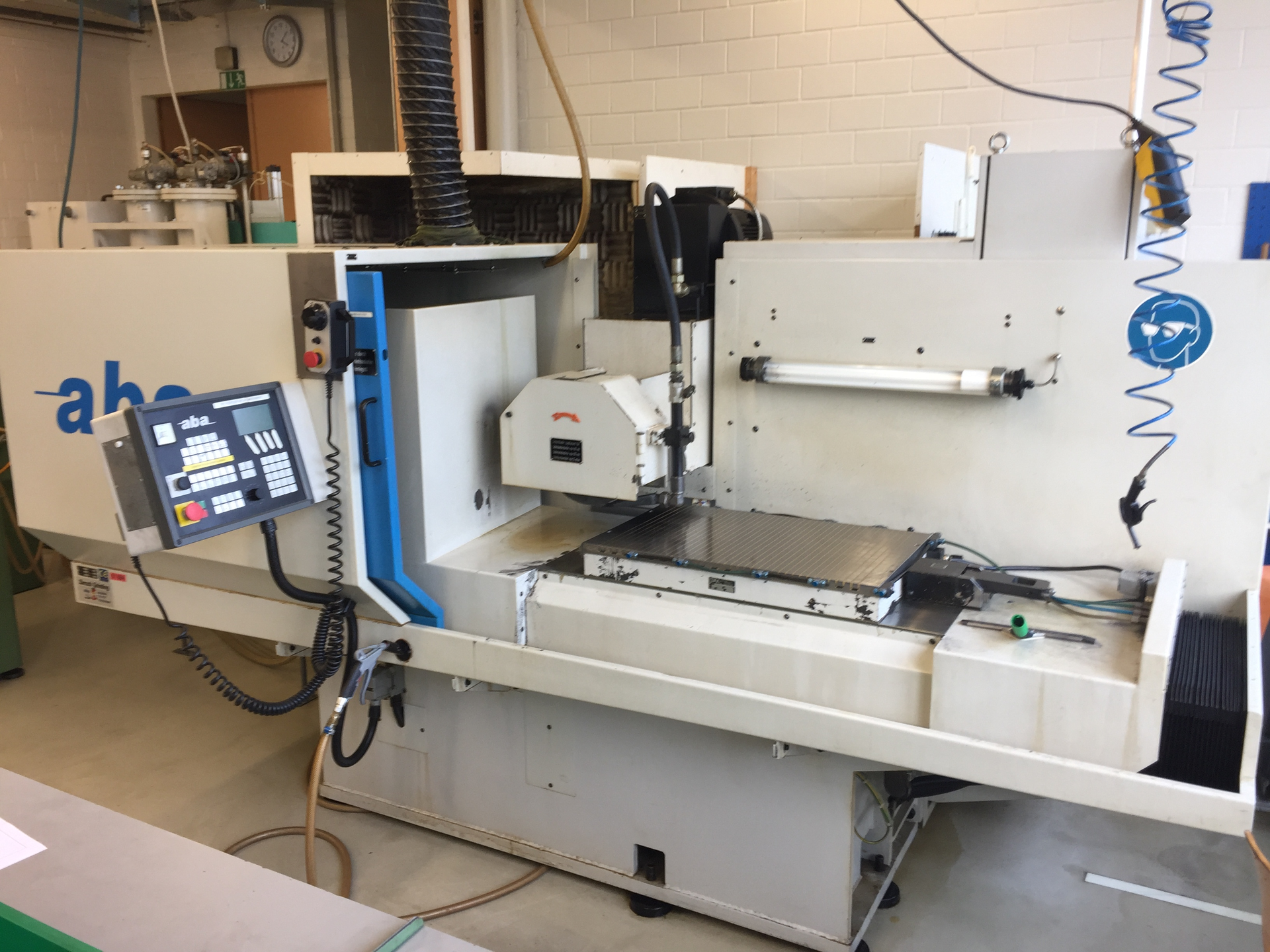

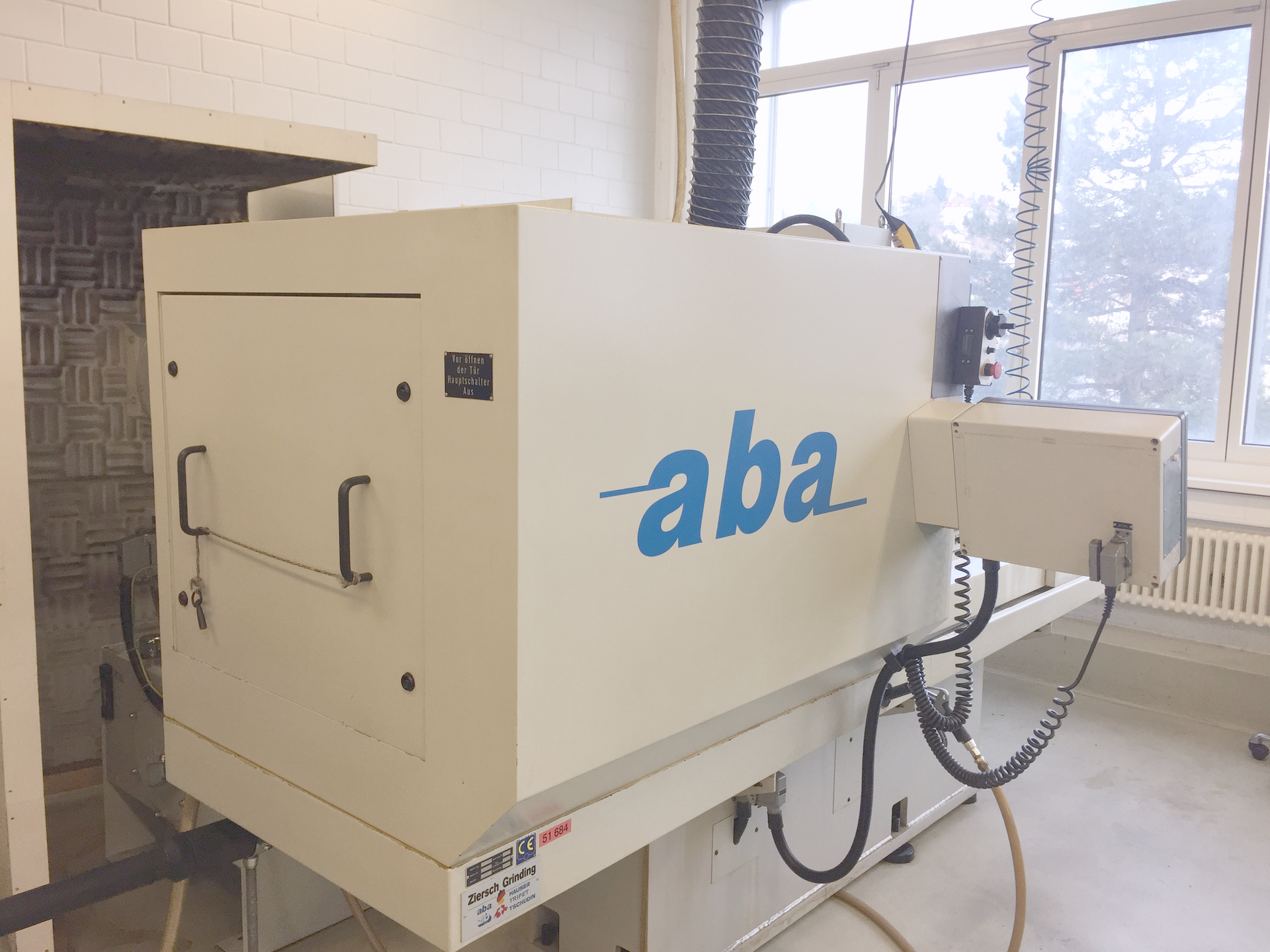

  • 022768 - ABA EL 806
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

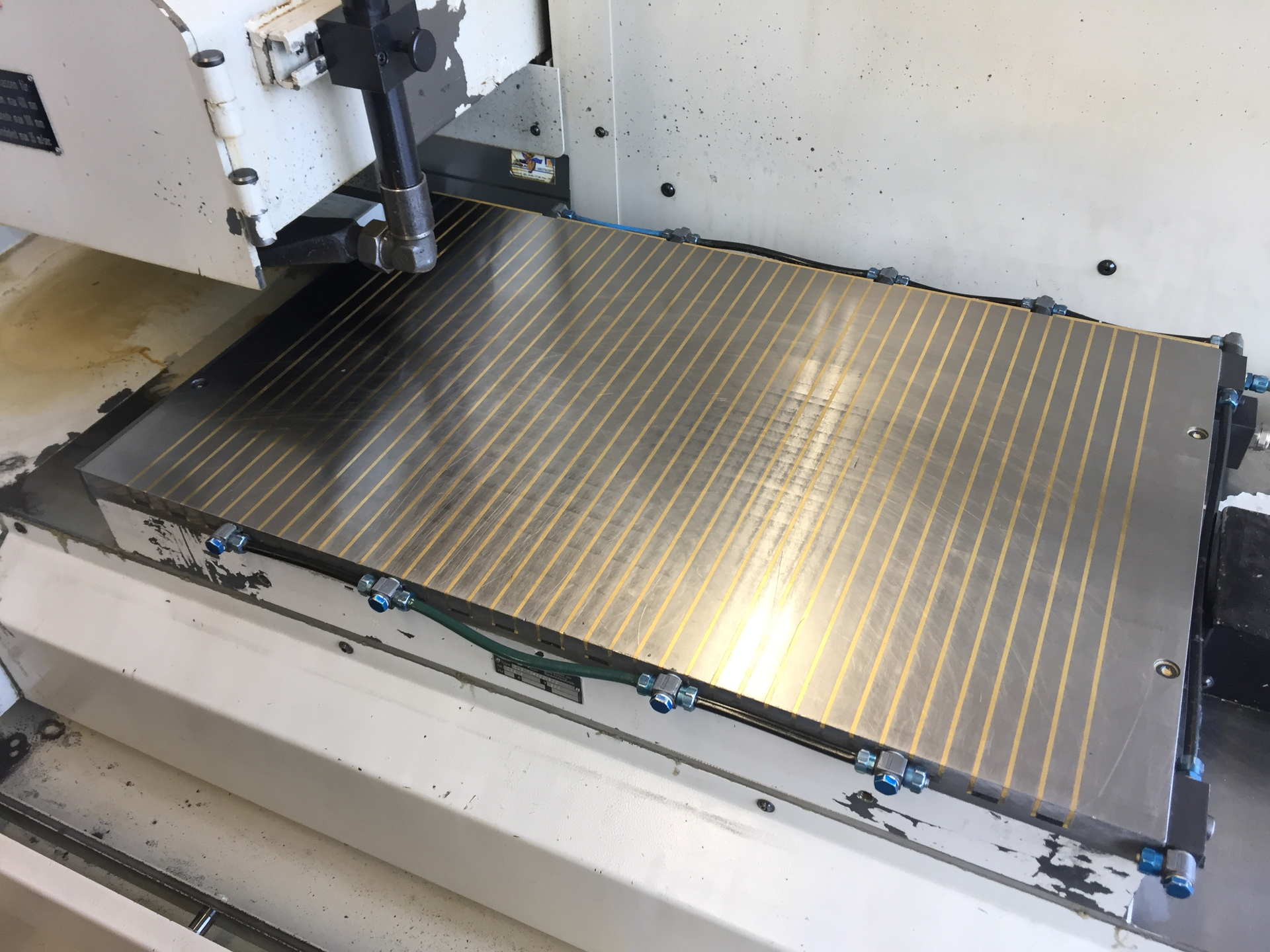

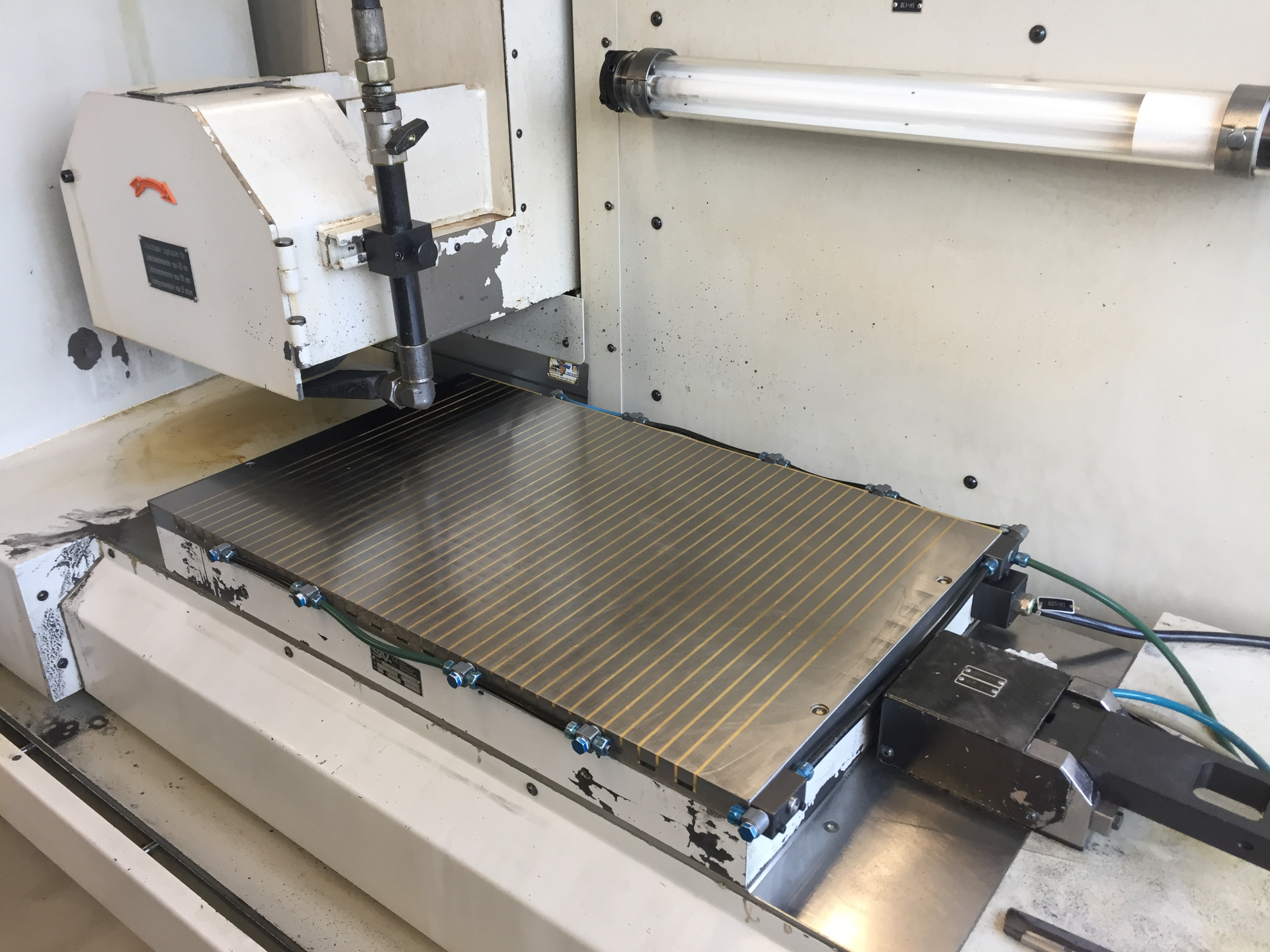

Table length: 800 mm.
Table width: 500 mm.
Grinding length: 800 mm.
Grinding width: 600 mm.
Grinding height: 500 mm.
Table load max.: 800 kg.
Longitudinal travel (X-axis): 1100 mm.
Transversal travel (y axis): 600 mm.
Vertical travel (z axis): 530 mm.
from: 1000 t/min.
up to: 2600 t/min.
Automatic vertical feed:: 0.001.

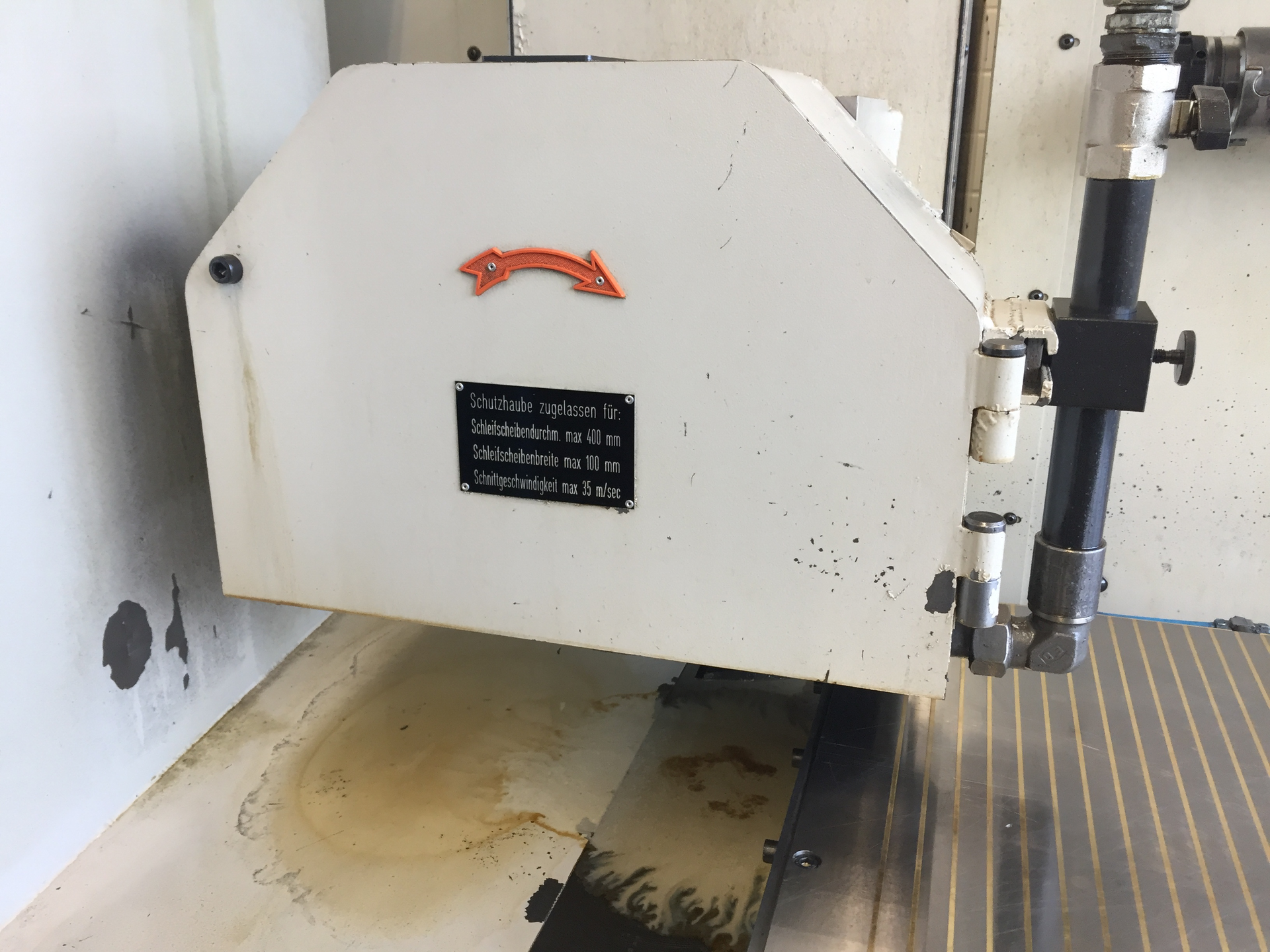

Diameter of grinding wheel: 400 mm.
Width of the grinding wheel: 100 mm.
Wheel int. diameter: 127 mm.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 11 kW.
Machine's weight about: 5400 kg.
Length: 3400 mm.
Width: 2860 mm.
Height: 2600 mm.
