MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SIXIS
  • Model:

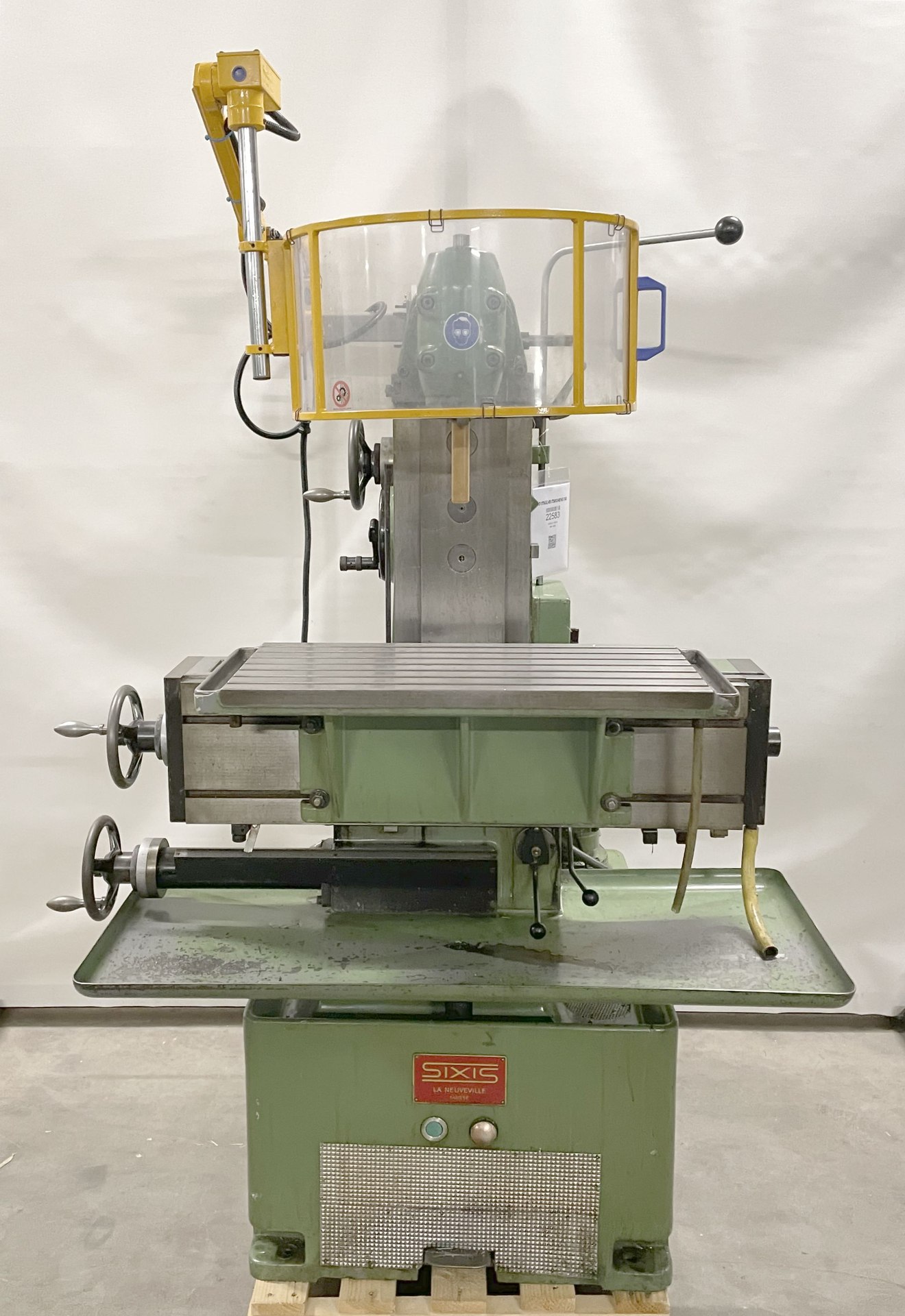

  • 022583 - SIXIS S 103 R
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

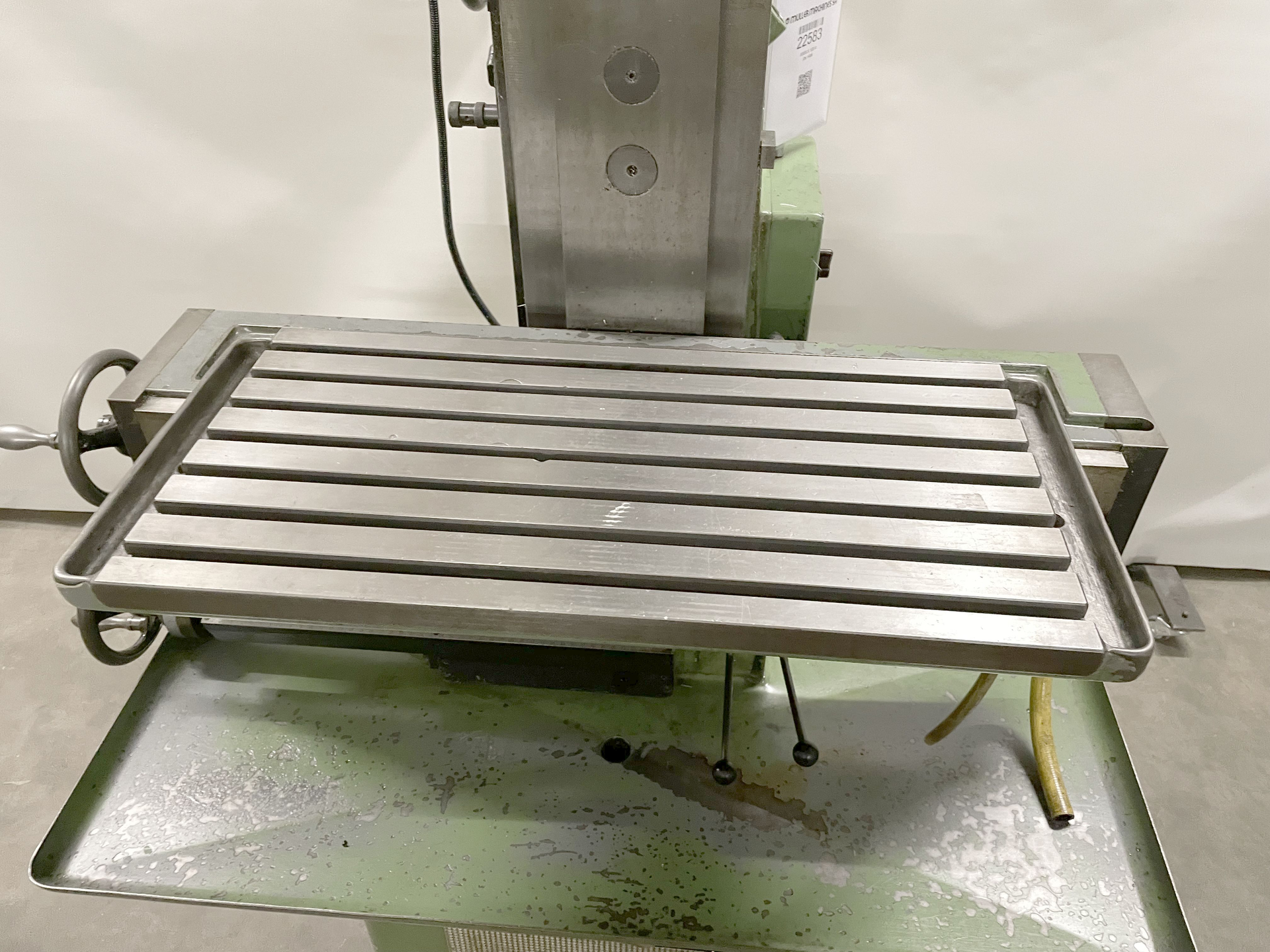

Table length: 600 mm.
Table width: 210 mm.
Number of T-channels: 5.
T-channel width: 12H7 mm.
Distance of the T-slots: 40 mm.
Longitudinal travel (X-axis): 300 mm.
Transversal travel (y axis): 175 mm.
Vertical travel (z axis): 400 mm.
Distance from vertical spindle to table: 320 mm.
number (steps): 9.
from: 60 t/min.
up to: 108 mm/min.
Taper in spindle: 30 ISO.
Feeds steps:: 8.
longitudinal from: 12 mm/min.
vertical from: 6 mm/min.
longitudinal: 1 m/min.
vertical: 0.5 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 1.5 CV.
Total power required: 2 CV.
Machine's weight about: 880 kg.
Length: 1100 mm.
Width: 1100 mm.
Height: 1600 mm.
