MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

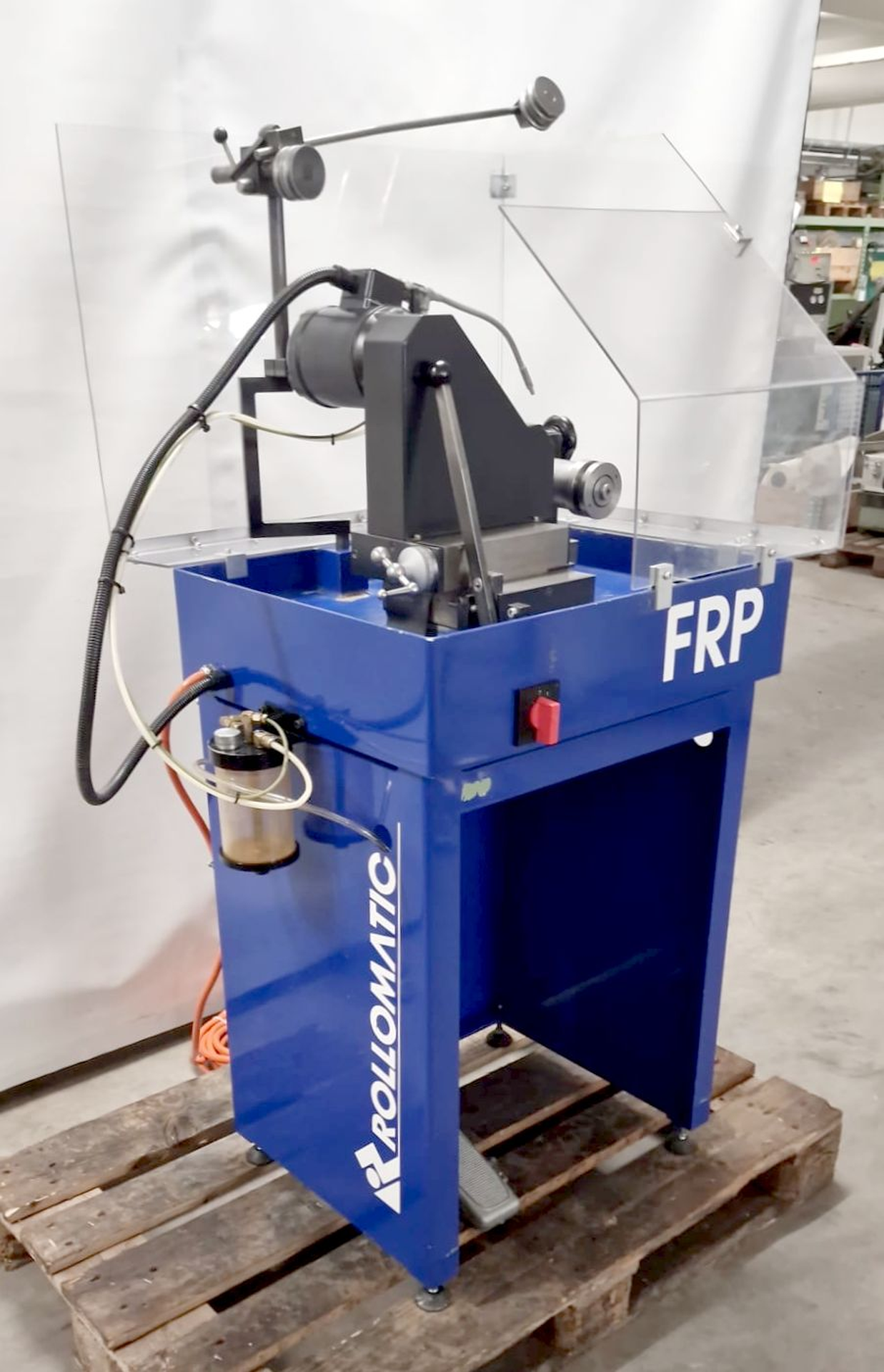

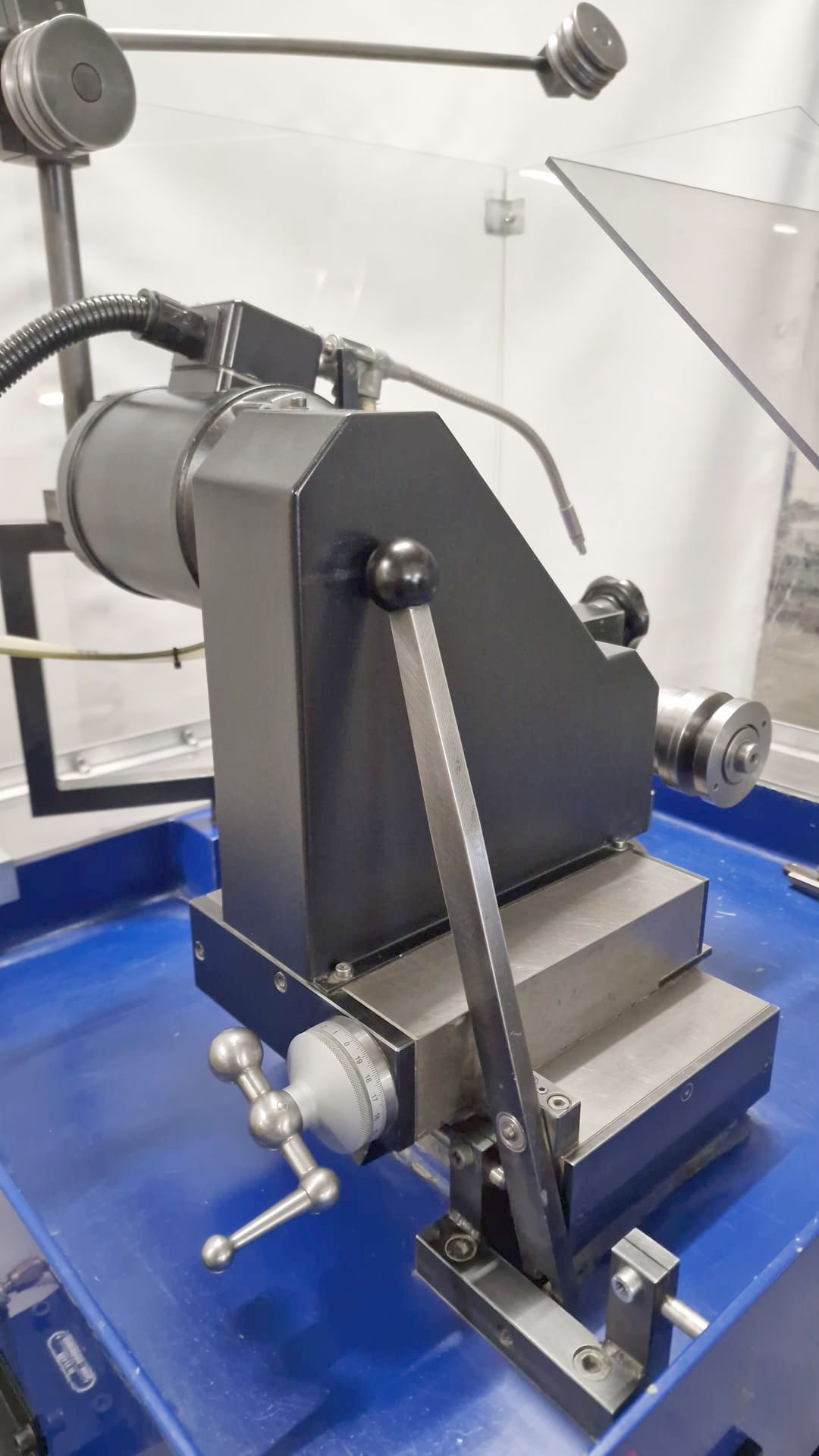

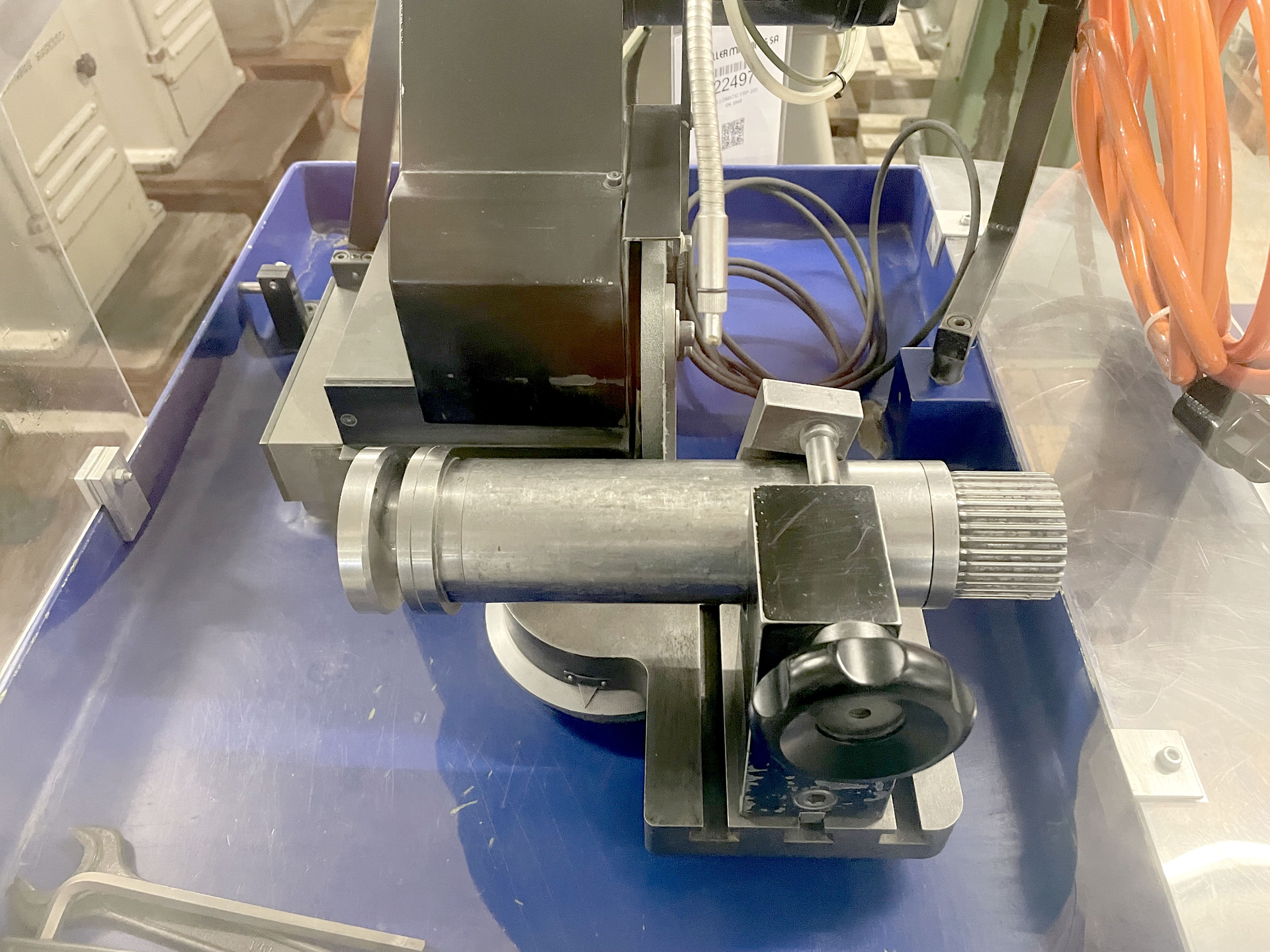

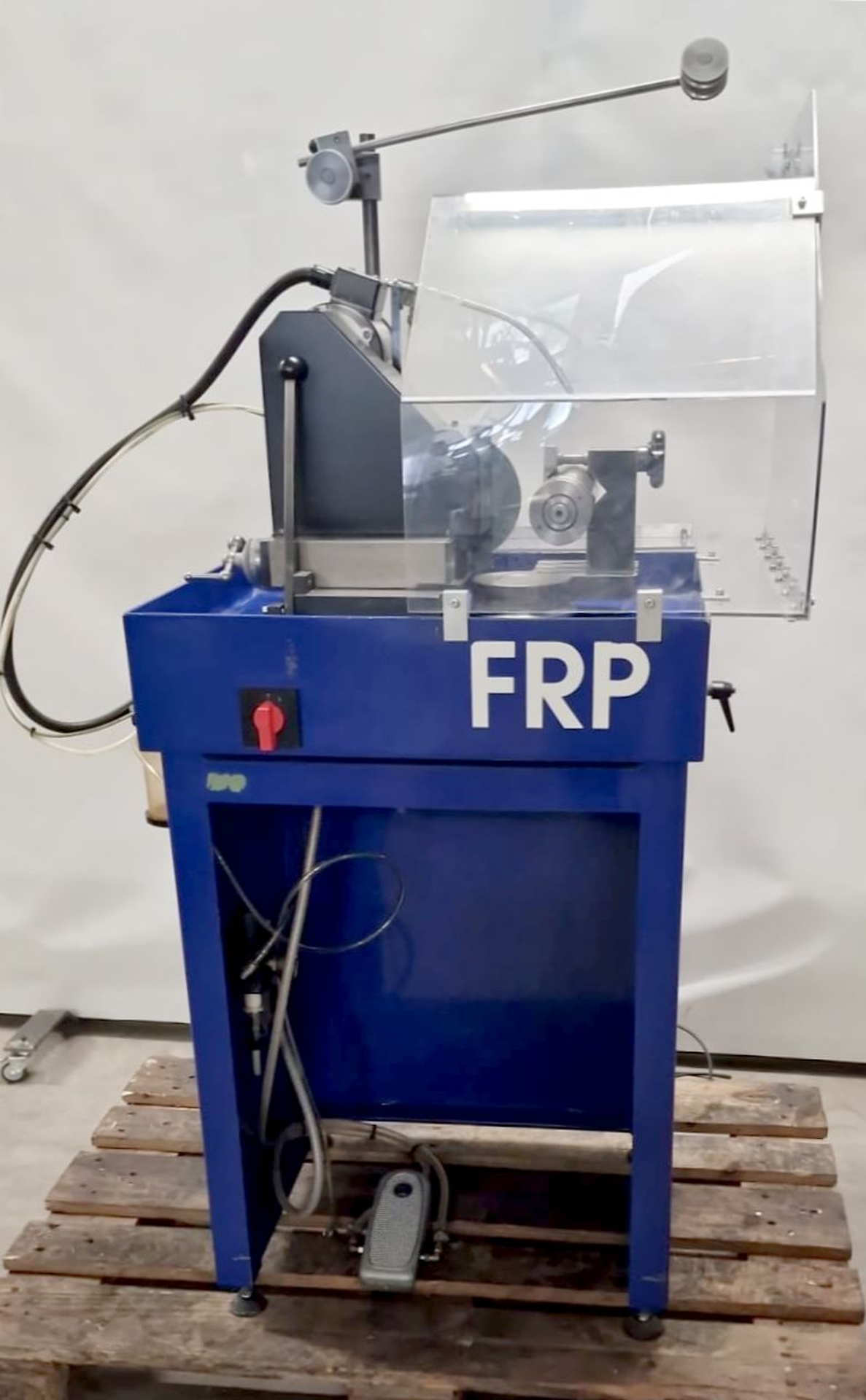

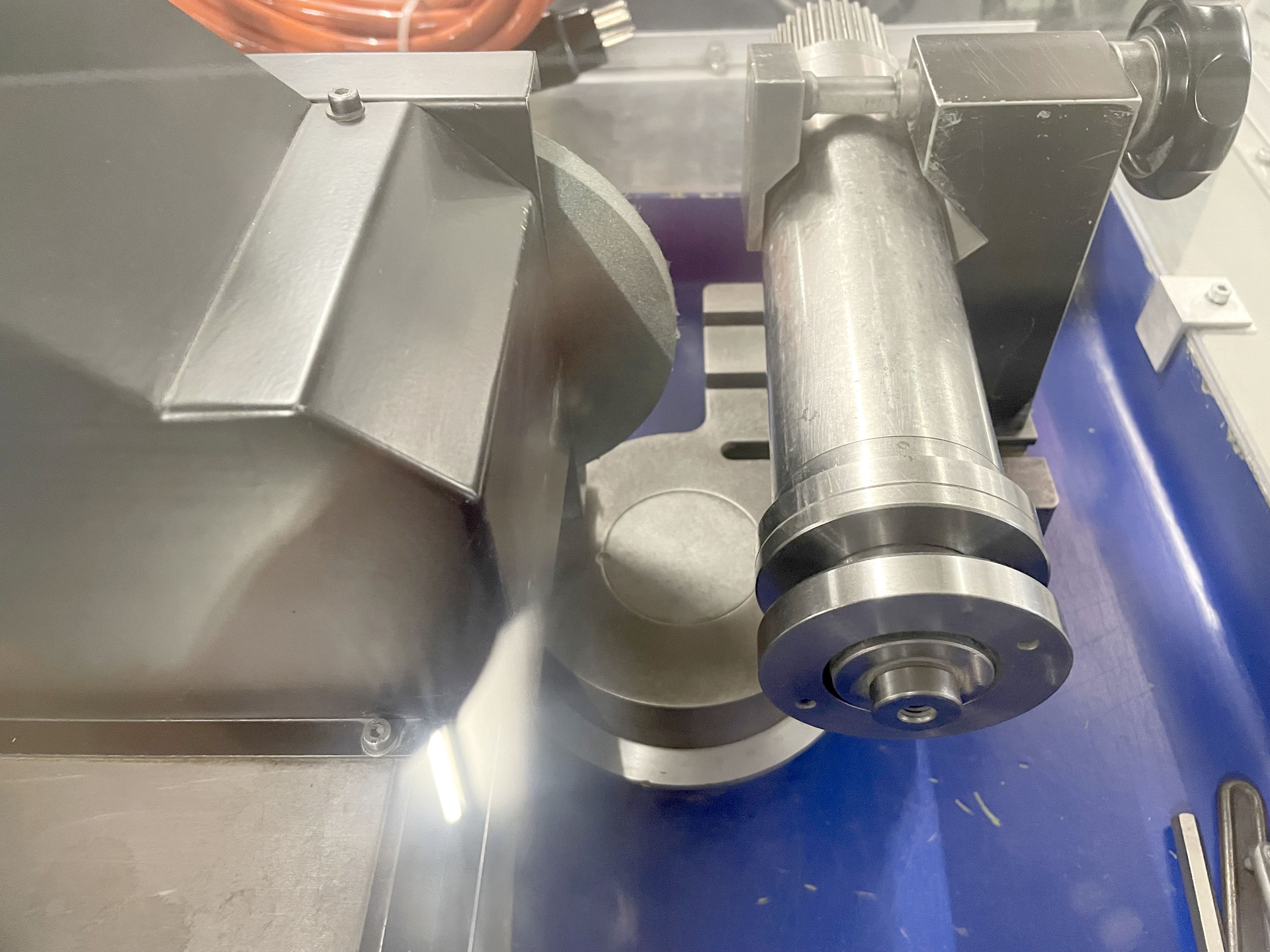

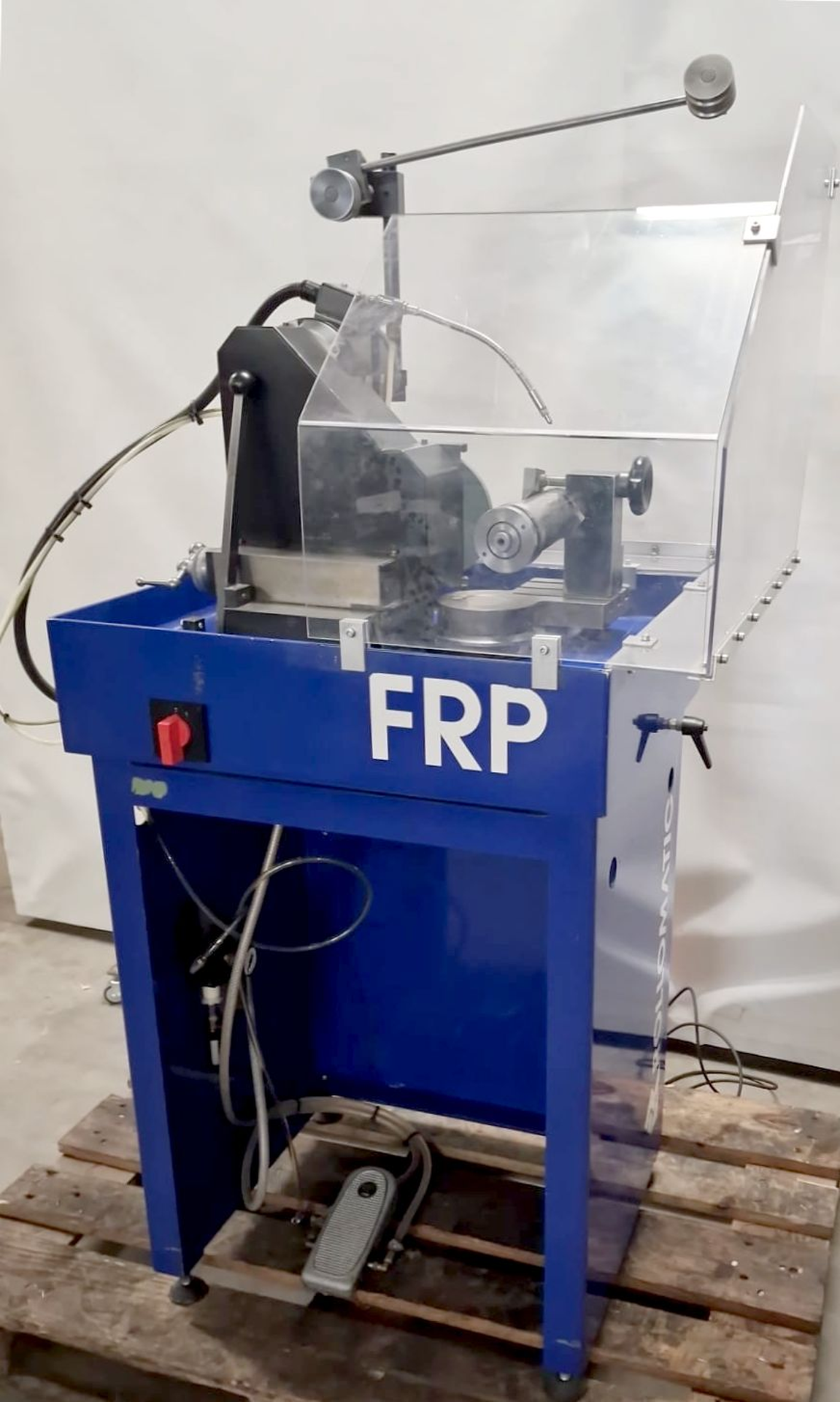

  • 022497 - ROLLOMATIC FRP 200
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 135 mm.
Table width: 130 mm.
Number of T-channels: 3.
T-channel width: 10 mm.
Distance of the T-slots: 40 mm.
Grinding length: 45 mm.
grinding diameter: 20 - 200 mm.
Grinding-wheel diameter: 150 mm.
Width of the grinding wheel: 10 mm.
Drilling cap. of grind.wheel: 20 mm.
Spindle inclination (A-axis): 0 - 180 °.
Voltage 50 Hz 3x: 400 Volt.
motor speeds: 2700 t/min.
Grinding spindle motor: 0.37 kW.
Machine's weight about: 200 kg.
Length: 1000 mm.
Width: 700 mm.
Height: 1600 mm.
