MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

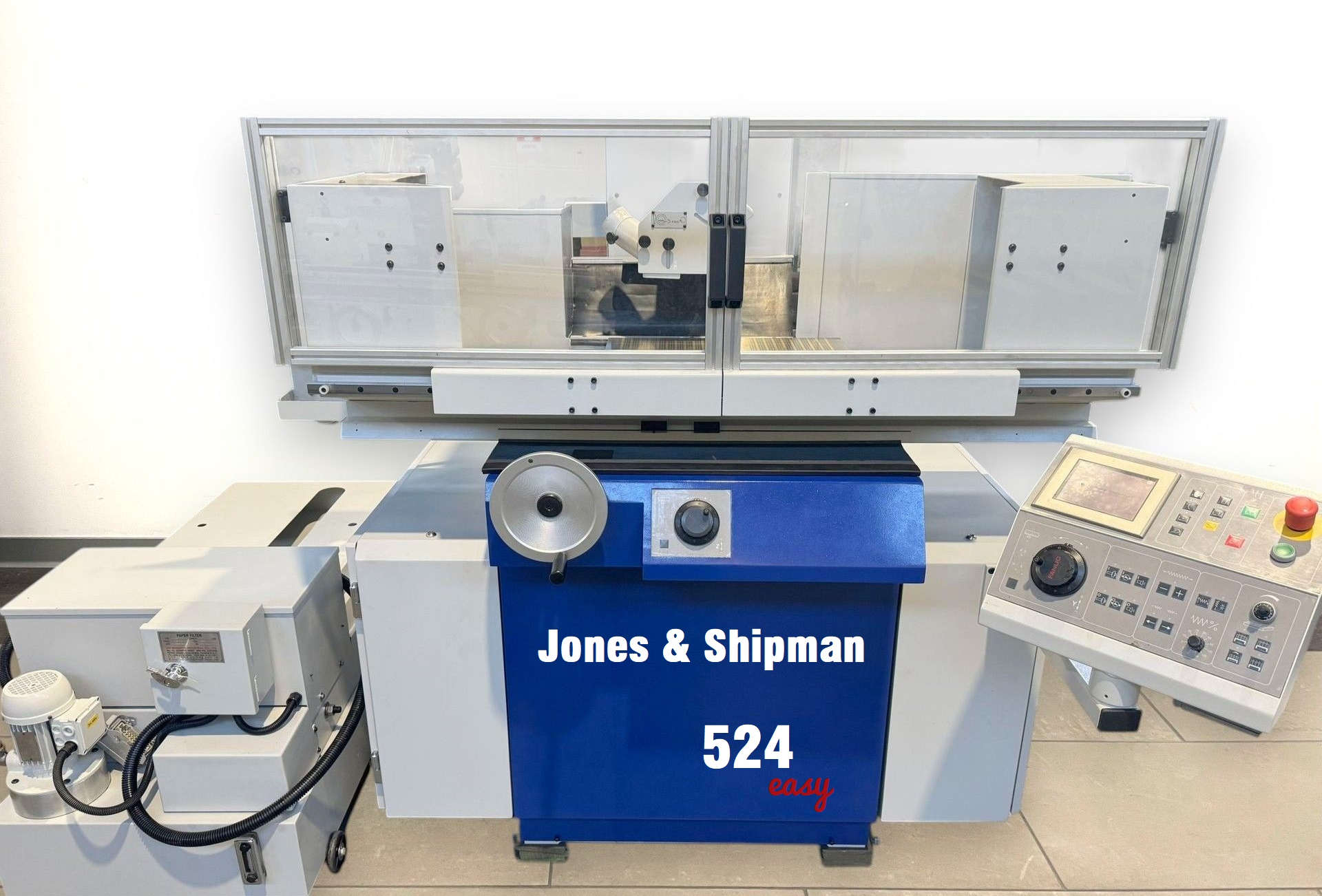

  • 022493 - JONES SHIPMAN 524 easy
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 500 mm.
Table width: 200 mm.
Table load max.: 160 kg.
Longitudinal travel (X-axis): 610 mm.
Cross travel (z-axis): 192 mm.
Vertical travel (Y-axis): 410 mm.
from: 1000 t/min.
up to: 4000 t/min.
Diameter of grinding wheel: 250 mm.
Width of the grinding wheel: 20 mm.
Wheel int. diameter: 76 mm.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 2.2 kW.
Machine's weight about: 1500 kg.
Length: 500 mm.
Width: 200 mm.
Height: 2400 mm.

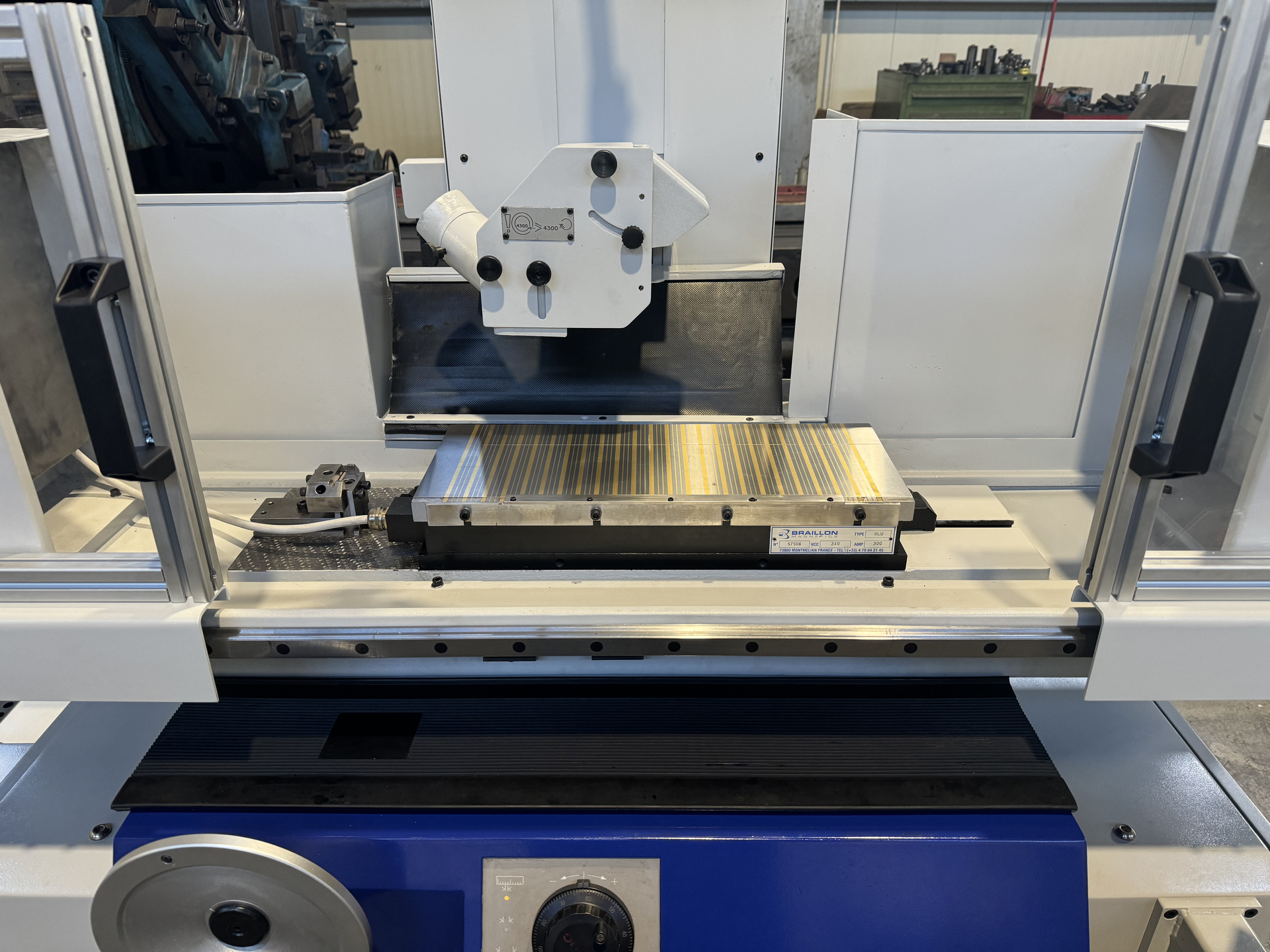

Magnetic plate:: BRAILLON BLU.
