MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
HUAWIN

Model:

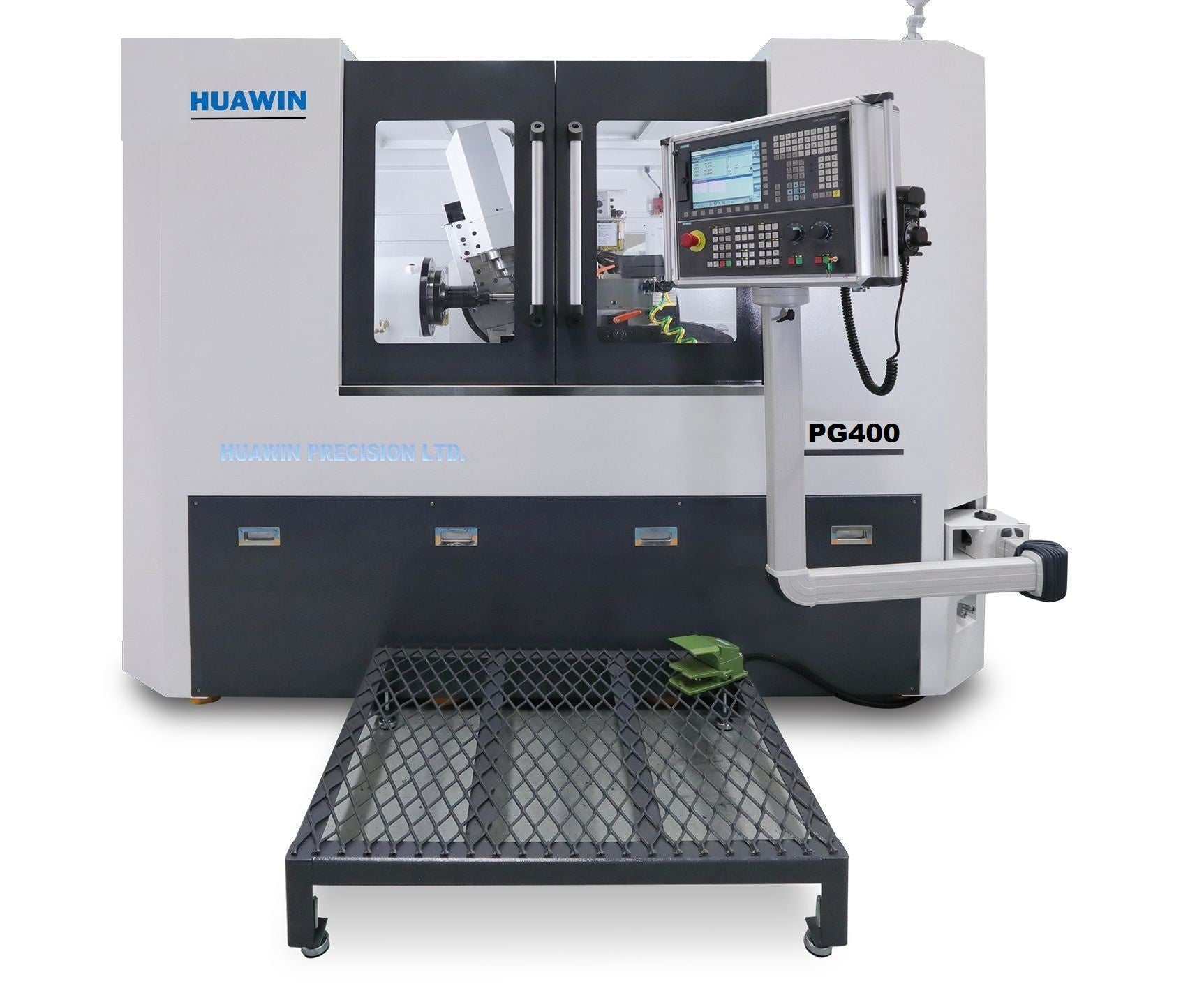

022347 - HUAWIN PG400

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

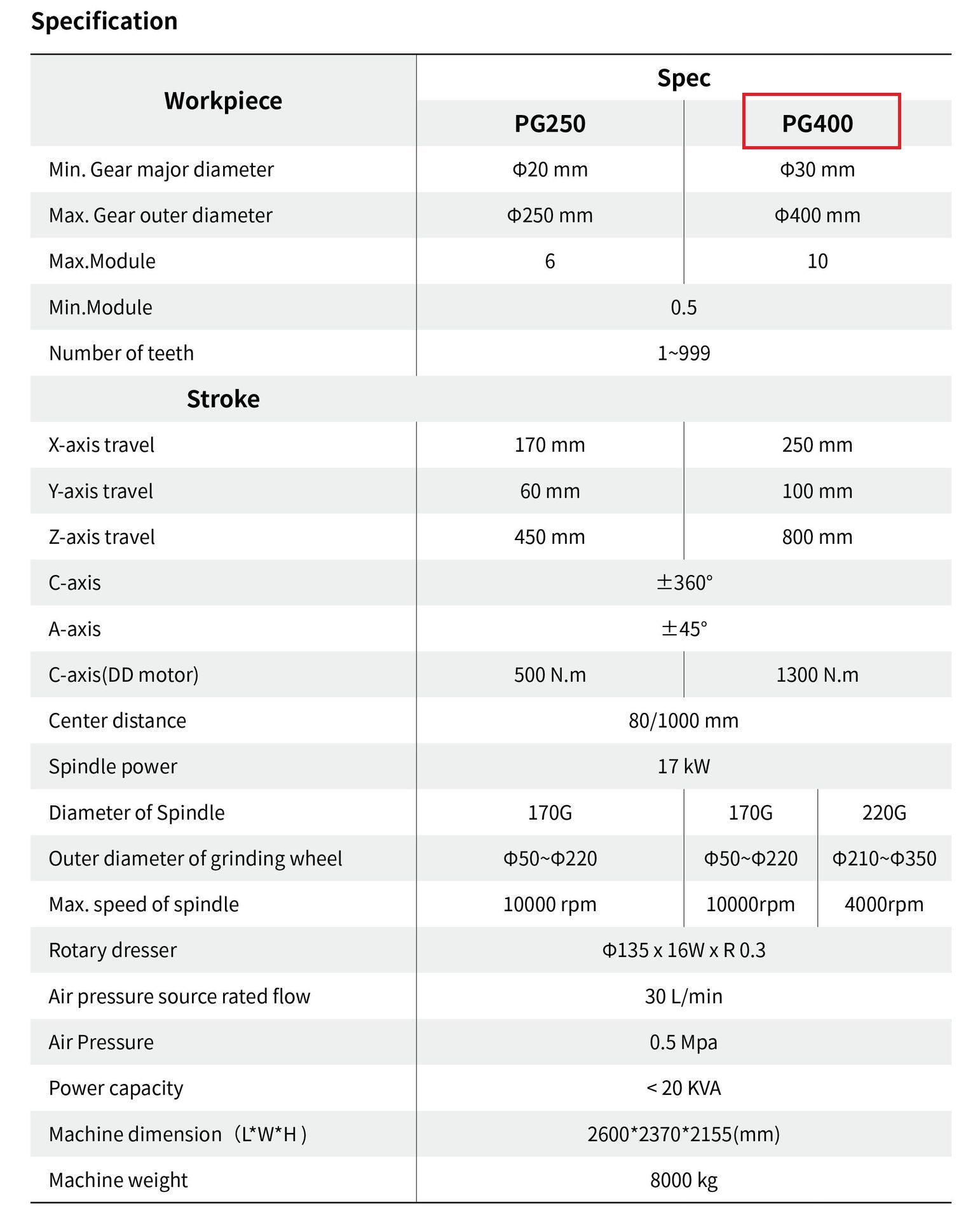

Min. grinding diameter: 30 mm.
Max. grinding diameter: 400 mm.
Min. root diameter: 20.
Min. diametrical pitch: 1.
Max. diametrical pitch: 999.
Max. circular pitch (modul): 10.
Min. circular pitch (modul): 1.
X axis: 250 mm.
Y axis: 100 mm.
Z axis: 800 mm.
C axis: 360 °.
A axis: +/-45 °.
max. speed: 10000 t/min.
Grinding spindle motor: 17 kW.
Total power required: <20 kVA.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 8000 kg.
Length: 2600 mm.
Width: 2370 mm.
Height: 2155 mm.
