MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kellenberger
  • Model:

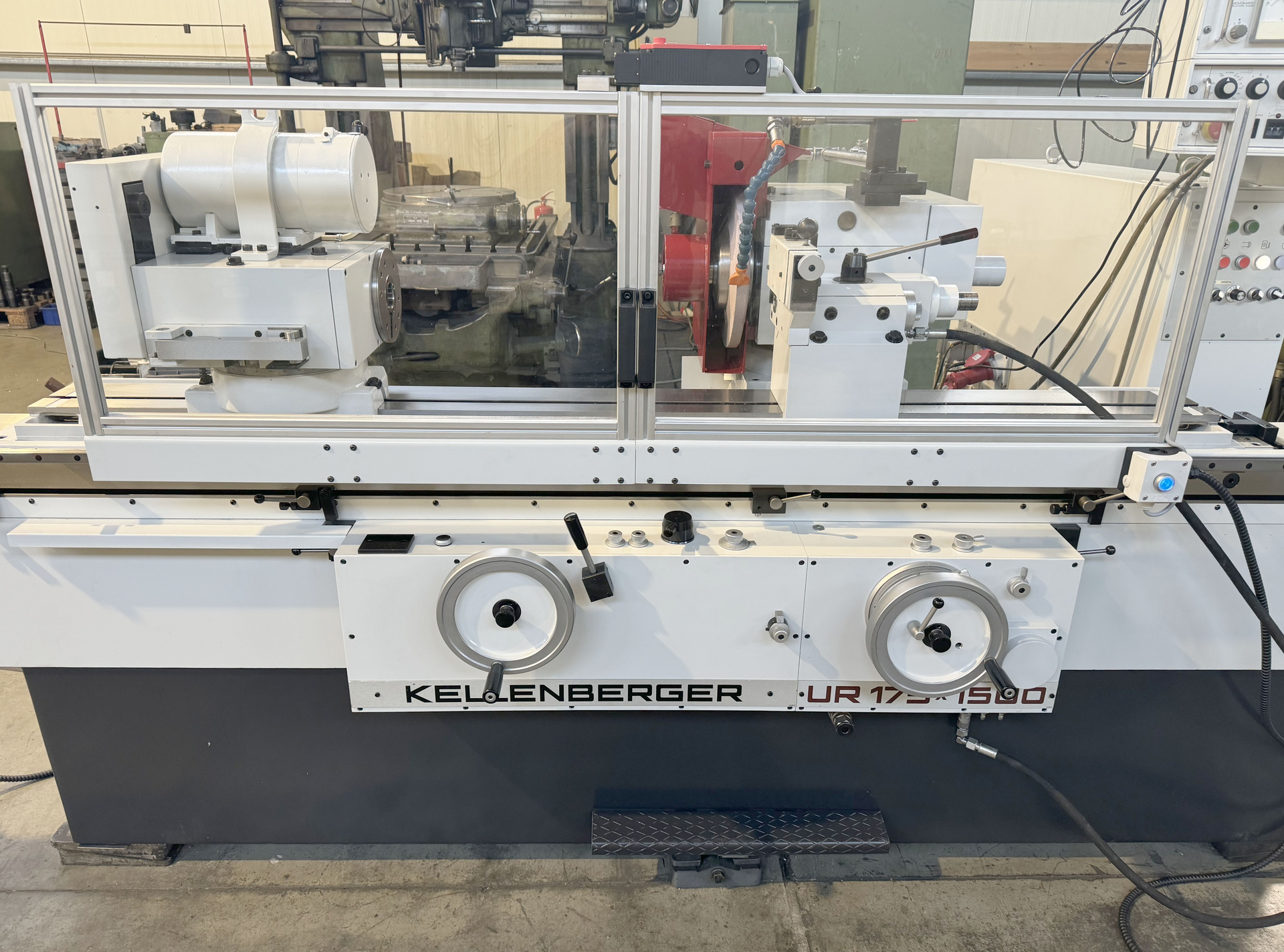

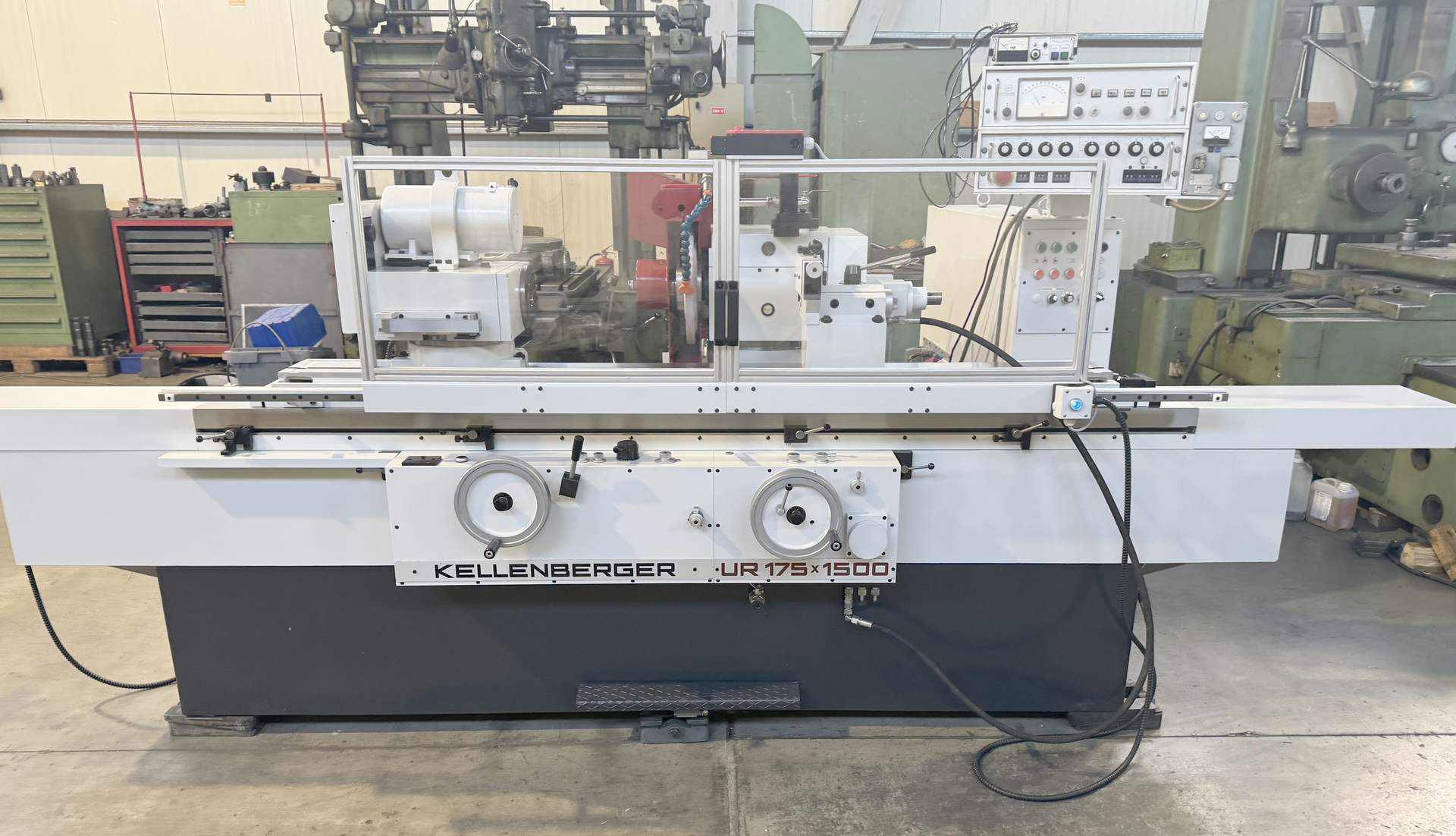

  • 022323 - KELLENBERGER UR 175 x 1500
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 1500 mm.
grinding diameter: 340 mm.
Grinding length: 1500 mm.
Diameter: 400 mm.
Width: 1750 mm.
Bore: 127 mm.
number (steps): 4.
from: 20 t/min.
up to: 6 m/min.
Angular displacement: 270 °.
rotatable: 360 °.
Spindle taper: 3 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: 10 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 4.0 CV.
Machine's weight about: 2200 kg.
Length: 3000 mm.
Height: 1600 mm.
Macnetic chuck diameter: 230 mm.
