MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 022249 - SCHAUBLIN 102 TO
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 375 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.
Inner taper type: 25 W.
number (steps): 12.
from: 45 t/min.
up to: 2800 t/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 0.5 CV.
Machine's weight about: 300 kg.
Length: 2000 mm.
Width: 900 mm.
Height: 1500 mm.

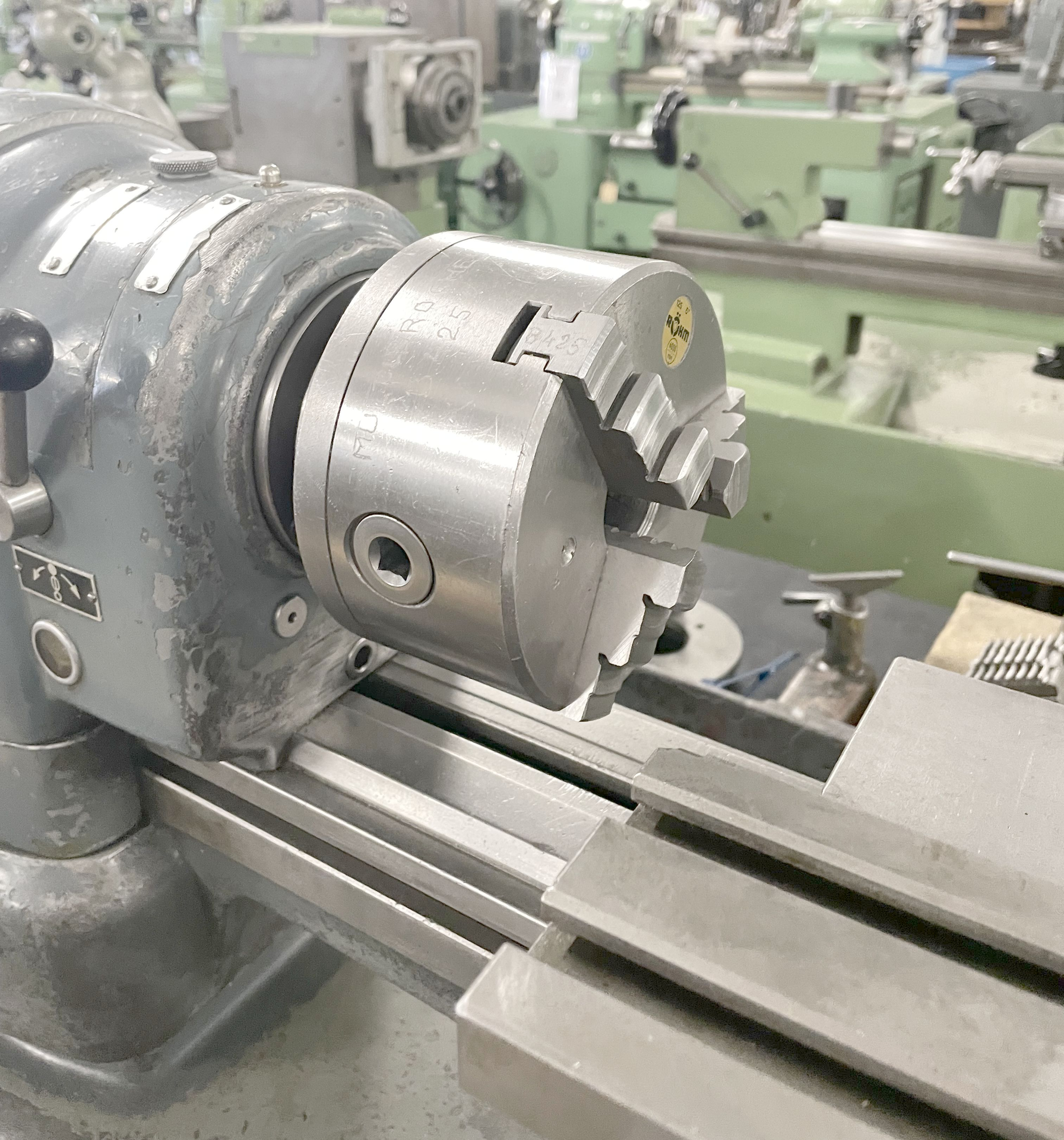

3-jaw chuck diameter: 125 mm.
