MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

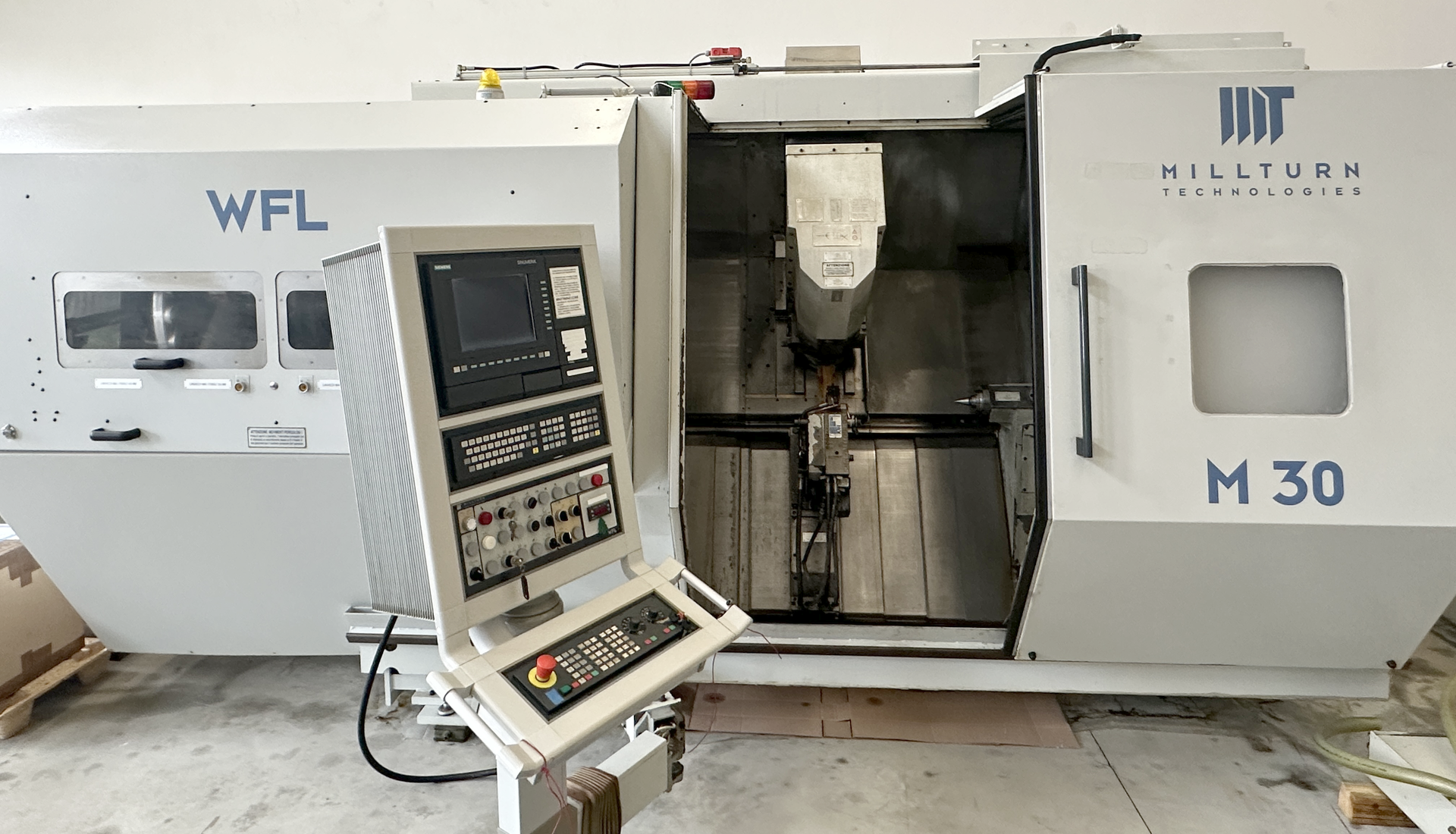

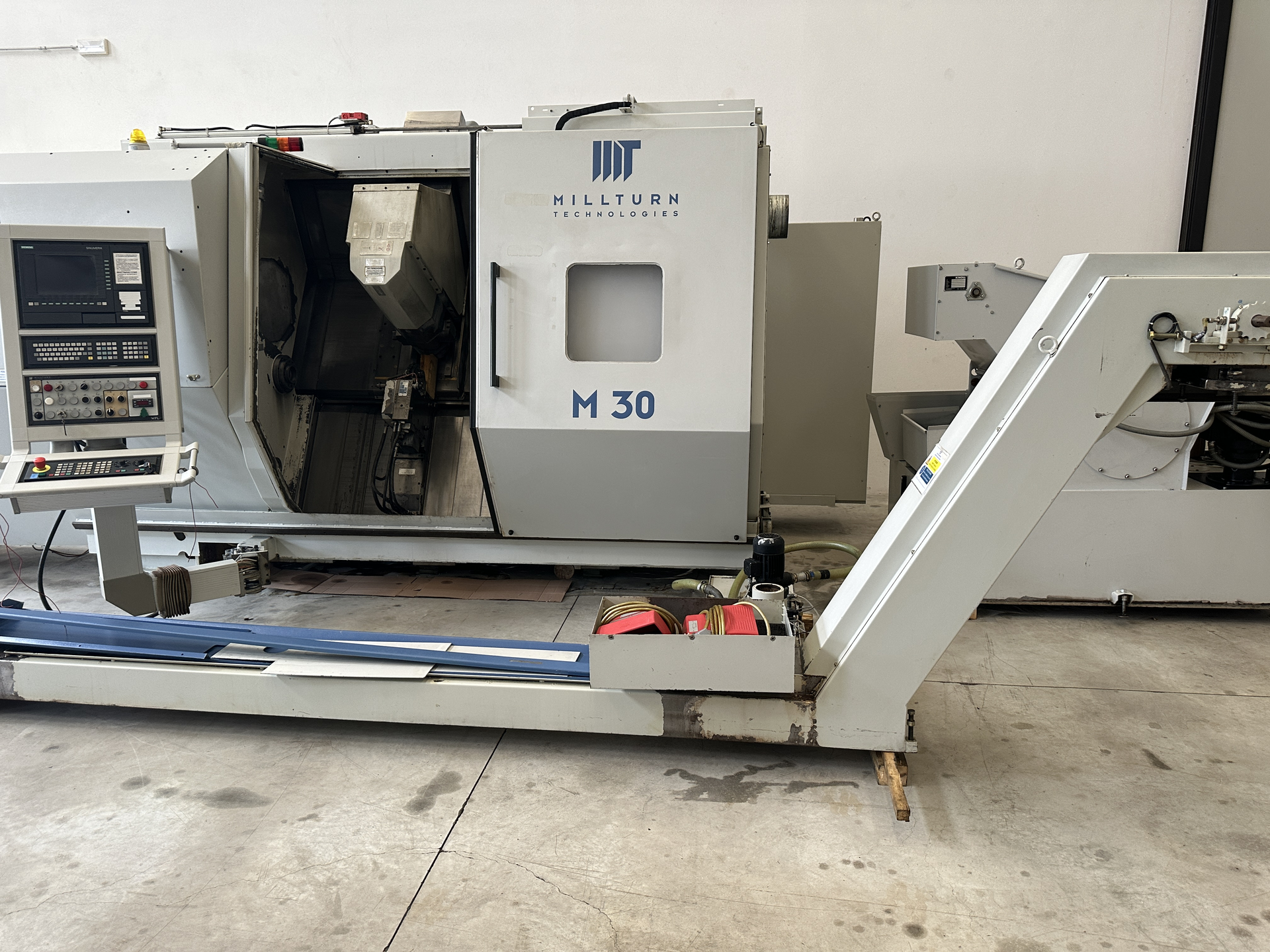

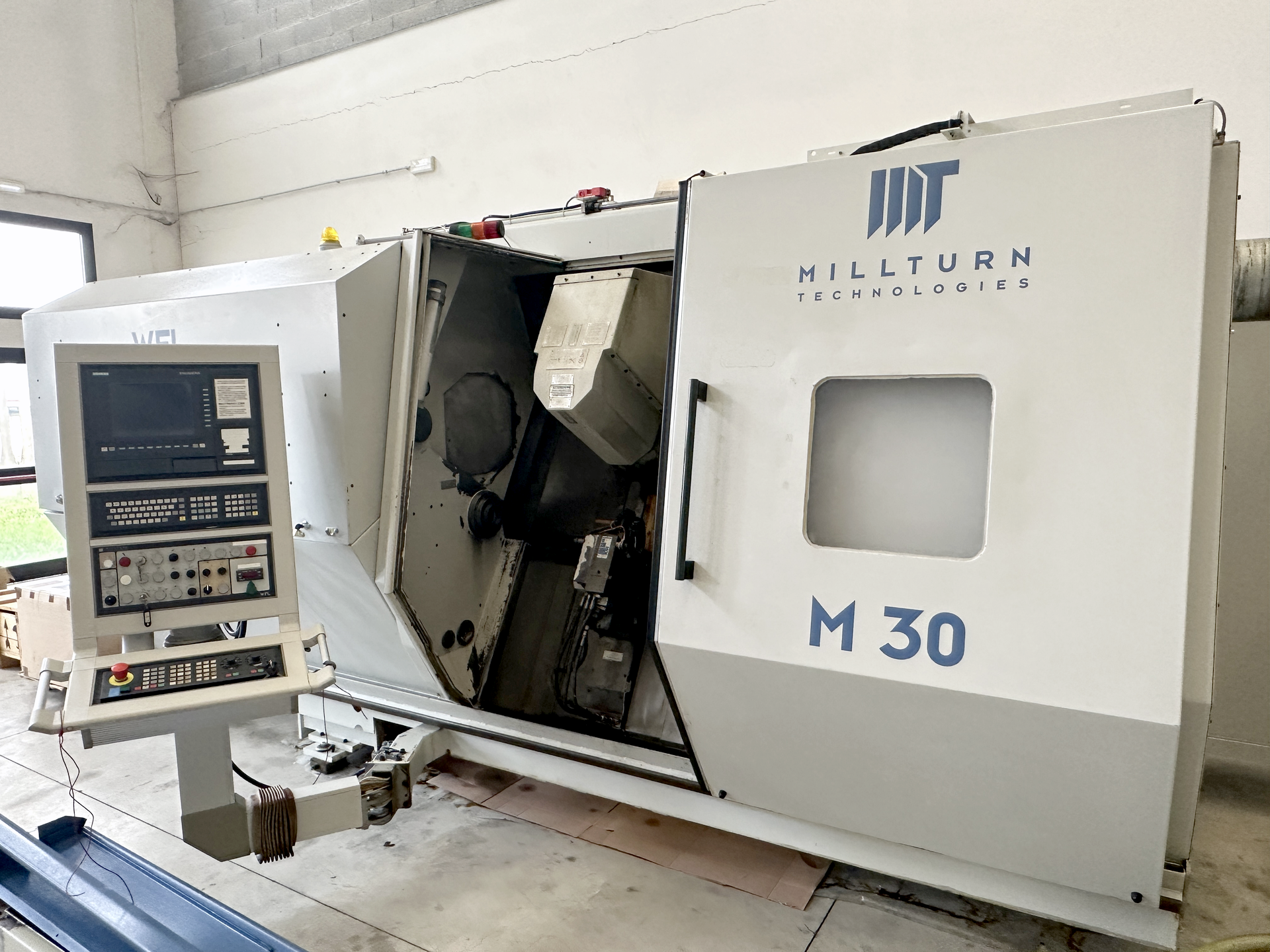

  • 022237 - WFL Millturn M30
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 1.
Number of milling heads: 1.
Workpiece weight on centres max.: 600 kg.
Swing over cross-slide: 300 mm.
Swing over bed: 390 mm.
Spindle hole: 77 mm.
Maximum turning length: 1000 mm.
Max. turning diameter: 300 mm.
Longitudinal travel (Z-axis): 1120 mm.
Transversal strocke (X axis): 420 mm.
Transversal travel (y-axis): 160 (+/-80) mm.
Rapid traverse X: 25 m/min.
Rapid traverse Y: 10 m/min.
Rapid traverse Z: 25 m/min.

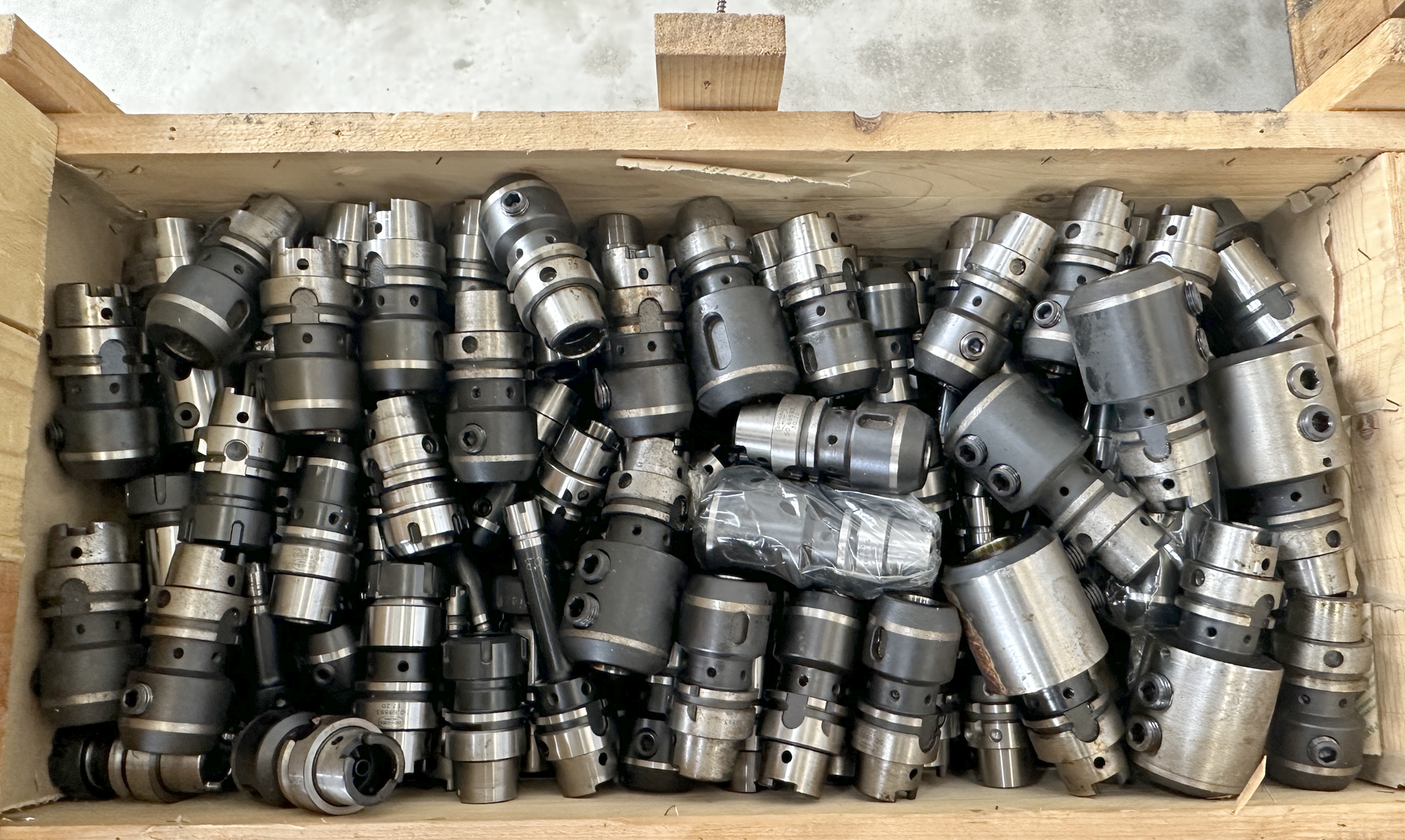

Spindle nose: HSK-A: 50.

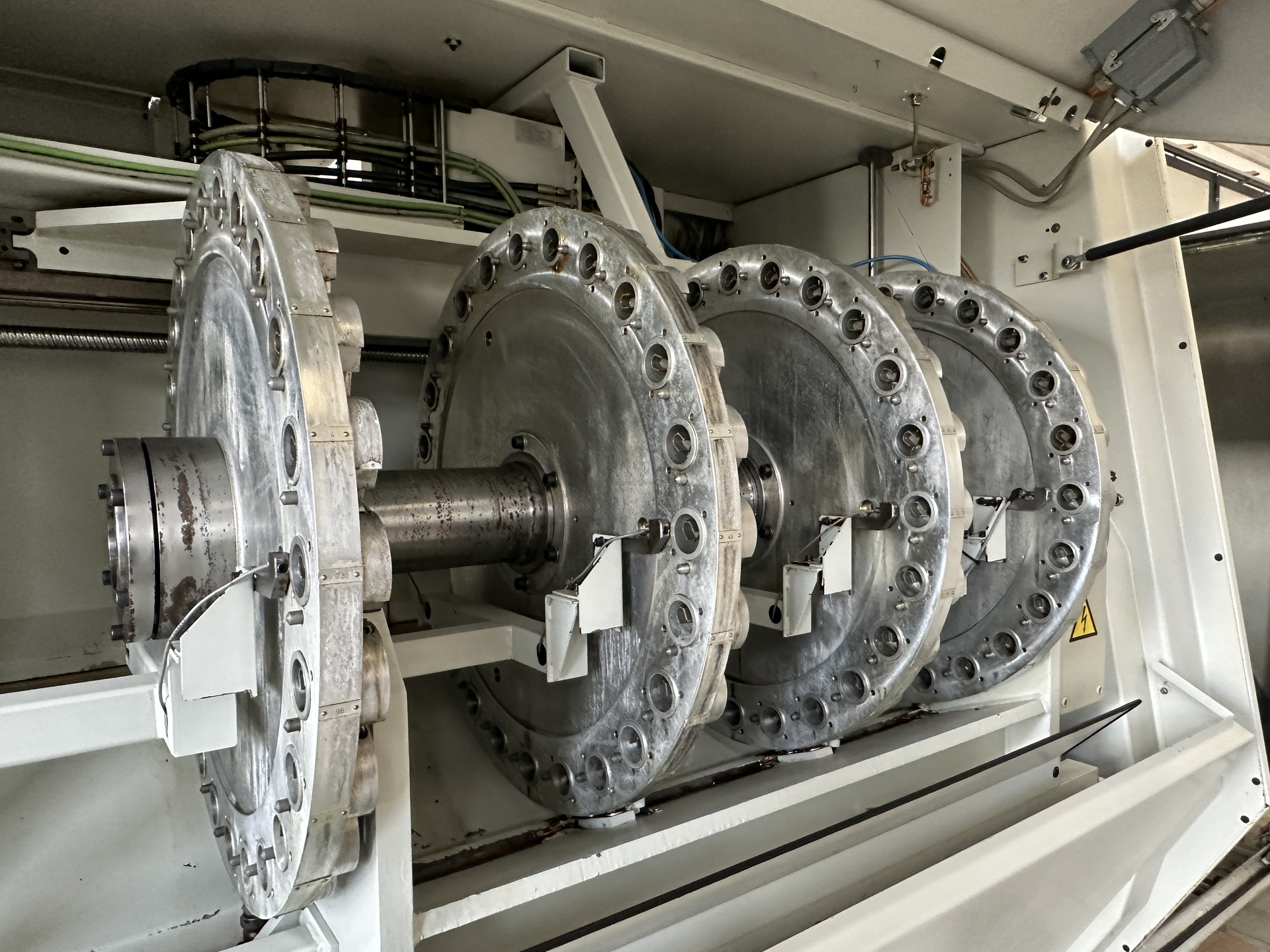

Tool magazine stationary, number of tools: 96.
Tool diameter max.: 70 mm.
Diameter with free adjacent pockets: 90 mm.
Tool lenght: 250 mm.
Max. tool-weight: 4 kg.
from: 10 t/min.
up to: 5000 t/min.
Spindle power: 22 / 37 kW.
Torque max.: 940 Nm.

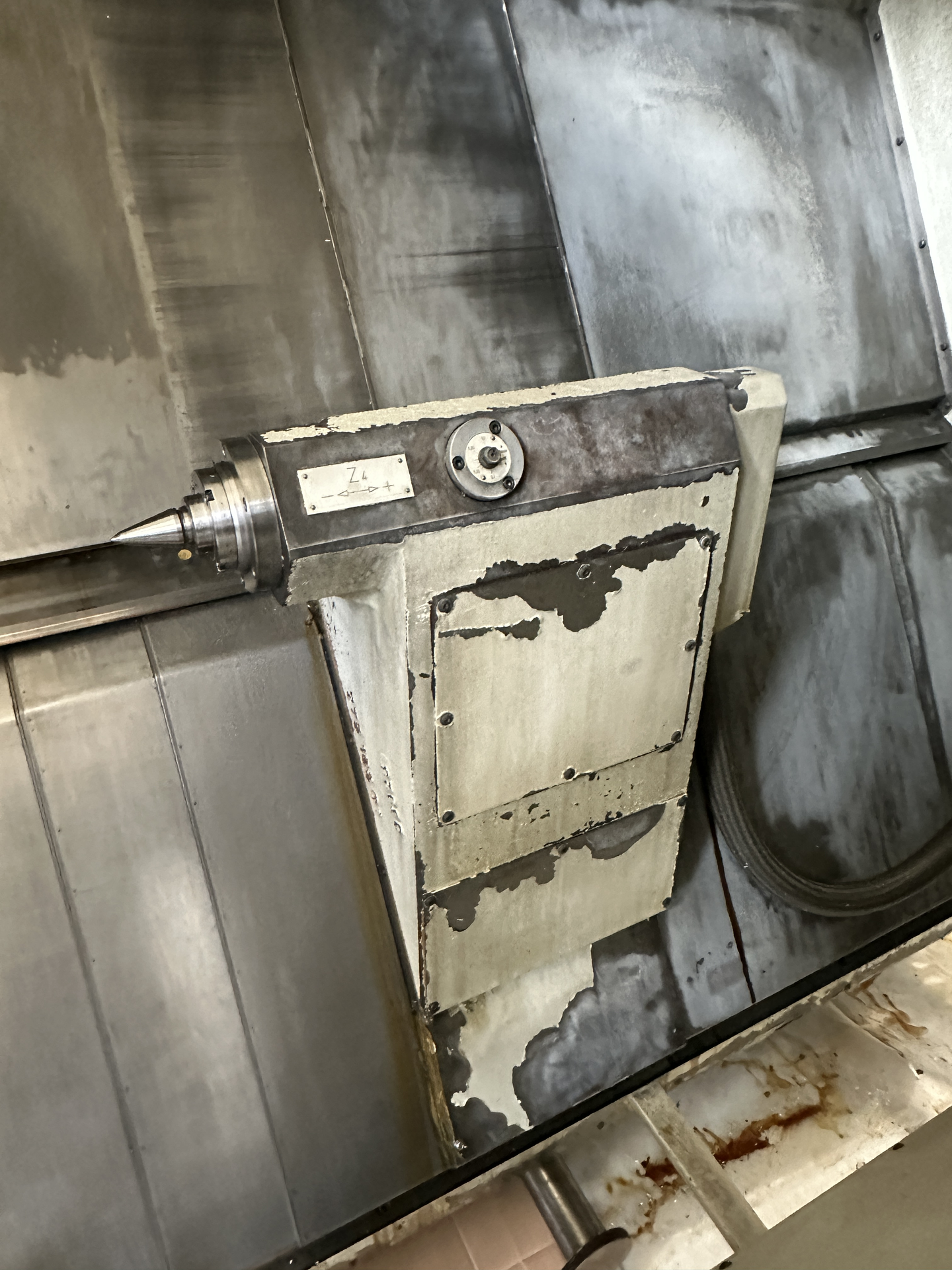

Taper in tailstock:: SK 30.
Rapid traverse:: 10 m/min.
Pressure: 12 kN.
Milling cutter speeds: 4000 t/min.
Drive milling spindle: 9 kW.
B axis swivelling range: +/- 90 °.
B axis resolution max.: °.
Machine's weight about: 11000 kg.
Length: 5300 mm.
Width: 3400 mm.
Height: 2700 mm.

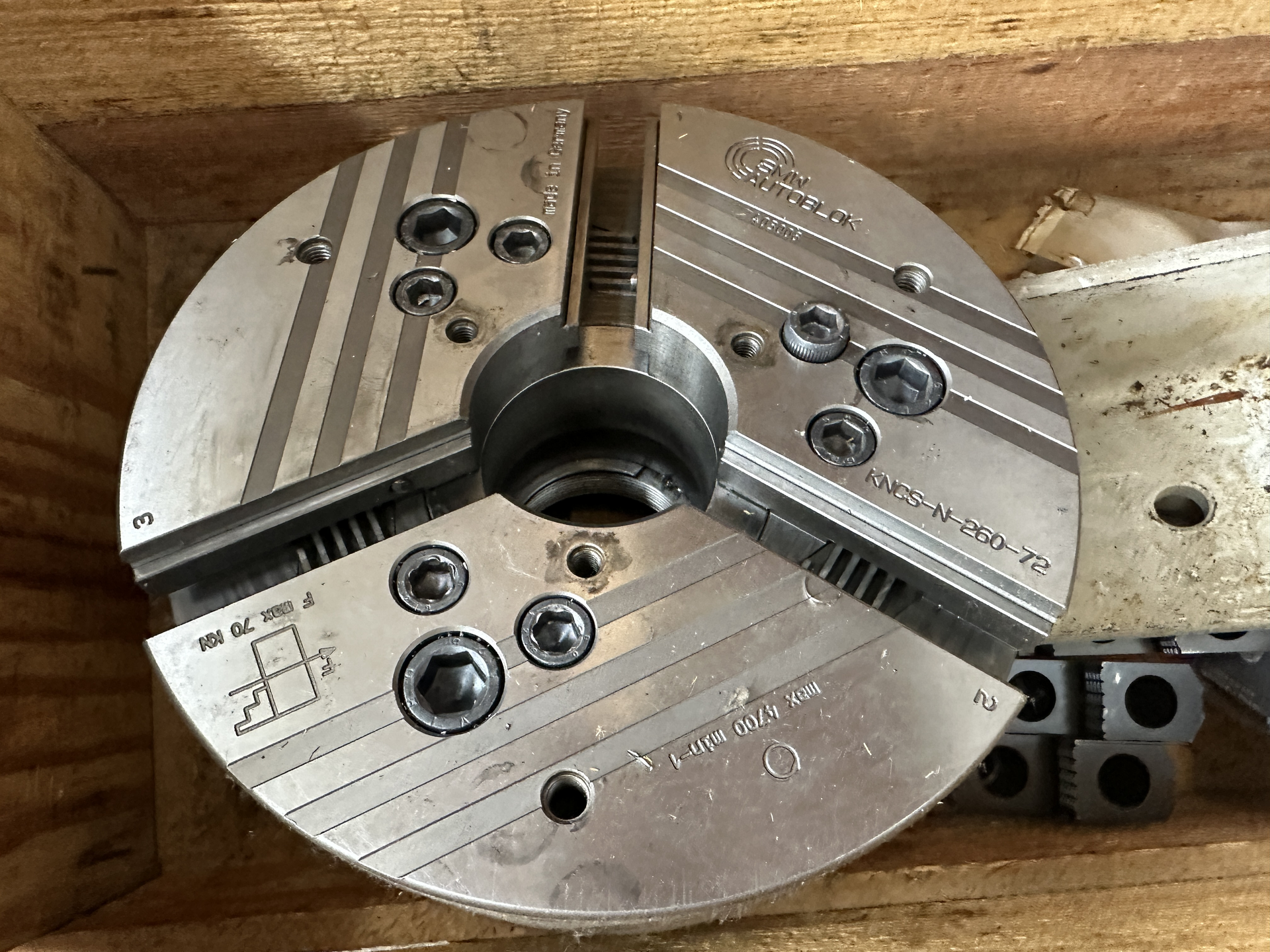

3-jaw chuck diameter: 250 mm.
Clamping range: 20 - 165 mm.
Coolant through spindle (cts): 80 bar.
